PTZOPTICS YoloBox Ultra Netgear Sports Bundle

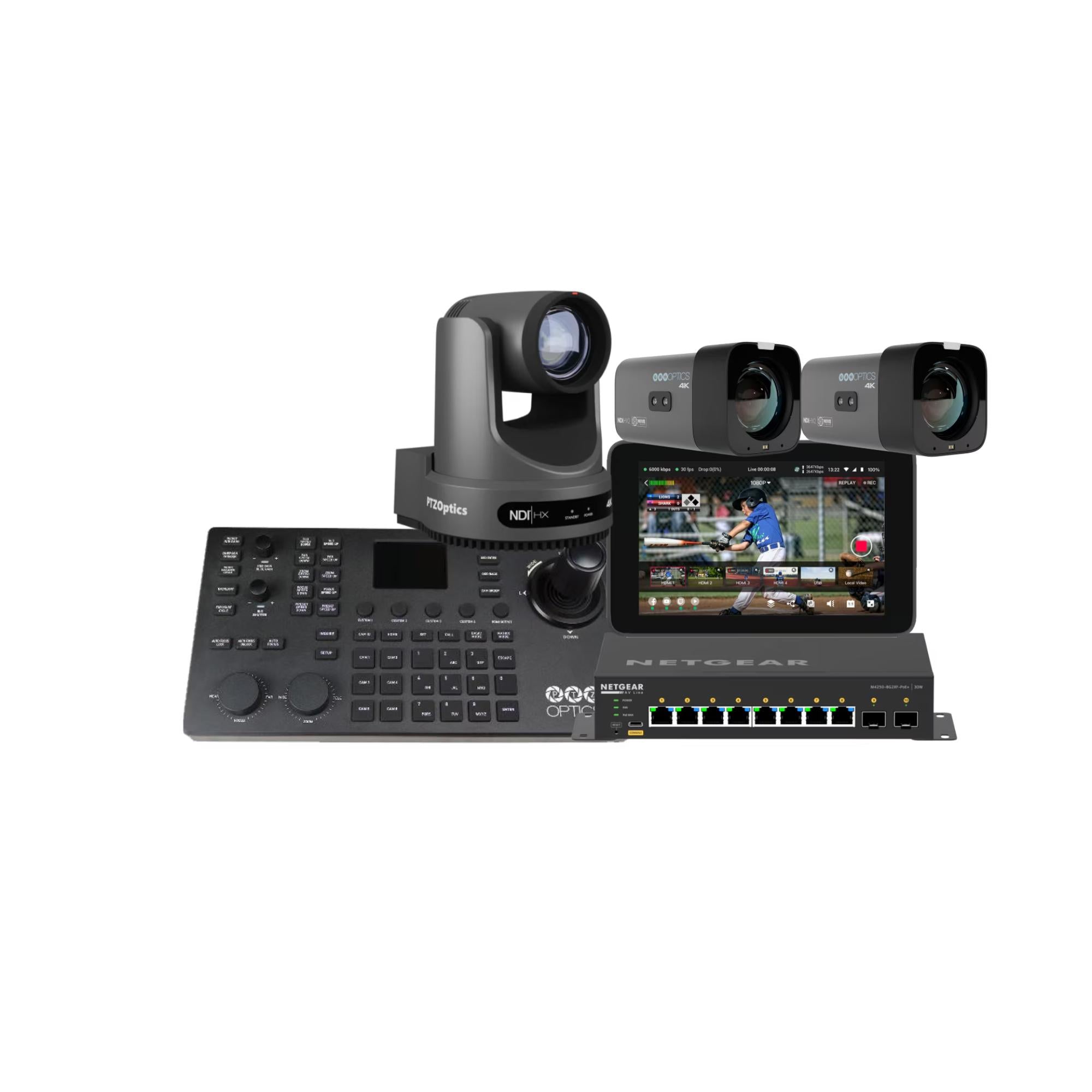

PTZOPTICS YoloBox Ultra Netgear Sports Bundle is a practical live production package for sports, school events, houses of worship, and multi-camera streaming workflows. The bundle brings together PTZOptics cameras, a YoloBox Ultra production unit, a PTZOptics SuperJoy controller, and a NETGEAR M4250 managed switch, giving crews a cleaner way to build a compact camera-control and streaming setup.

The included camera package is built around 1 x PTZOptics Move 4K 12x Gray and 2 x PTZOptics Studio 4K 12x cameras. For a sports workflow, that means one system can cover multiple angles while still keeping PTZ control, video routing, and network switching organized in one kit.

Highlights

• Complete sports production bundle with cameras, controller, production unit, and managed switch
• 1 x PTZOptics Move 4K 12x Gray
• 2 x PTZOptics Studio 4K 12x
• 1 x PTZOptics SuperJoy PTZ controller
• 1 x YoloLiv YoloBox Ultra
• 1 x NETGEAR 10PT M4250-8G2XF-POE+ Managed Switch
• Move 4K support: 4K60, 1080p, and 720p production formats
• Camera control options: pan, tilt, zoom, tracking, web UI, joystick, and IP joystick workflows

Quick Specs & Uses

• Bundle type: Multi-camera sports streaming and production bundle
• Main camera: PTZOptics Move 4K 12x Gray
• Additional cameras: 2 x PTZOptics Studio 4K 12x
• PTZ controller: PTZOptics SuperJoy
• Production unit: YoloLiv YoloBox Ultra
• Network switch: NETGEAR M4250-8G2XF-POE+ Managed Switch
• Move 4K outputs: SDI, HDMI, USB, and IP
• Move 4K features: auto-tracking, PoE+, built-in tally light, SRT support, 3D noise reduction, and Blackmagic switcher integration

Why It Helps

For sports coverage, the biggest challenge is usually not just the camera count. It is keeping control, switching, cabling, and signal flow manageable during a live event. This bundle gives the operator a practical foundation: PTZ cameras for flexible angles, SuperJoy for direct camera control, YoloBox Ultra for production handling, and a NETGEAR AV-focused managed switch for the network side.

The PTZOptics Move 4K adds value for venues that need smart camera movement. Its built-in auto-tracking can reduce the need for a dedicated camera operator, while still giving the team manual control when the production calls for it.

System Characteristics

• PTZOptics Move 4K supports 4K at 60fps
• Built-in auto-tracking for intelligent camera movement
• 12x optical zoom on the included Move 4K model
• SDI, HDMI, USB, and IP output on Move 4K
• PoE+ capability for cleaner camera deployment
• Built-in tally light for production awareness
• SuperJoy supports up to 28 cameras total
• NETGEAR switch includes 8 PoE+ ports with a 220W PoE budget

PTZOptics Studio 4K 12X Camera Notes

• Image sensor: 1/2.8 inch CMOS
• Effective pixels: 8MP, 8.4M effective pixels
• Digital zoom: 16x
• HDMI resolution support: up to 3840x2160p60
• SDI resolution support: up to 1920x1080p60
• Optical lens: f = 4.1mm to 49.2mm, F1.8 to F2.68
• Horizontal field of view: 6.9° to 72.5°
• Vertical field of view: 3.9° to 44.8°
• Presets: 255 presets with 0.1° preset accuracy
• Material: Aluminum and plastic
• Dimensions: 145 mm L x 76 mm W x 78.5 mm H
• Weight: 1.5 lb / 0.68 kg

PTZOptics SuperJoy Controller Notes

• Connections: RS-232, RS-485, RS-422, RJ-45
• Control protocols: VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, and NDI
• Maximum cameras: 28 cameras total
• Power: 6W / 12VDC / PoE 802.3af
• Weight: 3.75 lb / 1.70 kg
• Dimensions: 13.94 W x 7.05 D x 3.98 H inches

YoloBox Ultra Notes

• Height: 271 mm
• Width: 140 mm
• Length: 219 mm
• Weight: approximately 981 g
• HDMI IN 1-4: Video input
• HDMI OUT: Video output to monitor or computer for Zoom/Skype meetings
• Ethernet port: Connect to internet by Ethernet cable
• USB Type-A 3.0: Video input with webcam, portable storage device, and wireless USB dongle support
• USB Type-C: Charging only

NETGEAR M4250-8G2XF-POE+ Notes

• Primary port speed: 1 Gigabit
• Number of ports: 10 total, including 8 x 1G PoE+ and 2 x SFP+
• PoE ports / budget: 8 PoE+ ports, 220W budget
• IGMP support: Enhanced NETGEAR IGMP Plus
• Jumbo frame support: Yes, up to 12kb
• Acoustics: Fanless or 3dB at 25°C
• Dimensions: 210 x 140 x 40 mm
• Weight: 967 g / 2.13 lb

What’s In The Bundle

• 1 x PTZOptics Move 4K 12x Gray
• 2 x PTZOptics Studio 4K 12x
• 1 x PTZOptics SuperJoy
• 1 x YoloLiv YoloBox Ultra
• 1 x NETGEAR 10PT M4250-8G2XF-POE+ Managed Switch
