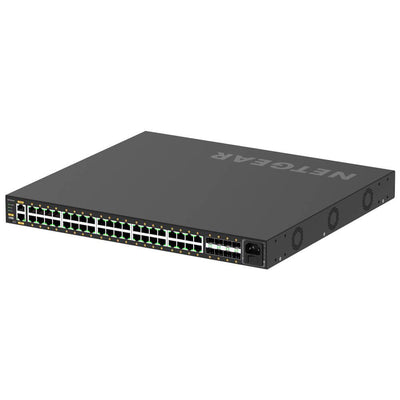

The Netgear AV Line M4250 GSM4248P 40x Port Gigabit PoE+ Managed Switch is built from the ground up for the growing AV over IP market, combining years of networking expertise in AV with M4300 and M4500 series with best practices from leading experts in the professional AV market. AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of M4250 targets the widespread 1Gbps codecs. PoE+, Ultra90 PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video, the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante, etc. as well as audio/video/control mixed profiles. When multiple switches are used, NETGEAR IGMP PlusTM brings automation for you to just connect them together, or with M4300 and M4500 switches.

Extended AV features:

Dedicated AV web-based GUI
interface for more specific AV installations
Color-based AV profiles can be applied to the different ports
Dante, Q-SYS, AES67, and AVB audio profiles
AVB requires a license (sold separately)
NVX, SVSI, Q-SYS, NDI, and Dante video profiles
Audio / video / control mixed profiles
Automatic switch interconnect with NETGEAR Auto-Trunk, Auto-LAG, and IGMP Plus
Common Layer 2 and Layer 3 switching engine across all M4250 models
Built-in IT web GUI, console, telnet, and SSH consistent with other
NETGEAR M4300 and M4500 series Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

Audio Video Bridging (AVB) services

AVB is one of the many features designed into the M4250 product line
AVB is an industry-standard for transporting content over a network
AVB is used most often when very low latency is required such as in live performances when lip sync is critical
All of the AV Line M4250 switches can be optionally licensed for AVB support

Other IT use cases

Standard or recessed mounting with all ports in the back, or all ports in the front
Fully featured L2/L3/L4 platform for midsize Enterprise campus networks, IoT and IPTV

Industry-standard management

Industry-standard command-line interface (CLI), main NETGEAR IT web interface (GUI), SNMP, sFlow and RSPAN
Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass configuration support

Netgear M4250

40-port 10/100/1000BASE-T (RJ45) PoE+ with 480W PoE budget
8-port 1000BASE-X (SFP)
96 Gbps non-blocking fabric across 48 ports
Out-of-band 1G Ethernet management port
USB-C and RJ45 RS232 console ports and USB-A storage port

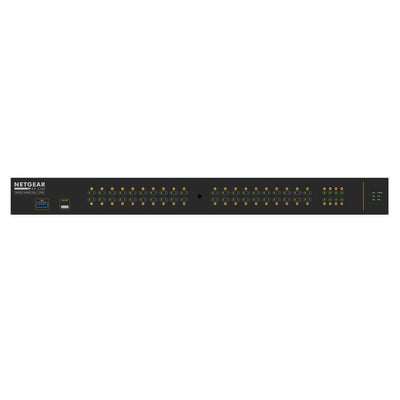

Front black display panel and all ports in the back
Possible reversed mounting with ports in the front
Rack-mounting standard brackets
Longer brackets for recessed mounting (2 inches / 5 cm)
Threaded hole in front (1xM10) for clamps
Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
Selectable fan modes for fanless, quiet, or cool operation
