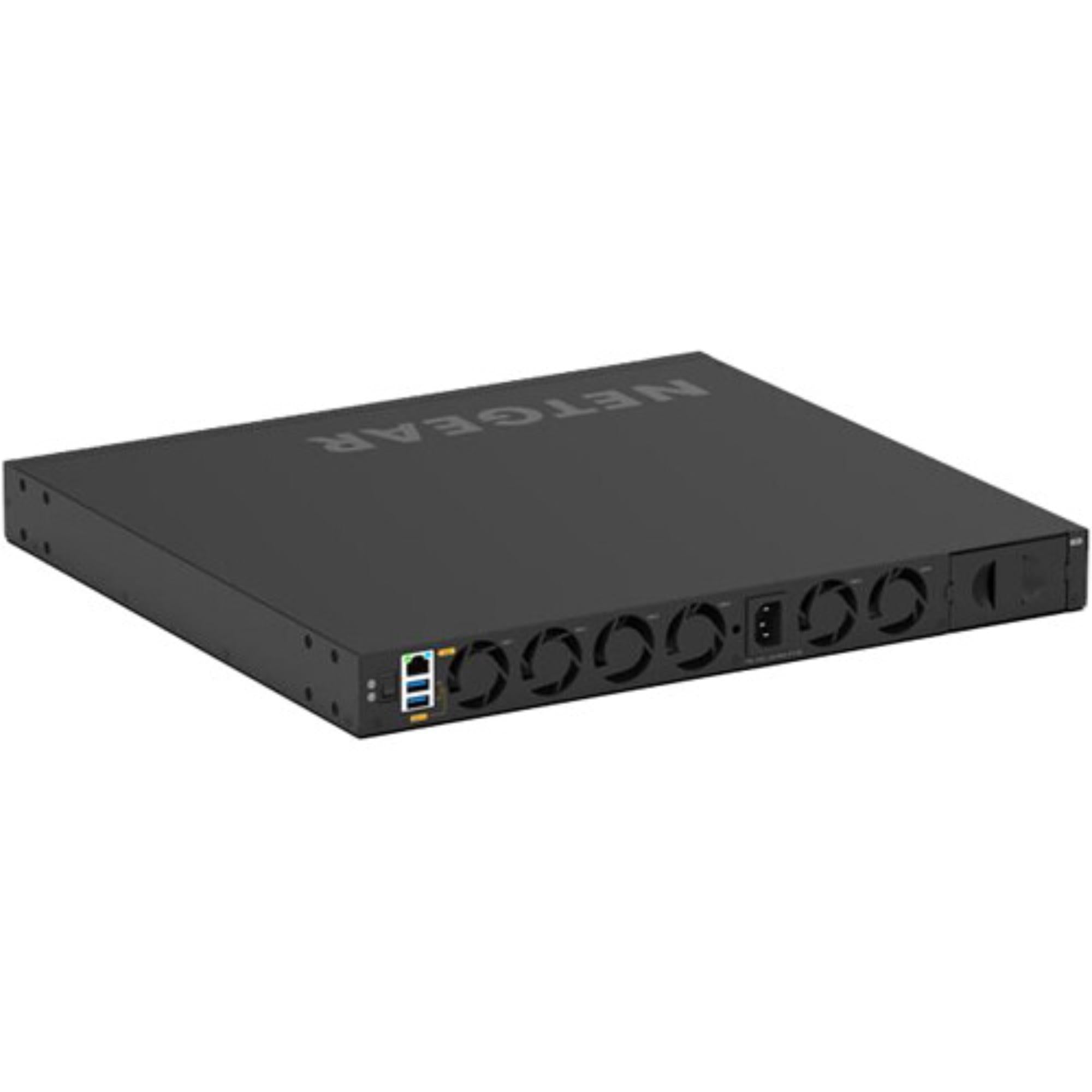

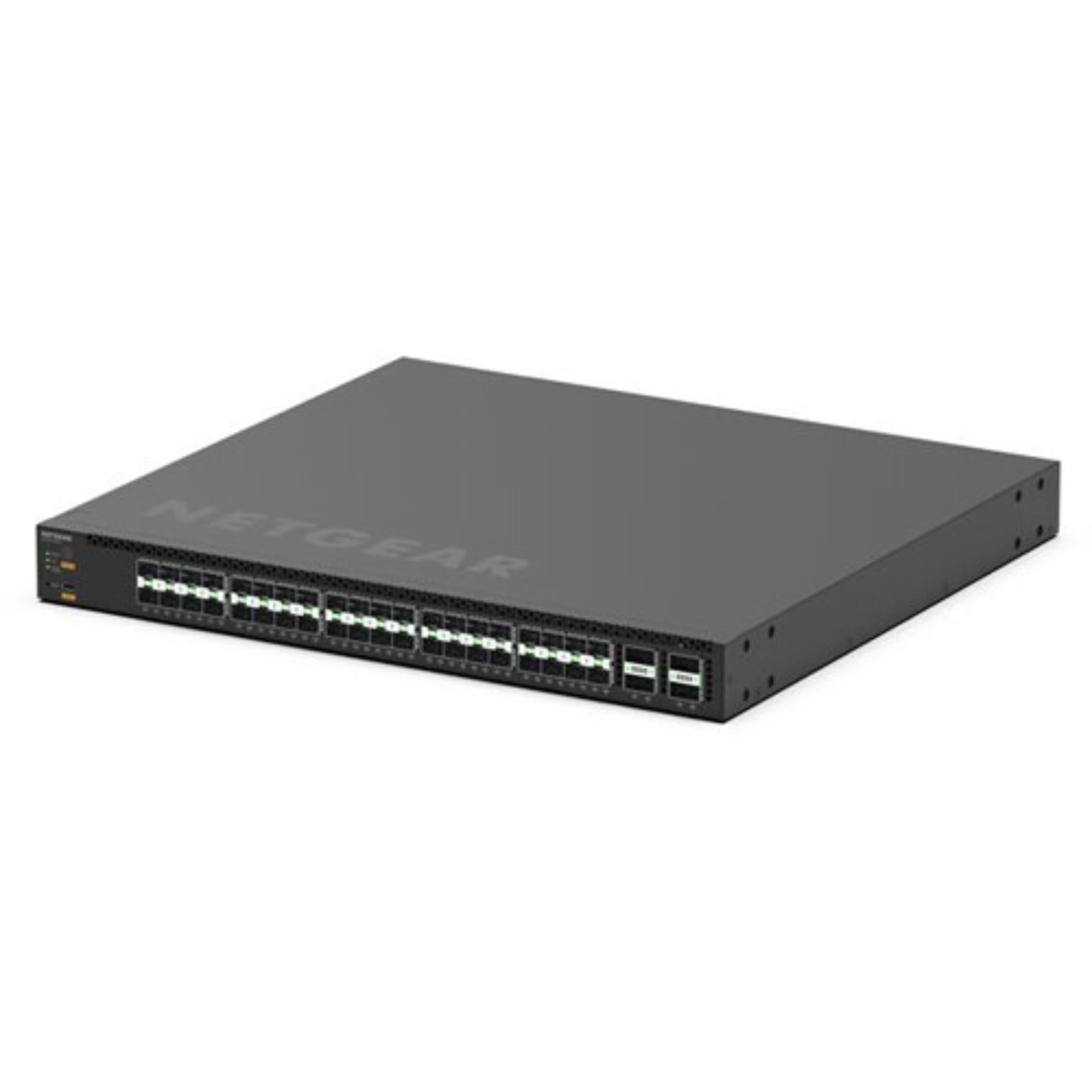

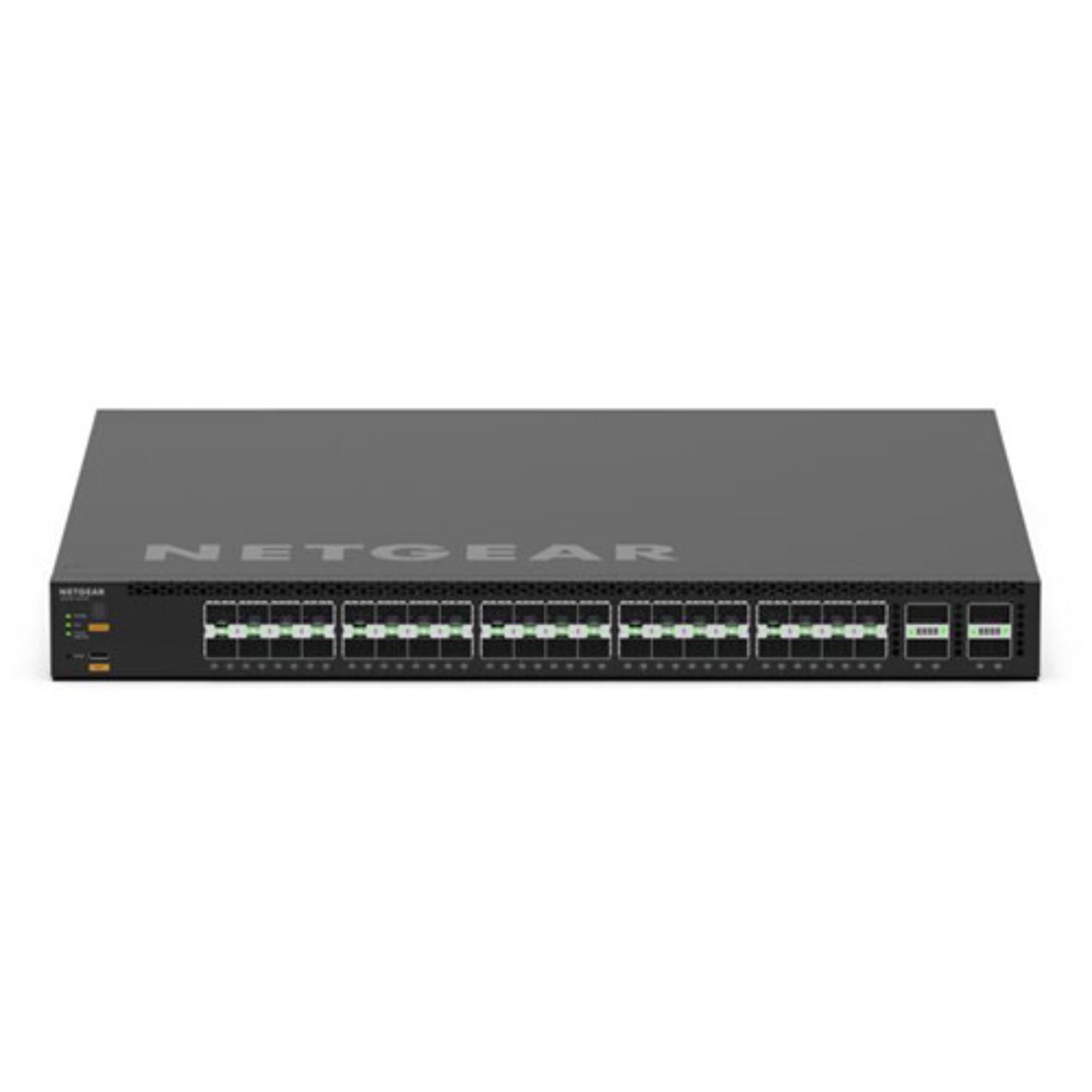

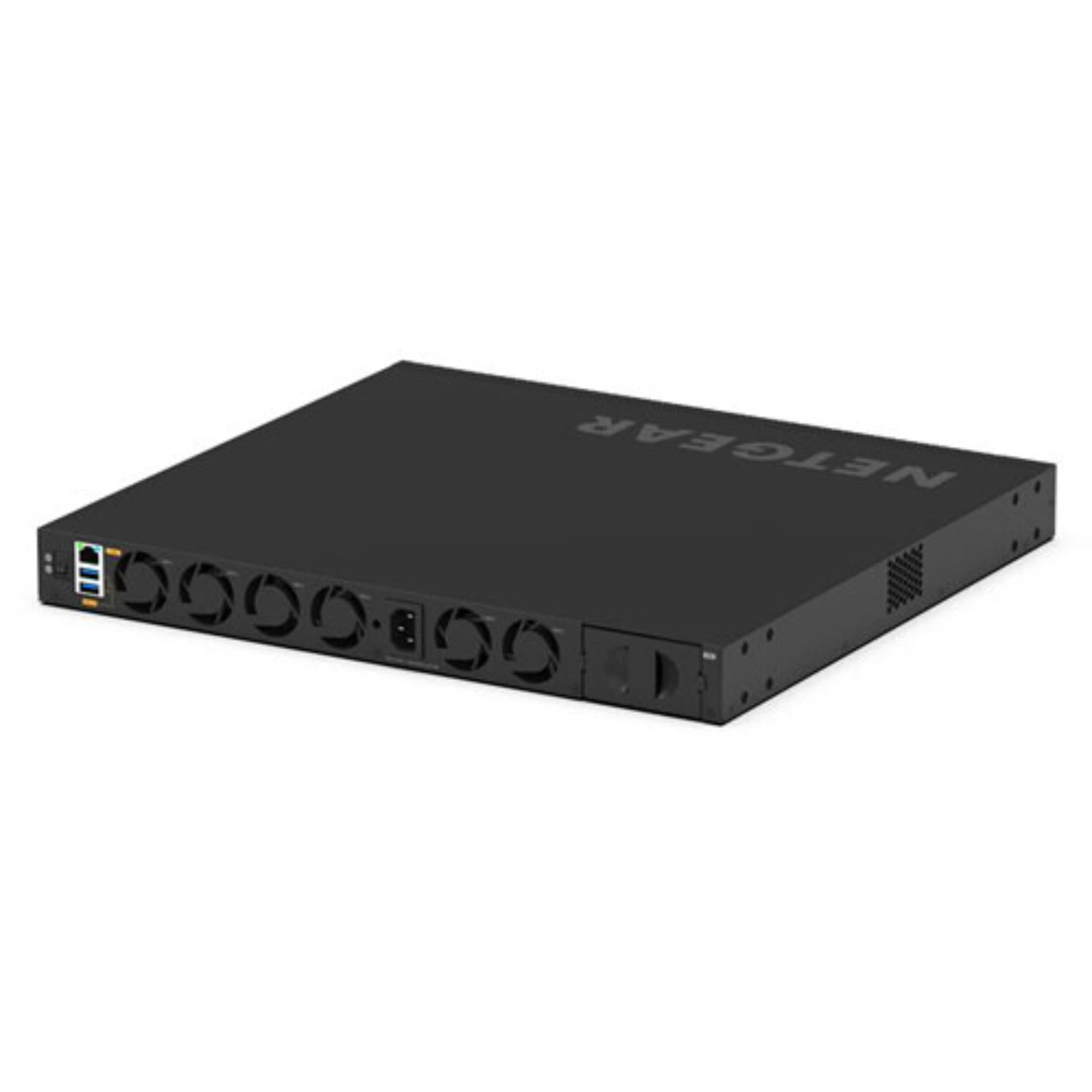

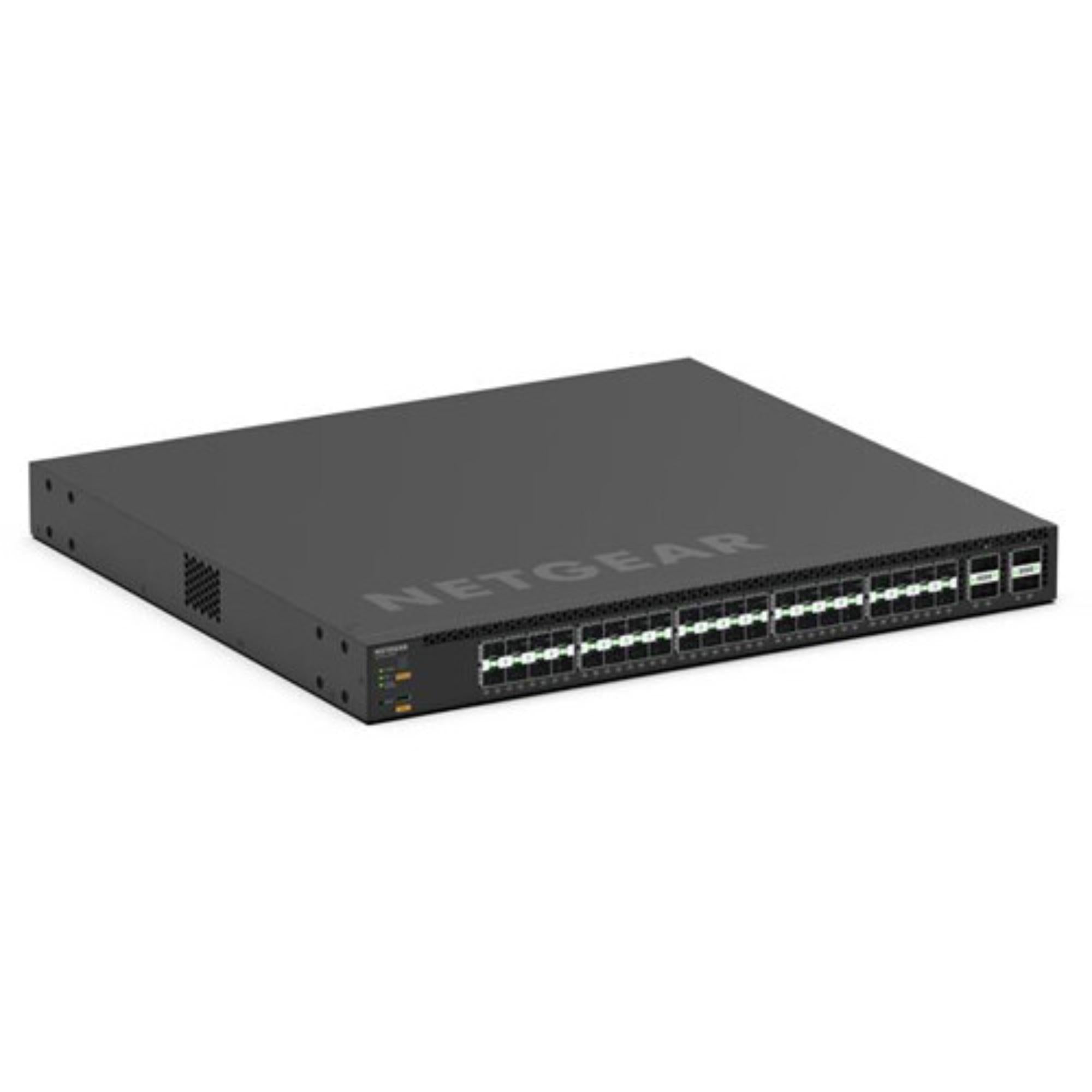

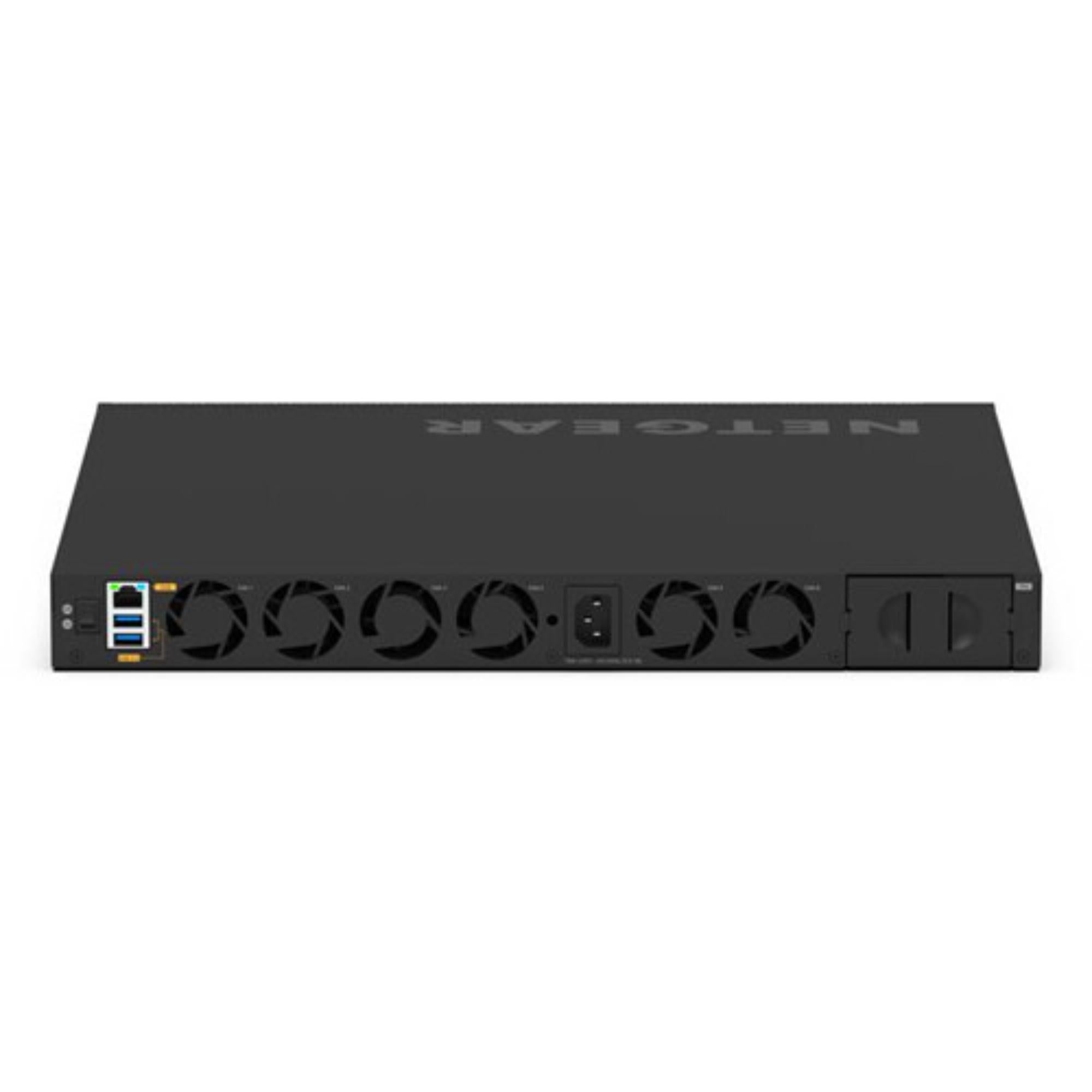

NETGEAR AV Line M4350-40F4C 40-Port 10G SFP+ Managed Switch

NETGEAR AV Line M4350-40F4C 40-Port 10G SFP+ Managed Switch is built for AV and broadcast network environments where fiber density, uplink capacity, and predictable traffic handling matter more than copper access. Based on the source details, this switch provides 45 total connections, including 40 x 10GbE SFP+ ports, 4 x 100GbE QSFP28 uplinks, and 1 x RJ45 Gigabit Ethernet, making it a strong fit for fiber-heavy transport, aggregation, and backbone roles.

Highlights

• 40 x 10GbE SFP+ ports for dense optical connectivity
• 4 x 100GbE QSFP28 uplinks for backbone and aggregation bandwidth
• Layer 3 support with IGMP Snooping and IPv4/IPv6
• 1.6 Tb/s switching bandwidth with 1190.4 Mpps forwarding rate
• Stackable 1U design for scalable rack deployments

Quick Specs & Uses

• Networking I/O: 45 total connections supporting up to 100 GbE
• Port layout: 40 x SFP+ 10 GbE, 4 x QSFP28 100 GbE, 1 x RJ45 Gigabit Ethernet
• Other I/O: 1 x USB-C, 2 x USB-A
• Stackable: Yes
• Layer services supported: Layer 3
• Supported protocols: Auto-MDIX/MDI, DHCP Server, IGMP Snooping, IPv4, IPv6
• Jumbo frame support: 12,000 Bytes
• MAC address table size: 16K
• Security features: DHCP Snooping
• Forwarding rate: 1190.4 Mpps
• Switching bandwidth: 1.6 Tb/s
• Packet buffer: 256 Mb
• CPU: Quad-Core, up to 1.8 GHz Cortex A57
• Memory: 4 GB DDR4
• Power draw: 213.6 W (Max)
• Power supply type: Internal
• Cooling system: Fan, noise level 34.2 dB
• Rack mountable: Yes, 1U
• Dimensions: 17.3 x 15.7 x 1.7 in / 440 x 400 x 43.2 mm
• Weight: 16.27 lb / 7.38 kg

Why It Helps

In higher-performance AV and broadcast systems, not every switch is there to power endpoints. Some are there to move large amounts of traffic cleanly across a fiber-heavy network and hand it off properly to the next layer. The M4350-40F4C fits that role well by combining dense 10G optical connectivity, 100G uplink capacity, Layer 3 support, and AV-aware protocol handling in a 1U platform suited to professional rack environments.

System Characteristics

• Dense 10G SFP+ connectivity supports larger optical media networks
• 100G QSFP28 uplinks provide strong backbone and aggregation capacity
• Layer 3 and IGMP Snooping support align it with multicast-heavy and structured media workflows
• Stackable architecture helps scale the platform in larger deployments
• Quiet operating profile and standard 1U chassis make it easier to place in shared technical spaces

What’s In The Box

Please refer to the Specifications tab for the exact included items.
