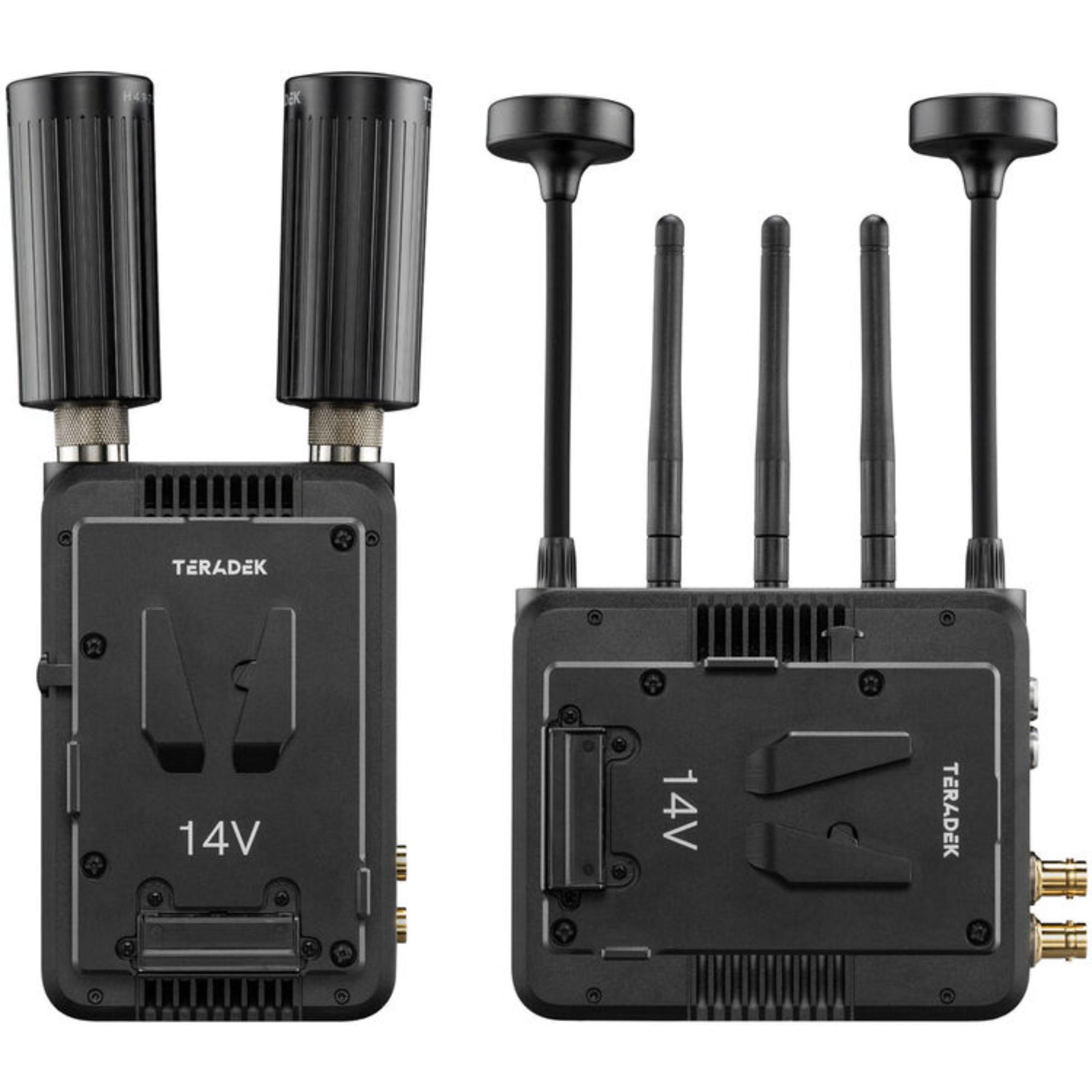

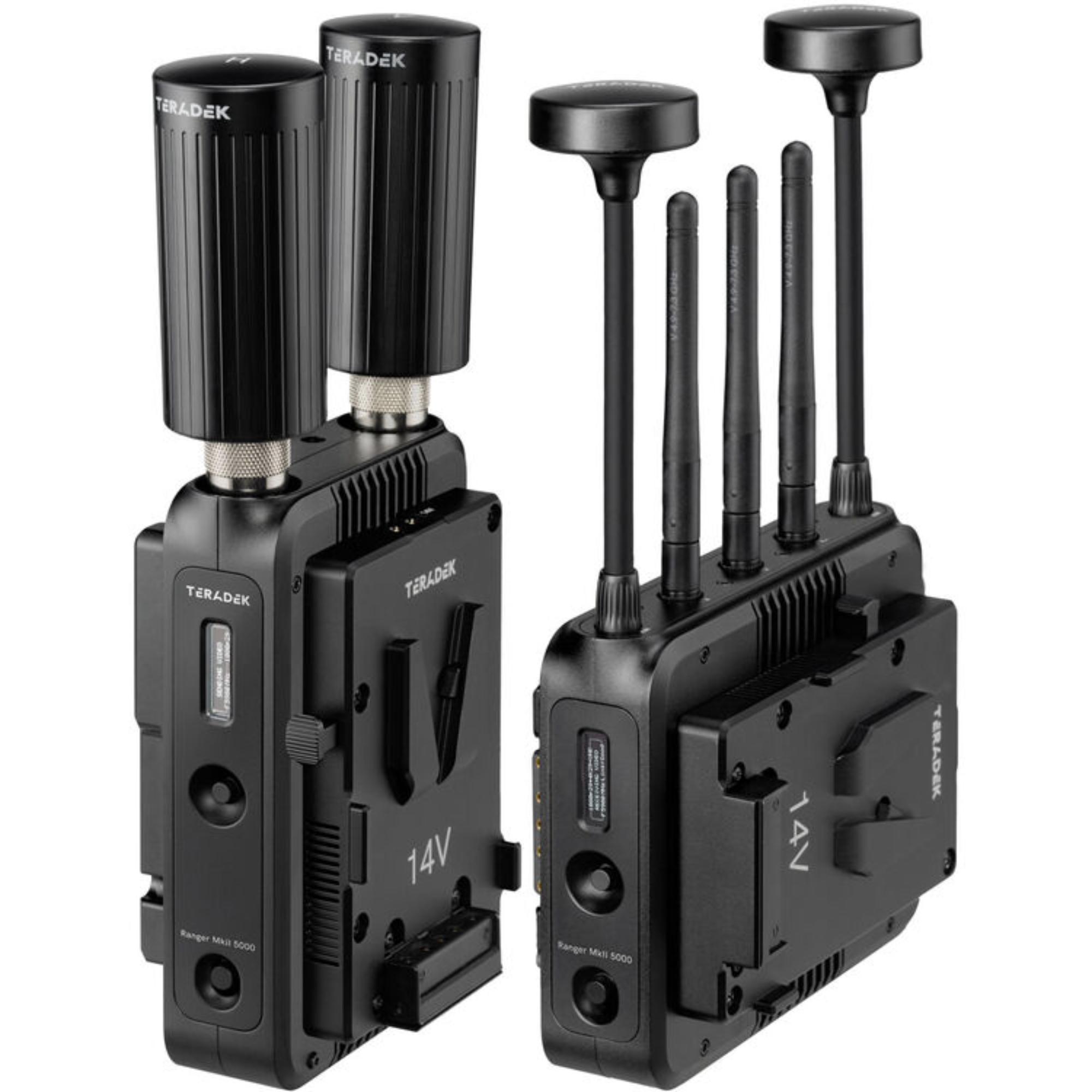

Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter/Receiver Deluxe Kit (V-Mount)

Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter/Receiver Deluxe Kit (V-Mount) is a long-range wireless video system for broadcast, live events, drone work, handheld cameras, and other productions where the camera feed needs to travel well beyond a normal cable run. From the supplied source, it carries uncompressed video up to 5,000 ft / 1,524 m under line-of-sight conditions with latency listed at less than 1 ms.

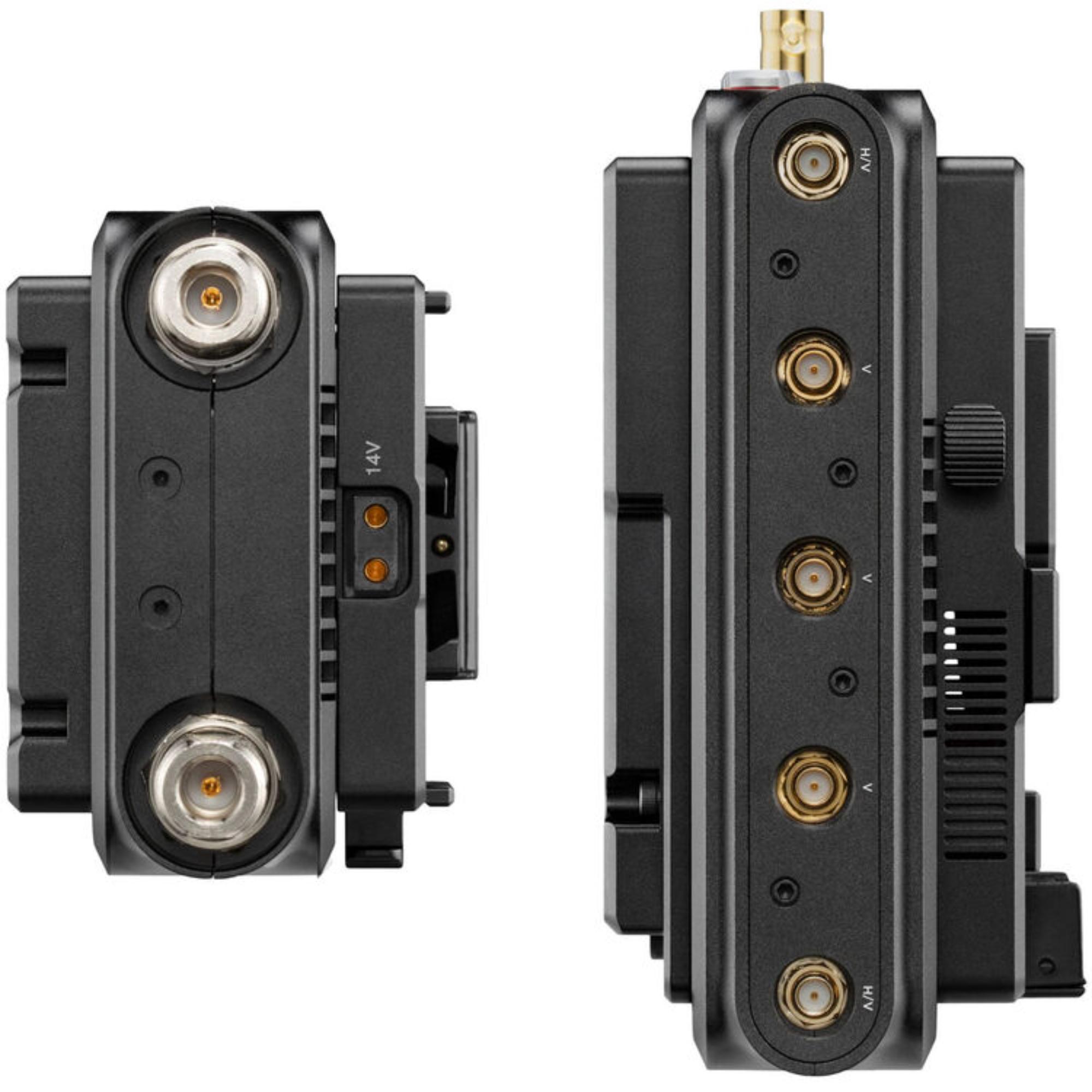

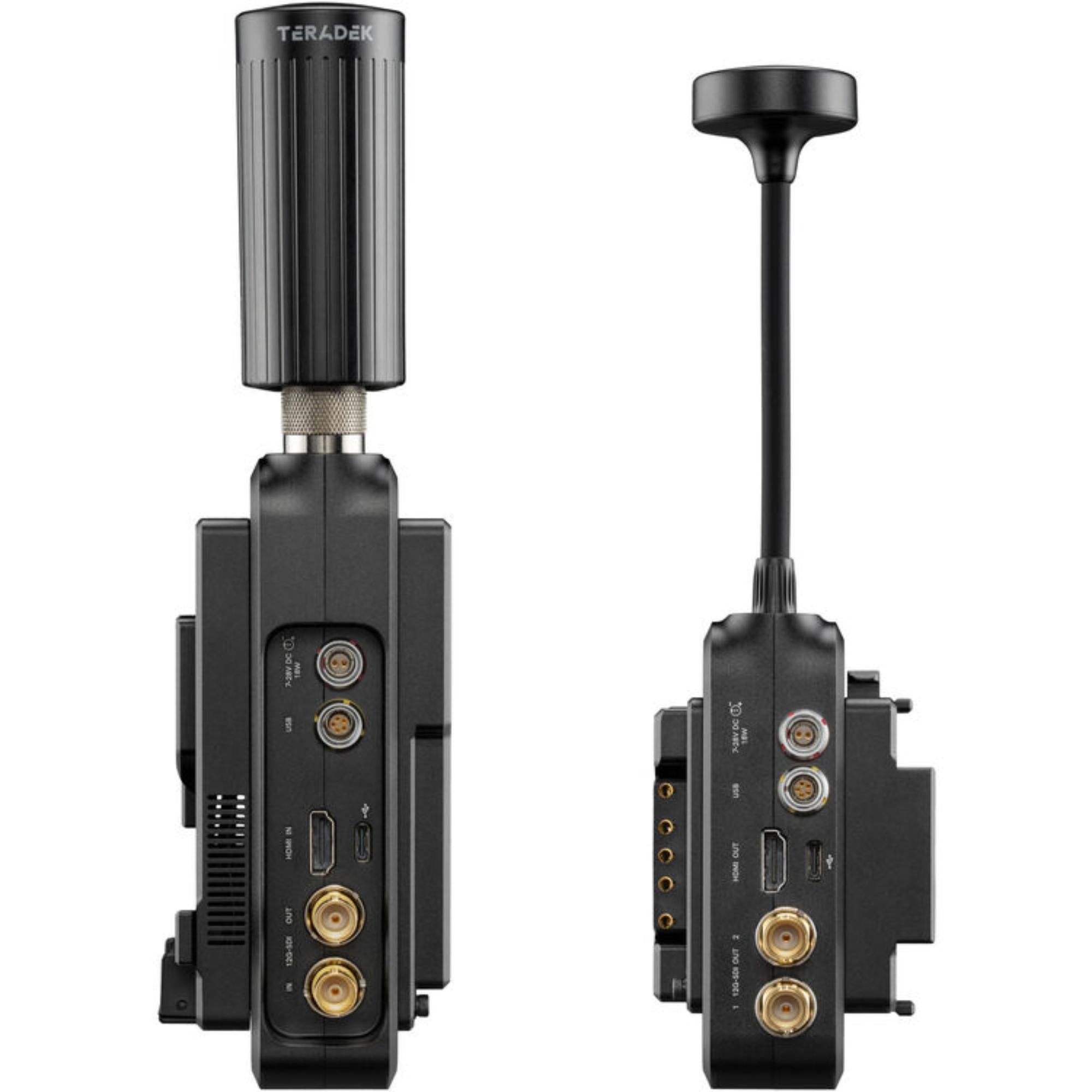

The transmitter accepts HDMI 2.0 or 12G-SDI video and provides a 12G-SDI loop output for a camera-side monitor or recorder. The receiver delivers HDMI 2.0 and 12G-SDI outputs at the monitoring position, while fixed V-Mount plates give both units a familiar power setup for broadcast and cinema crews.

Highlights

• 12G-SDI/HDMI wireless transmitter and receiver deluxe kit for professional 4K monitoring
• Up to 5,000 ft / 1,524 m line-of-sight range
• Uncompressed video transmission with less than 1 ms latency
• Supports UHD 4K60, 10-bit 4:2:2 HDR, timecode, and embedded audio
• 256-bit AES encryption, V-Mount battery plates, and transmission to up to six receivers

Quick Specs & Uses

• Product type: Long-range wireless video transmitter and receiver kit
• Primary workflows: Broadcast, live events, sports, drone production, vehicle work, handheld cameras, video village, and remote monitoring
• Maximum wireless range: 5,000 ft / 1,524 m, line of sight
• Wireless video transmission: Uncompressed
• Latency: Less than 1 ms
• Maximum HDMI format: UHD 4K60
• HDMI color support: 8/10-bit 4:4:4 and 4:2:2 RGB/YCC
• SDI color support: 10-bit 4:2:2 YCC
• HDR support: 4K60 10-bit 4:2:2 HDR
• Timecode support: Yes
• Audio format: 2-channel, 24-bit, 48 kHz
• Embedded HDMI audio: 2-channel
• Embedded SDI audio: 2-channel
• Dedicated analog audio I/O: No
• Encryption: 256-bit AES
• Wireless bands: 4.9 GHz, 5 GHz, and 6.4 GHz ranges
• Channel bandwidth: 40 MHz and 20 MHz
• Transmitter RF power: 23 dBm
• Receiver RF power: 21 dBm
• Bluetooth: Bluetooth 5.0 LE
• Mobile app compatibility: Android and iOS
• App functions: Settings adjustment, remote control, setup, and live-feed viewing
• Wi-Fi: No
• Cellular support: No
• Receiver support: Transmission to up to six receivers

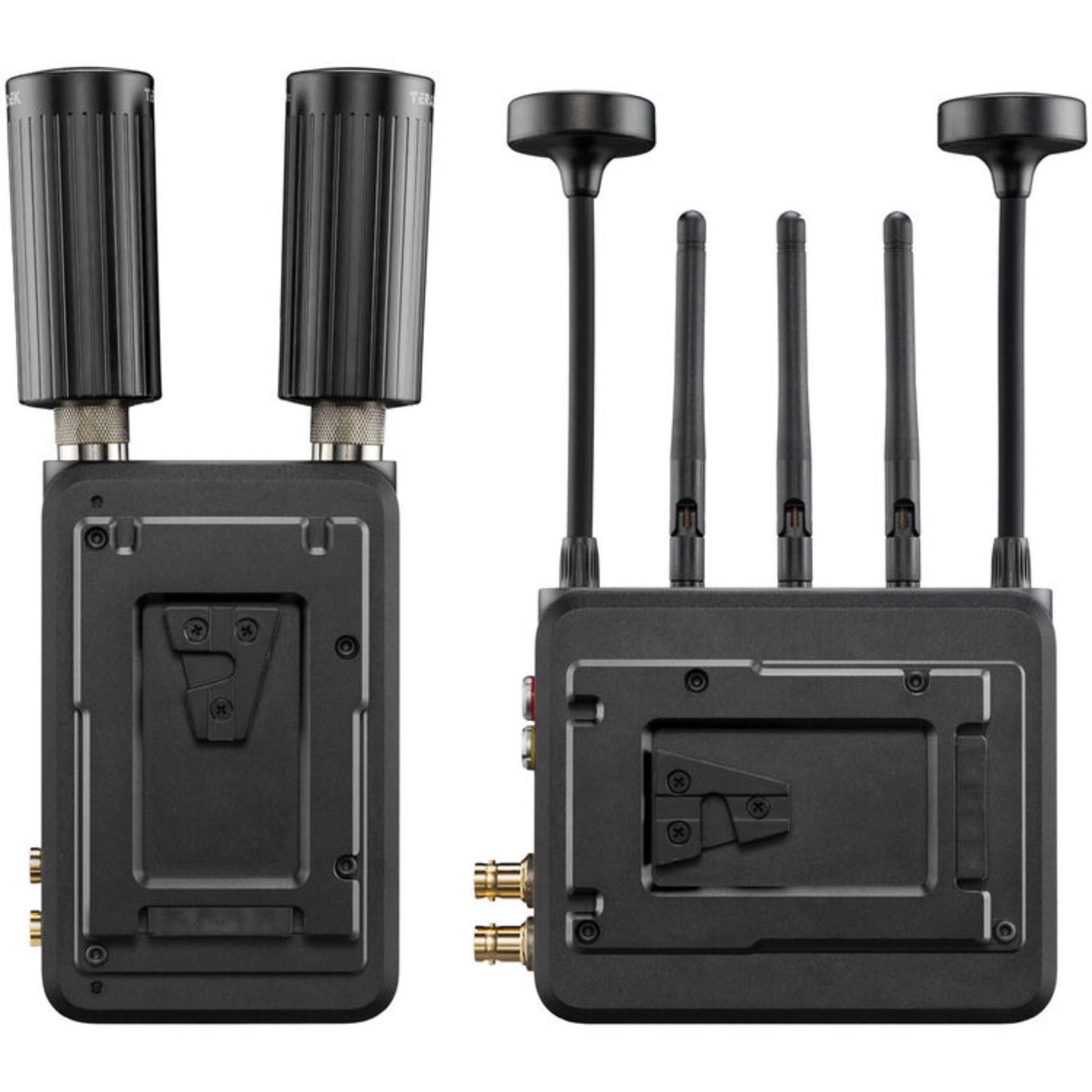

• Battery mounting: Fixed V-Mount plates

Why It Helps

A 5,000 ft wireless link gives the camera team room to work across large venues, exterior locations, tracks, stages, and event sites without building the shot around a long SDI cable. That is especially useful for roaming cameras, drones, vehicle rigs, sports coverage, and positions that sit far from the production control area.

The HDMI 2.0 and 12G-SDI inputs make the transmitter practical with both cinema and broadcast camera systems. Its 12G-SDI loop output also keeps a local monitor or recorder connected at the camera while the same signal is sent to the receiver.

At the other end, HDMI 2.0 and 12G-SDI outputs allow the receiver to feed a director's monitor, focus station, recorder, router, or switcher. With less than 1 ms of listed latency, the picture remains suitable for live operation where a noticeable delay would make focus, framing, or switching more difficult.

The system can transmit to as many as six receivers, so one camera feed can reach several monitoring positions without adding a separate transmitter for each destination. The Deluxe Kit also includes the antennas, cables, adapters, mounting hardware, and case needed to build a more complete field-ready package.

System Characteristics

• 5,000 ft line-of-sight operation for large-scale productions and remote camera positions
• Uncompressed wireless transport without an added transmission codec
• Sub-millisecond latency for focus, monitoring, and live-production use
• 12G-SDI and HDMI 2.0 connectivity for professional UHD sources
• Support for up to six receivers from one transmitter
• 256-bit AES encryption for protected video transmission
• Bluetooth mobile control for setup and remote adjustment
• Fixed V-Mount plates for established broadcast battery workflows
• Aluminum and polycarbonate construction for production use

What’s In The Box

• 1 x Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter (V-Mount)
• 2 x N-Type Antennas
• 1 x V-Mount Battery Plate for Transmitter
• 1 x Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Receiver (V-Mount)
• 5 x 2 dBi Antennas
• 1 x V-Mount Battery Plate for Receiver
• 4 x Ranger 6 Battery Doors
• 1 x 1/4"-20 Light Stand Adapter
• 1 x Shoe Adapter
• 8 x Flat Phillips Head Screws
• 1 x Ultra-Thin HDMI-A Male-to-Male Cable, 18 in
• 1 x 2-Pin to D-Tap Power Cable, 18 in
• 5 x RP-SMA Female-to-Female Cables, 4 in
• 1 x Teradek Case XL
• 2 x 18 W AC Adapters with 2-Pin Connector Cable, 6 ft
• 1 x Wooden Camera Offset Mount for Bolt 4K/6 LT TX
• 1 x White/Clear Self-Seal Bag
• 1 x Universal Hang Tag, Black
• 2 x 12G-SDI BNC-to-BNC Cables, 18 in
• 1 x USB-A 2.0 to USB-C Male Cable, 3.3 ft
