Product Highlights

  • Miniature Bi-Directional Converter
  • Auto Signal Detection
  • 3G/HD/SD-SDI In and Out
  • HDMI In and Out
  • USB Powered
  • HDMI & SDI Input Locks
  • Multiple Input/Output Conversion Modes

Decimator Design MD-LX Bi-Directional HDMI/SDI Converter

SKU:
DD-LX
MPN:
MD-LX
In Stock
Regular price $120.00
/

Free Expedited Shipping*

Secure Checkout

Manufacturer Warranty

Authorized Dealer

8

Product Inquiry Form

Description

Product Overview

4
Conversion Modes
1080p60
Maximum HDMI Format
3G-A / 3G-B
SDI Level Support
< 2.5 W
USB Powered
36 mo
Decimator Warranty

The Decimator Design MD-LX (part number DD-LX) is a pocket-sized bi-directional HDMI and SDI converter. It converts HDMI to SDI and SDI to HDMI, and in Auto Select mode it does both at the same time when both inputs are live. It handles 3G, HD and SD-SDI, converts between 3G Level A and Level B, and runs on USB power at under 2.5 watts. It is the converter many crews keep in the bag for the moment a camera, monitor or capture card speaks the wrong language.

Decimator MD-LX bi-directional HDMI to SDI and SDI to HDMI converter for broadcast and live events
📡

HDMI to SDI and SDI to HDMI in One Box

Many mini converters only go one way. The MD-LX converts in both directions, so the same unit can feed an HDMI camera into an SDI switcher on one job and put an SDI program feed on an HDMI monitor on the next.

🔁

Simultaneous Two-Way Conversion

In Auto Select mode, when both inputs are active, the MD-LX converts SDI to HDMI and HDMI to SDI at the same time. One box handles a send and a return, which saves a second converter on tight rigs.

🎬

3G Level A and Level B Conversion

Decimator supports both 3G-SDI mappings on input and output and converts between them. That matters when a Level B camera or router has to feed a device that only accepts Level A.

⚡

USB Power Under 2.5 Watts

The MD-LX runs on +4.4 V to +5.25 V DC over USB and draws under 2.5 W. Power it from the included supply, a laptop, or a USB power bank on a camera rig.

🖥️

USB Control and Firmware Updates

The same USB port carries power, control and firmware updates. Decimator's USB Control Panel software sets the conversion mode from a Mac or Windows computer.

🔧

Pocket-Size Field Build

At 60 × 73.7 × 23 mm (2.4 × 2.9 × 0.9 in), the MD-LX fits behind a monitor, on a camera cage, or in a cable bag. It is built for field use, not just racks.

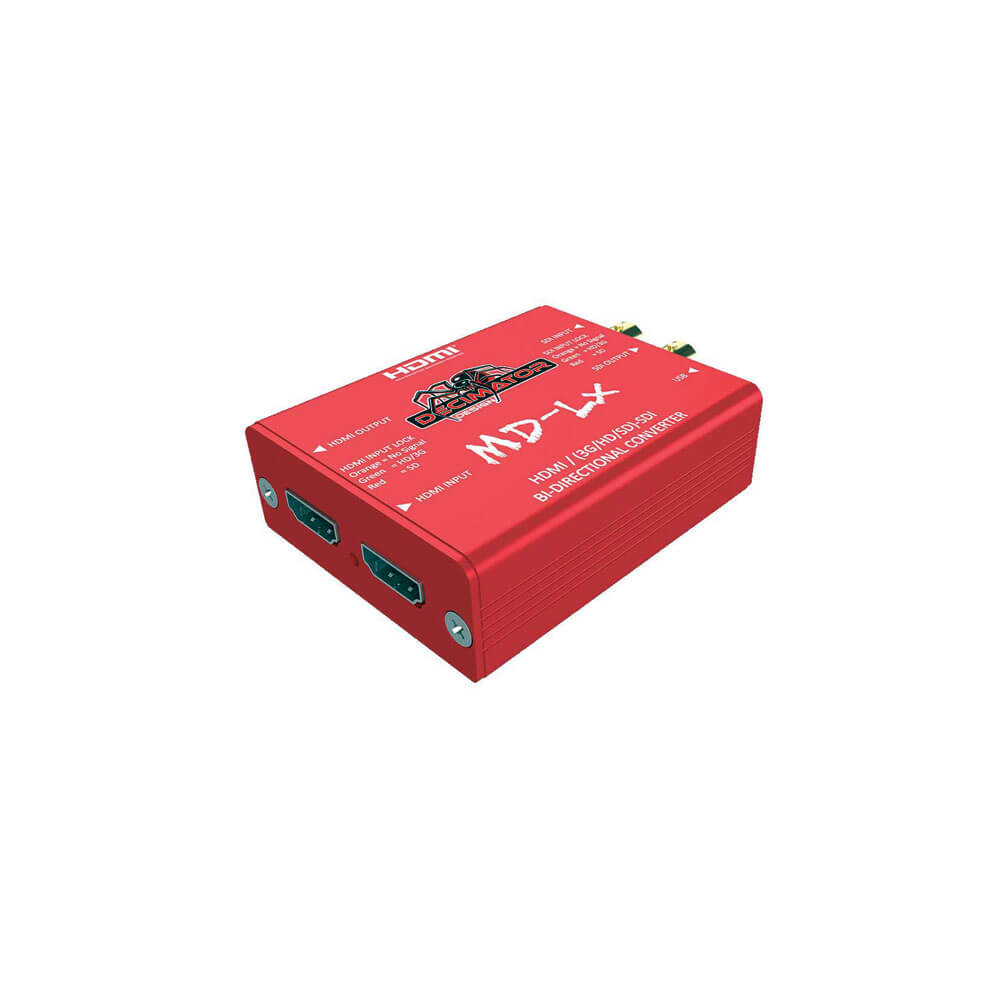

Decimator MD-LX HDMI side with HDMI Type A input and output for HDMI to SDI conversion
Modes 1 and 2

Auto Select and Full Bi-Directional HDMI/SDI Conversion

Auto Select sends the active input to all outputs, and if both inputs are active it converts SDI to HDMI and HDMI to SDI at once. HDMI in to SDI out and SDI in to HDMI out locks the unit into two-way conversion, so a camera feed goes out to the switcher while the program return comes back to an HDMI monitor.

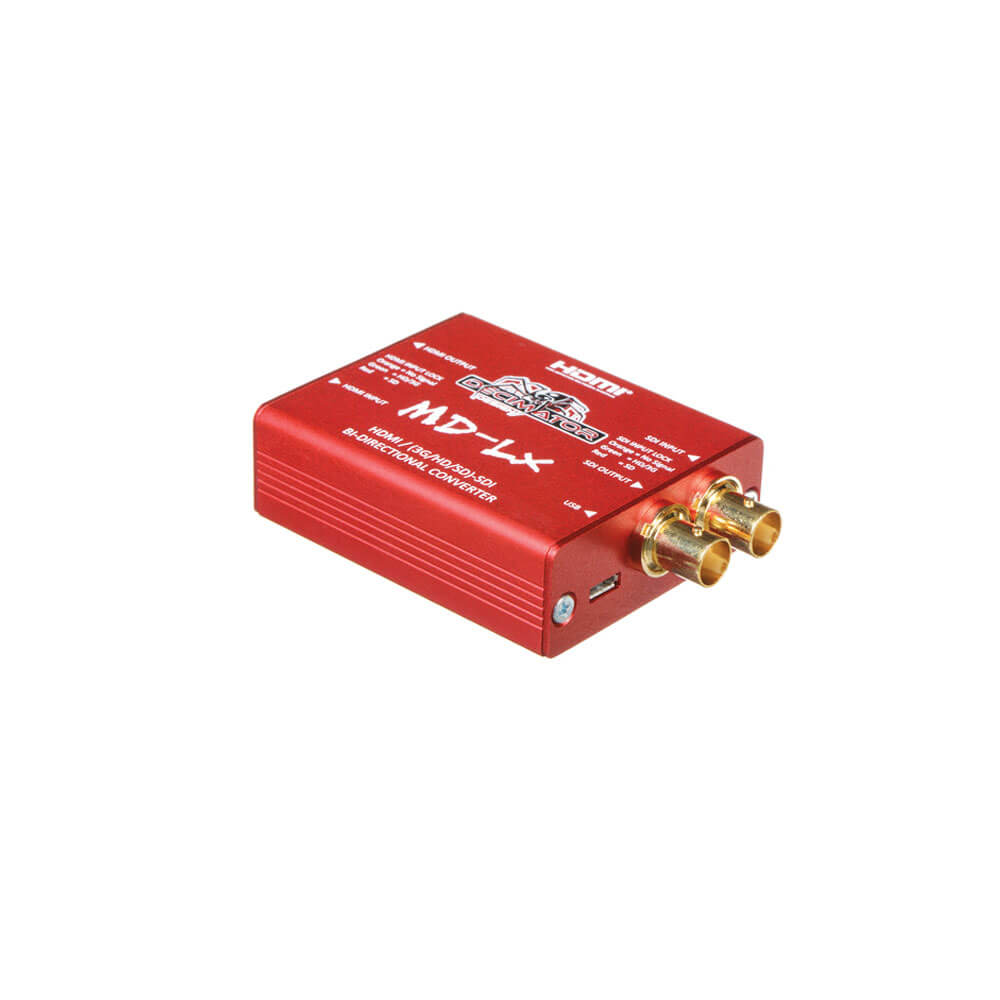

Decimator MD-LX SDI side with 3G/HD/SD-SDI BNC input and output for SDI to HDMI conversion
Modes 3 and 4

SDI Loop-Through and HDMI Distribution

SDI in to HDMI and SDI out puts an SDI source on an HDMI monitor or capture device while passing SDI on down the chain. HDMI in to HDMI and SDI out splits one HDMI source to both an HDMI and an SDI destination, for example a local confidence monitor plus the SDI feed to the truck.

Live Event Crews

Bridge HDMI cameras, laptops and confidence monitors into SDI switchers and long cable runs.

Broadcast Engineers

Fix 3G Level A/B mismatches between cameras, routers and recorders without re-patching.

Streamers

Bring SDI cameras into HDMI capture cards and encoders, or feed HDMI sources to SDI gear.

Camera Operators

USB power and pocket size let it live on a camera cage with an SDI or HDMI monitor.

Houses of Worship

Connect consumer HDMI cameras and displays to an SDI production system on a small budget.

Rental Houses

One bi-directional unit covers jobs that would otherwise need two single-direction converters.

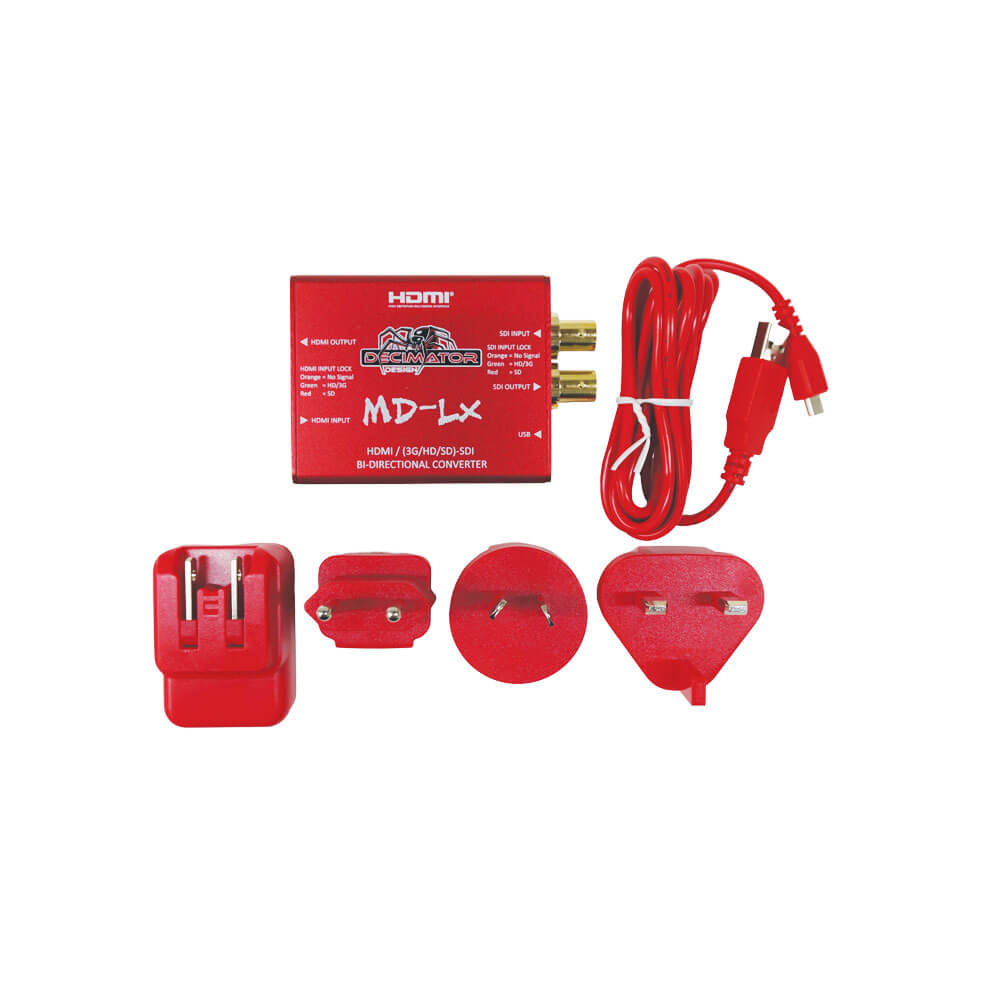

Decimator MD-LX converter with included USB power supply and USB cable
Included Accessories

Ready to Power Up Out of the Box

The MD-LX ships with a power supply and a USB cable, so it can run from mains power or any 5 V USB source on day one. HDMI and SDI cables are not included; see our SDI cables if you need them.

Decimator Design Warranty

Decimator Design's hardware manuals specify a 36-month warranty from the date of purchase. Coremicro is an authorized Decimator Design dealer, and our team handles warranty questions with you directly.

Specification Detail
Model / Part Number MD-LX / DD-LX
Inputs 1 × HDMI Type A; 1 × 3G/HD/SD-SDI
Outputs 1 × HDMI Type A; 1 × 3G/HD/SD-SDI
SDI Formats 3G Level A and Level B: SMPTE 424M at 2.97 and 2.967 Gb/s; HD: SMPTE 292M/274M/296M at 1.485 and 1.4835 Gb/s; SD: SMPTE 259M at 270 Mb/s
3G Level Conversion Supports 3G Level A and Level B on input and output, with conversion between the two
HDMI Formats 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50/30/29.97/25; 625i50 (PAL); 525i59.94 (NTSC)
Conversion Modes Auto Select; HDMI in to SDI out and SDI in to HDMI out; SDI in to HDMI and SDI out; HDMI in to HDMI and SDI out
Control USB, with Decimator USB Control Panel software for Mac and Windows
Power USB power, +4.4 V to +5.25 V DC; under 2.5 W
Firmware Updatable over USB
Dimensions 60 × 73.7 × 23 mm (2.4 × 2.9 × 0.9 in)
In the Box MD-LX converter, power supply, USB cable (HDMI cable not included)
GTIN 5060417390199

Can the Decimator MD-LX Convert HDMI to SDI and SDI to HDMI at the Same Time?

Yes. In Auto Select mode with both inputs active, or in the HDMI in to SDI out and SDI in to HDMI out mode, the MD-LX converts in both directions simultaneously.

What Is the Maximum Resolution of the MD-LX?

The MD-LX supports HDMI formats up to 1080p60 and SDI up to 3G-SDI. It also handles 1080i, 720p, and 525i/625i standard definition.

Does the MD-LX Support 4K or 12G-SDI?

No. The MD-LX is an HD and 3G-SDI converter. For 4K and 12G-SDI, the Decimator 12G-CROSS converts HDMI and SDI up to 4K.

Does the MD-LX Scale or Change Frame Rates?

Decimator does not list scaling or frame rate conversion for the MD-LX. For those, choose the Decimator MD-HX or Decimator MD-CROSS v2.

How Is the Decimator MD-LX Powered?

It runs on USB power at +4.4 V to +5.25 V DC and draws under 2.5 W. A power supply and USB cable are included, and any 5 V USB source such as a power bank also works.

Can the MD-LX Convert Between 3G-SDI Level A and Level B?

Yes. Decimator states that the MD-LX supports 3G Level A and Level B and converts between the two.

Need Help Choosing the Right Decimator Converter?

Coremicro is an authorized Decimator Design dealer. Tell us your cameras, switcher and monitors, and we will confirm whether the MD-LX, MD-HX, MD-CROSS v2 or 12G-CROSS fits your signal chain.

Talk to a Specialist

Specifications

Decimator Design MD-LX Specifications

Reviews

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Brad
Industry Standard

These are the industry standard. Coremicro has a good price. Better then Amazon.

K
Kat
Great Converter

This is great value for Bi-Directional Converter

What's included

Included on Decimator Design MD-LX Bi-Directional HDMI/SDI Converter

  • Decimator MD-LX Bi-Directional HDMI/SDI Converter
  • International Power Supply
  • USB Cable
  • Warranty Booklet
