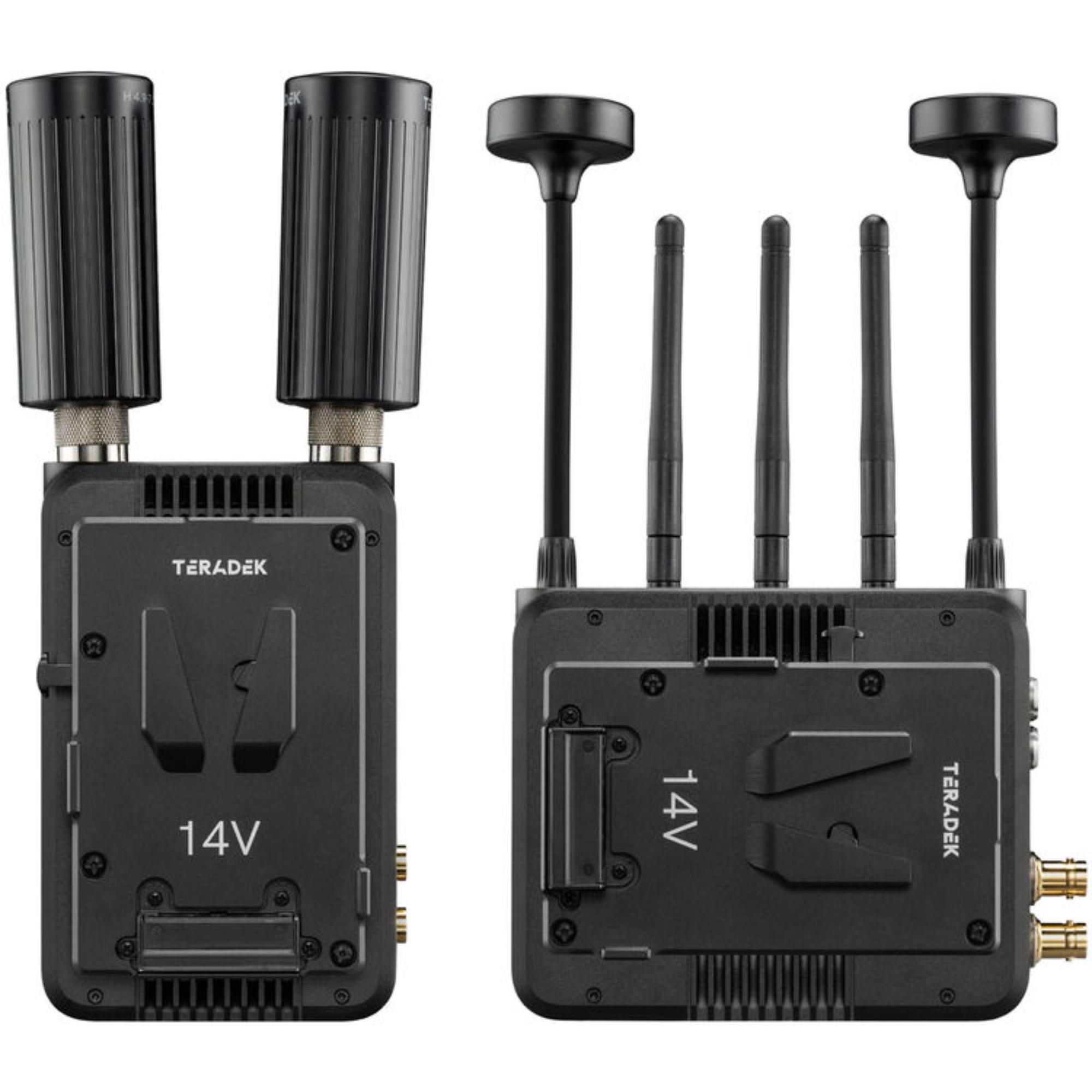

Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receiver Set (V-Mount)

Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receiver Set (V-Mount) is a long-range wireless video system built for broadcast, live events, drone work, handheld production, and other camera setups where a cable-free 4K feed is required. From the supplied source, the system carries uncompressed video up to 2,500 ft under line-of-sight conditions with latency listed at less than 1 ms.

The transmitter accepts HDMI 2.0 or 12G-SDI video and includes a 12G-SDI loop output for a local monitor or recorder. At the receive position, the matching receiver delivers the feed for production monitoring while the fixed V-Mount plates support familiar broadcast battery workflows.

Highlights

• 12G-SDI/HDMI wireless transmitter and receiver set for professional monitoring
• Up to 2,500 ft / 762 m line-of-sight range
• Uncompressed video transmission with less than 1 ms latency
• Supports UHD 4K60, 10-bit 4:2:2 HDR, and timecode
• 256-bit AES encryption, V-Mount battery plates, and support for up to six receivers

Quick Specs & Uses

• Product type: Wireless video transmitter and receiver set
• Primary workflows: Broadcast, live events, drone production, handheld camera work, video village, and remote monitoring
• Maximum wireless range: 2,500 ft / 762 m, line of sight
• Wireless video transmission: Uncompressed
• Latency: Less than 1 ms
• Maximum HDMI video format: UHD 4K60
• HDMI color support: 8/10-bit 4:4:4 and 4:2:2 RGB/YCC
• SDI color support: 10-bit 4:2:2 YCC
• HDR support: 4K60 10-bit 4:2:2 HDR
• Timecode support: Yes
• Encryption: 256-bit AES
• Wireless bands: 4.9 GHz, 5 GHz, and 6.4 GHz frequency ranges
• Channel bandwidth: 40 MHz and 20 MHz
• RF power: 23 dBm
• Bluetooth: Bluetooth 5.0 LE
• Mobile app compatibility: Android and iOS
• App functions: Adjust settings, remote control, setup, and live-feed viewing
• Wi-Fi: No
• Cellular support: No
• Receiver support: Transmission to up to six receivers
• Battery mounting: Fixed V-Mount plates

Why It Helps

The Ranger MK II 2500 gives the camera department a way to move a high-quality 4K signal across a stage, venue, or exterior location without running a long SDI cable. Its listed 2,500 ft line-of-sight range is useful for mobile cameras, drones, vehicle work, sports coverage, and other positions that may sit well away from the production area.

The transmitter includes both HDMI 2.0 and 12G-SDI inputs, so it can work with a broad range of cinema, broadcast, and live-production cameras. A 12G-SDI loop output also keeps a local camera-side monitor or recorder in the chain while the same source is being sent wirelessly.

Less than 1 ms of latency is important when the receiver is feeding a focus station, director’s monitor, switcher, or another position where delayed pictures can interfere with operation. Support for up to six receivers also makes it possible to distribute one camera feed to several viewing points without building a separate transmitter path for each destination.

System Characteristics

• Long-range wireless operation for large stages, venues, and exterior locations
• Uncompressed video transport without an added transmission codec
• Sub-millisecond latency for monitoring and live-production use
• 12G-SDI and HDMI 2.0 connectivity for professional 4K sources
• Support for up to six receivers from one transmitter
• 256-bit AES encryption for protected wireless video transport
• Bluetooth app control for setup and remote adjustment

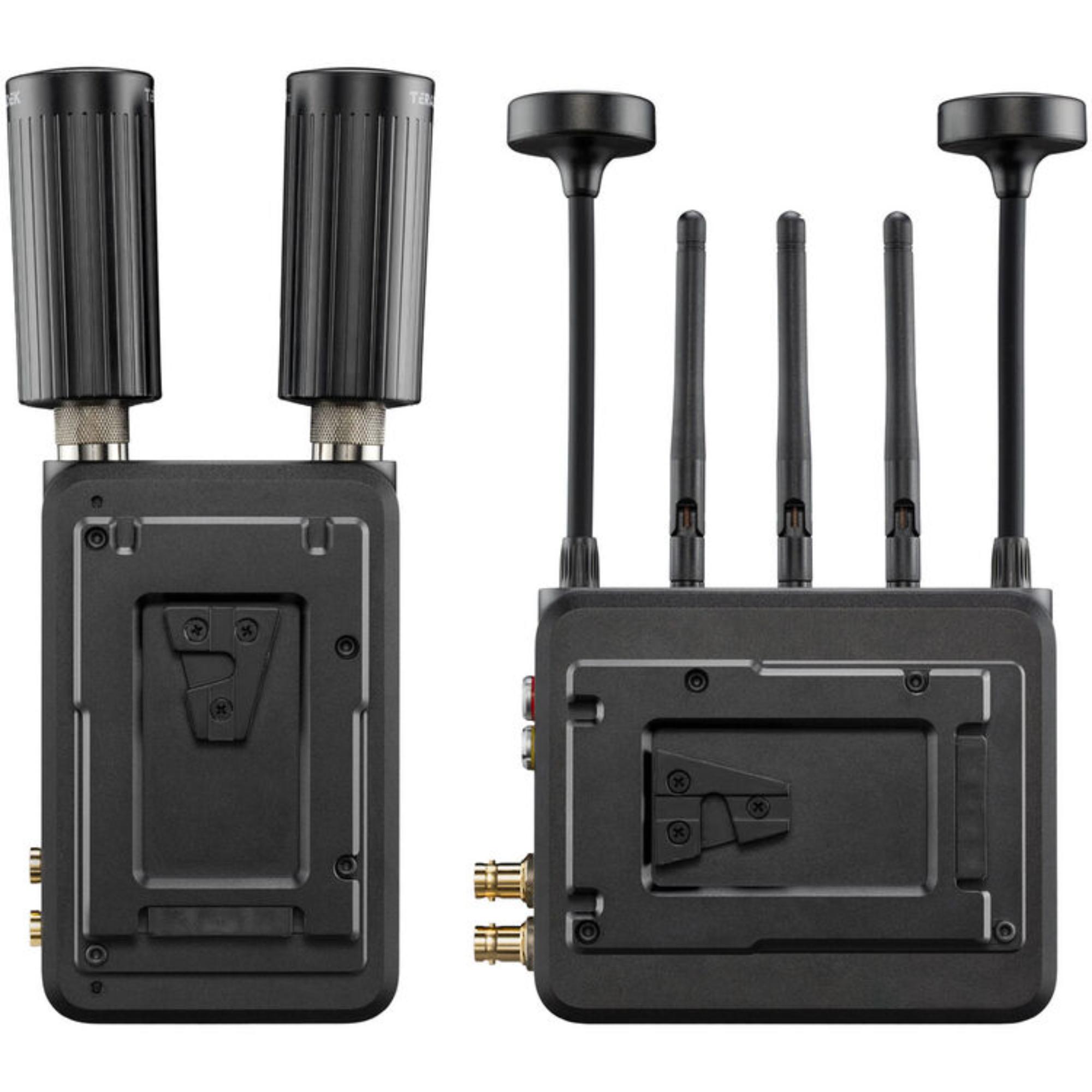

• Fixed V-Mount battery plates for established broadcast power systems

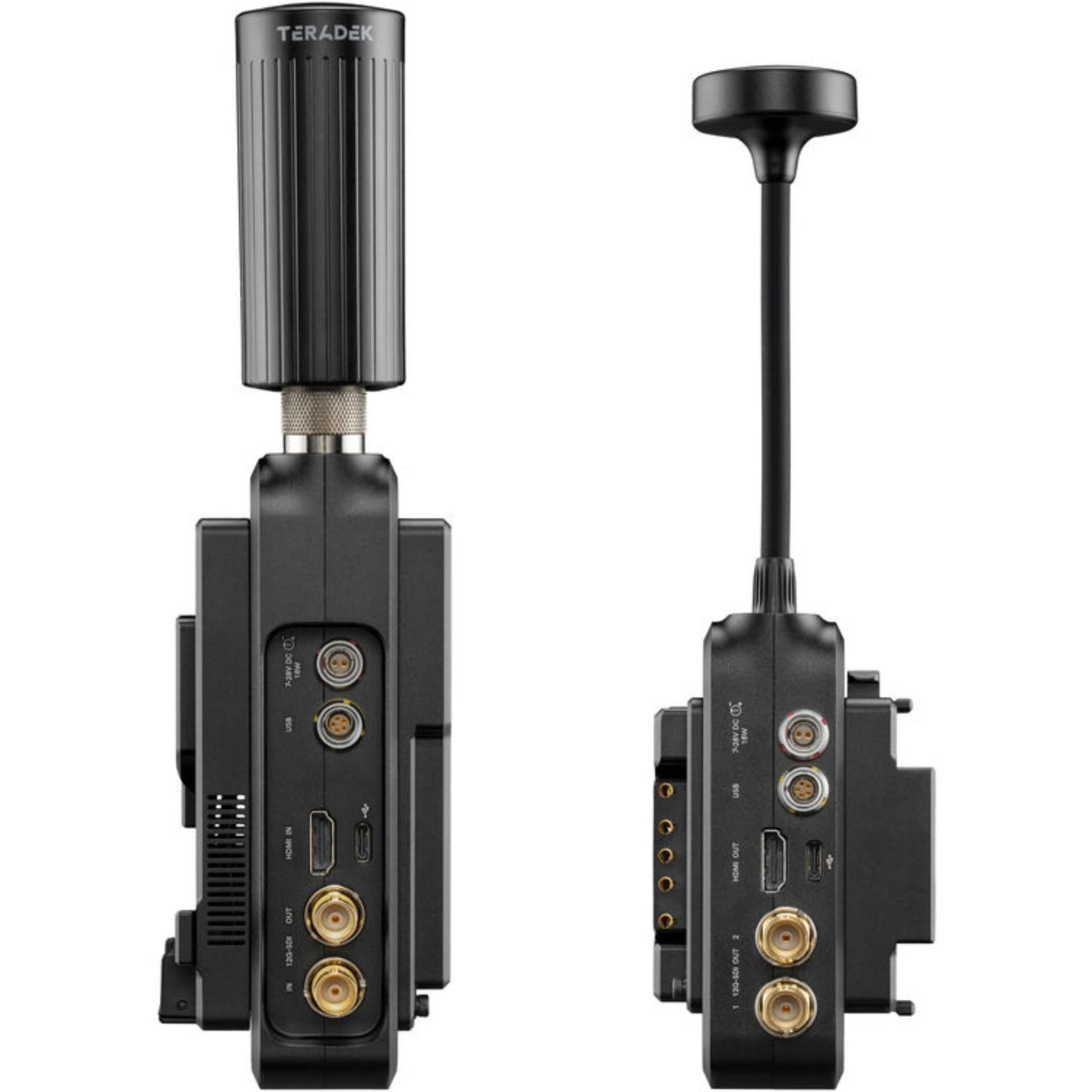

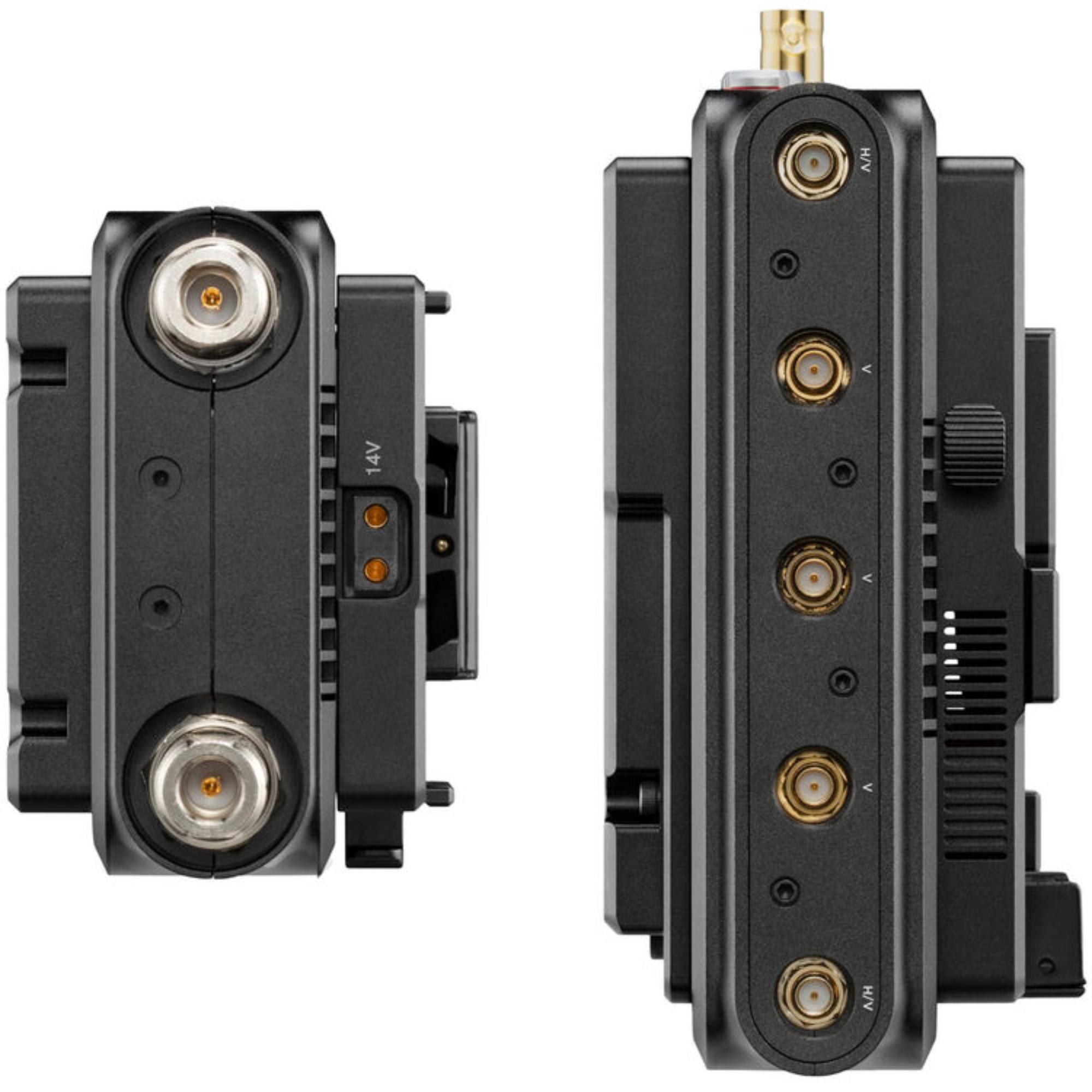

Transmitter Connections & Power

• HDMI input: 1 x HDMI 2.0
• SDI input: 1 x BNC, 12G-SDI
• SDI loop output: 1 x BNC, 12G-SDI
• Antenna connections: 2 x RP-SMA female
• Embedded HDMI audio: 2-channel
• Embedded SDI audio: 2-channel
• Audio format: 2-channel, 24-bit, 48 kHz
• Dedicated audio I/O: No
• Power input: 1 x LEMO 2-pin, 28 VDC
• Supported input voltage: 6 to 28 VDC
• Battery plate: 1 x fixed V-Mount plate
• Power consumption: 12 W
• Service connection: 1 x USB-C firmware input

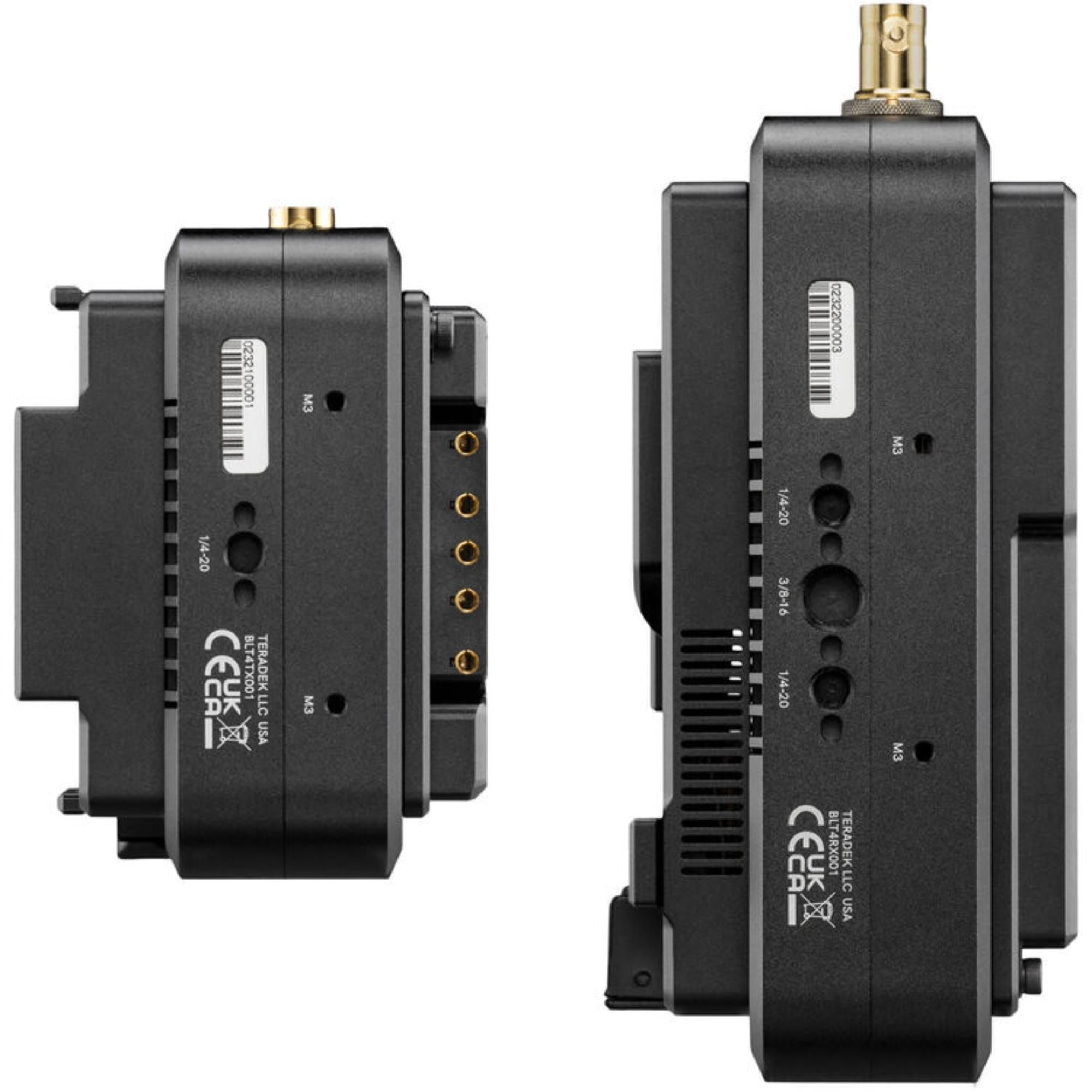

• Mounting point: 1 x 1/4"-20 female

Supported Video Formats

• HDMI UHD formats: 4K 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI HD formats: 1080p, 1080PsF, 1080i, and 720p
• HDMI SD formats: 576p, 576i, 480p, and 480i
• SDI UHD formats: 4K 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI HD formats: 1080p, 1080i, and 720p
• SDI SD formats: 576p, 576i, 480p, and 480i

Physical Specifications

• Transmitter dimensions: 149 x 91 x 30 mm / 5.9 x 3.6 x 1.2 in
• Transmitter weight: 544 g / 19.19 oz
• Construction: Aluminum and polycarbonate
• Transmitter operating temperature: 0°C to 40°C / 32°F to 104°F
• Receiver operating temperature: 0°C to 40°C / 32°F to 72°F, as listed in the supplied source

What’s In The Box

• 1 x Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter (V-Mount)
• 2 x N-Type Antennas
• 1 x V-Mount Battery Plate
• 1 x Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Receiver (V-Mount)
• 5 x 2 dBi Antennas
• 1 x V-Mount Battery Plate
• 1 x Carry Case
