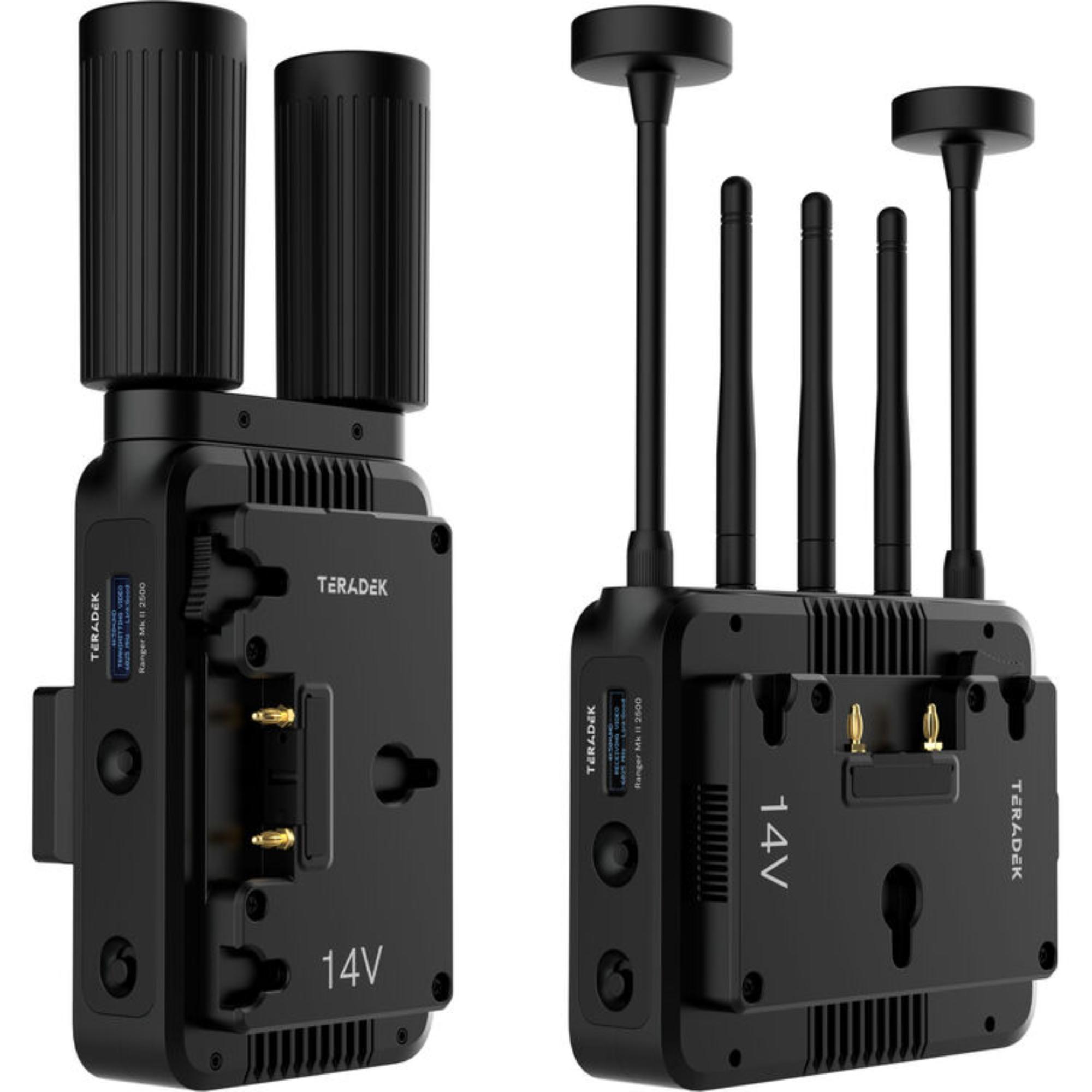

Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receiver Set (Gold Mount)

Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receiver Set (Gold Mount) is a long-range wireless video system for broadcast, live events, drone work, handheld cameras, and other productions where the camera feed needs to move without a long cable run. From the supplied source, it carries uncompressed video up to 2,500 ft / 762 m under line-of-sight conditions with latency listed at less than 1 ms.

The transmitter accepts HDMI 2.0 or 12G-SDI video and includes a 12G-SDI loop output for a local monitor or recorder. The matching receiver completes the wireless link at the monitoring position, while fixed Gold Mount plates keep both units compatible with a familiar broadcast battery system.

Highlights

• 12G-SDI/HDMI wireless transmitter and receiver set for professional 4K monitoring
• Up to 2,500 ft / 762 m line-of-sight range
• Uncompressed video transmission with less than 1 ms latency
• Supports UHD 4K60, 10-bit 4:2:2 HDR, timecode, and embedded audio
• 256-bit AES encryption, Gold Mount battery plates, and support for up to six receivers

Quick Specs & Uses

• Product type: Long-range wireless video transmitter and receiver set
• Primary workflows: Broadcast, live events, sports, drone production, vehicle work, handheld cameras, video village, and remote monitoring
• Maximum wireless range: 2,500 ft / 762 m, line of sight
• Wireless video transmission: Uncompressed
• Latency: Less than 1 ms
• Maximum HDMI format: UHD 4K60
• HDMI color support: 8/10-bit 4:4:4 and 4:2:2 RGB/YCC
• SDI color support: 10-bit 4:2:2 YCC
• HDR support: 4K60 10-bit 4:2:2 HDR
• Timecode support: Yes
• Audio format: 2-channel, 24-bit, 48 kHz
• Embedded HDMI audio: 2-channel
• Embedded SDI audio: 2-channel
• Dedicated analog audio I/O: No
• Encryption: 256-bit AES
• Frequency ranges: 4.9 GHz, 5 GHz, and 6.4 GHz ranges
• Channel bandwidth: 40 MHz and 20 MHz
• Transmitter RF power: 23 dBm
• Bluetooth: Bluetooth 5.0 LE
• Mobile app compatibility: Android and iOS
• App functions: Adjust settings, remote control, setup, and live-feed viewing
• Wi-Fi: No
• Cellular support: No
• Receiver support: Transmission to up to six receivers
• Battery mounting: Fixed Gold Mount plates

Why It Helps

A 2,500 ft wireless link gives the camera department enough room to work across larger stages, venues, exterior locations, and event sites without laying a long SDI cable through the production area. That is useful for roaming cameras, drones, vehicle rigs, sports coverage, and positions that need to stay mobile.

The transmitter can take either HDMI 2.0 or 12G-SDI, so it fits into both cinema and broadcast camera builds. Its 12G-SDI loop output also keeps a local camera-side monitor or recorder connected while the same feed is being sent wirelessly.

With latency listed at less than 1 ms, the returned picture remains practical for focus, framing, and live monitoring. The system can also send one transmitter feed to as many as six receivers, allowing several departments to watch the same camera without adding another transmitter at the source.

System Characteristics

• 2,500 ft line-of-sight operation for larger sets and remote camera positions
• Uncompressed wireless transport without an added transmission codec
• Sub-millisecond latency for focus, monitoring, and live-production use
• 12G-SDI and HDMI 2.0 connectivity for professional UHD sources
• Support for up to six receivers from one transmitter
• 256-bit AES encryption for protected video transmission
• Bluetooth mobile control for setup and remote adjustment
• Fixed Gold Mount plates for established broadcast battery systems
• Aluminum and polycarbonate transmitter construction for production use

What’s In The Box

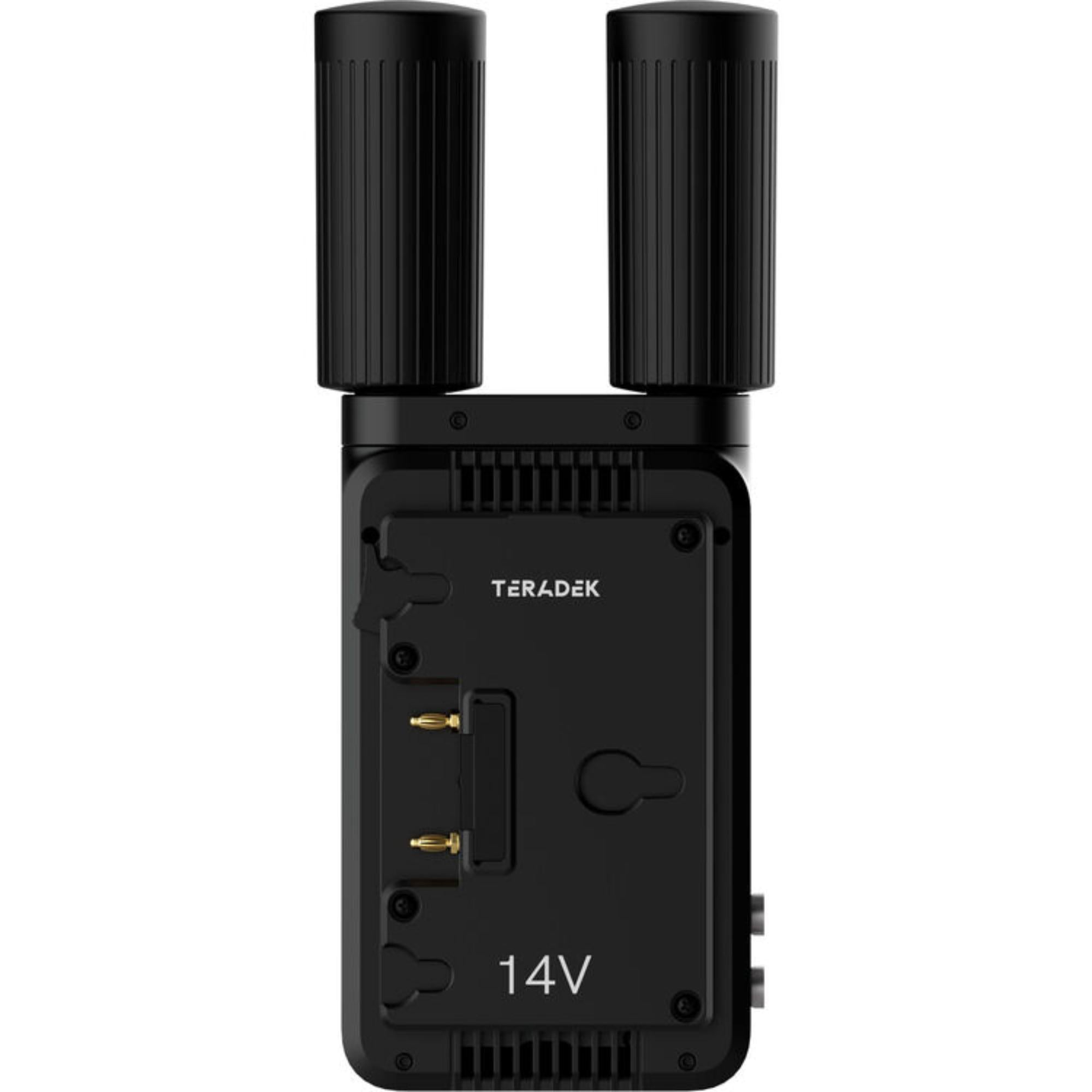

• 1 x Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter (Gold Mount)
• 2 x N-Type Antennas
• 1 x Gold Mount Battery Plate for Transmitter

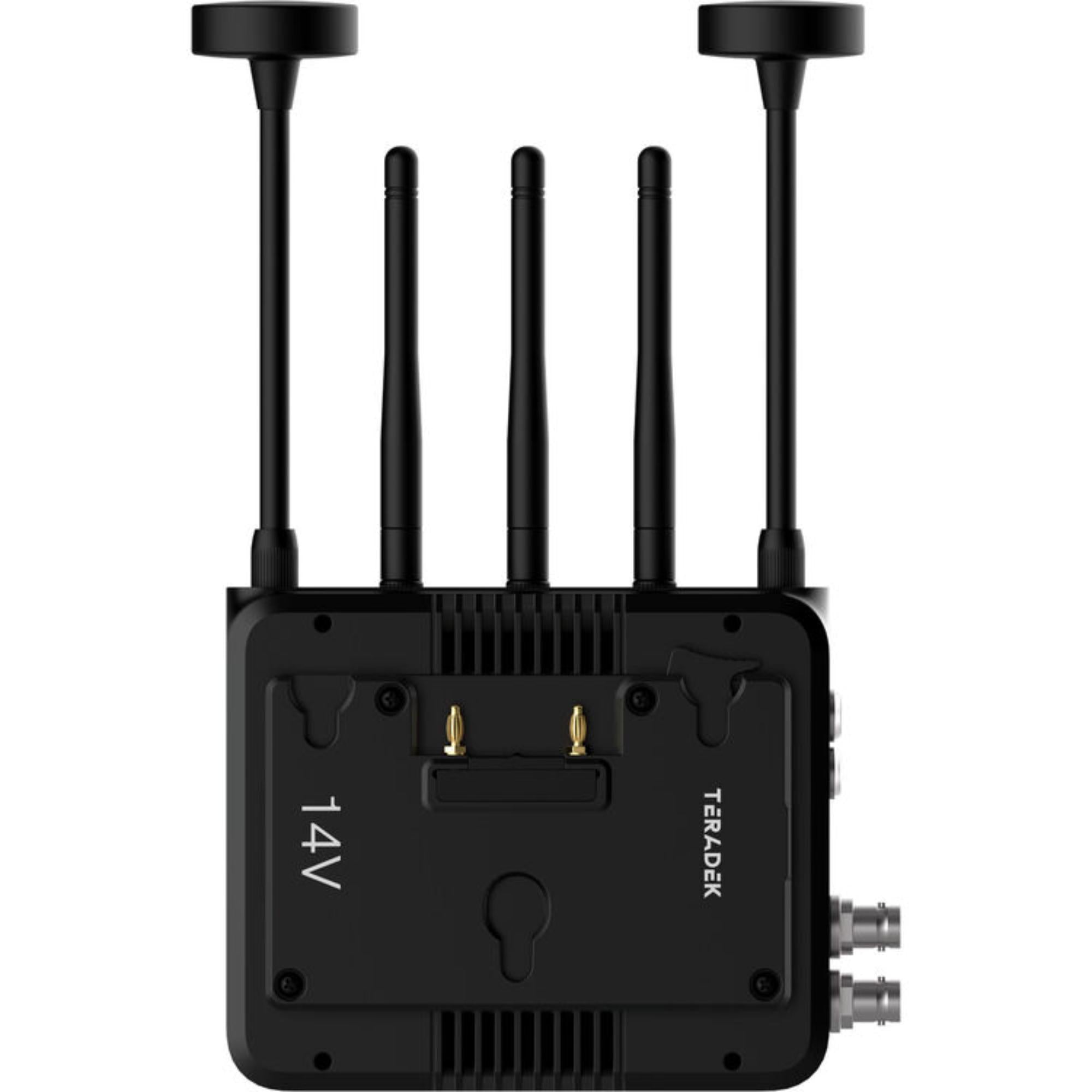

• 1 x Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Receiver (Gold Mount)
• 5 x 2 dBi Antennas
• 1 x Gold Mount Battery Plate for Receiver
• 1 x Carry Case
