Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)

Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount) is a compact wireless video system for broadcast, live production, event coverage, handheld camera work, and professional monitoring. Based on the supplied source, it carries uncompressed HD video over distances of up to 750 ft / 228.6 m under line-of-sight conditions.

The transmitter accepts HDMI 2.0 or 3G-SDI video and includes a 3G-SDI loop output for a local monitor or recorder. At the receive position, HDMI 2.0 and 3G-SDI outputs allow the signal to feed a director’s monitor, focus station, recorder, switcher, or video-village display.

Highlights

• Compact 3G-SDI/HDMI transmitter and receiver kit for professional HD monitoring
• Up to 750 ft line-of-sight range with uncompressed wireless transmission
• Supports video up to 1080p60 with 10-bit 4:2:2 and HDR
• Less than 1 ms latency with timecode and AES-256 encryption
• Fixed V-Mount receiver plate with Bluetooth control and Ranger Series compatibility

Quick Specs & Uses

• Product type: Wireless video transmitter and receiver kit
• Primary workflows: Broadcast, live events, handheld production, video village, focus pulling, studio monitoring, and field production
• Maximum wireless range: 750 ft / 228.6 m, line of sight
• Wireless video compression: Uncompressed
• Maximum video resolution: 1080p60
• HDR support: Yes
• Latency: Less than 1 ms
• Encryption: AES-256
• Timecode support: Yes
• Channel bandwidth: 40 MHz and 20 MHz
• Transmitter RF power: 23 dBm
• Receiver RF power: 21 dBm
• Bluetooth: Bluetooth 5.0 LE
• Mobile platforms: Android and iOS
• Mobile functions: Settings adjustment, remote control, setup, and live-feed viewing
• Wi-Fi: No
• Cellular support: No
• System compatibility: Pairs with Ranger Series devices
• Receiver battery mount: Fixed V-Mount plate

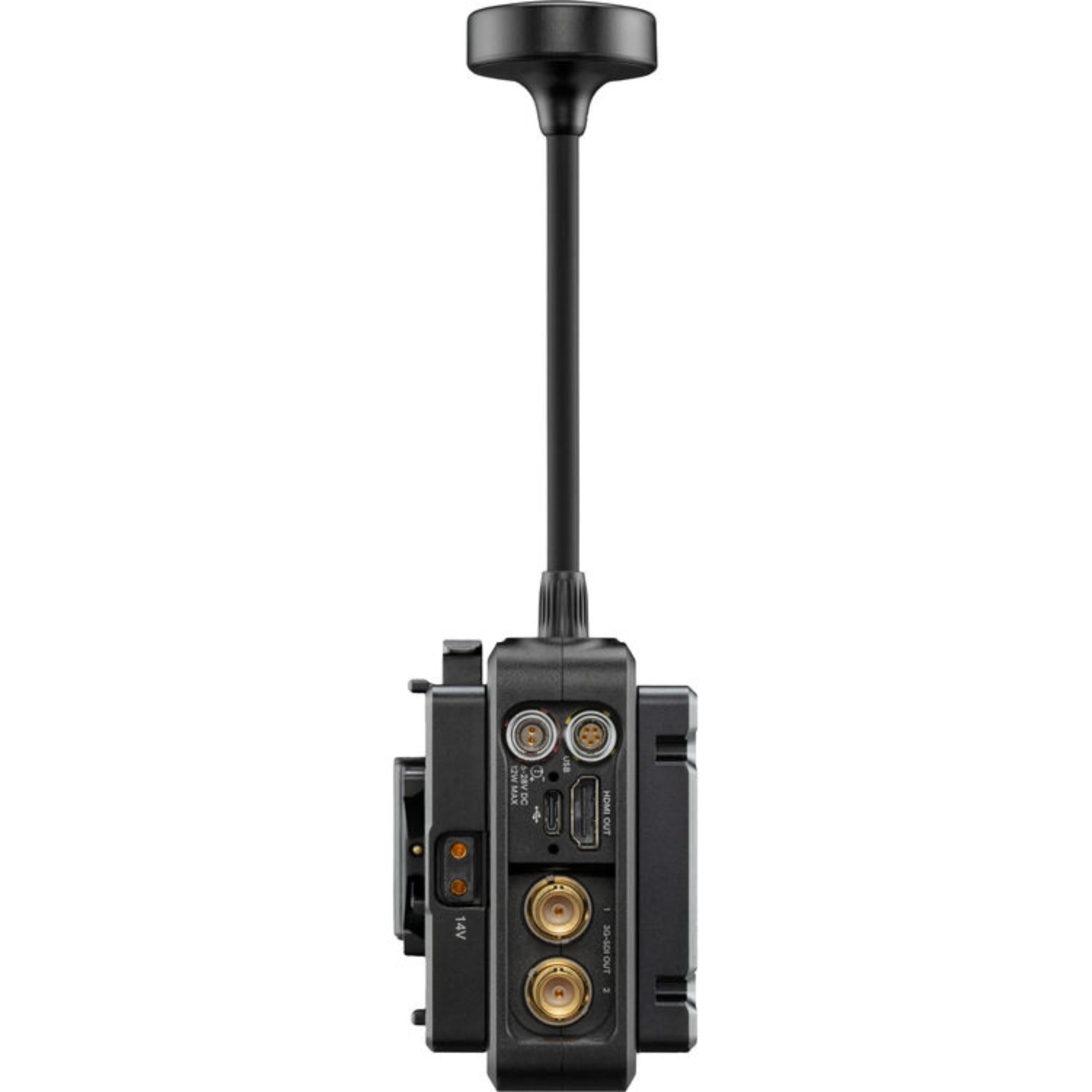

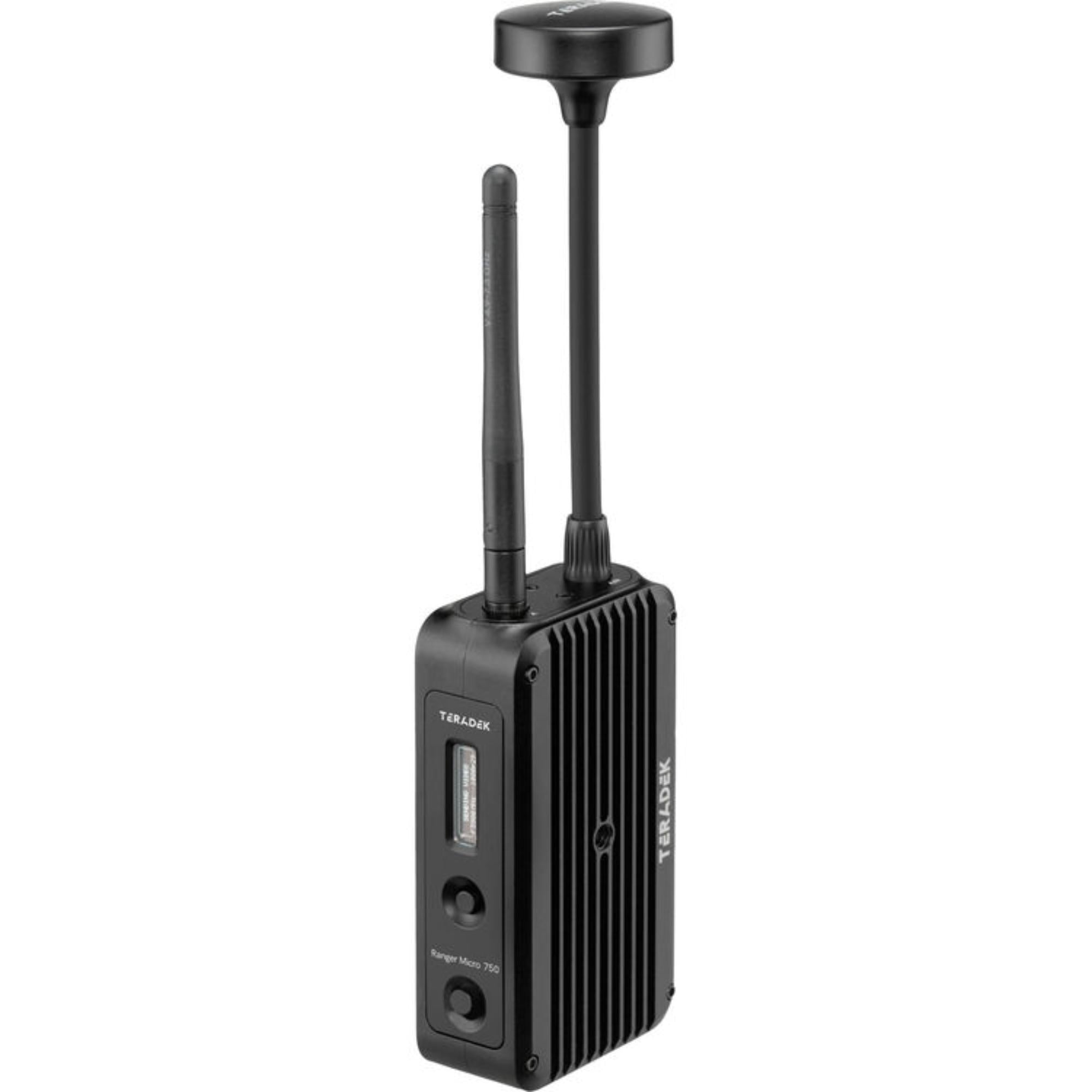

Transmitter Connections

• HDMI input: 1 x HDMI 2.0
• SDI input: 1 x BNC, 3G-SDI
• SDI loop output: 1 x BNC, 3G-SDI
• Antenna connections: 2 x RP-SMA female
• Power input: 1 x LEMO 2-pin, 28 VDC maximum
• Firmware interface: 1 x USB-C input
• Dedicated analog audio I/O: No

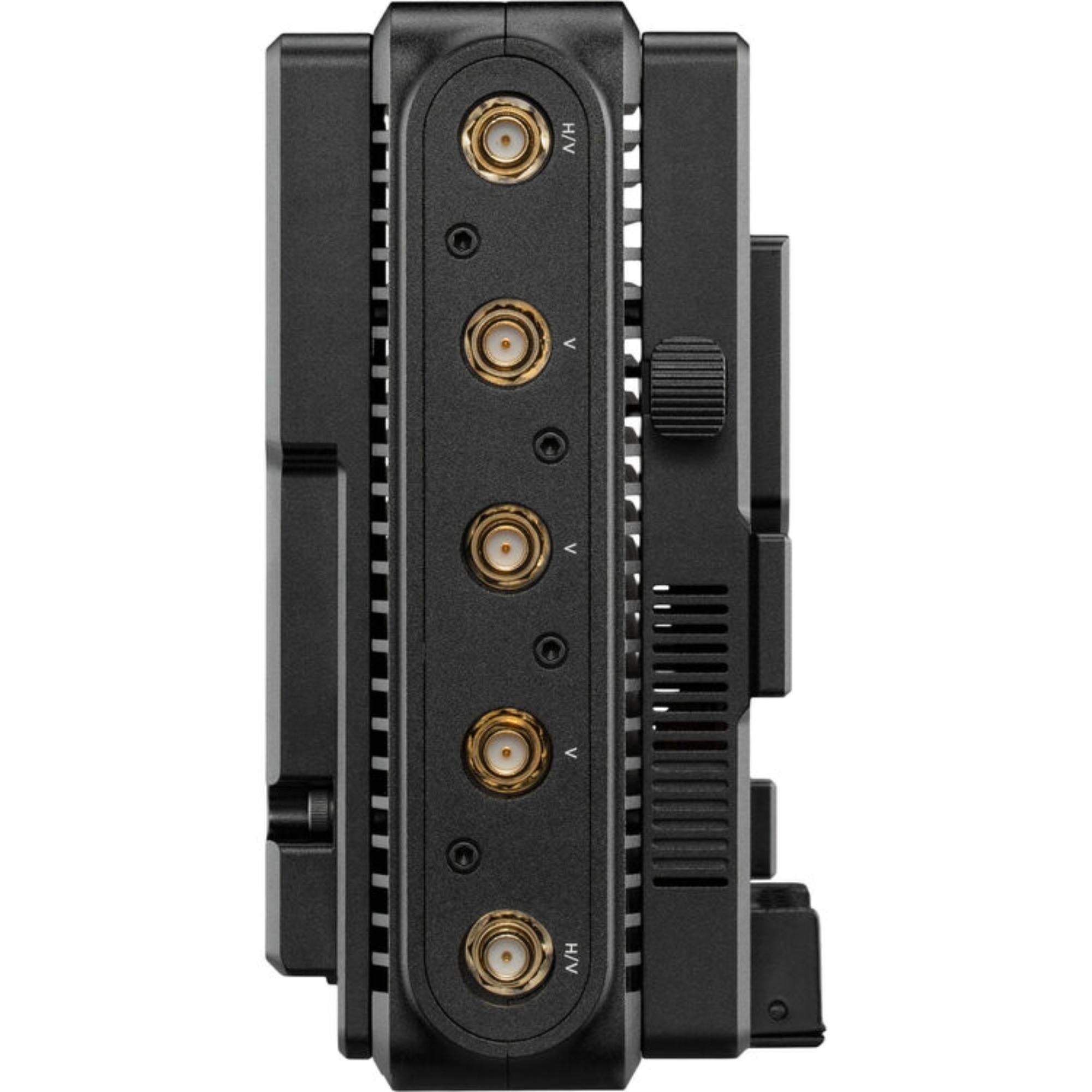

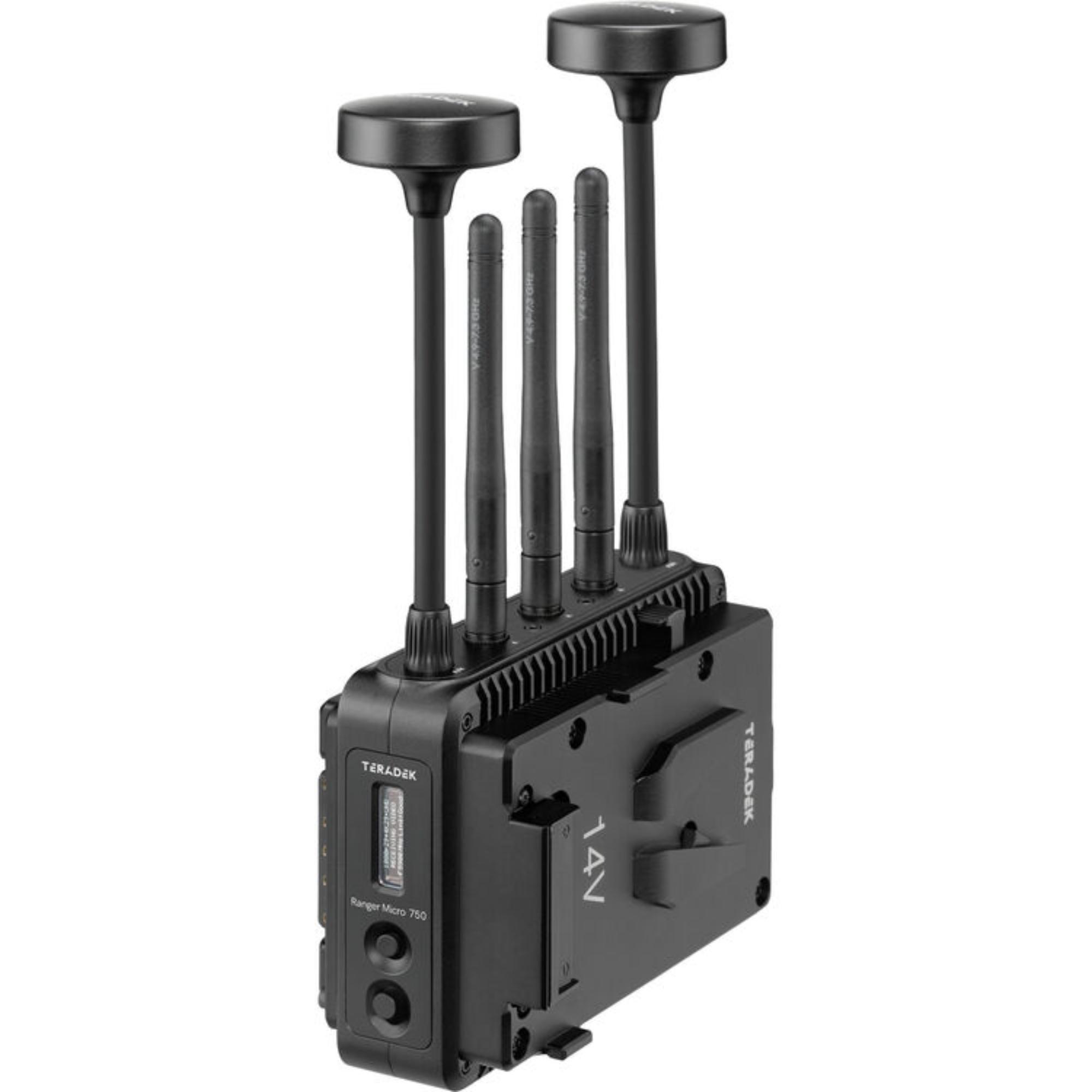

Receiver Connections

• HDMI output: 1 x HDMI 2.0
• SDI output: 1 x BNC, 3G-SDI
• Antenna connections: 5 x RP-SMA female
• Power input: 1 x LEMO 2-pin, 28 VDC maximum
• Firmware interface: 1 x USB-C input
• Dedicated analog audio I/O: No

Audio Support

• Embedded HDMI audio: 2-channel
• Embedded SDI audio: 2-channel
• Audio format: 2-channel, 24-bit, 48 kHz

Wireless & Frequency Support

• Wireless range: 750 ft / 228.6 m, line of sight
• Frequency range: 5.92 to 6.42 GHz
• Additional frequency range: 4.85 to 5.15 GHz
• Additional frequency range: 5.35 to 5.47 GHz
• Additional frequency range: 5.85 to 5.92 GHz
• Non-DFS range: 5.15 to 5.25 GHz
• Non-DFS range: 5.72 to 5.85 GHz
• DFS range: 5.25 to 5.35 GHz
• DFS range: 5.47 to 5.72 GHz

Supported Video Formats

• HDMI color support: 8/10-bit 4:4:4 / 4:2:2 RGB and YCC
• HDMI 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI 1080PsF: 30, 29.97, 25, 24, and 23.98
• HDMI 1080i: 60, 59.94, and 50
• HDMI 720p: 60, 59.94, and 50
• HDMI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94
• SDI color support: 10-bit 4:2:2 YCC
• SDI 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI 1080i: 60, 59.94, and 50
• SDI 720p: 60, 59.94, and 50
• SDI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94

Why It Helps

Ranger Micro 750 gives the camera team a practical way to move an HD signal without running a long SDI cable across the production area. Its 750 ft line-of-sight range is well suited to stages, event venues, handheld cameras, gimbals, and other setups where the camera needs room to move.

The listed latency of less than 1 ms keeps the picture responsive enough for focus pulling, camera operation, and live monitoring. Because the video is transmitted without compression, the receive position gets a signal intended for production viewing rather than a heavily compressed streaming preview.

HDMI and 3G-SDI connectivity make the system easy to place into mixed camera environments. The transmitter’s SDI loop output keeps a local camera-side feed available, while the receiver can output through HDMI or SDI depending on the monitor or production equipment in use.

The receiver’s fixed V-Mount plate keeps the power source and wireless unit together as one manageable assembly. This is useful behind a monitor or on a mobile video-village stand, where loose battery plates and extra cables can make the build harder to move.

Power & Mounting

• Input voltage: 7 to 28 VDC
• Transmitter power consumption: 9 W
• Receiver power consumption: 11 W
• Transmitter battery mount: No integrated battery plate
• Receiver battery mount: Fixed V-Mount plate
• Transmitter mounting point: 1 x 1/4"-20 female
• Receiver mounting point: 1 x 1/4"-20 female

Physical Specifications

• Construction: Aluminum and polycarbonate
• Transmitter dimensions: 4.1 x 2.4 x 1.3 in / 103 x 60 x 33 mm
• Receiver dimensions: 4.8 x 3.7 x 1.1 in / 122 x 94 x 27 mm
• Transmitter weight: 7.27 oz / 206 g
• Receiver weight: 10.30 oz / 292 g
• Operating temperature: 32 to 104°F / 0 to 40°C

System Characteristics

• 750 ft line-of-sight operation for compact field and studio deployments
• Uncompressed wireless transmission for professional monitoring
• Sub-1 ms latency for responsive camera and focus workflows
• 1080p60 support through HDMI and 3G-SDI
• 10-bit 4:2:2 and HDR support for production monitoring
• AES-256 encryption for protected wireless delivery
• Timecode support for synchronized production workflows
• Bluetooth mobile control with spectrum-analysis functionality
• Ranger Series compatibility for flexible system expansion

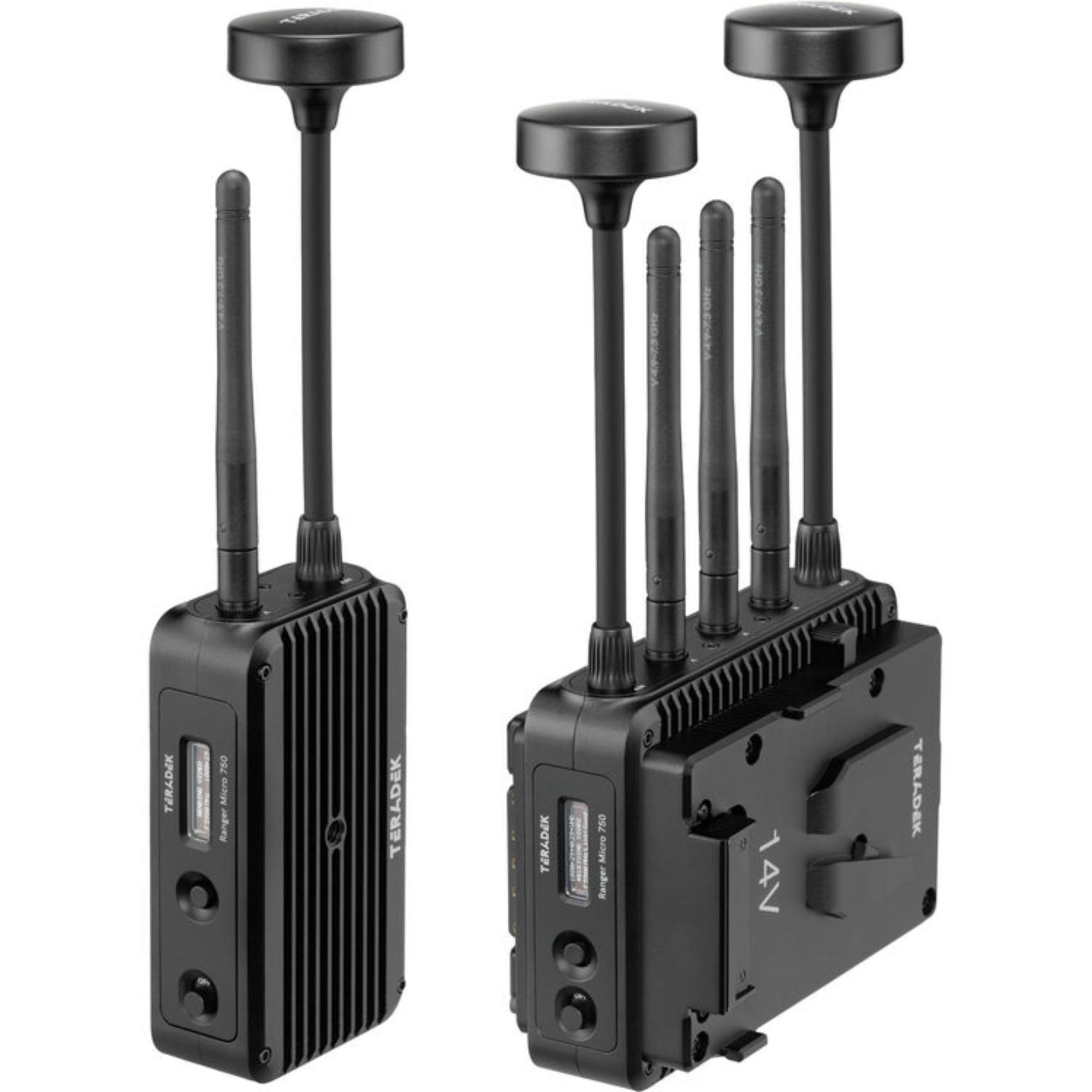

What’s In The Box

• 1 x Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter
• 1 x Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Receiver with V-Mount Plate
• 2 x N-Type Antennas
• 5 x 2 dBi Antennas
