Teradek Prism Jetpack (V-Mount)

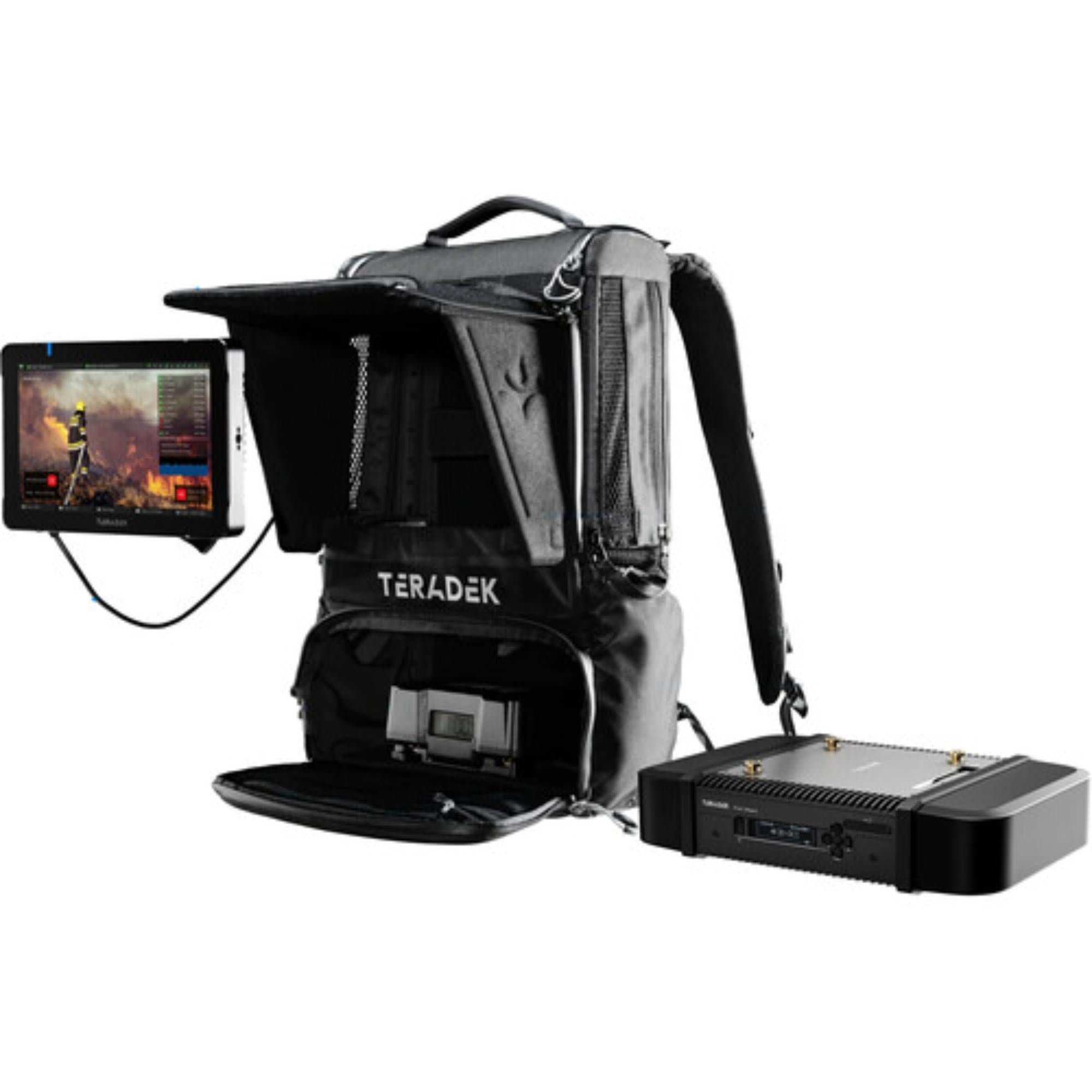

Teradek Prism Jetpack (V-Mount) is a self-contained mobile production backpack built for live broadcasting, field contribution, remote production, and camera-to-cloud delivery. It combines a Prism encoder, eight internal Node 5G modems, intercom connectivity, a detachable 7-inch OLED monitor, and V-Mount power support in one field-ready package.

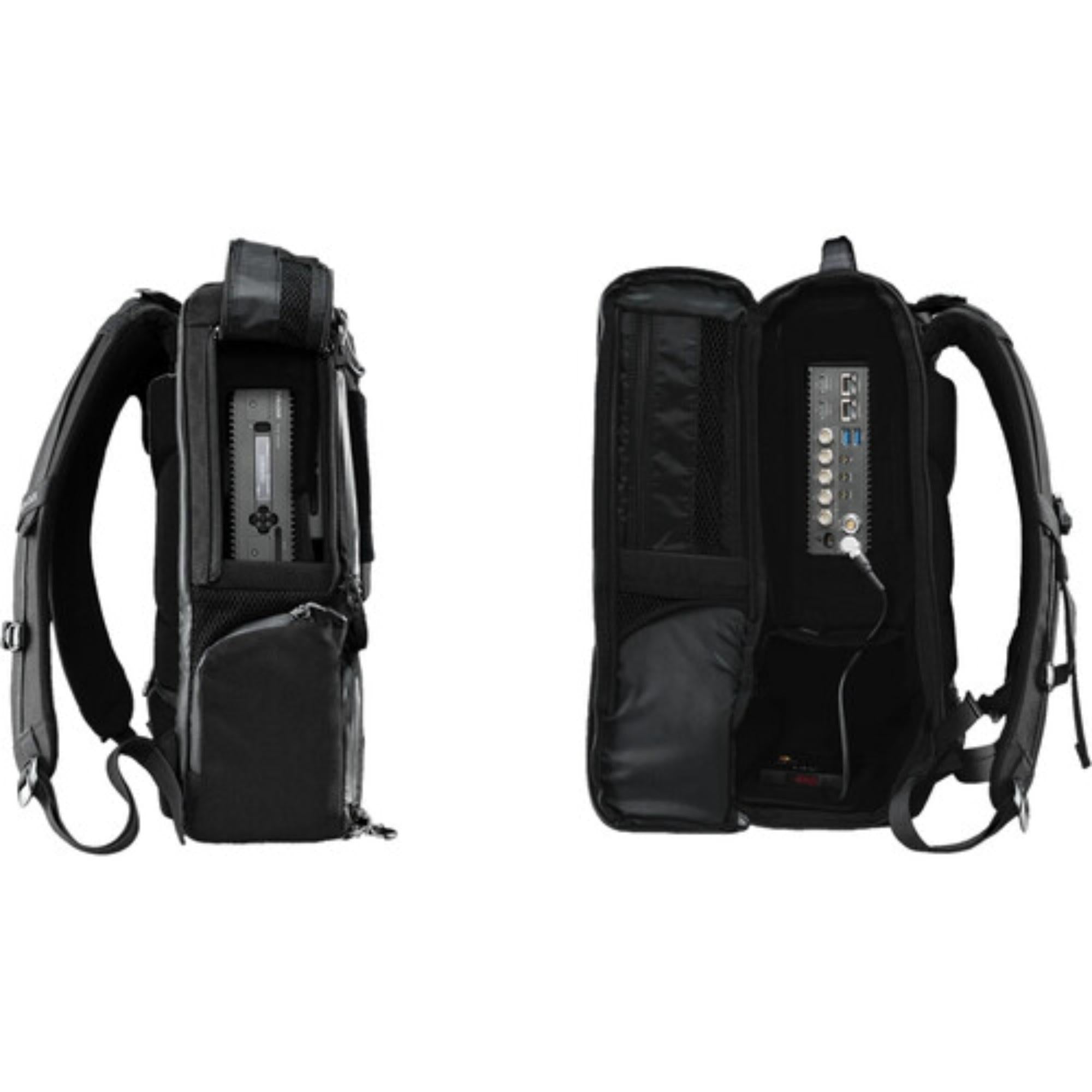

The backpack keeps encoding, monitoring, networking, recording, and transmission hardware organized for mobile operation. Cooling vents, padded straps, an integrated rain cover, and dedicated internal compartments help protect the system while making it easier to carry throughout a live production day.

Highlights

• Complete mobile production backpack with encoder, internal 5G modems, monitor, and power integration
• Eight internal Node 5G modems with support for up to 11 bonded network connections
• DCI 4K and UHD 4K up to 60 fps with AVC and HEVC encoding

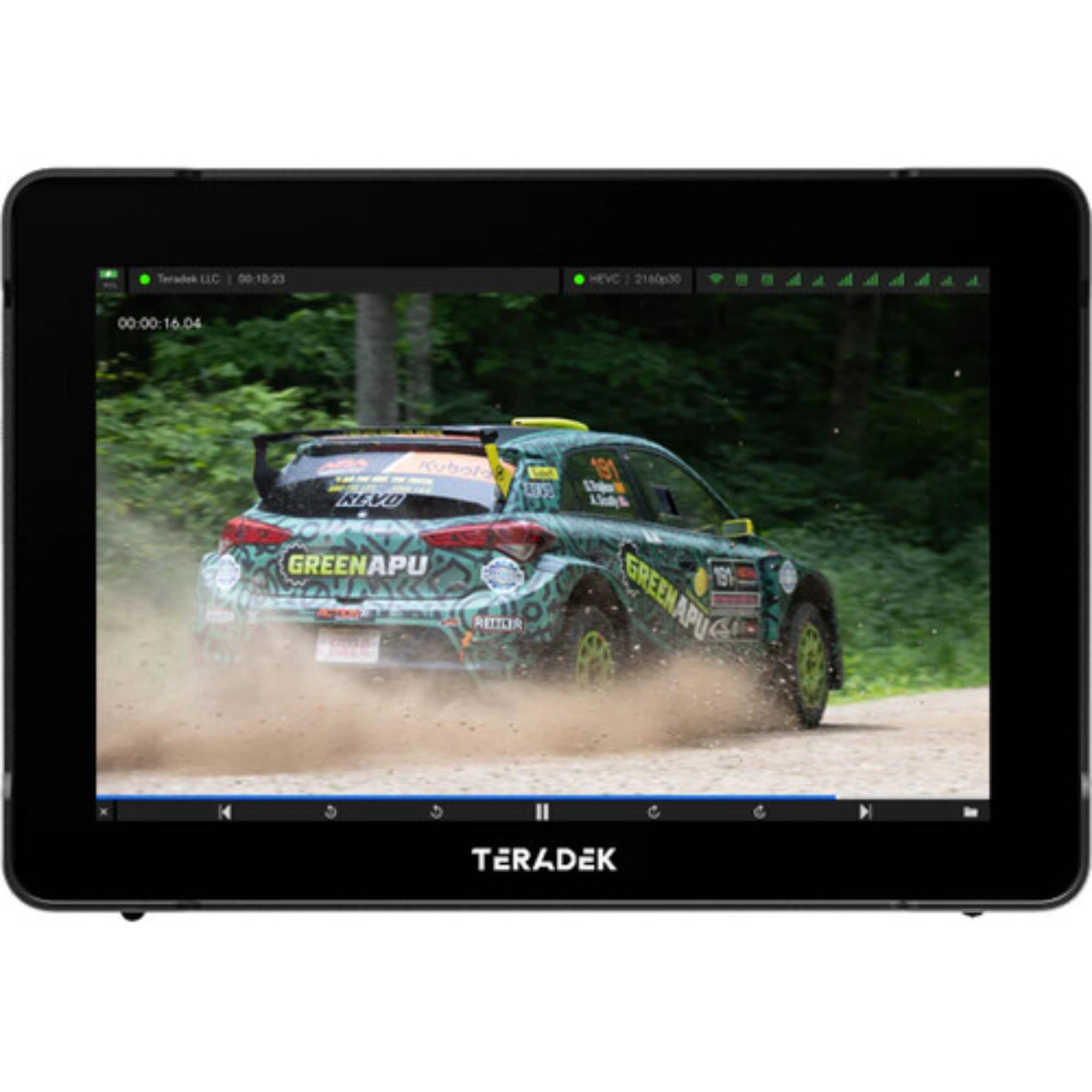

• Detachable 7-inch OLED monitor for local feed and system monitoring
• V-Mount battery plate with integrated GPS and low-power operation

Quick Specs & Uses

• Product type: Mobile production backpack encoder system
• Primary workflows: Live broadcast, ENG, sports, field contribution, remote production, event coverage, and camera-to-cloud delivery
• SDI inputs: 4 x BNC supporting 12G, 6G, 3G, HD, and SD-SDI
• HDMI input: 1 x HDMI 2.0
• SDI output: 1 x BNC supporting 12G, 6G, 3G, HD, and SD-SDI
• Operating modes: Single encode and bidirectional encode/decode
• Maximum resolution: DCI 4K and UHD 4K up to 60 fps
• Video compression: AVC Baseline, Main, and High; HEVC/H.265 Main
• Video bitrates: 250 Mb/s and 85 Mb/s
• HDR formats: 2020-PQ, 2020-HLG, and P3D65-PQ
• Color support: 8-bit and 10-bit with 4:2:2 and 4:2:0 chroma subsampling
• Bonded connections: Up to 11
• Internal cellular hardware: 8 x Node 5G modems
• Ethernet: 2 x RJ45 Gigabit Ethernet ports
• USB: 2 x USB-A ports
• Wi-Fi: 2.4/5 GHz 802.11 a/b/g/n/ac/ax MIMO
• Bluetooth: BLE for network configuration
• Recording destinations: SD card, USB drive, and NFS
• Cloud applications: Core Cloud, Teradek TV, S3 Bucket, Frame.io, Sony Ci, Sony C3 Portal, PIX, and Moxion
• Remote management: Teradek Core Cloud and Private SDK
• Display: Detachable 7-inch OLED monitor
• Battery system: V-Mount battery plate
• Input voltage: 6 to 28 VDC
• Power consumption: 20 W nominal, 36 W maximum

Why It Helps

Prism Jetpack gives a field crew one integrated platform for encoding, bonded transmission, monitoring, recording, audio, and cloud delivery. By combining up to 11 network paths, the system can use cellular, Ethernet, and Wi-Fi connections together to improve transmission resilience when individual links become unstable.

The backpack format also simplifies mobile deployment. The detachable OLED monitor provides local confidence monitoring, while padded straps, cooling vents, a rain cover, and dedicated compartments keep the production hardware protected and easier to manage during long live assignments.

System Characteristics

• All-in-one field workflow combines encoding, monitoring, bonded connectivity, recording, and intercom support
• Professional 4K processing supports DCI/UHD 4K, HDR, 10-bit color, AVC, and HEVC
• Multi-network bonding supports up to 11 connections for more resilient live contribution
• Flexible audio workflow includes embedded SDI/HDMI audio, analog input, headphone monitoring, and IFB output
• Purpose-built backpack construction supports portable operation with cooling, weather protection, and organized storage

What’s In The Box

• 1 x Teradek Prism Jetpack (V-Mount)
• 1 x Prism Jetpack Encoder
• 1 x Prism Jetpack Monitor, 7 in
• 8 x Teradek Standard Data eSIM Cards
• 1 x V-Mount Battery Plate and Sled
• 1 x 2-Pin AC/DC Power Supply
• 1 x IEC Power Cable
