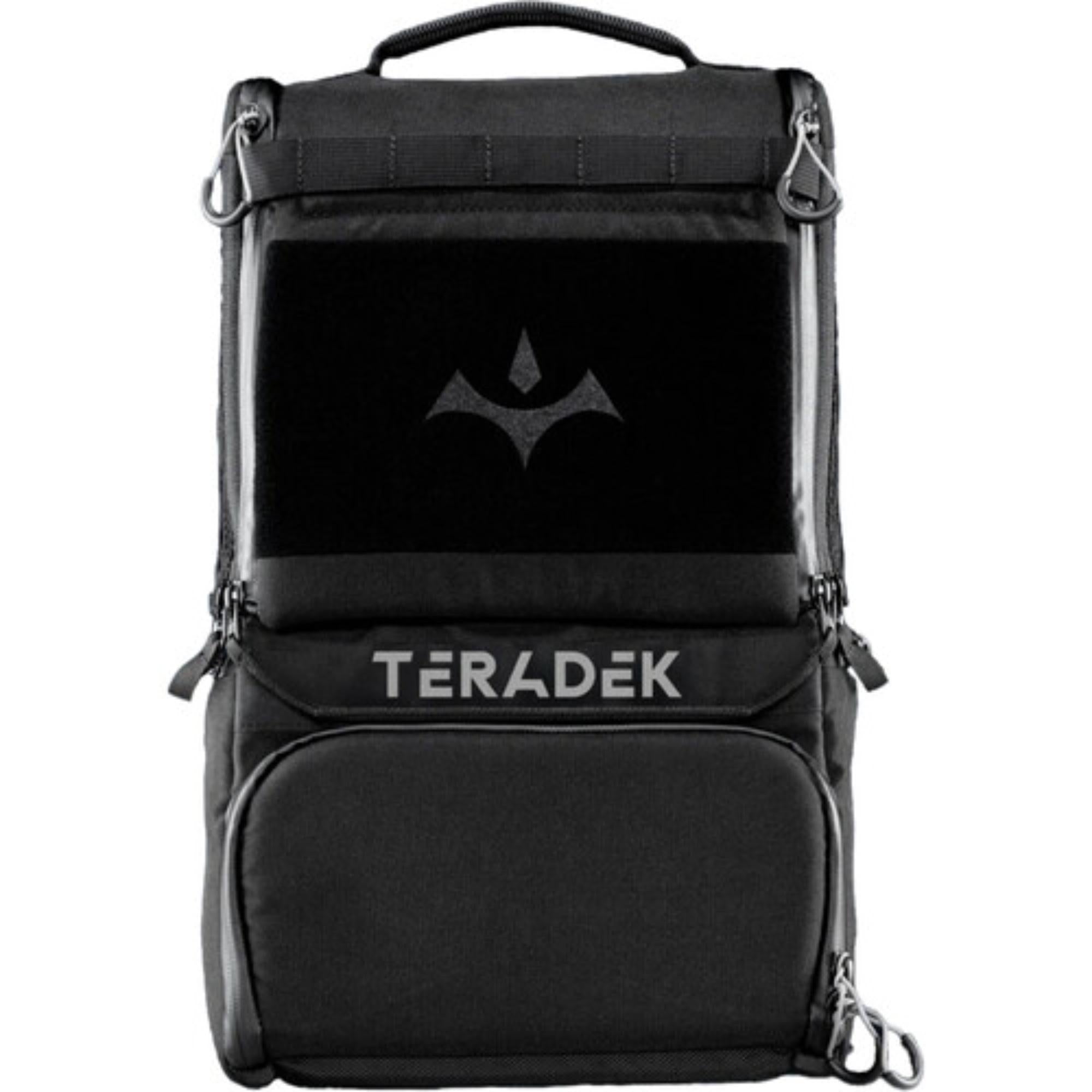

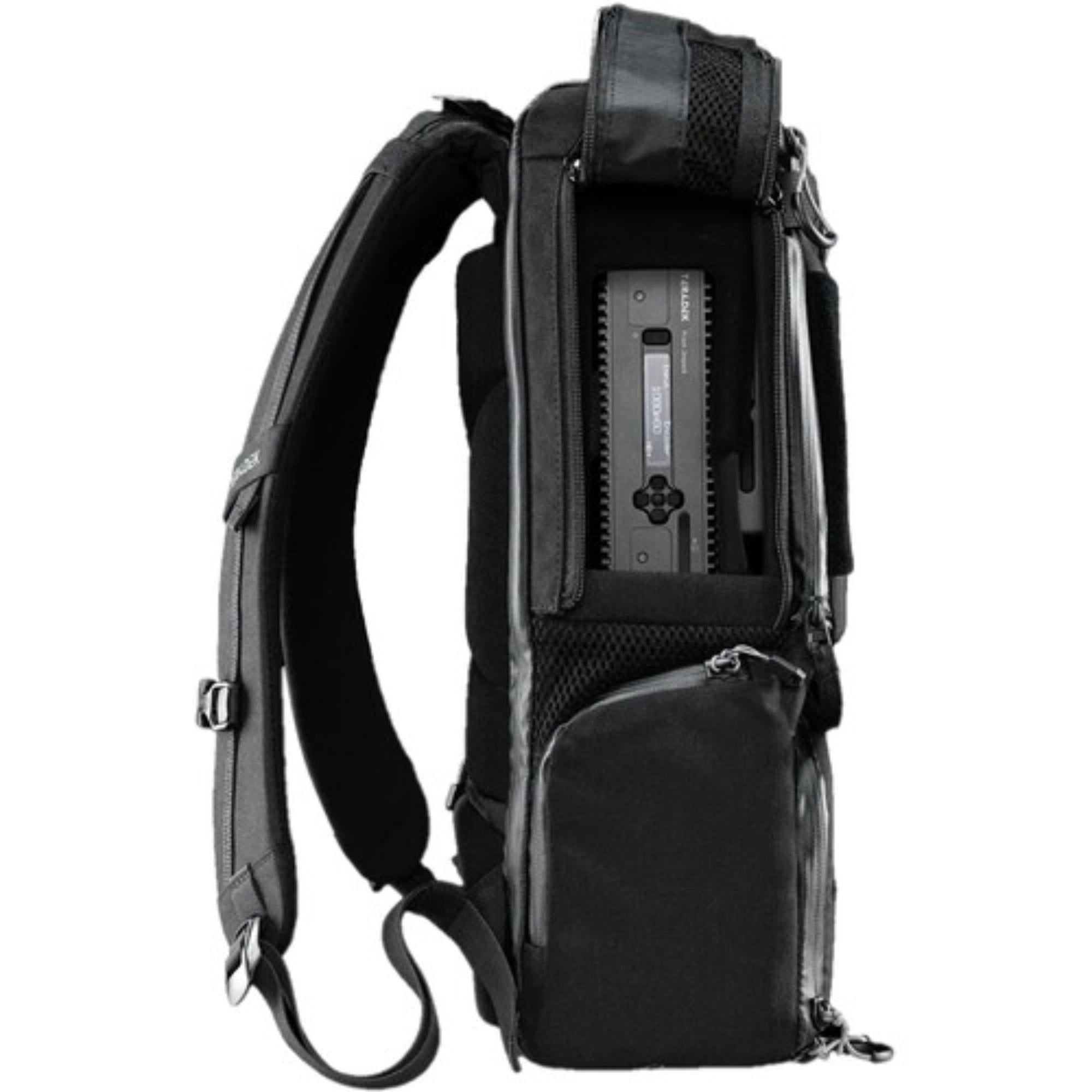

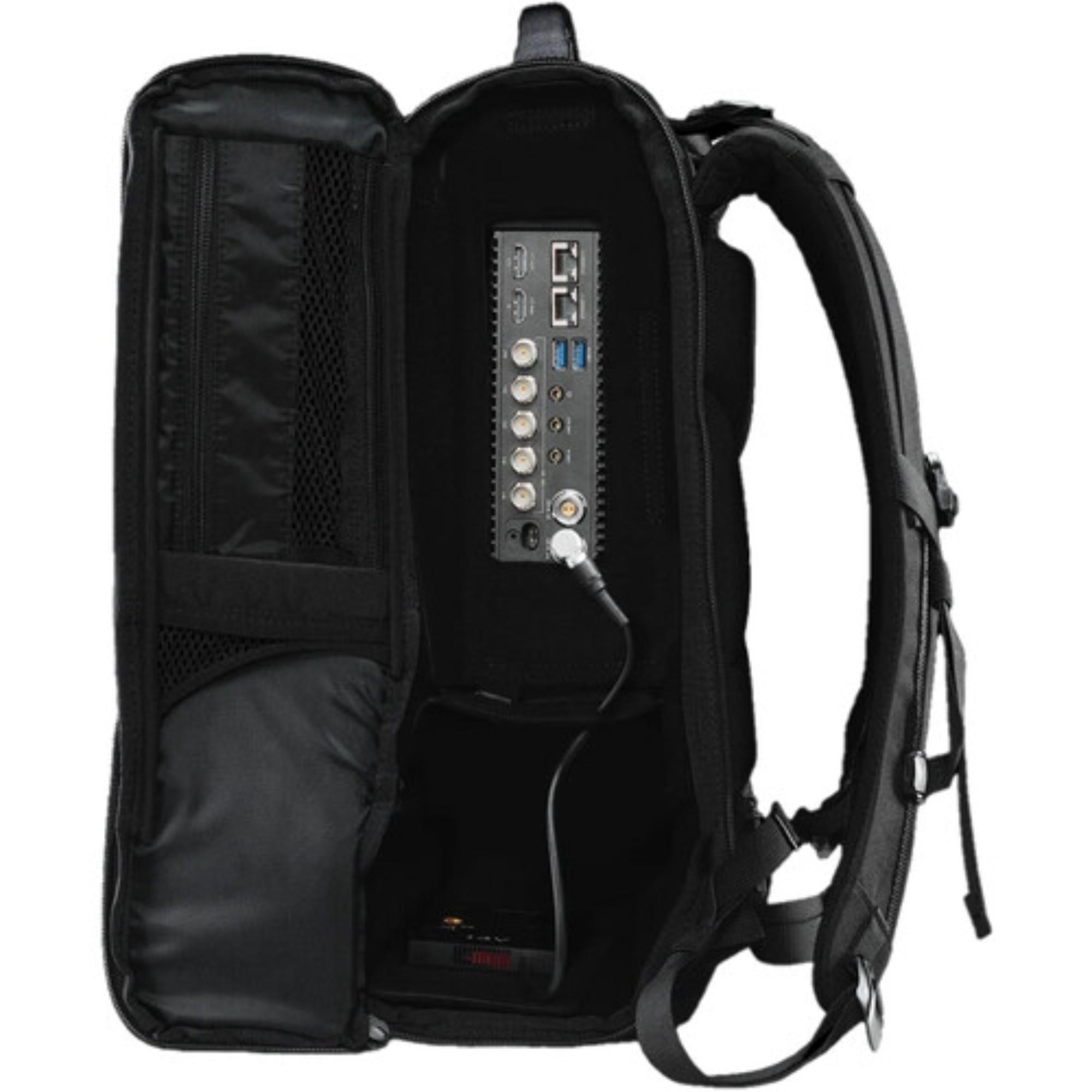

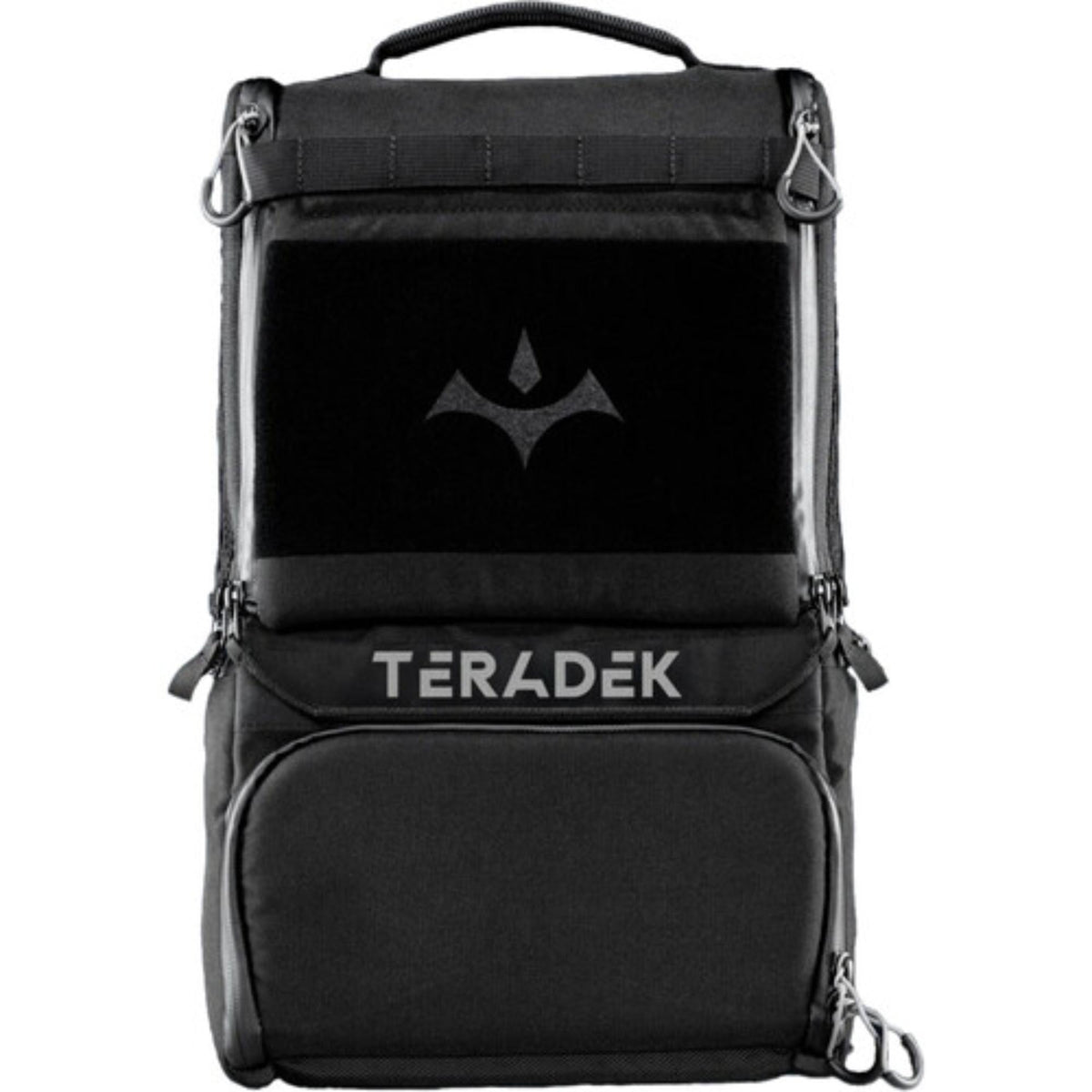

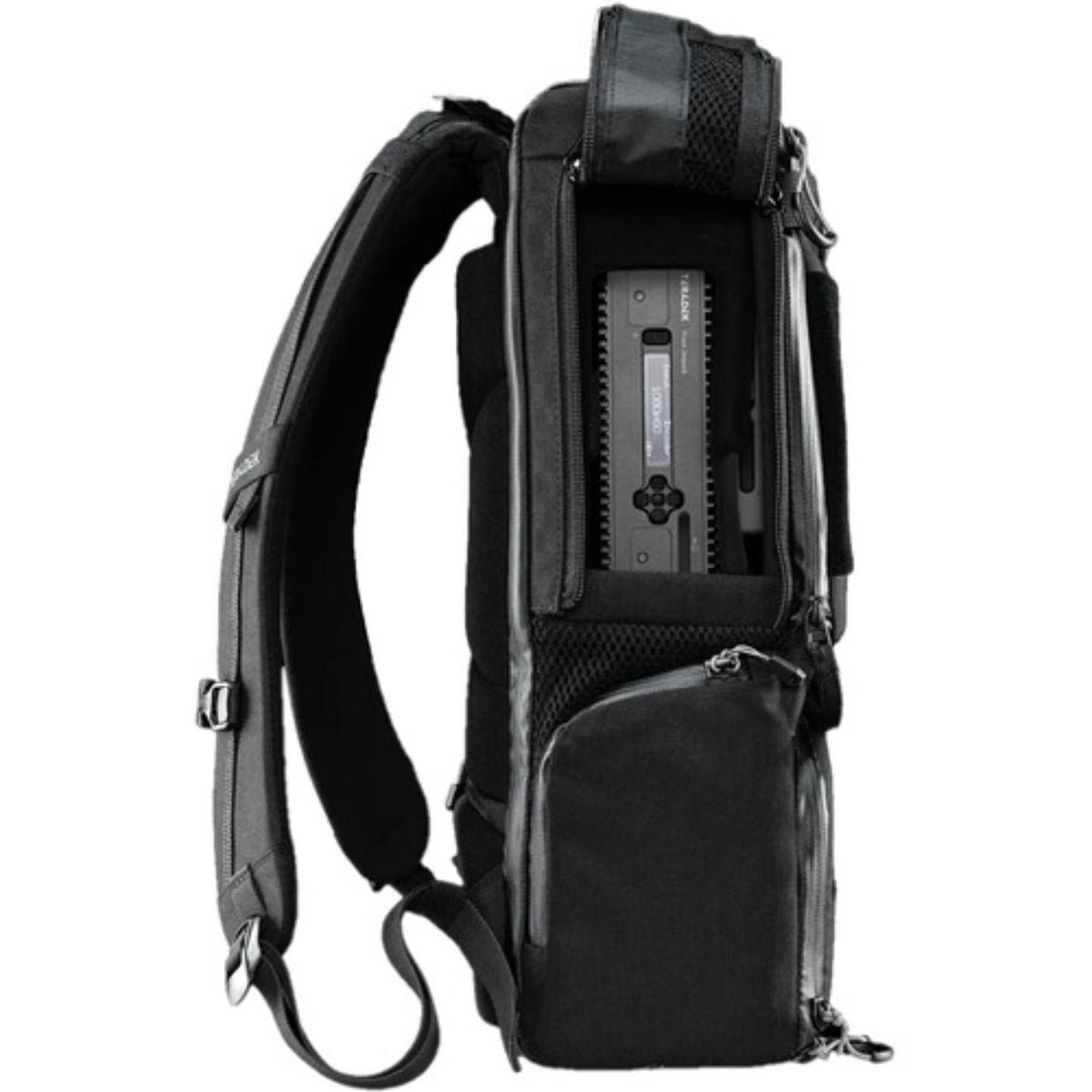

Teradek Prism Jetpack (Gold Mount)

Teradek Prism Jetpack (Gold Mount) is a self-contained production backpack built for mobile live broadcasting, field contribution, and camera-to-cloud workflows. It combines a Prism encoder, eight internal Node 5G modems, intercom connectivity, a detachable 7-inch OLED monitor, and Gold Mount power support in one field-ready package.

The system keeps monitoring, encoding, networking, recording, and transmission hardware organized inside a purpose-built backpack. Cooling vents, padded straps, an integrated rain cover, and dedicated compartments make it easier to carry and operate a complete production system throughout a live assignment.

Highlights

• Complete mobile production backpack with encoder, internal modems, monitor, and power integration
• Eight internal Node 5G modems with support for up to 11 bonded network connections
• DCI 4K and UHD 4K up to 60 fps with AVC and HEVC encoding

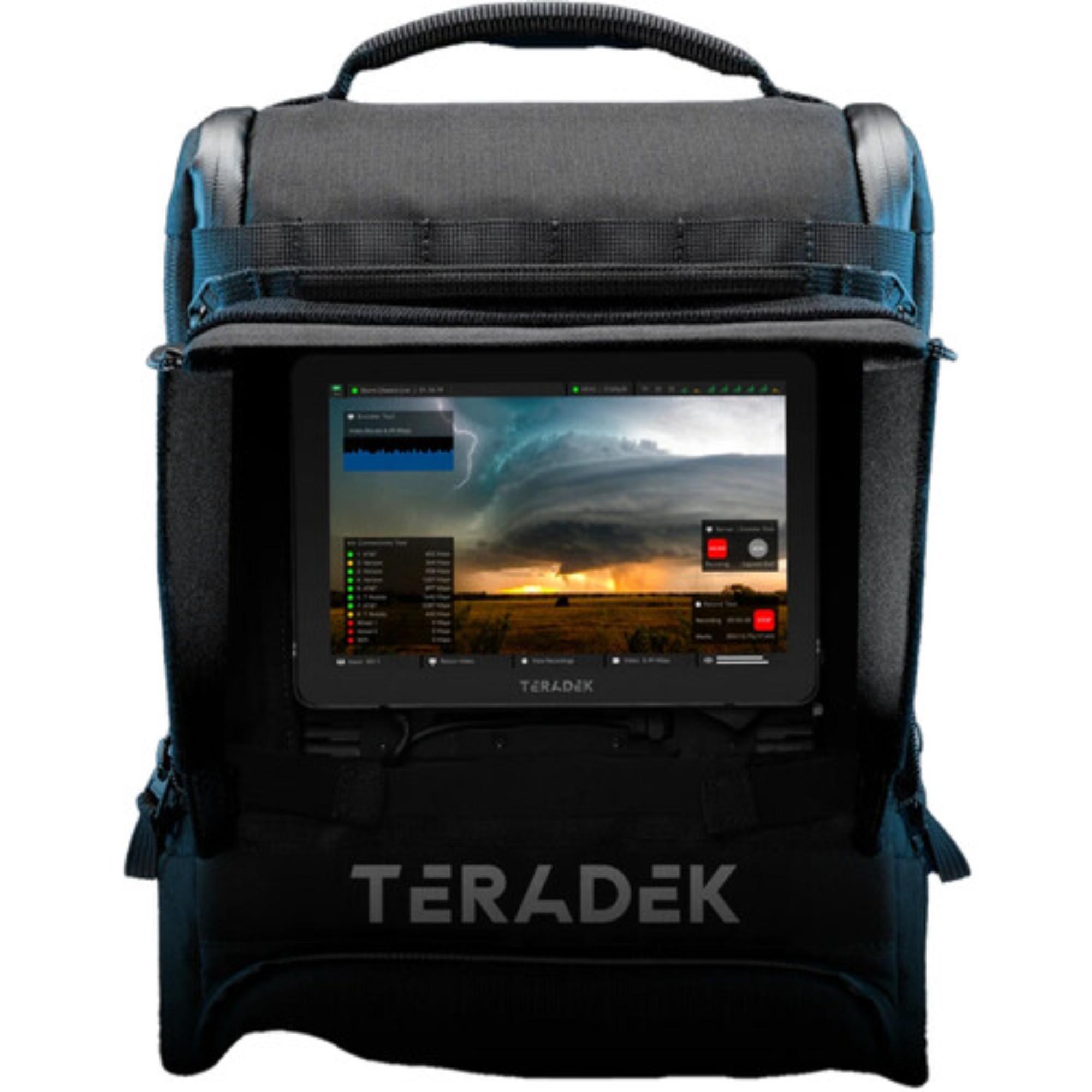

• Detachable 7-inch OLED monitor for local feed and system monitoring
• Gold Mount battery plate with integrated GPS and low-power operation

Quick Specs & Uses

• Product type: Mobile production backpack encoder system
• Typical uses: Live broadcast, field contribution, ENG, sports, event production, remote production, and camera-to-cloud delivery
• Video inputs: 4 x BNC supporting 12G/6G/3G/HD/SD-SDI and 1 x HDMI 2.0
• Video output: 1 x BNC supporting 12G/6G/3G/HD/SD-SDI
• Operating modes: Single encode and bidirectional encode/decode
• Maximum resolution: DCI 4K and UHD 4K up to 60 fps
• Video compression: AVC Baseline, Main, and High; HEVC/H.265 Main
• Video bitrates: 250 Mb/s and 85 Mb/s
• HDR formats: 2020-PQ, 2020-HLG, and P3D65-PQ
• Color support: 8-bit and 10-bit encoding with 4:2:2 and 4:2:0 subsampling
• Bonding: Up to 11 bonded connections
• Internal modems: 8 x Node 5G modems
• Network connections: 2 x RJ45 Gigabit Ethernet, Wi-Fi 2.4/5 GHz, and BLE configuration
• Recording: SD card, USB drive, and NFS
• Cloud applications: Core Cloud, Teradek TV, S3 Bucket, Frame.io, Sony Ci, Sony C3 Portal, PIX, and Moxion
• Remote management: Teradek Core Cloud and Private SDK
• Display: Detachable 7-inch OLED
• Battery system: Gold Mount battery plate
• Input voltage: 6 to 28 VDC
• Power consumption: 20 W nominal, 36 W maximum

Why It Helps

Prism Jetpack gives a field crew one integrated platform for encoding, bonded transmission, monitoring, audio, recording, and cloud delivery. By combining up to 11 network paths, the system can use cellular, Ethernet, and Wi-Fi connectivity to improve transmission resilience when individual connections become unstable.

The backpack format also simplifies mobile deployment. The detachable OLED monitor provides local confidence monitoring, while padded straps, cooling vents, a rain cover, and dedicated compartments keep the production hardware protected and easier to manage during long live assignments.

System Characteristics

• All-in-one field workflow combines encoding, monitoring, cellular bonding, recording, and intercom connectivity
• Professional 4K processing supports DCI/UHD 4K, HDR, 10-bit color, AVC, and HEVC
• Multi-network bonding uses up to 11 connections for more resilient live contribution
• Flexible audio support includes embedded SDI/HDMI audio, analog input, headphone monitoring, and IFB output
• Purpose-built backpack construction supports portable operation with cooling, weather protection, and organized storage

What’s In The Box

• 1 x Teradek Prism Jetpack (Gold Mount)
• 1 x Prism Jetpack Encoder
• 1 x Prism Jetpack Monitor, 7 in
• 8 x Teradek Standard Data eSIM Cards
• 1 x Gold Mount Battery Plate and Sled
• 1 x 2-Pin AC/DC Power Supply
• 1 x IEC Power Cable
