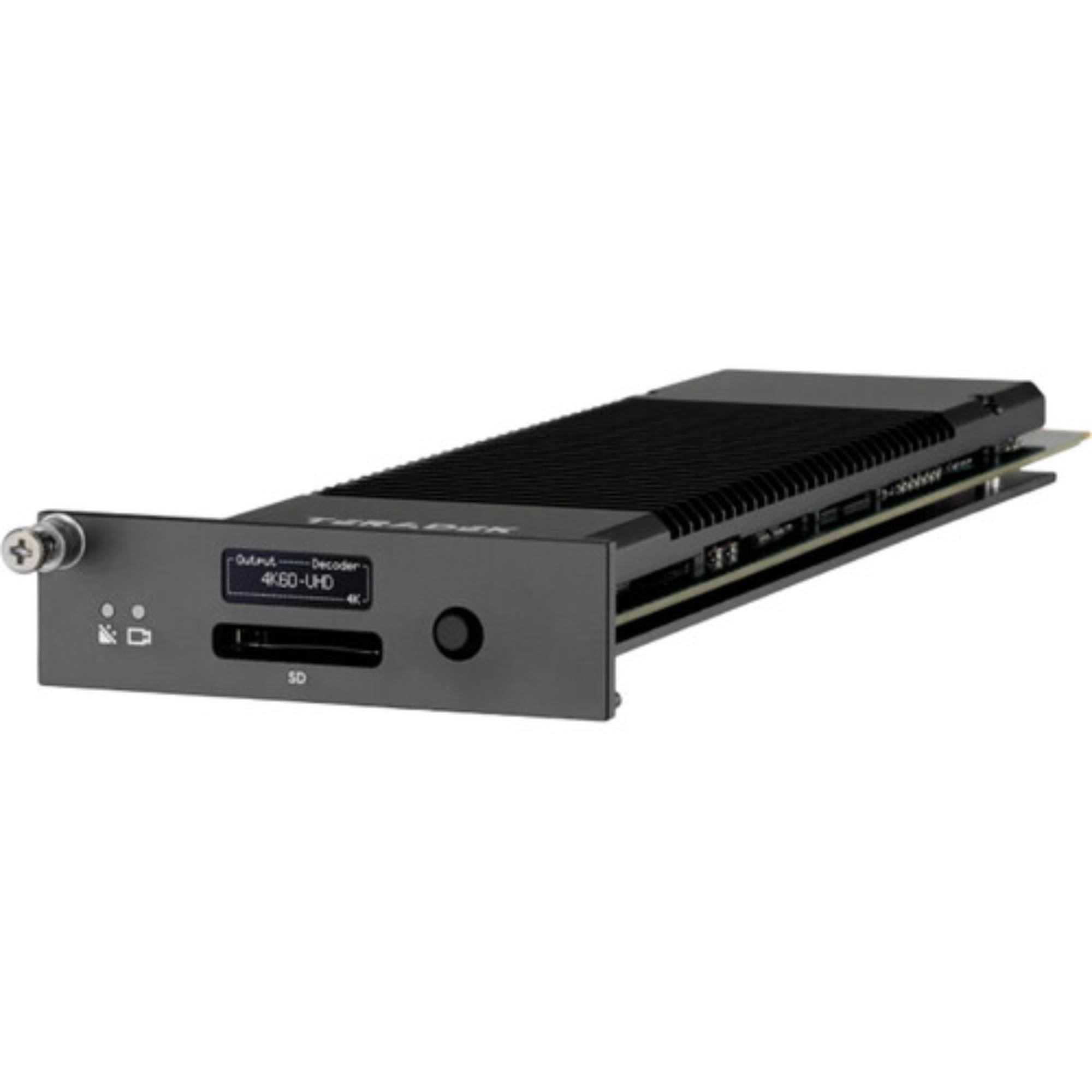

Teradek Prism 877 4K H.264/HEVC Encoder/Decoder Card for Prism Rack (12G-SDI)

Teradek Prism 877 4K H.264/HEVC Encoder/Decoder Card for Prism Rack (12G-SDI) is a modular video-processing card built for the Teradek Prism Rack chassis. Based on the supplied source, it supports H.264/AVC and H.265/HEVC encoding and decoding at resolutions up to DCI 4K60 with 10-bit 4:2:2 color.

The card provides two 12G-SDI ports that can be configured for input, output, or loop-through operation. It can be deployed as an encoder or decoder, while bidirectional encode/decode operation is available with an optional license.

Highlights

• 12G-SDI encoder/decoder card for the Teradek Prism Rack chassis
• Supports H.264/AVC and H.265/HEVC up to DCI 4K60
• 10-bit 4:2:2 video support for professional production workflows
• Two configurable 12G-SDI ports for input, output, or loop-through use
• 256GB NVMe storage and SD card recording for local stream capture

Quick Specs & Uses

• Product type: Modular 12G-SDI encoder/decoder card
• Compatible chassis: Teradek Prism Rack
• Video connections: 2 x 12G-SDI ports
• Port configurations: Input, output, or loop-through
• Video codecs: H.264/AVC and H.265/HEVC
• Maximum resolution: DCI 4K60
• Color support: 10-bit 4:2:2
• Operating modes: Encode or decode
• Bidirectional encode/decode: Supported with an optional license
• Internal storage: 256GB NVMe
• Removable media: Full-size SD card slot
• Local recording: Supported through NVMe or optional SD media
• Embedded audio: Up to 8 channels
• Audio codec: AAC
• HDR support: Yes
• Overlay support: Up to 10 overlays
• Cloud workflow: Camera-to-cloud connectivity
• Streaming protocols: RTR, SRT, RTMP, RTSP, and RTSP+
• Network bonding: Available with an optional license
• Additional licensed functions: Multi-output, debonding, and decoding to an optional SDI output
• Primary uses: Live broadcast contribution, event production, remote production, cloud delivery, return feeds, recording, and rack-based distribution

Why It Helps

The Prism 877 gives broadcast engineers a flexible way to add 12G-SDI encoding or decoding to a Prism Rack without installing a separate standalone appliance. The modular format keeps processing, recording, and signal routing inside one rack-based platform.

Its two 12G-SDI ports can be assigned according to the job. A port may receive a source, provide a decoded output, or pass the incoming signal through to another device. That flexibility is useful when the same rack needs to support different production layouts from one event to the next.

Support for DCI 4K60 and 10-bit 4:2:2 video gives the card enough processing headroom for modern broadcast and live-production signals. H.264 remains available for established delivery paths, while HEVC provides a more bandwidth-efficient option for high-resolution contribution.

The built-in 256GB NVMe storage and full-size SD card slot also provide local recording options. Engineers can retain a copy of the stream for backup, review, compliance, or later transfer without adding a separate recorder to the rack.

Encoding & Decoding

• H.264/AVC encoding and decoding for established broadcast and streaming workflows
• H.265/HEVC encoding and decoding for efficient high-resolution delivery
• DCI 4K60 processing for live 4K production
• 10-bit 4:2:2 support for professional color handling
• HDR processing for compatible high-dynamic-range sources
• Optional bidirectional operation for simultaneous encode and decode workflows

Streaming & Cloud Workflows

• RTR support for compatible real-time transport workflows
• SRT support for resilient contribution over public networks
• RTMP support for established live-streaming delivery
• RTSP and RTSP+ support for compatible network video workflows
• Camera-to-cloud connectivity for remote collaboration and delivery
• Optional network bonding for combining supported network paths

Recording & Storage

• Built-in 256GB NVMe storage for onboard recording
• Full-size SD card slot for removable recording media
• Local stream recording for backup, review, or archive purposes
• Flexible storage choice between internal NVMe and optional SD media

System Characteristics

• Modular Prism Rack integration for centralized deployment
• Dual 12G-SDI architecture for configurable signal routing
• Combined encoding and decoding capability in one card
• 4K60 10-bit 4:2:2 processing for professional workflows
• HDR, overlay, and AAC audio support
• Built-in and removable recording options
• Cloud and multi-protocol streaming support
• Optional licenses for bonding, bidirectional processing, multi-output, and debonding

What’s In The Box

• 1 x Teradek Prism 877 4K H.264/HEVC Encoder/Decoder Card for Prism Rack (12G-SDI)
