Teradek Bolt 6 XT 10K RX (Gold Mount)

Teradek Bolt 6 XT 10K RX (Gold Mount) is a long-range wireless video receiver designed for broadcast, cinema, live events, sports, and remote monitoring positions. Based on the supplied source, it can receive a compatible Bolt wireless feed from distances of up to 10,000 ft / 3 km without listed quality loss.

The receiver is built around an integrated directional panel antenna, removing the need to attach separate external antennas. At the output side, it provides two 12G-SDI outputs and one HDMI 2.0 output, allowing the same received signal to feed professional monitors, recorders, switchers, or distribution equipment.

Highlights

• Long-range Bolt wireless receiver with reception up to 10,000 ft / 3 km
• Integrated directional panel antenna with no external antenna connections required
• Two 12G-SDI outputs and one HDMI 2.0 output
• Supports UHD 4K60, 10-bit 4:2:2 video with HDR capability
• Fixed Gold Mount battery plate for professional field power

Quick Specs & Applications

• Product type: Long-range wireless video receiver
• Typical applications: Broadcast contribution, stadium production, motorsports, large venues, exterior locations, video village, remote monitoring, and fixed receive stations
• Maximum wireless range: 10,000 ft / 3 km
• Range condition: Listed as without quality loss
• System compatibility: Teradek Bolt 4K and Bolt 6 systems
• Maximum listed video format: UHD 4K60
• Color support: 10-bit 4:2:2
• HDR support: Yes, according to the supplied feature text
• Wireless video compression: Compressed
• Encryption: 256-bit AES
• Wireless radios: 5.1 and 5.8 GHz Radio/RF
• RF power: Up to 21 dBm
• Bluetooth: Bluetooth 2.4
• Mobile compatibility: Android and iOS
• Application: Bolt Manager
• Mobile functions: Settings adjustment and setup
• Wi-Fi: No
• Cellular support: No
• Battery mount: Fixed Gold Mount plate
• Input voltage: 14 to 26 VDC
• Typical power consumption: 18 W

Video Outputs

• 12G-SDI outputs: 2 x BNC
• HDMI output: 1 x HDMI 2.0
• Embedded audio: Supported over HDMI and SDI
• Dedicated analog audio I/O: No

Other Connections

• Power input: 1 x 2-pin, 28 VDC
• Firmware connection: 1 x 5-pin interface
• External antenna I/O: No

Wireless Performance

• Maximum reception range: 10,000 ft / 3 km
• Wireless system: 5.1 GHz and 5.8 GHz Radio/RF
• RF output rating: Up to 21 dBm
• Encryption: AES-256
• Integrated antenna: Directional panel design
• Latency specification: Not stated in the supplied specification table

Frequency Support

• DFS frequencies: 5.27 to 5.67 GHz
• Non-DFS frequencies: 5.19 to 5.23 GHz
• Non-DFS frequencies: 5.755 to 5.795 GHz
• Non-DFS frequencies: 5.945 to 6.425 GHz

Supported Video Formats

• Signal interface: HDMI and SDI
• Color format: 10-bit 4:2:2
• UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• 1080PsF: 30, 29.97, 25, 24, and 23.98
• 1080i: 60, 59.94, and 50
• 720p: 60, 59.94, and 50

Why It Works in Production

The Bolt 6 XT 10K RX is intended for productions where the receive position is far beyond the reach of a conventional on-set wireless link. A listed range of 10,000 ft makes it relevant to stadiums, racetracks, golf courses, large exterior venues, vehicle work, and other applications where video village may be several kilometres from the camera.

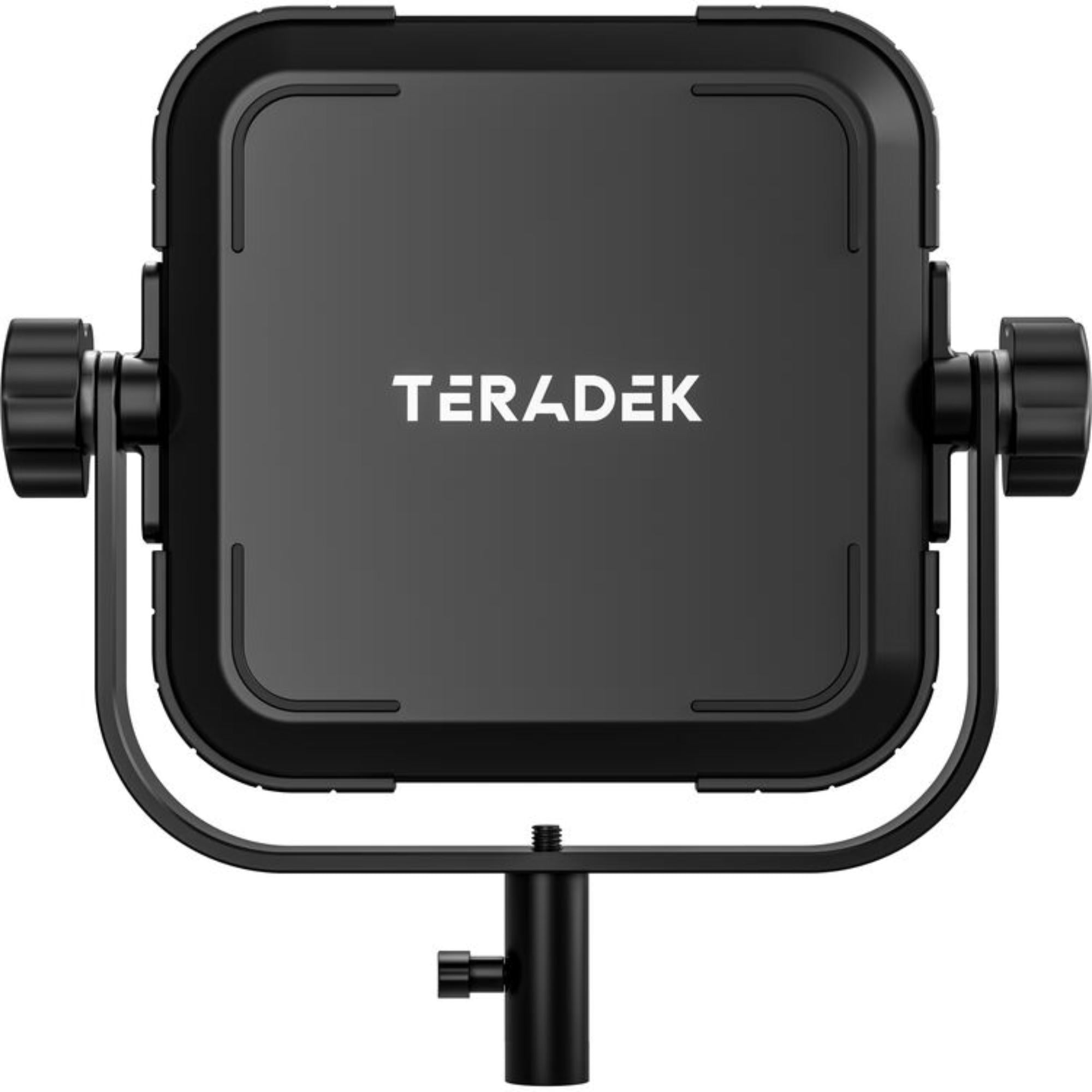

The integrated directional panel antenna keeps the receiving system self-contained. Instead of installing several external antennas and RF cables, the operator can aim the receiver toward the transmitter position and build the station around one main unit.

Two 12G-SDI outputs are useful when the received picture needs to feed more than one professional destination. One output might connect to a production monitor while the second feeds a recorder, router, or switcher. The HDMI 2.0 output provides another path for compatible displays and monitoring hardware.

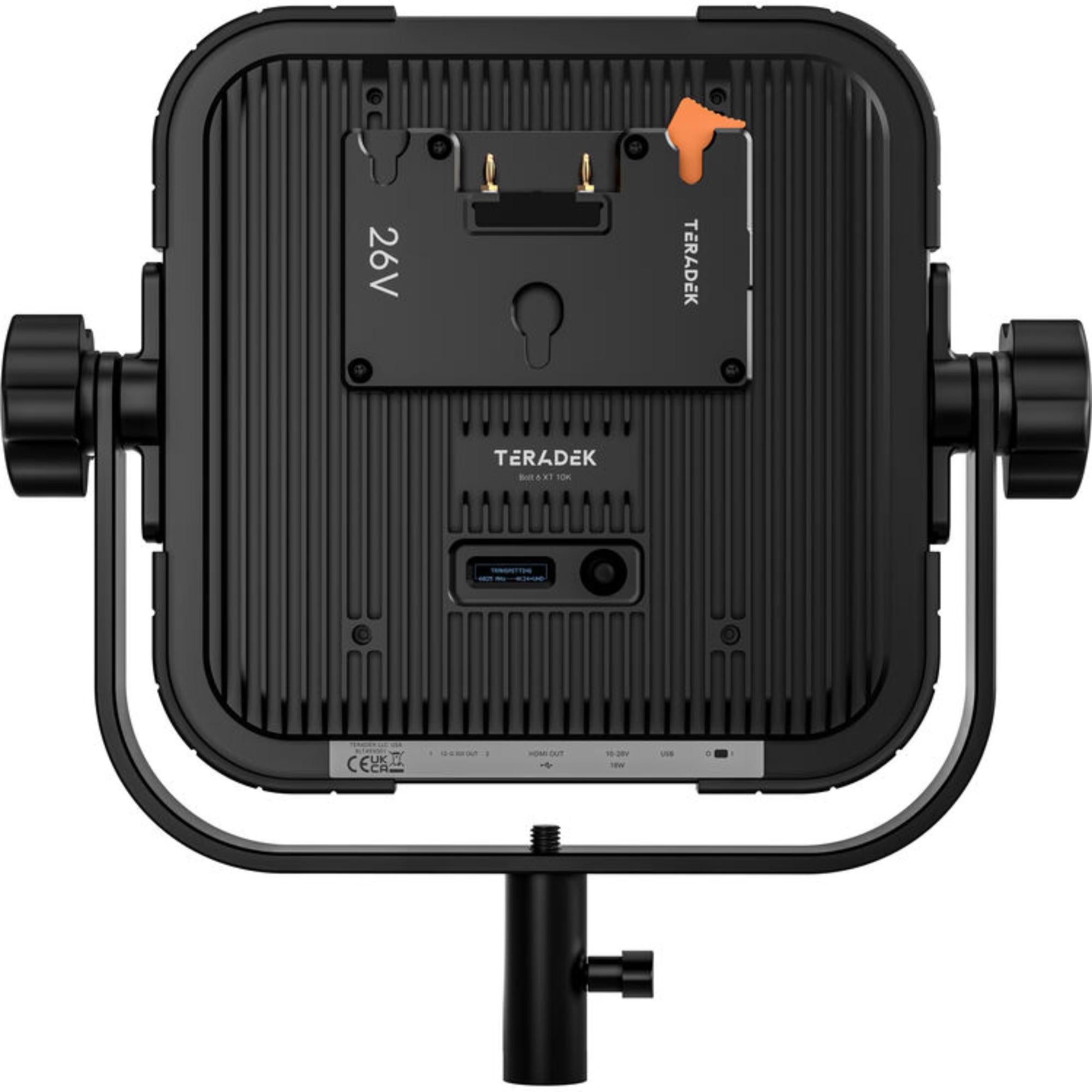

The fixed Gold Mount plate supports a familiar field-power workflow. This allows the receiver to operate as a battery-powered remote station when AC power is unavailable or when the unit needs to be repositioned during production.

Power & Field Operation

• Input voltage range: 14 to 26 VDC
• Typical power consumption: 18 W
• Battery interface: Fixed Gold Mount plate
• Operating temperature: 32 to 104°F / 0 to 40°C
• Environmental resistance: No specified environmental sealing
• Status display: No

Physical Specifications

• Construction: Aluminum
• Dimensions: 13 x 12.7 x 2.2 in / 330 x 322 x 55 mm
• Weight: 4.44 lb / 2.01 kg
• Tripod or accessory mounting: Not specified by the manufacturer in the supplied source

System Characteristics

• 10,000 ft long-range wireless reception
• Integrated directional panel antenna
• Dual 12G-SDI outputs for professional signal distribution
• HDMI 2.0 output for compatible monitoring equipment
• UHD 4K60, 10-bit 4:2:2 support
• AES-256 encrypted wireless reception
• Gold Mount battery integration
• Compatibility with Bolt 4K and Bolt 6 ecosystems

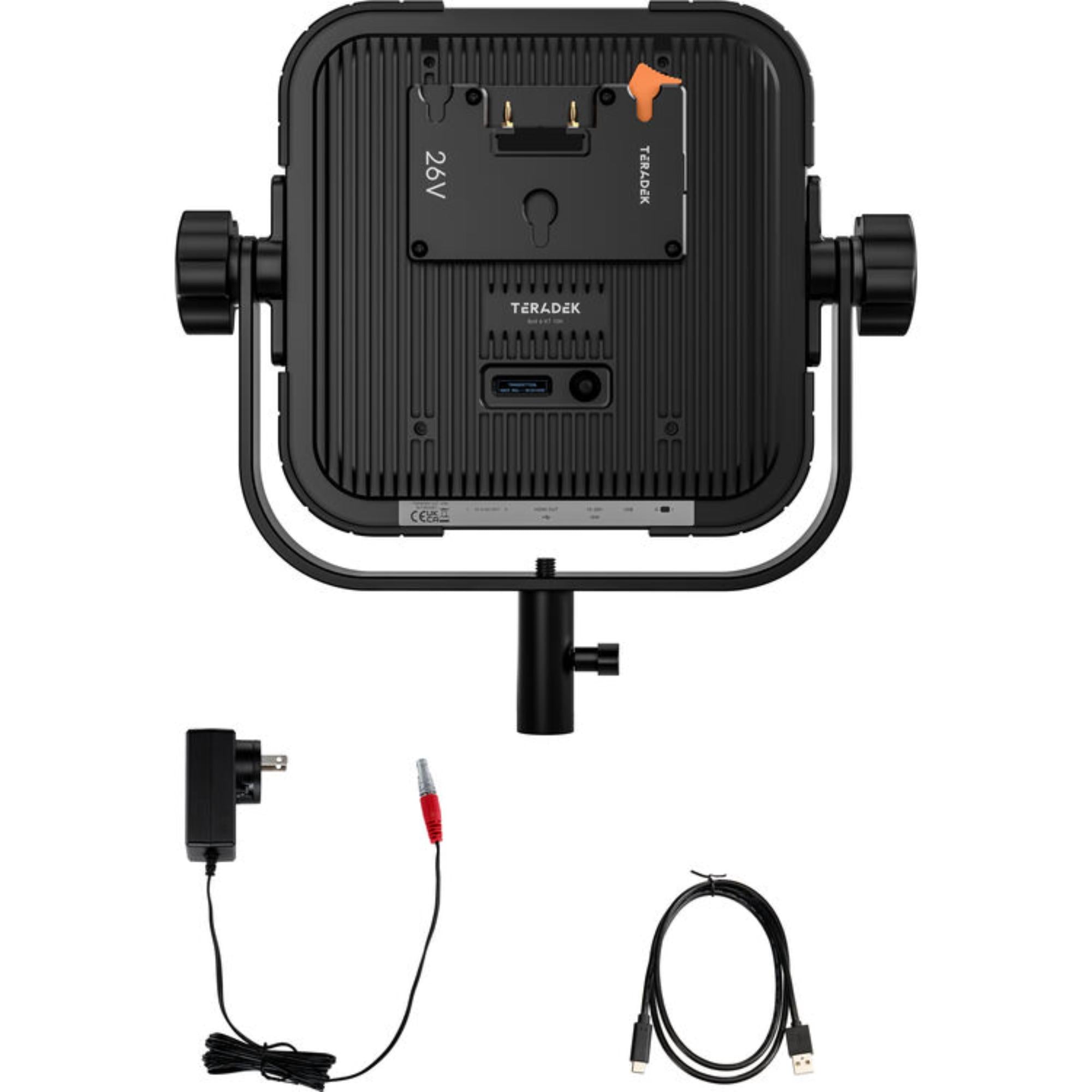

What’s In The Box

• 1 x Teradek Bolt 6 XT 10K RX (Gold Mount)
