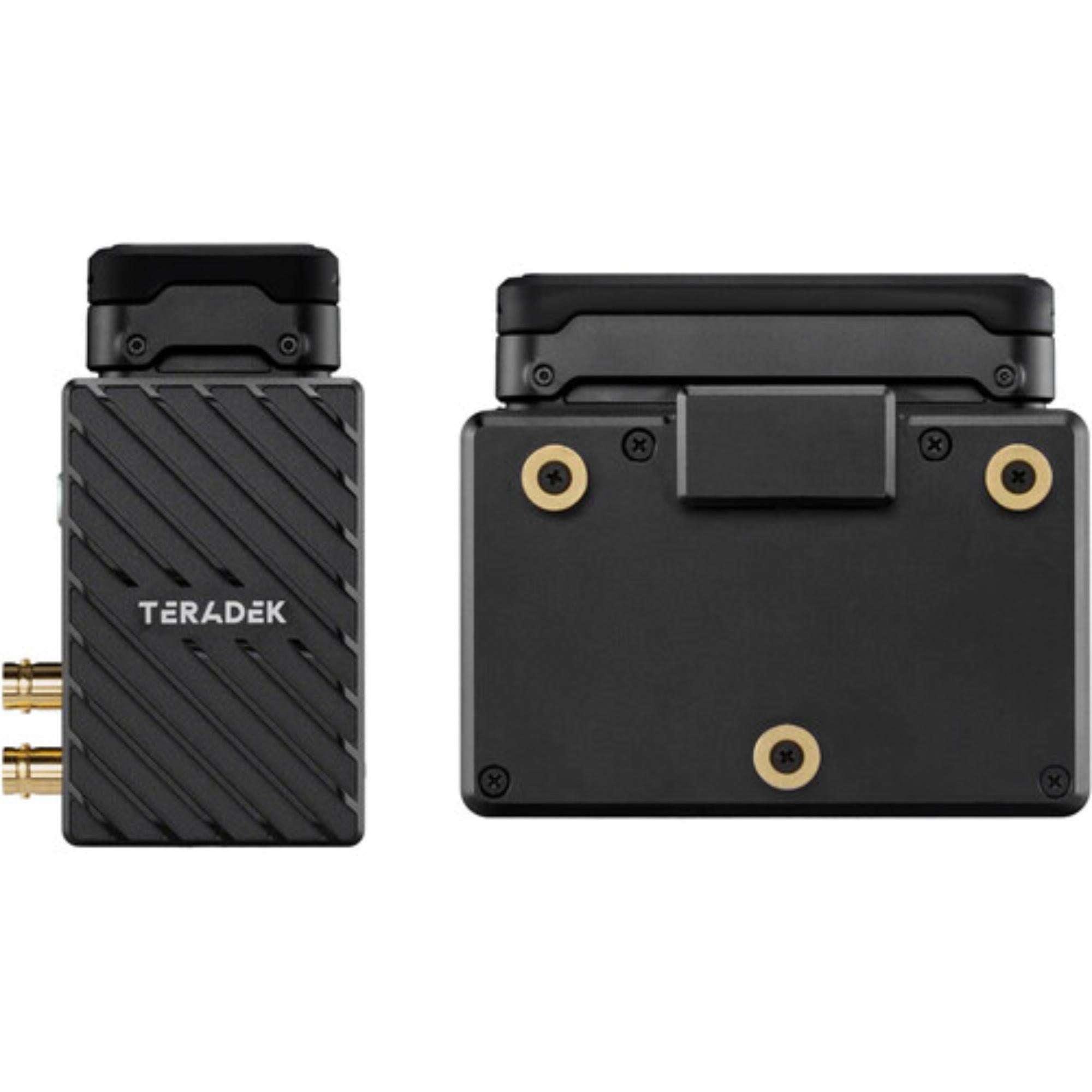

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas (Gold Mount)

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas (Gold Mount) is a compact wireless video system for cinema, broadcast, live production, and on-set monitoring. It transmits lossless HD video over distances of up to 750 ft under line-of-sight conditions, giving the camera team room to move without running a long video cable back to the monitoring position.

Both the transmitter and receiver use internal antennas, creating a cleaner installation with fewer exposed components around the camera or monitor. The transmitter accepts HDMI and 3G-SDI sources, while the Gold Mount receiver provides HDMI and 3G-SDI outputs for professional displays, recorders, switchers, and video-assist systems.

Highlights

• Complete 3G-SDI/HDMI wireless system with transmitter and receiver
• Up to 750 ft line-of-sight transmission for studio and location production
• Supports video inputs up to 4K30
• Internal antennas on both units for a compact, streamlined build
• Gold Mount receiver configuration for professional battery integration

Quick Specs & Uses

• Product type: Wireless video transmitter and receiver kit
• Primary workflows: Cinema production, broadcast, live events, video village, director monitoring, focus stations, and field production
• Maximum wireless range: Up to 750 ft, line of sight
• Maximum supported input resolution: Up to 4K30
• Video interfaces: HDMI and 3G-SDI
• Wireless frequency support: 6 GHz band
• Antenna design: Internal antennas on transmitter and receiver
• Embedded audio: HDMI and SDI
• Timecode support: Yes
• Encryption: AES-256
• Input voltage: 6 to 28 VDC
• Receiver battery mount: Gold Mount

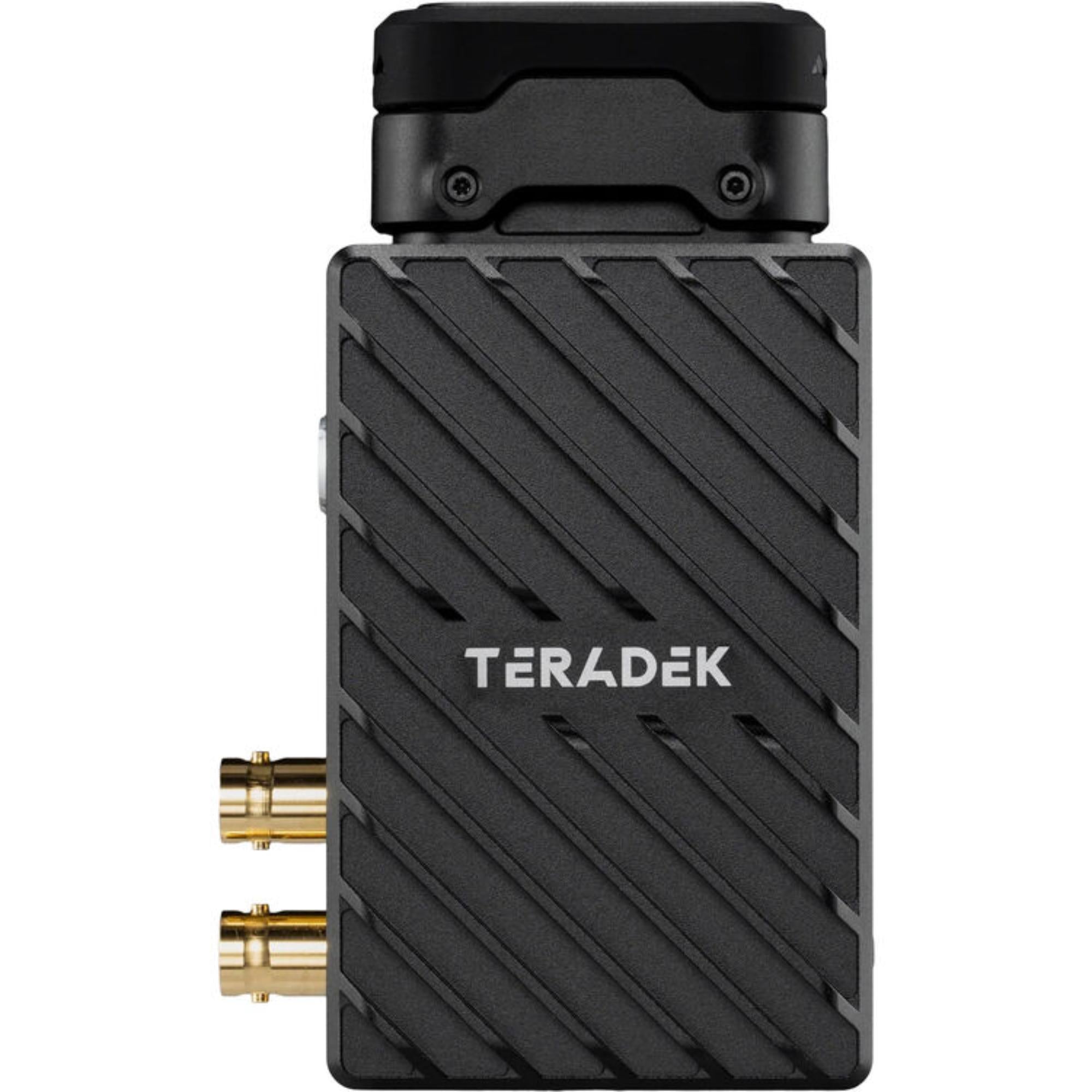

Transmitter

The included Bolt 6 LT 750 transmitter is designed for camera-side installation. Its internal antenna system eliminates the need to attach external antennas, helping keep the rig compact and reducing exposed hardware around handheld cameras, cages, gimbals, or mobile production setups.

• Video input: HDMI and 3G-SDI
• Maximum input resolution: Up to 4K30
• Embedded HDMI audio: 2-channel
• Embedded SDI audio: Supported
• Timecode support: Yes
• Encryption: 256-bit AES
• Input power: 6 to 28 VDC
• Antenna configuration: Internal

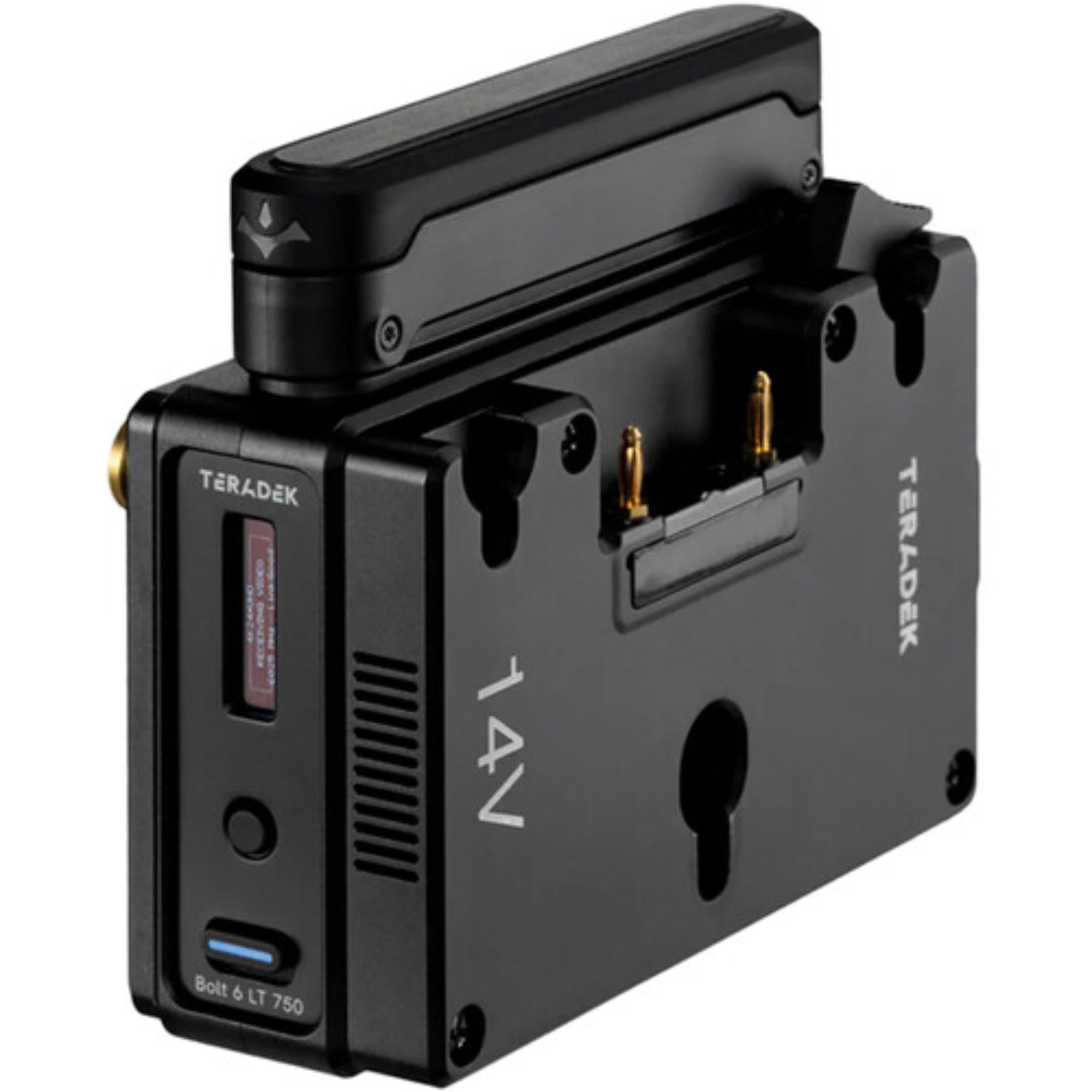

Receiver

The receiver combines an internal antenna design with a Gold Mount battery plate. This creates a practical monitor-back configuration for video village, a director’s display, a focus station, or another mobile monitoring position.

• Video output: HDMI and 3G-SDI
• Embedded HDMI audio: 2-channel
• Embedded SDI audio: 2-channel
• Timecode support: Yes
• Encryption: 256-bit AES
• Input power: 6 to 28 VDC
• Battery plate: Gold Mount
• Antenna configuration: Internal

Why It Helps

Internal antennas simplify both installation and transport. With no external antennas projecting from the units, the system is less likely to catch on surrounding cables, camera accessories, cases, or clothing while the crew is moving between setups.

The listed 750 ft line-of-sight range provides useful working distance for stages, interview sets, event venues, exterior locations, and mobile camera positions. It allows the camera to operate independently while the monitoring station remains connected without a long HDMI or SDI cable.

HDMI and 3G-SDI connectivity make the system suitable for mixed production environments. The transmitter can work with compatible camera sources, while the receiver can feed the connection required by the monitor, recorder, or switcher already in the signal chain.

The Gold Mount plate keeps the receiver and battery together as one manageable assembly. This is especially useful behind a monitor, where reducing loose power hardware can make the entire station easier to move and rebuild.

Video, Audio & Security

• HDMI and 3G-SDI signal support
• Up to 4K30 input resolution support
• Embedded HDMI audio with two-channel support
• Embedded SDI audio support
• Timecode support for compatible production workflows
• AES-256 encryption for protected wireless transmission

Power & Operating Conditions

• Transmitter input power: 6 to 28 VDC
• Receiver input power: 6 to 28 VDC
• Receiver battery system: Gold Mount
• Operating conditions: 32 to 72°F / 0 to 40°C, as listed in the supplied source

System Characteristics

• 750 ft line-of-sight wireless operation
• Internal transmitter and receiver antennas
• 6 GHz wireless-band support
• HDMI and 3G-SDI connectivity
• Up to 4K30 input support
• Gold Mount receiver plate
• Timecode and AES-256 encryption

What’s In The Box

• 1 x Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas
• 1 x 2-Pin to D-Tap Power Cable, 18 in
• 1 x 2-Pin to AC Adapter Cable, 6 ft
• 1 x Ultrathin HDMI Male-to-Male Cable, 18 in
• 1 x BNC SDI Cable, 10 in
• 1 x USB-C Male-to-Male Cable, 3.3 ft
• 1 x Limited One-Year Manufacturer Warranty for Transmitter
• 1 x Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas (Gold Mount)
• 1 x Gold Mount Battery Plate
• 1 x 2-Pin to D-Tap Power Cable, 18 in
• 1 x 2-Pin to AC Adapter Cable, 6 ft
• 1 x Ultrathin HDMI Male-to-Male Cable, 18 in
• 1 x BNC SDI Cable, 10 in
• 1 x USB-C Male-to-Male Cable, 3.3 ft
• 1 x Limited One-Year Manufacturer Warranty for Receiver
• 1 x Light Stand Adapter, 1/4"-20
• 1 x Hot Shoe Adapter
