Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)

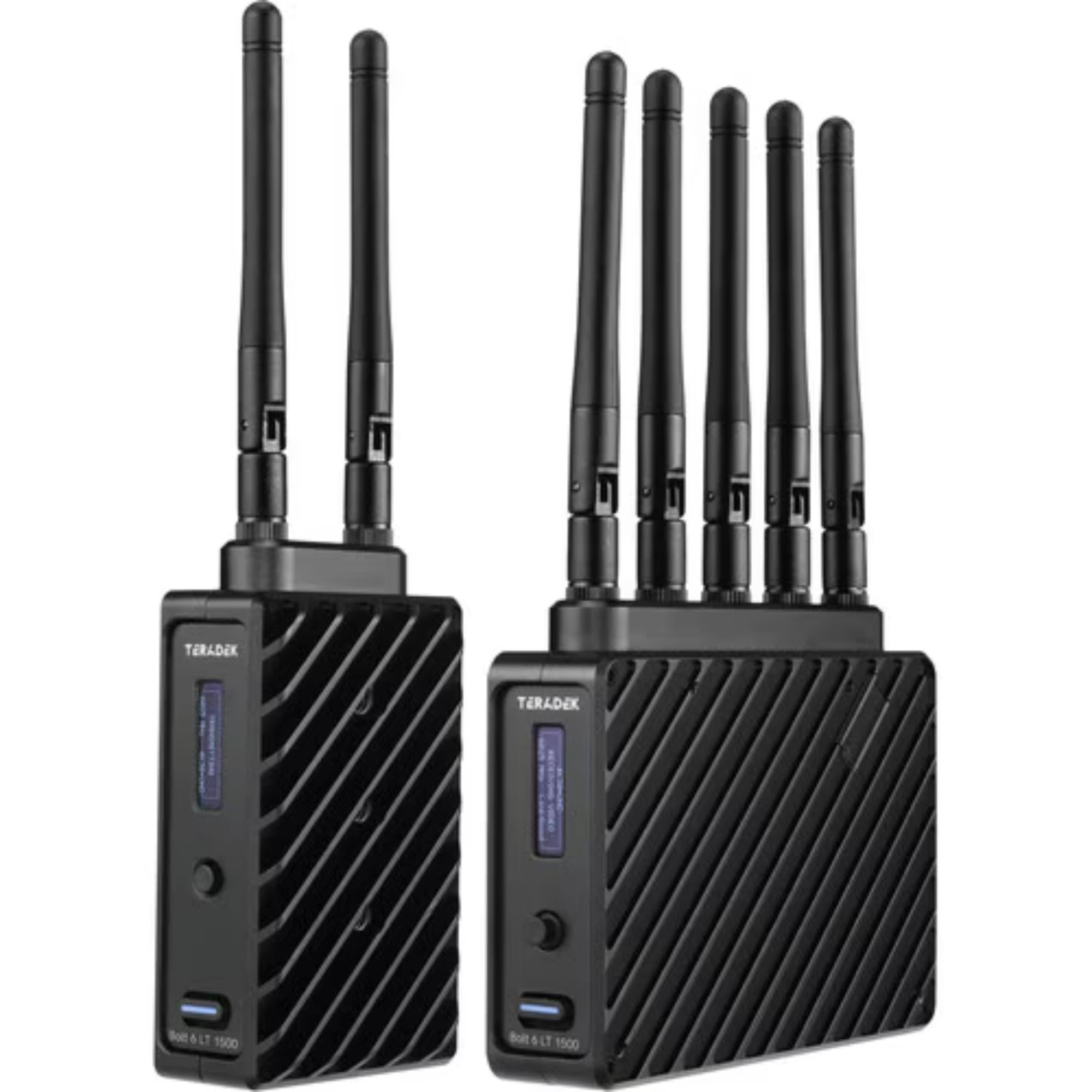

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount) is a professional wireless video package designed for cinema, broadcast, live production, and on-set monitoring. From the supplied source, the kit combines a Bolt 6 LT 1500 transmitter, a Gold Mount receiver, an antenna array, signal and power cables, mounting accessories, and a carry case.

This setup is useful when the camera needs freedom to move while the director, focus puller, DIT, or video village still requires a clean live picture. The transmitter accepts HDMI or 3G-SDI video, and the receiver provides HDMI and 3G-SDI outputs at distances up to 1,500 ft under clear line-of-sight conditions.

Highlights

• Wireless video transmitter and receiver kit with up to 1,500 ft line-of-sight range
• HDMI and 3G-SDI connectivity for professional camera and monitoring workflows
• Supports video up to UHD 4K30 through HDMI
• 10-bit 4:2:2 uncompressed video transmission with no added compression
• 256-bit AES encryption with a fixed Gold Mount receiver plate

Quick Specs & Uses

• Product type: Wireless video transmitter and receiver deluxe kit
• Primary workflows: Cinema production, broadcast, live events, video village, focus pulling, and client monitoring
• Wireless system: Teradek Bolt 6 LT 1500
• Maximum wireless range: 1,500 ft / 457.2 m, line of sight
• Wireless band: 5 GHz system with support for the 6 GHz frequency range
• Wireless channels: 13 channels at 40 MHz or 25 channels at 20 MHz
• Channel bandwidth: 40 MHz or 20 MHz
• RF power: 23 dBm
• Wireless video compression: Uncompressed
• Encryption: 256-bit AES
• Timecode support: Yes
• Bluetooth: Supported
• Mobile app compatibility: Android and iOS
• Wi-Fi: No
• Cellular support: No
• System compatibility: Compatible with Bolt 4K LT transmitter and receiver units
• Receiver battery mount: Fixed Gold Mount plate

Video Connections

• Transmitter HDMI input: 1 x HDMI input
• Transmitter SDI input: 1 x BNC, 3G-SDI
• Receiver HDMI output: 1 x HDMI output
• Receiver SDI output: 1 x BNC, 3G-SDI
• Transmitter antenna connections: 2 x RP-SMA female
• Receiver antenna connections: 5 x RP-SMA female
• Embedded SDI audio: 2-channel
• Embedded HDMI audio: 2-channel
• Audio format: 2-channel, 24-bit, 48 kHz LPCM
• Dedicated analog audio I/O: No

Supported Video Formats

• HDMI maximum format: UHD 4K30
• HDMI color support: 10-bit 4:4:4 / 4:2:2 RGB and YCC
• SDI color support: 10-bit 4:4:4 / 4:2:2 RGB and YCC
• HDMI UHD formats: 4K 30, 29.97, 25, 24, and 23.98
• HDMI HD formats: 1080p, 1080PsF, 1080i, and 720p
• HDMI SD formats: 576p, 576i, 480p, and 480i
• SDI HD formats: 1080p, 1080i, and 720p
• SDI SD formats: 576p, 576i, 480p, and 480i

Wireless Frequencies

• Non-DFS range: 5.94 to 6.42 GHz
• Additional non-DFS range: 5.19 to 5.23 GHz
• Additional non-DFS range: 5.75 to 5.79 GHz
• DFS range: 5.27 to 5.67 GHz

Power & Mounting

• Transmitter power input: 1 x LEMO 2-pin
• Receiver power input: 1 x LEMO 2-pin
• Input power: 28V DC
• Transmitter power consumption: 9 W
• Receiver power consumption: 11 W
• Other interface: Micro-USB input on transmitter and receiver
• Tripod or accessory mount: 1 x 1/4"-20 female
• Additional mount: 1 x 3/8"-16 female

Why It Helps

The Bolt 6 LT 1500 is useful when a production needs dependable wireless monitoring over a larger working area. Its listed 1,500 ft line-of-sight range gives the camera department room to move across stages, venues, exterior locations, and mobile setups without pulling a long video cable behind the rig.

The transmitter works with both HDMI and 3G-SDI sources, so it can fit a wide range of cinema and broadcast cameras. At the receive position, HDMI and 3G-SDI outputs make it straightforward to feed a director’s monitor, recorder, switcher, focus station, or video village distribution system.

The fixed Gold Mount plate is practical for field and studio use. It lets the receiver operate from a familiar professional battery platform, which is helpful when AC power is unavailable or when the monitoring station needs to move during production.

System Characteristics

• Uncompressed wireless video for monitoring without additional codec compression
• 1,500 ft line-of-sight operation for long-range production environments
• 6 GHz band support for additional channel availability
• 256-bit AES encryption for protected wireless transmission
• Bluetooth mobile app support with spectrum analysis capability
• Gold Mount receiver configuration for battery-powered monitoring
• Aluminum and polycarbonate construction for professional production use

Physical Specifications

• Transmitter dimensions: 103 x 60 x 33 mm / 4.1 x 2.4 x 1.3 in
• Receiver dimensions: 122 x 94 x 27 mm / 4.8 x 3.7 x 1.1 in
• Transmitter weight: 206 g / 7.27 oz
• Receiver weight: 292 g / 10.30 oz
• Construction: Aluminum and polycarbonate
• Operating temperature: 0°C to 40°C / 32°F to 104°F
• Environmental resistance: No specified environmental sealing

What’s In The Box

• 1 x Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)
• 1 x Bolt 6 LT 1500 3G-SDI/HDMI Transmitter with Gold Mount
• 1 x Bolt 6 LT 1500 3G-SDI/HDMI Receiver with Gold Mount
• 1 x Antenna Array
• 2 x Bolt Battery Covers
• 1 x 2-Pin to D-Tap Power Cable, 18 in
• 1 x Micro-USB to USB Type-A Cable, 36 in
• 1 x HDMI Type-A Cable, 18 in
• 1 x 18 W AC Adapter with 6 ft Cable
• 2 x BNC Cables, 10 in
• 5 x RP-SMA Female Cables, 4 in
• 1 x 2-Pin Connector Cable for ALEXA, 18 in
• 1 x 1/4"-20 Light Stand Adapter
• 1 x Shoe Adapter
• 1 x Wooden Camera Offset Mount
• 1 x Carry Case
