Teradek Bolt 6 LT 1500 3G-SDI/HDMI Transmitter/Receiver Kit

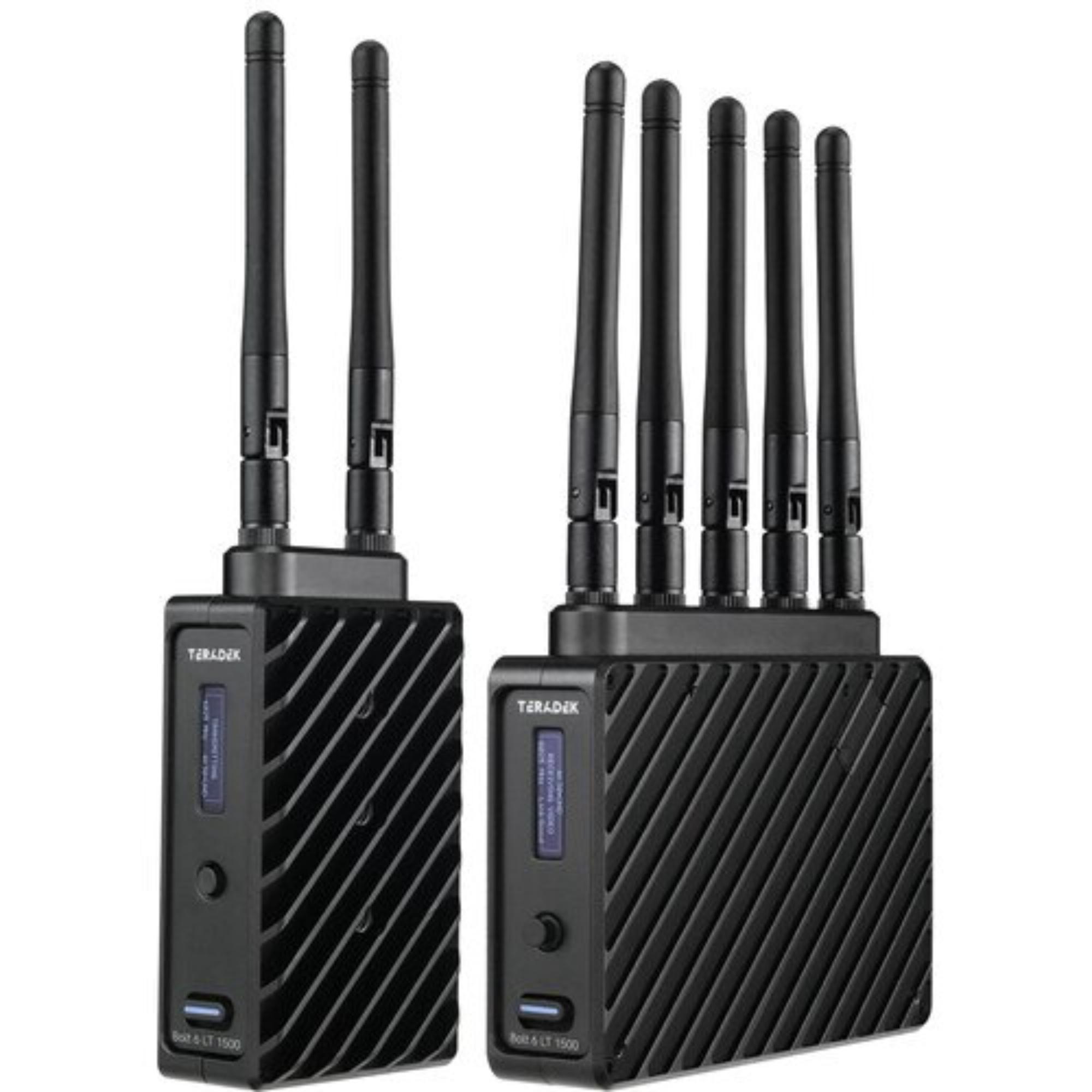

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Transmitter/Receiver Kit is a professional wireless video system built for cinema, broadcast, live production, and on-set monitoring. From the supplied source, the kit combines a Bolt 6 LT 1500 transmitter and matching receiver with HDMI and 3G-SDI connectivity, support for the 6 GHz wireless band, and a listed line-of-sight range of up to 1,500 ft.

This setup is useful when the camera needs to move freely while the director, focus puller, DIT, or video village still needs a live picture. The transmitter accepts HDMI or 3G-SDI video and includes an SDI loop output, while the receiver provides HDMI and 3G-SDI outputs for professional monitoring equipment.

Highlights

• Wireless 3G-SDI/HDMI transmitter and receiver kit for production monitoring
• Up to 1,500 ft line-of-sight range for larger sets and exterior locations
• Supports the 6 GHz wireless band with additional 5 GHz operating ranges
• 10-bit 4:2:2 video support with HDMI formats up to UHD 4K30
• 256-bit AES encryption, timecode support, and Bluetooth app control

Quick Specs & Uses

• Product type: Wireless video transmitter and receiver kit
• Primary workflows: Cinema production, broadcast, live events, video village, focus pulling, and client monitoring
• Wireless system: Teradek Bolt 6 LT 1500
• Maximum wireless range: 1,500 ft / 457.2 m, line of sight
• Wireless band: 5 GHz system with support for the 6 GHz frequency range
• Channel bandwidth: 40 MHz
• RF power: 23 dBm
• Wireless video transmission: Uncompressed
• Encryption: 256-bit AES
• Timecode support: Yes
• Bluetooth: Supported
• Mobile app compatibility: Android and iOS through the Bolt App
• Wi-Fi: No
• Cellular support: No
• System compatibility: Compatible with Bolt 4K Series transmitter and receiver units
• Status display: Available on both transmitter and receiver
• Battery mounting: Interchangeable mount; battery plate not included

Video Connections

• Transmitter HDMI input: 1 x HDMI 1.4b
• Transmitter SDI input: 1 x BNC, 3G-SDI
• Transmitter SDI loop output: 1 x BNC, 3G-SDI
• Receiver HDMI output: 1 x HDMI 1.4b
• Receiver SDI output: 1 x BNC, 3G-SDI
• Transmitter antenna connections: 2 x RP-SMA female
• Receiver antenna connections: 5 x RP-SMA female
• Embedded HDMI audio: 2-channel
• Embedded SDI audio: 2-channel
• Audio format: 2-channel, 24-bit, 48 kHz
• Dedicated analog audio I/O: No

Supported Video Formats

• HDMI maximum format: UHD 4K30
• HDMI color support: 10-bit 4:4:4 / 4:2:2 RGB and YCC
• SDI color support: 10-bit 4:4:4 / 4:2:2 RGB and YCC
• HDMI UHD formats: 4K 30, 29.97, 25, 24, and 23.98
• HDMI HD formats: 1080p, 1080PsF, 1080i, and 720p
• HDMI SD formats: 576p, 576i, 480p, and 480i
• SDI HD formats: 1080p, 1080i, and 720p
• SDI SD formats: 576p, 576i, 480p, and 480i

Wireless Frequencies

• Non-DFS range: 5.94 to 6.42 GHz
• Additional non-DFS range: 5.19 to 5.23 GHz
• Additional non-DFS range: 5.75 to 5.79 GHz
• DFS range: 5.27 to 5.67 GHz

Power & Mounting

• Transmitter power input: 1 x LEMO 2-pin
• Receiver power input: 1 x LEMO 2-pin
• Input voltage: 6 to 28V DC
• Transmitter power consumption: 9 W
• Receiver power consumption: 11 W
• Other interface: Micro-USB input on transmitter and receiver
• Bottom mounting point: 1 x 1/4"-20 female on transmitter and receiver

Why It Helps

The Bolt 6 LT 1500 gives the camera department a practical way to move an uncompressed video feed across a stage or location without laying a long SDI cable. Its listed 1,500 ft line-of-sight range is useful for Steadicam, gimbal, vehicle, sports, and other mobile camera setups.

The transmitter includes both HDMI and 3G-SDI inputs, plus an SDI loop output. That lets the operator feed the wireless link while keeping a local monitor, recorder, or another camera-side device connected at the same time.

At the receive position, HDMI and 3G-SDI outputs make the signal easy to route into a director’s monitor, focus station, switcher, recorder, or video village system. The interchangeable battery-mount design also gives the production room to select a suitable power plate separately.

System Characteristics

• Uncompressed wireless transmission for production monitoring without added codec compression
• 1,500 ft line-of-sight operation for long-range set and location work
• 6 GHz frequency support for additional wireless channel options
• 256-bit AES encryption for protected video transmission
• Timecode support for production monitoring workflows
• Bluetooth mobile app control with spectrum analyzer support
• Interchangeable battery mounting for custom power configurations

Physical Specifications

• Transmitter dimensions: 103 x 60 x 33 mm / 4.1 x 2.4 x 1.3 in
• Receiver dimensions: 122 x 94 x 27 mm / 4.8 x 3.7 x 1.1 in
• Transmitter weight: 206 g / 7.27 oz
• Receiver weight: 292 g / 10.30 oz
• Construction: Aluminum and polycarbonate
• Operating temperature: 0°C to 40°C / 32°F to 104°F
• Environmental resistance: No specified environmental sealing

What’s In The Box

• 1 x Teradek Bolt 6 LT 1500 3G-SDI/HDMI Transmitter/Receiver Kit
• 1 x Bolt 6 LT 1500 3G-SDI/HDMI Transmitter
• 1 x Bolt 6 LT 1500 3G-SDI/HDMI Receiver
• 1 x 2-Pin to D-Tap Power Cable, 18 in
• 1 x USB 2.0 Type-A Male to Micro-USB Male Cable, 39 in
• 2 x HDMI Type-A Male to HDMI Type-A Male Cables, 18 in
• 2 x BNC-to-BNC SDI Cables, 10 in
• 1 x AC Adapter with 6 ft Cable
• 7 x Antennas
• 1 x 1/4"-20 Light Stand Adapter
• 1 x Shoe Adapter
