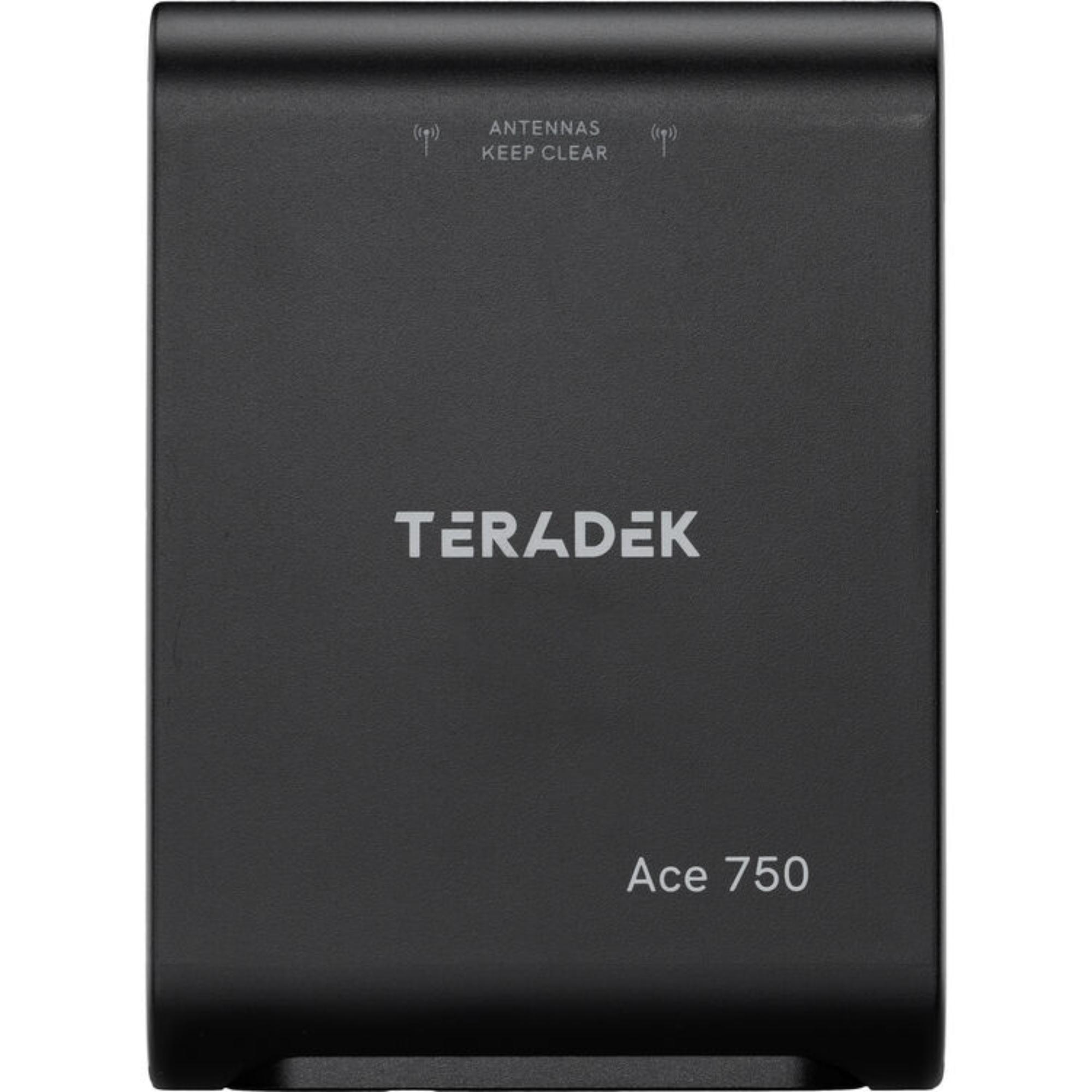

Teradek Ace 750 HDMI Wireless Video Receiver

Teradek Ace 750 HDMI Wireless Video Receiver is a compact wireless monitoring receiver for cinema, live production, corporate video, and field workflows. Based on the supplied source, it can receive visually lossless, uncompressed HDMI video from a compatible Ace 750 transmitter at distances of up to 750 ft / 228.6 m under line-of-sight conditions.

The receiver outputs video through HDMI and supports resolutions up to 4K30 HDR. With latency listed at less than 1 ms, it is suited to monitoring positions where the picture needs to remain responsive for camera operation, directing, or client viewing.

Highlights

• HDMI wireless video receiver for professional production monitoring
• Receives video from up to 750 ft line of sight
• Supports video up to 4K30 HDR
• Less than 1 ms latency for near-immediate monitoring
• Compatible with Ace 750, Bolt 4K, and Bolt 6 systems

Quick Specs & Uses

• Product type: HDMI wireless video receiver
• Primary workflows: Director monitoring, client viewing, video village, field production, corporate video, and live events
• Maximum wireless range: 750 ft / 228.6 m, line of sight
• Maximum video format: Up to 4K30 HDR
• Video output: HDMI
• Wireless video: Visually lossless and uncompressed
• Latency: Less than 1 ms
• Embedded audio: HDMI 2-channel
• Timecode support: Yes
• Encryption: AES-256
• Wireless bands: 5 GHz and 6 GHz support
• Compatible transmitter: Teradek Ace 750 transmitter
• Additional compatibility: Selected Bolt 4K and Bolt 6 units
• Input voltage: 7 to 18 VDC
• Operating temperature: 32 to 104°F / 0 to 40°C

Why It Helps

Ace 750 removes the need to run a long HDMI cable between the camera and the viewing position. That gives the camera team more freedom to work on handheld rigs, gimbals, sliders, or mobile setups while the director or client continues to see the live image.

The listed 750 ft line-of-sight range is useful for small stages, event spaces, interview sets, and location productions where the monitoring station sits away from the camera but does not require the reach of a larger long-range system.

Support for 4K30 HDR gives the receive position a higher-resolution monitoring option than a standard HD-only link. The less-than-1 ms latency also keeps the picture responsive enough for live camera operation and production monitoring.

Compatibility with Ace 750 transmitters and selected Bolt 4K and Bolt 6 hardware gives crews more flexibility when working with existing Teradek wireless equipment.

Wireless Monitoring

• 750 ft line-of-sight reception for studio and field workflows
• 5 and 6 GHz wireless support for available channel options
• Visually lossless transmission for production monitoring
• Less than 1 ms latency for responsive viewing
• Up to six receiver/device support from a compatible transmitter

Video, Audio & Security

• Maximum output format: 4K30 HDR
• Video output: HDMI
• Embedded audio: 2-channel over HDMI
• Timecode support: Yes
• Encryption: 256-bit AES

Power & Operating Conditions

• Input power: 7 to 18 VDC
• Operating temperature: 32 to 104°F / 0 to 40°C

System Characteristics

• Compact HDMI receiver design for portable monitoring setups
• 4K30 HDR reception for higher-resolution viewing
• Sub-1 ms latency for live production use
• 5 and 6 GHz wireless compatibility
• AES-256 encryption for protected video delivery
• Timecode support for compatible production workflows
• Cross-compatibility with selected Teradek systems

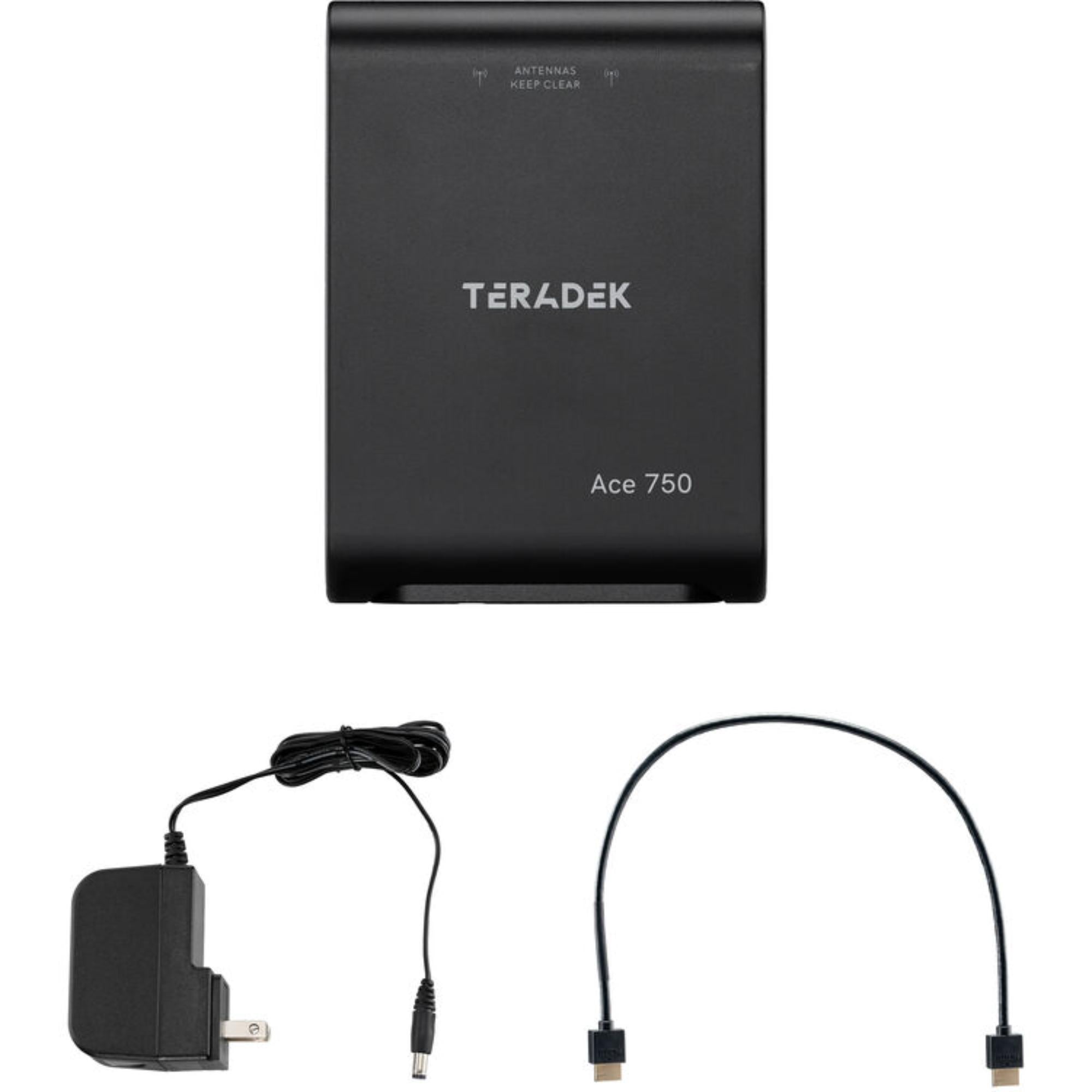

What’s In The Box

• 1 x Teradek Ace 750 HDMI Wireless Video Receiver
• 1 x Ultrathin HDMI Cable, 18 in
• 1 x Power Adapter, 18W 12 VDC, 6 ft
• 1 x D-Tap to Barrel Cable, 18 in
