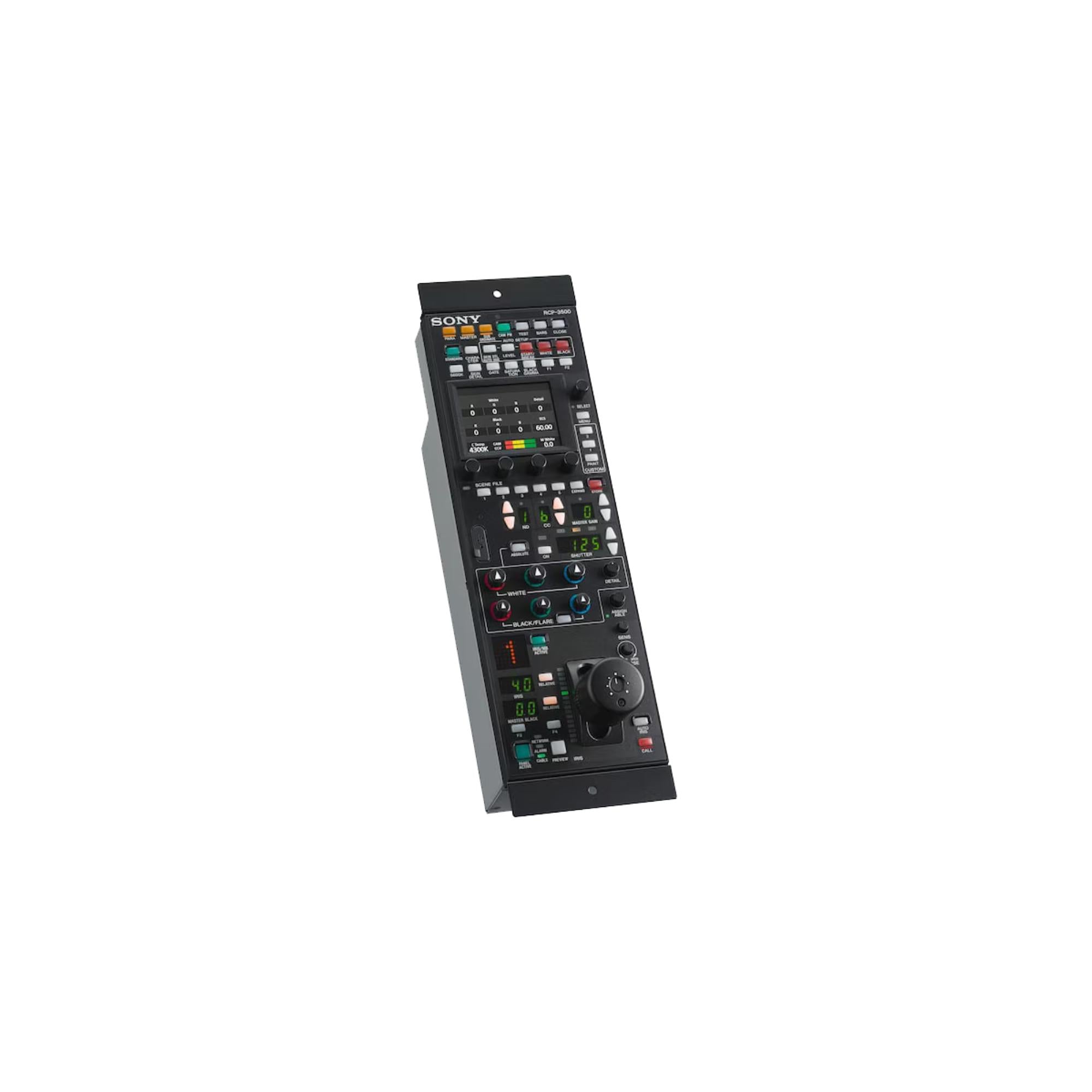

SONY Standard Remote Control Panel

SONY Standard Remote Control Panel is a compact camera control panel designed for direct, hands-on operation in Sony production camera workflows. It combines a touch panel, physical control switches, assignable buttons, and network connectivity in a slim panel that can be mounted in a 19-inch EIA rack.

For broadcast engineers and camera operators, this panel is useful when camera setup and adjustment need to happen quickly from one control position. It keeps common camera functions close at hand, while still supporting file handling, LAN control, HDR-related operation, and direct scene file access.

Highlights

• Standard remote control panel for Sony camera operation
• Touch panel and direct operation switches for fast camera control
• Assignable buttons for frequently used functions
• LAN connection support with 1000BASE-T, 100BASE-TX, and 10BASE-T
• USB flash drive support for saving and loading setup data
• HDR operation support for supported Sony production workflows
• Direct scene file control for quick scene setup access

Quick Specs & Uses

• Product type: Standard remote control panel
• Control interface: Touch panel with direct operation buttons and adjustment knobs
• Assignable buttons: 9 assignable buttons
• Mounting: Up to four units can be mounted in a 19-inch EIA rack
• Dimensions: 102 x 310 x 67 mm / 4.02 x 12.20 x 2.64 in, excluding protrusions
• Mass: 1.7 kg / 3 lb 12 oz
• Power consumption: 10 W, including AUX connector output
• Power supply: DC 10.5 V to 17 V, EXT I/O connector; PoE 36 V to 57 V, IEEE802.3af Class 2 compliant
• Operating temperature: 5°C to 40°C / 41°F to 104°F
• Storage temperature: -20°C to 60°C / -4°F to 140°F
• AUX: Multi-connector 8-pin female x1
• CCU / CNU: Multi-connector 8-pin female x1
• EXT I/O: D-sub 9-pin female x1
• LAN: RJ-45 8-pin x1, 1000BASE-T / 100BASE-TX / 10BASE-T

Why It Helps

This panel gives operators a cleaner way to handle camera control during live production. Instead of digging through camera menus or relying only on software control, key functions can be placed directly on the panel for faster access.

The assignable buttons are especially helpful in real production work. Engineers can map frequently used functions to the panel, making repeated setup tasks quicker and reducing the chance of pressing the wrong control during a busy show.

USB flash drive support is also practical for camera setup and maintenance. RCP settings, CAM / CCU / BPU scene files, reference files, and HDR-related settings can be saved or loaded, making it easier to move setup data between jobs or keep backup configurations ready.

System Characteristics

• Touch panel operation for quick access to camera control menus
• Direct control switches and knobs for common camera adjustments
• Customizable switch assignment for operator-specific workflows
• Guard frames around buttons to help prevent accidental operation
• LAN and CCA-5 connection support for flexible system design
• Web UI application support for initial settings from a networked PC
• HDR file support for HDRC-4000-related All-Setting File names and SR Live metadata workflows
• Scene file control for quick access to production looks and camera setup data

What’s In The Box

• 1 x SONY Standard Remote Control Panel
