PTZOptics SimplTrack3

PTZOptics SimplTrack3 is an auto-tracking and auto-framing camera system designed for lecture capture, conference rooms, stage productions, and classroom workflows where one camera needs to follow the presenter without a dedicated camera operator.

The system uses a dual-sensor design, combining a 20x optical zoom camera with a wide-angle reference camera. That gives the SimplTrack3 the ability to track movement up to 55 ft, zoom in at 1080p, and maintain framing while the subject moves through the room.

Highlights

• Auto-tracking up to 55 ft
• 20x zoom in 1080p
• Dual-sensor camera system
• Advanced zone management
• PoE support
• NDI HX2 enabled
• HDMI, SDI, USB 3.0, and IP outputs
• 5-year warranty

Quick Specs & Uses

• Product type: Auto-tracking PTZ camera system
• Main camera sensor: 1/2.8" Sony CMOS, 2.14M effective pixels
• Optical zoom: 20x
• Main lens focal length: f = 4.7mm to 94mm, F1.6 to F3.55
• Main lens field of view: Horizontal 3° to 59.5°, vertical 2° to 36°
• Reference lens field of view: Horizontal 86°, vertical 52°
• Minimum illumination: 0.5 Lux @ F1.8, AGC ON
• Power: DC 12V / PoE 802.3af

Why It Helps

In lecture and presentation environments, the camera operator is often the missing piece. SimplTrack3 helps solve that by automatically following the presenter, switching between tracking individuals and framing groups when needed.

The dual-sensor approach is the key advantage. The wide-angle reference camera gives the system awareness of the whole room, while the 20x camera delivers the tighter production shot. That makes it useful for classrooms, training rooms, conferences, and stage events where the presenter moves naturally.

Camera & Lens

• Main video sensor: 20x Sony 1/2.8 inch CMOS, effective pixels 2.14M
• Resolution and frame rate: HDMI/SDI 1080p60/50
• USB / NDI HX2: 1080p60, 1080p30, 720p30, 360p3
• Optical lens focal length: 20x, f = 4.7mm to 94mm, F1.6 to F3.55
• Display field of view: Optical lens 71.0°, reference lens 101.0°
• Reference lens sensor: 1/2.8"
• Reference lens focal length: 2.14 megapixel, 2.4mm
• Shutter: 1/1s to 1/10000s
• Presets: 255 presets
• Preset accuracy: 0.1°

Pan, Tilt & Tracking

• Pan movement range: ±170°
• Pan speed: 0.1° to 120°/s
• Tilt movement range: -30° to +90°
• Tilt speed: 0.1° to 90°/s
• Image flip: Not supported
• Image mirror: Supported
• Image freeze: Not supported
• Auto-framing: Supported
• Preset zones: 8 preset zones

Physical & Environmental

• Material: Aluminum, plastic
• Color: Gray
• Dimensions: 9.6" W x 6.1" D x 6.4" H / 243 mm x 157 mm x 163 mm
• Weight: 5.7 lb / 2.59 kg
• Working environment: Indoor
• Humidity range: 10% to 80%
• Operating temperature: 32°F to 104°F / 0°C to 40°C
• Storage temperature: -40°F to 140°F / -40°C to 60°C

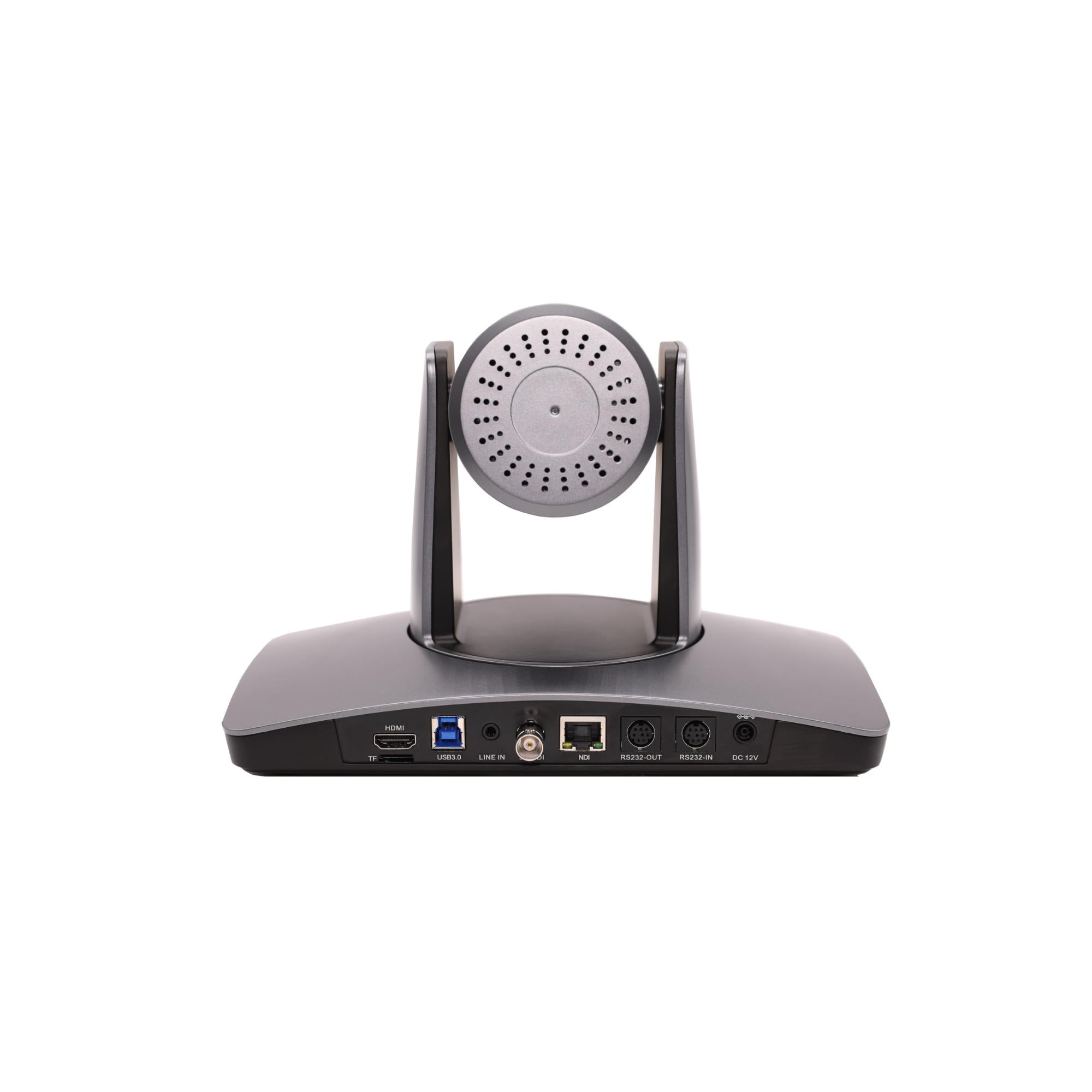

Connections

• Network output: 1 x RJ45 10/100M adaptive Ethernet port, NDI HX2 enabled
• HDMI output: 1 x HDMI version 2.0
• USB output: 1 x USB 3.0 Type-B
• SDI output: 1 x 3G-SDI BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard
• Audio interface: 1 x 3.5mm line level input
• Communication interface: RS232 input and RS232 output
• IR: 4 x IR addresses, max distance 30 ft / 9 m
• Power supply: JEITA type DC IN 12V / PoE 802.3af
• Current consumption: Max 1.0A

What’s In The Box

• 1 x SimplTrack3
• 1 x AC power supply
• 1 x USB-B-A cable
• 1 x RS232C cable
• 1 x quick start guide
• 1 x IR remote
• 2 x AA batteries
