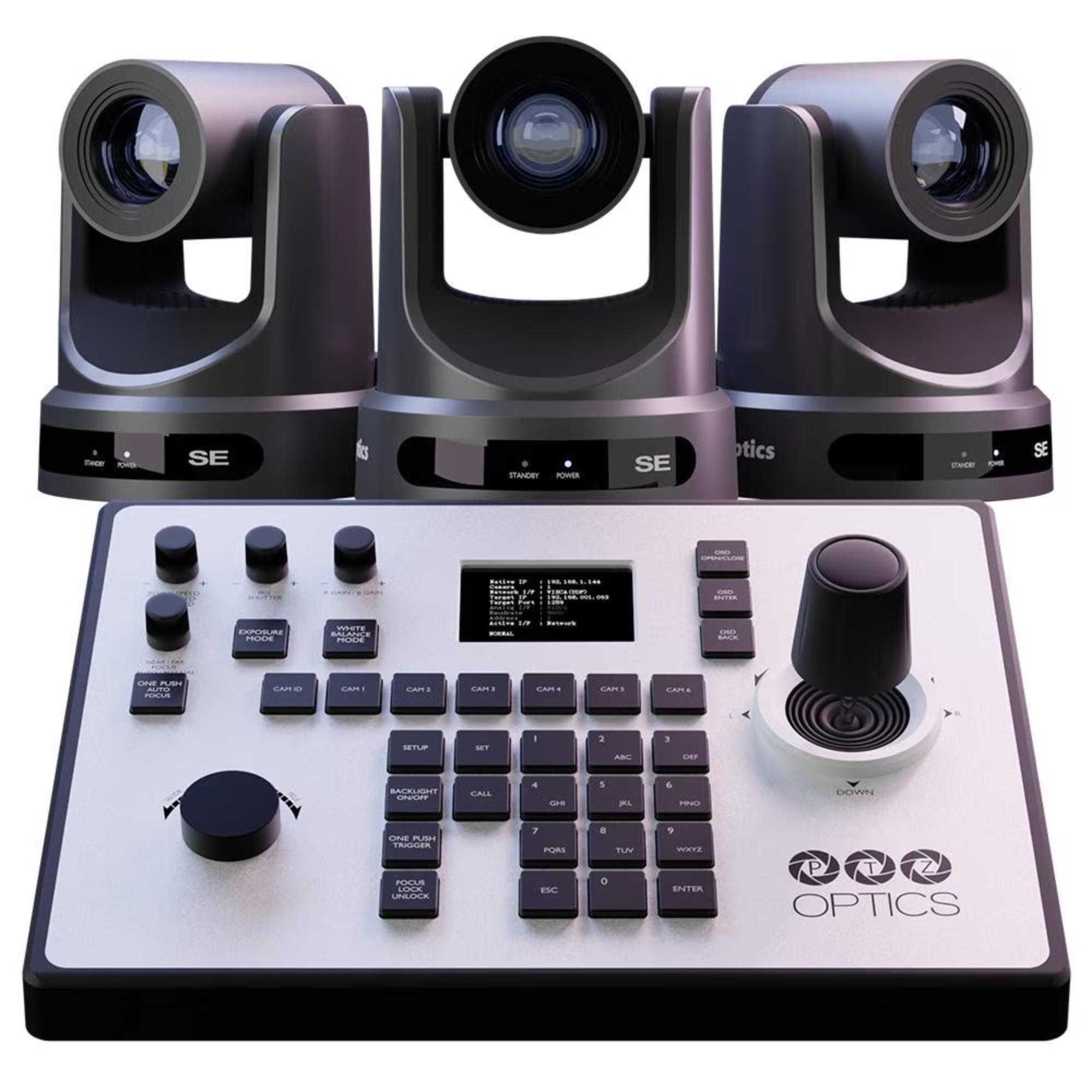

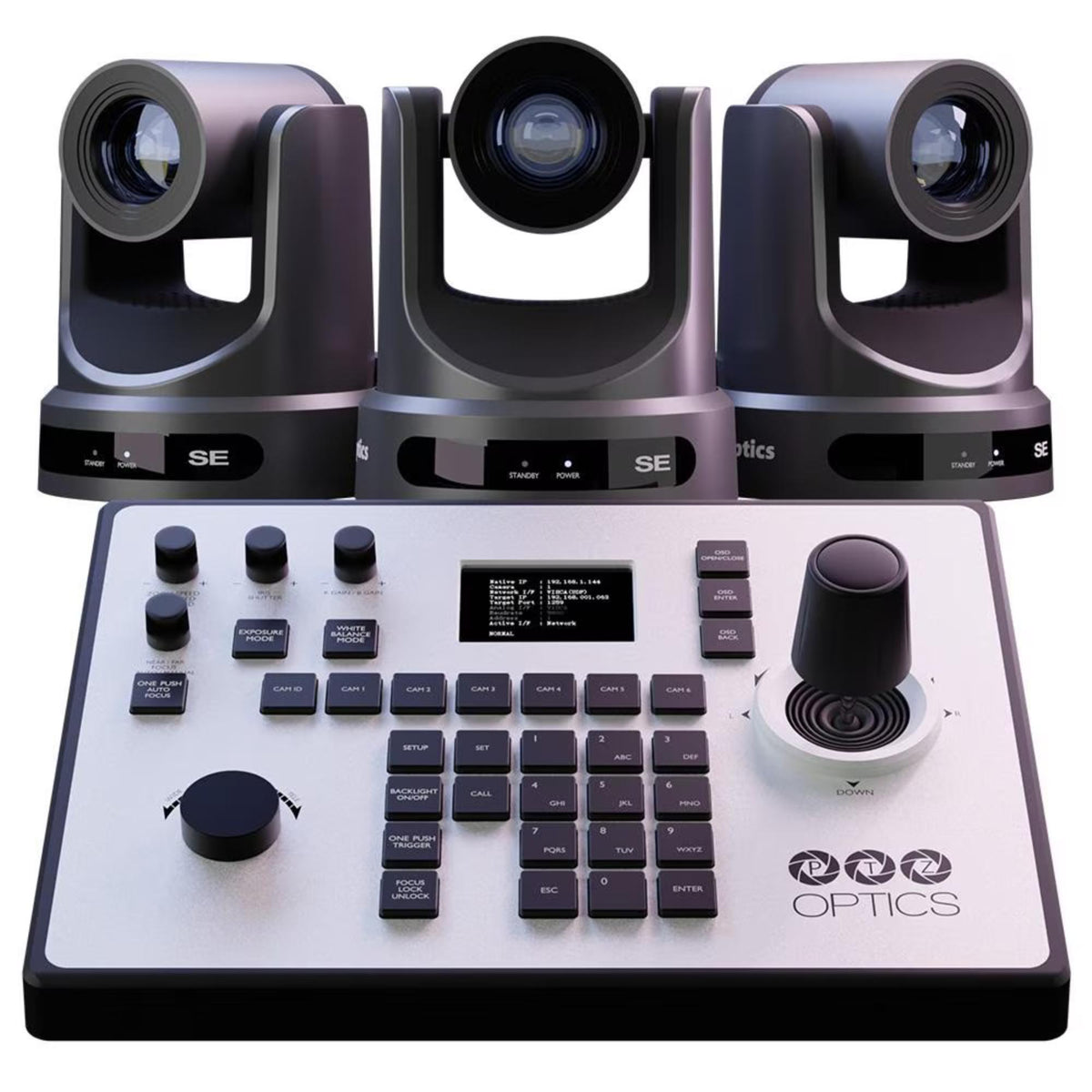

PTZOptics Producer Move SE 20x PTZ Camera Bundle

PTZOptics Producer Move SE 20x PTZ Camera Bundle is a strong starting point for multi-camera 1080p production systems. The bundle includes 3 x gray 20x Move SE PTZ cameras and 1 x PT-JOY-G4 joystick controller, giving operators a practical camera-control package for studios, classrooms, houses of worship, event spaces, and live streaming setups.

The 20x Move SE cameras are designed for flexible camera placement. According to the source material, they can capture head-and-shoulders views from over 50 feet away, while offering HDMI, SDI, USB, IP, and NDI HX output options for different production workflows.

Highlights

• Producer-SE bundle for multi-camera 1080p systems
• 3 x Gray 20x Move SE PTZ cameras
• 1 x PT-JOY-G4 joystick controller
• 20x optical zoom with digital zoom support
• HDMI, SDI, USB, IP, and NDI HX outputs
• Auto-tracking support
• 255 presets with 0.1° preset accuracy
• IR control with 4 IR addresses and up to 30 ft / 9 m distance

Quick Specs & Uses

• Product type: Multi-camera PTZ production bundle
• Included cameras: 3 x Gray 20x Move SE PTZ cameras
• Included controller: 1 x PT-JOY-G4 joystick controller
• Video sensor: 1/2.8" CMOS, effective pixel 2.07M
• Resolution / frame rate: 1080p60/50/30/25/59.94/29.97, 1080i60/50/59.94, 720p60/50/59.94
• Lens: 20x, f = 4.7mm to 94mm, F1.6 to F3.6
• Power supply: DC 12V
• Input power: 2A max

Why It Helps

This bundle is useful when a production needs multiple camera angles but still wants one operator to manage the room efficiently. Three Move SE cameras can cover wide, medium, and tighter shots, while the PT-JOY-G4 joystick gives the operator direct tactile control instead of relying only on software.

The output flexibility also matters. With HDMI, SDI, USB, IP, and NDI HX available, the cameras can fit into traditional switcher setups, USB workflows, or network-based production systems depending on how the room is wired.

Camera & Lens

• Video sensor: 1/2.8" CMOS, effective pixel 2.07M
• Digital zoom: Off at 1920x1080, 2x at 960x540, 3x at 640x360, 4x at 480x270, 8x at 240x135, 16x at 128x72
• Minimum lux: 0.5 Lux @ F1.8, AGC ON
• Shutter: 1/30s to 1/10000s
• Lens: 20x, f = 4.7mm to 94mm, F1.6 to F3.6
• White balance: Auto, indoor, outdoor, one push, manual, VAR
• Backlight compensation: Supported
• Digital noise reduction: 2D and 3D digital noise reductions
• Field of view: 20x horizontal 3.5° tele to 60.7° wide, vertical 1.9° tele to 34.7° wide

Pan, Tilt & Control

• Pan movement: ±170°
• Pan speed: 1.7° to 100°/s
• Tilt movement: +90° to -30°
• Tilt speed: 1.7° to 69.9°/s
• Image flip, mirror, and freeze: Supported
• Presets: 255 presets
• Preset accuracy: 0.1°
• Communication: RS232 input/output and RS485 input/output
• Control protocols: VISCA / Pelco-D / Pelco-P
• IR: 4 x IR addresses, max distance 30 ft / 9 m

Physical & Rear Connections

• Material: Aluminum, plastic
• Color: Gray
• Dimensions: 5.6" W x 6.7" D x 6.5" H / 142 mm W x 169 mm D x 164" H
• Max height with tilt up: 7.88" H / 189 mm H
• Weight: 3.2 lb / 1.445 kg
• Working environment: Indoor
• Operating temperature: 14°F to 104°F / -10°C to 40°C
• Storage temperature: -40°F to 140°F / -40°C to 60°C
• HD video output: RJ45 10/100 adaptive Ethernet port, HDMI version 1.3, 3G-SDI BNC, USB 3.0 Type-C, USB 3.0 Type-C
• NDI HX: Included
• Audio interface: 3.5mm line level input
• Power jack: JEITA type, DC IN 12V

Bundle Notes

• Three 20x Move SE cameras for multi-angle 1080p production
• State-of-the-art camera coverage for subjects over 50 ft away
• Diverse video outputs for HDMI, SDI, USB, and IP workflows
• Auto-tracking for subject-following camera operation
• 4th generation IP joystick for managing multiple PTZ cameras

What’s In The Bundle

• 3 x Gray 20X Move SE PTZ cameras
• 1 x PT-JOY-G4 Joystick Controller
