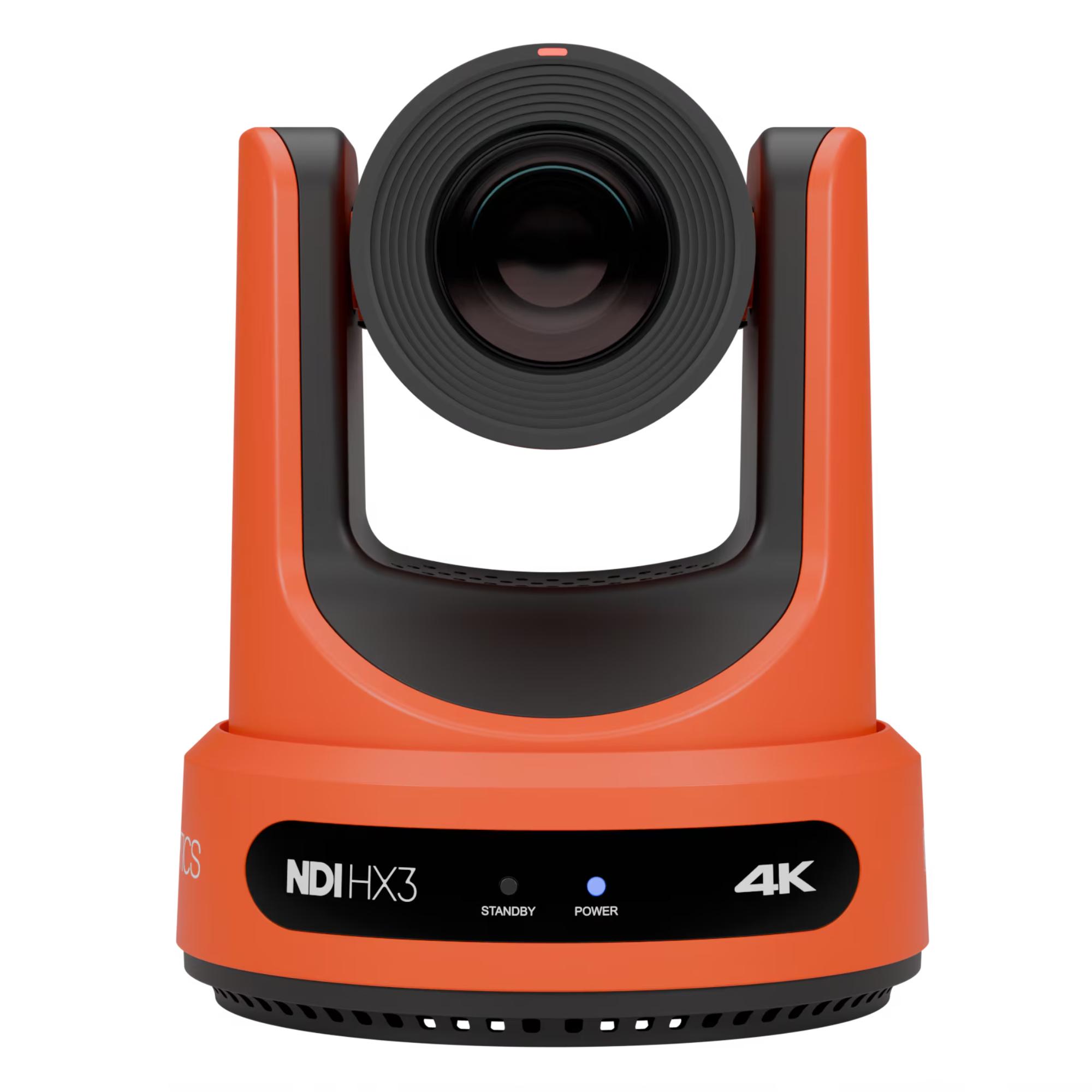

PTZOptics Move 4K 20X NDI|HX PTZ Camera - Red

PTZOptics Move 4K 20X NDI|HX PTZ Camera - Red is a 4K PTZ camera built for modern production rooms that need flexible output, auto-tracking, and network-friendly control. It supports 4K at 60 fps, includes NDI|HX, and gives operators a full set of SDI, HDMI, USB, and IP outputs for broadcast, streaming, and hybrid AV workflows.

The 20x optical zoom model is a good fit when the camera needs to sit farther from the subject while still delivering tight framing. For studios, classrooms, houses of worship, conference rooms, and live event spaces, it gives the team a camera that can be controlled from the room, over IP, through software, or from a joystick controller.

Highlights

• Move 4K 20X PTZ camera in red
• Up to 4K resolution at 60 fps
• 20x optical zoom
• Built-in auto-tracking
• NDI|HX included
• SDI, HDMI, USB, and IP output
• PoE+ capability
• Built-in tally light
• SRT support
• Blackmagic switcher integration
• 5-year parts and labor manufacturer warranty

Quick Specs & Uses

• Product type: 4K NDI|HX PTZ camera
• Color: Red
• Optical zoom: 20x
• Digital zoom: Off at 3840x2160, 2x at 1920x1080, 3x at 1280x720, 4x at 960x540, 8x at 480x270, 16x at 256x144
• Power: DC 12V / PoE+ 802.3at
• Input power: 18W max
• Working environment: Indoor
• Typical use: Live production, streaming, education, worship, corporate AV, and remote camera operation

Why It Helps

The Move 4K is useful when a production team wants a PTZ camera that can handle both traditional and network-based signal paths. SDI and HDMI keep it friendly for switchers, USB supports computer-based workflows, and IP with NDI|HX gives the room a cleaner network video option.

The auto-tracking feature also helps lean production teams. When there is no dedicated camera operator, the camera can follow the subject while still giving the team manual control options through Web UI, software, serial joystick, IP joystick, or SuperJoy workflows.

Image Sensor & Lens

• Optical zoom: 20x
• HDMI resolution: 3840x2160p60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i60/59.94/50, 1280x720p60/59.94
• SDI resolution: 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i60/59.94/50, 1280x720p60/59.94
• Field of view: 20x horizontal 3.5° tele to 60.7° wide, vertical 1.9° tele to 34.7° wide
• Minimum illumination: 0.5 Lux @ F1.8, AGC ON
• Shutter: 1/30s to 1/10000s

Pan, Tilt & Control

• Pan speed: 1.7° to 100°/s
• Tilt movement: +90° to -30°
• Tilt speed: 1.7° to 69.9°/s
• Presets: 255 presets
• Video tracking: Supported
• Image flip, mirror, and freeze: Supported
• Control options: Web UI, OBS, Livestream Studio, Wirecast, vMix, mimoLive, Tricaster, serial joystick, IP joystick, and SuperJoy

Physical & Power

• Material: Aluminum, plastic
• Color: Red
• Dimensions: 5.57 W x 5.94 D x 7.91 H in / 168.4 x 141.5 x 164.5 mm
• Weight: 3.25 lb / 1.47 kg
• Operating temperature: 14°F to 104°F / -10°C to 40°C
• Storage temperature: -40°F to 140°F / -40°C to 60°C
• Power supply: DC 12V / PoE+ 802.3at
• Input power: 18W max

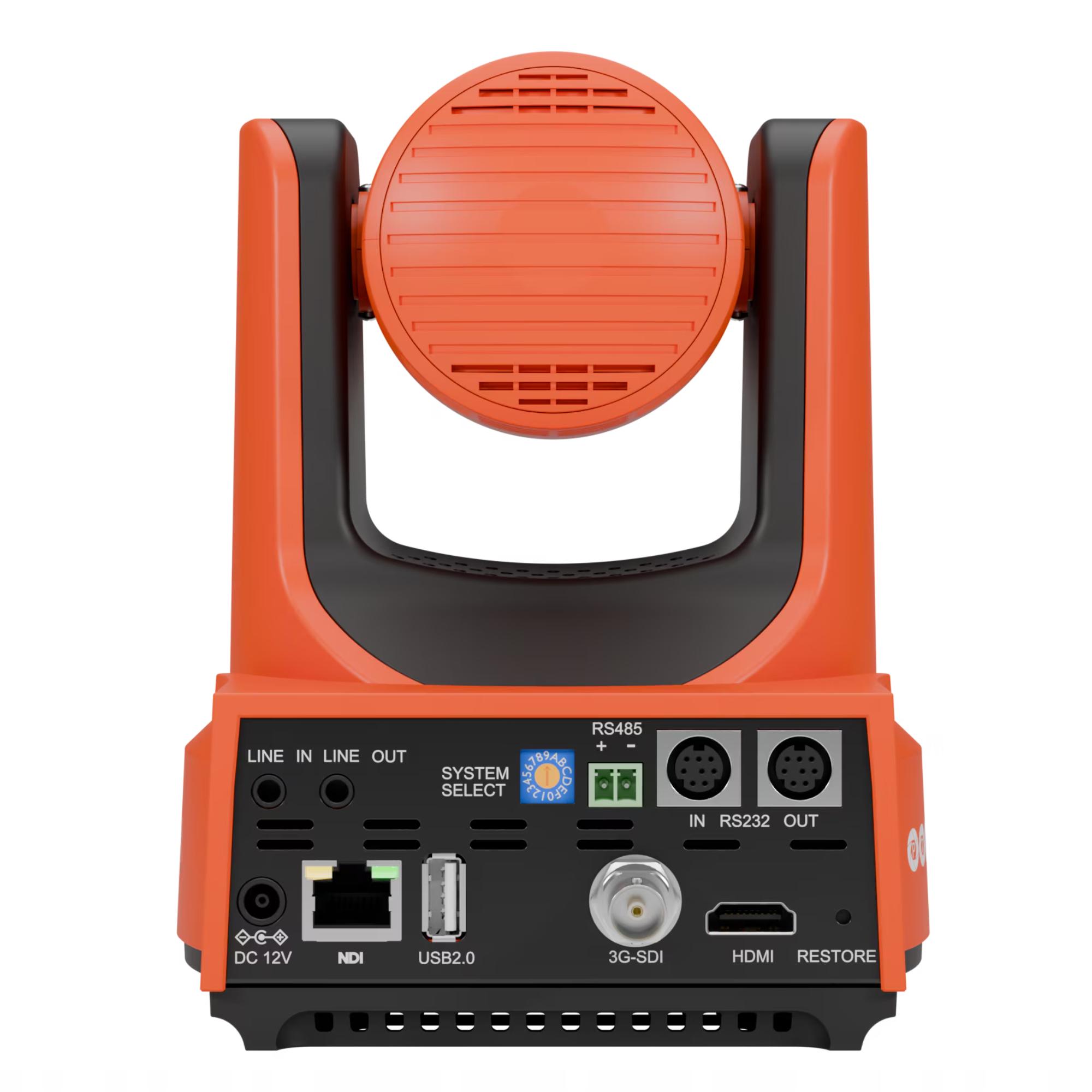

Rear Board Connectors

• HD video output: 1 x RJ45 10/100/1000M adaptive Ethernet port
• HD video output: 1 x HDMI version 2.0
• HD video output: 1 x USB 2.0 Type-A
• HD video output: 1 x 3G-SDI BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard
• NDI|HX: Included
• Audio interface: 1 x 3.5mm line level input
• Communication interface: RS232 input/output and RS485 input/output
• Network interface: RJ45 10/100/1000M adaptive Ethernet port, supports PoE
• Power jack: JEITA type, DC IN 12V

Features & Benefits

• Built-in auto-tracking
• Advanced white balance modes
• Wide dynamic range
• Full frame rates: 2160p60/50/30/25, 1080p60/50/30/25, 1080i60/50, 720p60/50/30/25
• 3D noise reduction
• SRT support
• Broadcast frame rates: 2160p59.94/29.97, 1080p59.94/29.97, 1080i59.94, 720p59.94
• 5-year parts and labor manufacturer warranty

What’s In The Box

• 1 x Camera
• 1 x AC Power Supply
• 1 x USB A-A Cable
• 1 x RS232 Cable
• 1 x Quick Start Guide
• 1 x IR Remote
• 2 x AA Batteries
• 1 x NDI|HX License
