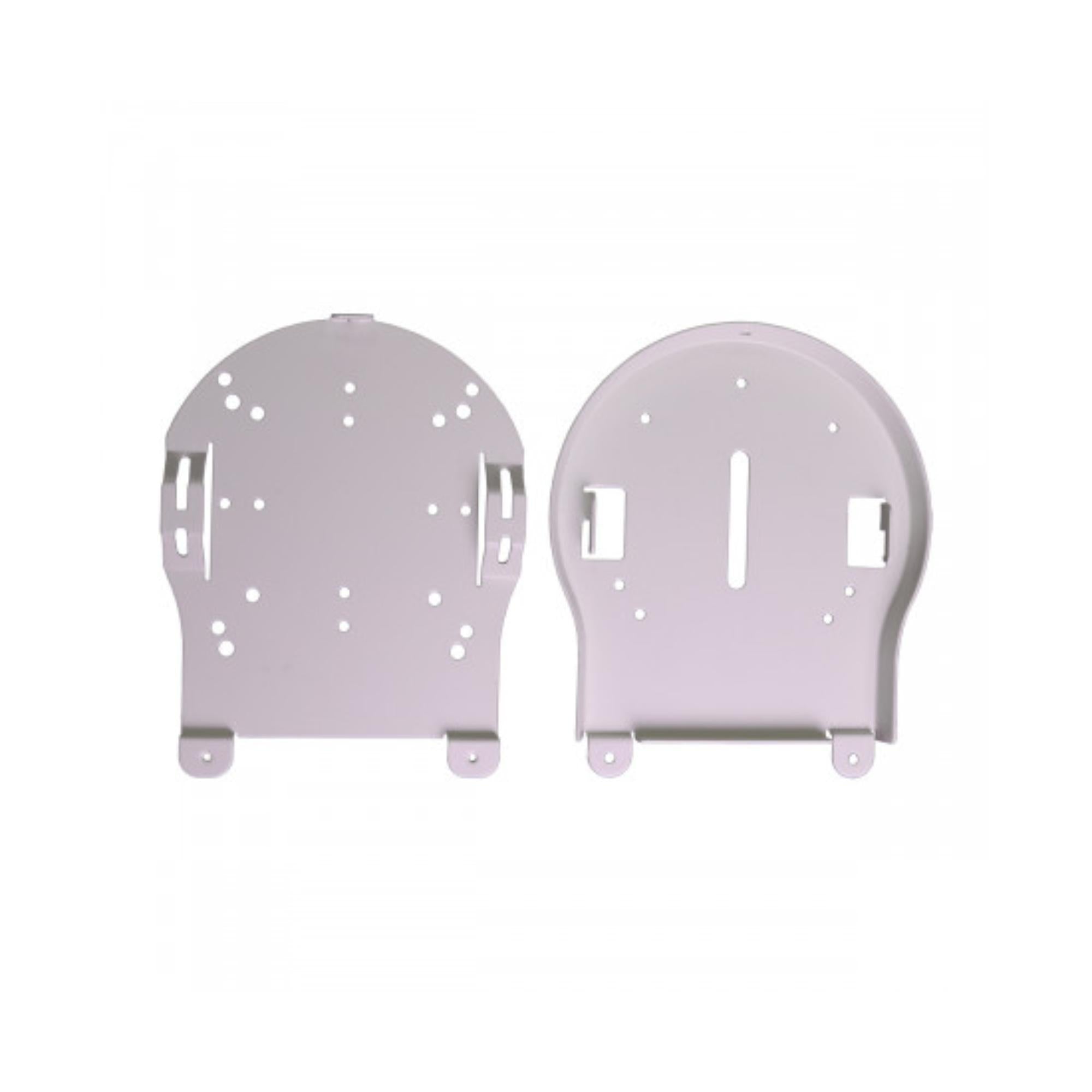

PTZOptics and HuddleCam Universal Ceiling Mount (White)

PTZOptics and HuddleCam Universal Ceiling Mount (White) is a two-piece ceiling mount for PTZ cameras with a 1/4"-20 mounting interface. It is designed for clean overhead camera placement in studios, classrooms, conference rooms, houses of worship, and installed AV spaces.

The mount attaches directly to the ceiling, with the camera mounted upside down to the bracket. It can also attach to U.S. single-gang device boxes, U.S. 4" boxes, and European electrical box holes, giving installers flexible mounting options on site.

Highlights

• Universal ceiling mount for select PTZ cameras
• Supports cameras with 1/4"-20 interface
• White 2-piece sliding bracket
• Made of heavy-gauge steel
• Attaches to gang and junction boxes
• Includes hardware installation kit

Quick Specs & Uses

• Product type: Universal ceiling mount
• Material of construction: Steel
• Mount type: 1/4"-20 mounting screw, universal ceiling bracket, U.S. and European electrical box holes
• Color: White
• Dimensions: 5.56 x 6.5" / 14.2 x 16.6 cm
• Weight: 1 lb / 450 g

Why It Helps

Ceiling mounting is useful when the room needs a clean camera position without taking up wall, desk, or tripod space. This mount gives installers a simple overhead option for PTZ cameras that use the common 1/4"-20 mounting interface.

The white finish helps it blend into many ceilings, while the steel construction keeps the setup practical for fixed AV and production environments.

System Characteristics

• Two-piece ceiling mount assembly
• Camera attaches upside down to the bracket
• Bottom piece sits flat against the ceiling
• Supports PTZ cameras with 1/4"-20 bottom mounting interface
• Can attach directly to U.S. single-gang device boxes and U.S. 4" boxes
• Supports U.S. and European electrical box holes

What’s In The Box

• 1 x PTZOptics Universal Ceiling Mount for Select Cameras (White)
• 1 x 1/4"-20 x 3/8" camera mounting screw
• 2 x 1/4" flat washer
• 3 x M3 x 6mm safety screw
• 2 x #6-32 x 1" U.S. box mounting screw
• 2 x #8-32 x 1" U.S. box mounting screw
• 2 x M3.5 x 25mm European box mounting screw
• 4 x #10 x 1-1/4" pan head screw
• 4 x #10-12 x 1" conical plastic anchor
