PTZOptics 4K Action Bundle

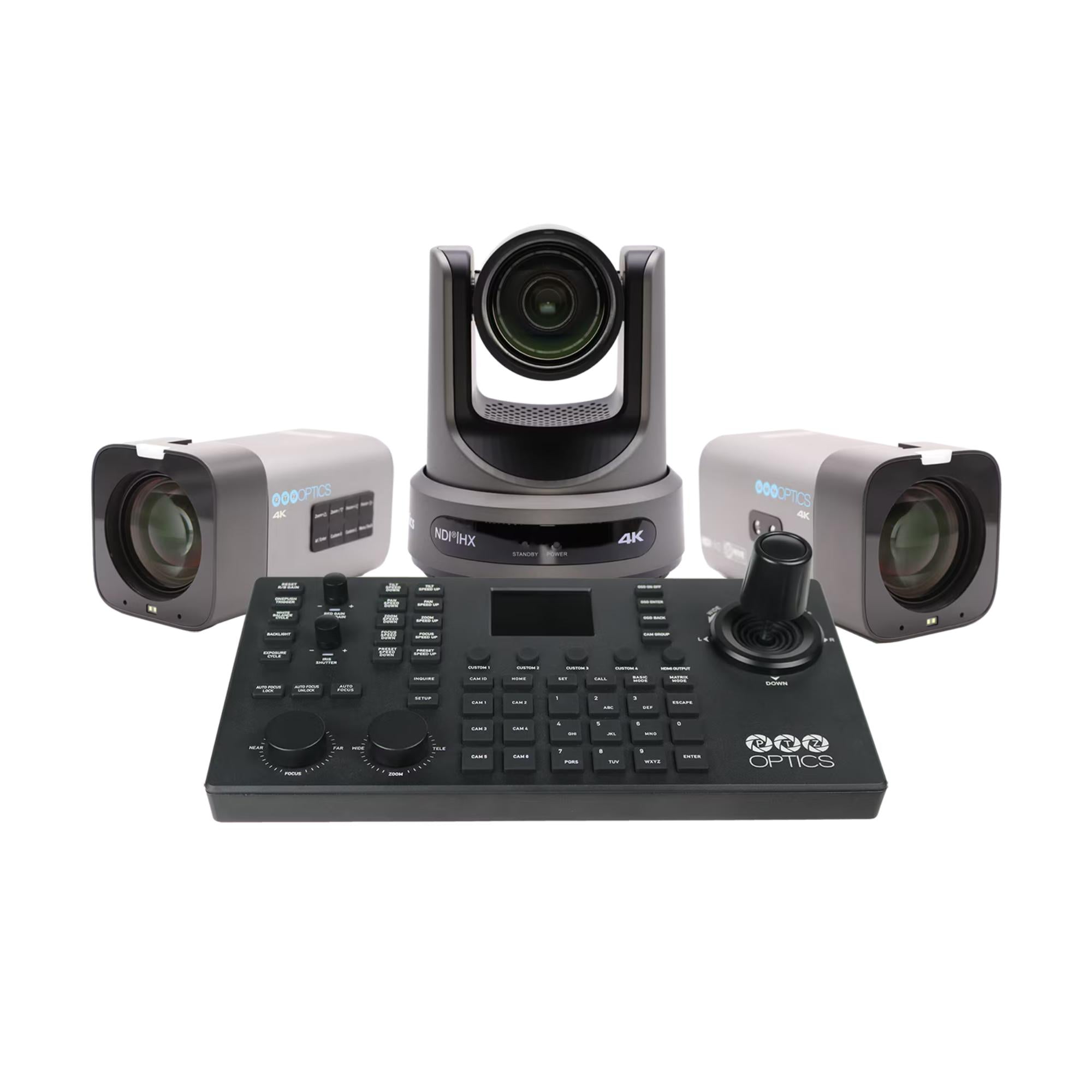

PTZOptics 4K Action Bundle is a sports-focused PTZ production package built to help crews cover the full field, court, or arena with fewer moving parts. The bundle includes one Move 4K 12x PTZ camera, two Studio 4K 12x PTZ cameras, and a SuperJoy joystick controller, giving operators a practical setup for live action, fixed coverage, and hands-on camera control.

The Move 4K handles flexible PTZ movement and auto-tracking, while the Studio 4K cameras are useful for fixed angle coverage at key positions like the goal line, net, or basket. SuperJoy ties the camera operation together with tactile joystick control, IP and serial control options, and HDMI output for camera preview.

Highlights

• Sports-friendly 4K action bundle for live production coverage
• 1 x Move 4K 12x PTZ Camera
• 2 x Studio 4K 12x PTZ Cameras
• 1 x SuperJoy Joystick Controller
• Up to 4K @ 60 FPS resolution
• PoE+ support
• NDI HX3 native support
• Auto-tracking support
• SRT and RTSP/RTMP(S)
• Serial control: RS-232 / RS-485
• Joystick control: RS-232, RS-485, RS-422, RJ-45
• Joystick HDMI output for live camera preview

Quick Specs & Uses

• Product type: 4K sports/action PTZ camera bundle
• Main PTZ camera: Move 4K 12x PTZ Camera
• Fixed cameras: 2 x Studio 4K 12x PTZ Cameras
• Controller: SuperJoy Joystick Controller
• Move 4K optical zoom: 12x
• Move 4K video outputs: SDI, HDMI, USB, and IP
• Move 4K power: DC 12V / PoE+ 802.3at
• Studio 4K video outputs: SDI, HDMI, USB, and IP
• SuperJoy max cameras: 28 cameras total, 4 groups of 7 channels

Why It Helps

Sports coverage needs more than one good camera angle. You need movement for the main action, locked-off views for important zones, and a control surface that lets the operator react quickly. This bundle is built around that workflow.

The Move 4K gives the operator robotic pan, tilt, and zoom control with auto-tracking support, while the Studio 4K cameras can stay focused on fixed areas where the action repeats. That makes the setup useful for games, practices, live streaming, coaching review, and venue production.

Move 4K Camera Notes

• Optical zoom: 12x
• HDMI video format: 3840x2160p60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i60/59.94/50, 1280x720p60/59.94
• SDI video format: 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i60/59.94/50, 1280x720p60/59.94
• Digital zoom: Off at 3840x2160, 2x at 1920x1080, 3x at 1280x720, 4x at 960x540, 8x at 480x270, 16x at 256x144
• Field of view: 12x horizontal 6.9° tele to 72.5° wide, vertical 3.9° tele to 44.8° wide
• Minimum lux: 0.5 Lux @ F1.8, AGC ON
• Shutter: 1/30s to 1/10000s
• Pan speed: 1.7° to 100°/s
• Tilt movement: +90° to -30°
• Tilt speed: 1.7° to 69.9°/s
• Presets: 255 presets
• Video tracking: Supported
• Image flip, mirror, and freeze: Supported

Move 4K Power, Body & Rear Connections

• Power supply: DC 12V / PoE+ 802.3at
• Input power: 18W max
• Material: Aluminum, plastic
• Color: Gray
• Dimensions: 5.37 W x 5.94 D x 7.91 H in / 168.4 x 145 x 164.5 mm
• Weight: 3.25 lb / 1.47 kg
• Working environment: Indoor
• Operating temperature: 14°F to 104°F / -10°C to 40°C
• Storage temperature: -40°F to 140°F / -40°C to 60°C
• HD video output: RJ45 10/100/1000M adaptive Ethernet port, HDMI version 2.0, USB 2.0 Type-A, 3G-SDI BNC type
• Audio interface: 3.5mm line level input
• Communication interface: RS232 input/output and RS485 input/output
• Network interface: RJ45 10/100/1000M adaptive Ethernet port, supports PoE
• Power jack: JEITA type, DC IN 12V

Studio 4K Camera Notes

• Lens: 12x 1/2.8 inch CMOS
• Image sensor: 8MP, effective pixels 8.4M
• Digital zoom: 16x
• HDMI resolution: up to 3840x2160p60
• SDI resolution: up to 1920x1080p60
• Optical lens focal length: f = 4.1mm to 49.2mm, F1.8 to F2.68
• Optical field of view: horizontal 6.9° to 72.5°, vertical 3.9° to 44.8°
• Display field of view: 80°
• Minimum lux: 0.5 Lux @ F1.8, AGC ON
• Shutter: 1/30s to 1/10000s
• Presets: 255 presets with 0.1° preset accuracy
• Image flip, mirror, and freeze: Supported

Studio 4K Physical & Connections

• Material: Aluminum, plastic
• Dimensions: 5.7 L x 2.99 W x 3.09 H in / 145 mm L x 76 mm W x 78.5 mm H
• Weight: 1.5 lb / 0.68 kg
• Working environment: Indoor
• Humidity range: 10% to 80%
• Operating temperature: 14°F to 104°F / -10°C to 40°C
• Storage temperature: -40°F to 140°F / -40°C to 60°C
• HD video output: RJ45 10/100/1000M adaptive Ethernet port, HDMI version 2.0, USB 3.0 Type-C, 3G-SDI BNC type
• Audio interface: 3.5mm line level input and output
• UVC version supported: UVC 1.1 to 1.5
• Supported protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI HX2, SRT, Multicast, etc.
• Power supply: JEITA type DC IN 12V / PoE 802.3at
• Current consumption: Max 2A
• Power consumption: Max 18W

SuperJoy Joystick Controller Notes

• Connections: RS-232, RS-485, RS-422, RJ-45
• Control protocols: VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, and NDI
• Maximum cameras: 28 cameras total, 4 groups of 7 channels
• Recommended max distance: RS-232 / RS-422 up to 50 ft / 15 m, RS-485 up to 3,937 ft / 1200 m, Ethernet up to 328 ft / 100 m
• Baud rate: 1200 to 19200 bps
• Power: 6W / 12VDC / PoE 802.3af
• Working temperature: 14°F to 122°F / -10°C to 50°C
• Working humidity: 10% to 90%, non-condensation
• Weight: 3.75 lb / 1.70 kg
• Dimensions: 13.94 W x 7.05 D x 3.98 H in / 370 W x 180 D x 101 H mm

What’s In The Box

• 1 x Move 4K 12x PTZ Camera
• AC power supply
• USB-A cable
• RS232 cable
• Quick start guide
• IR remote
• 2 x AAA batteries
• 2 x Studio 4K 12x PTZ Cameras
• 12V 2A international power supply
• Lens cap
• USB-A cable
• Quick start guide
• IR remote
• 2 x AAA batteries
• 1 x SuperJoy Joystick Controller
• 12V 2A DC international power supply
• RS-232C cable 8 ft / 2.4 m
• Quick start guide
