Panasonic AW-UB10 4K Multipurpose Box Camera

Panasonic AW-UB10 4K Multipurpose Box Camera is a compact, box-style 4K multi-purpose camera built for productions and installs where clean image capture and system integration matter more than a traditional camera body. It uses a 4/3-inch MOS sensor with approx. 10.3 effective megapixels and supports V-Log L with 13 stops of latitude, giving you a wide dynamic range option for controlled grading or consistent matching across a multi-camera setup.

The design stays intentionally small (under 10 cm per side, lens excluded), and the platform is aimed at Panasonic’s larger production ecosystem: unified IP control protocol compatibility with Panasonic PTZ systems, plus support for Media Production Suite in multi-camera environments. For IP workflows, Panasonic notes planned support for transmission standards including NDI HX2, RTMPS, and SRT.

Highlights

• 4/3-inch MOS sensor with approx. 10.3 effective megapixels for detailed 4K capture
• V-Log L (13 stops) for wide dynamic range and post-friendly acquisition
• Compact box-style chassis (W 93.0 mm x 93.0 mm x 78.0 mm, body only)
• Unified IP control protocol compatible with Panasonic PTZ camera systems
• Planned IP transmission support including NDI HX2, RTMPS, and SRT

Quick Specs & Uses

• Sensor: 4/3-inch MOS x 1
• Effective pixels: approx. 10.3 MP
• Log profile: V-Log L, 13 stops latitude
• Power options: Lithium-ion battery pack (7.28 V), included AC adapter (12 V / 3 A), or PoE+ (IEEE802.3at compliant)
• Operating range: -10°C to 40°C, 10% to 80% humidity

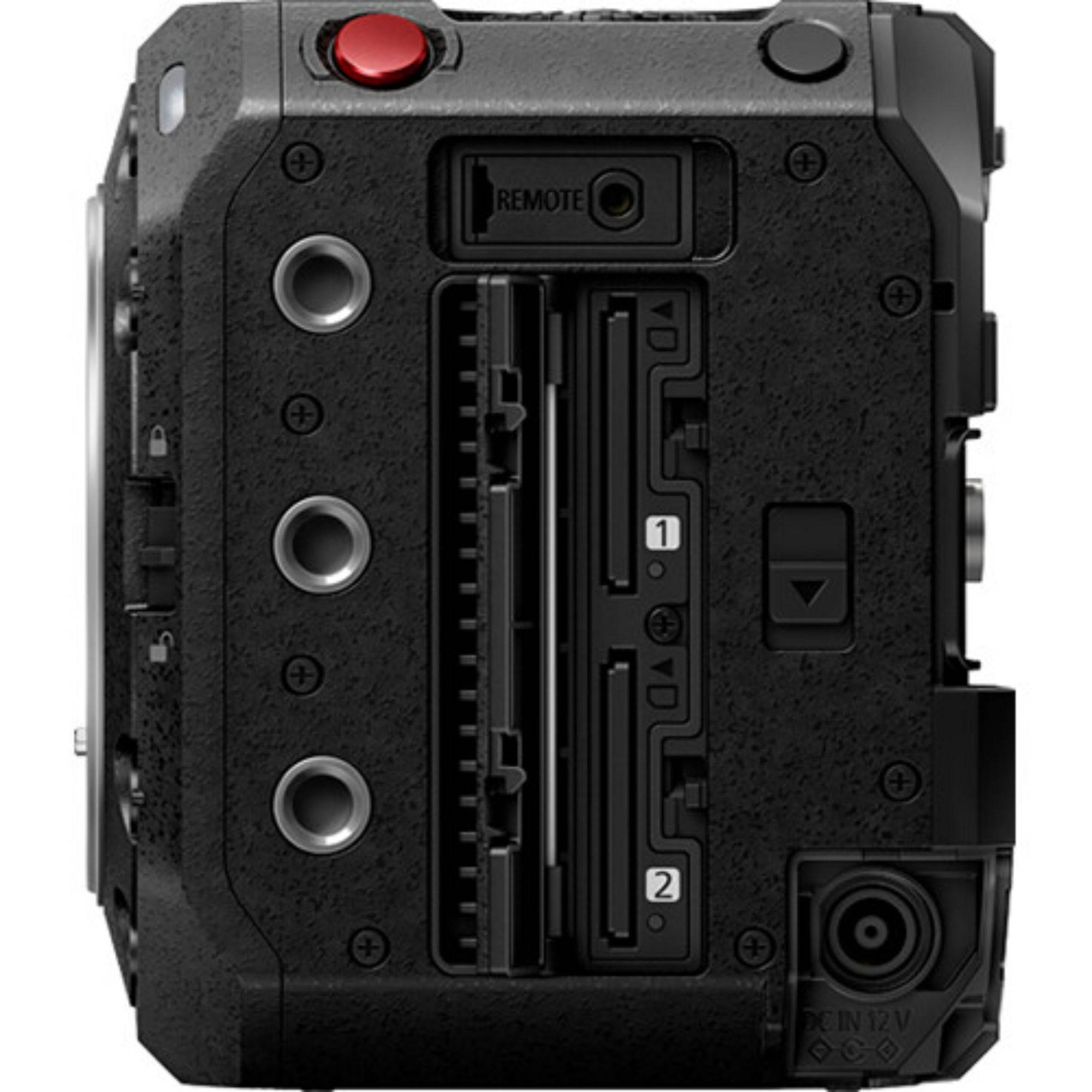

• Recording media: Dual SD card slots (SD/SDHC/SDXC; UHS-I/UHS-II; UHS Speed Class 3; UHS-II Video Speed Class 90)

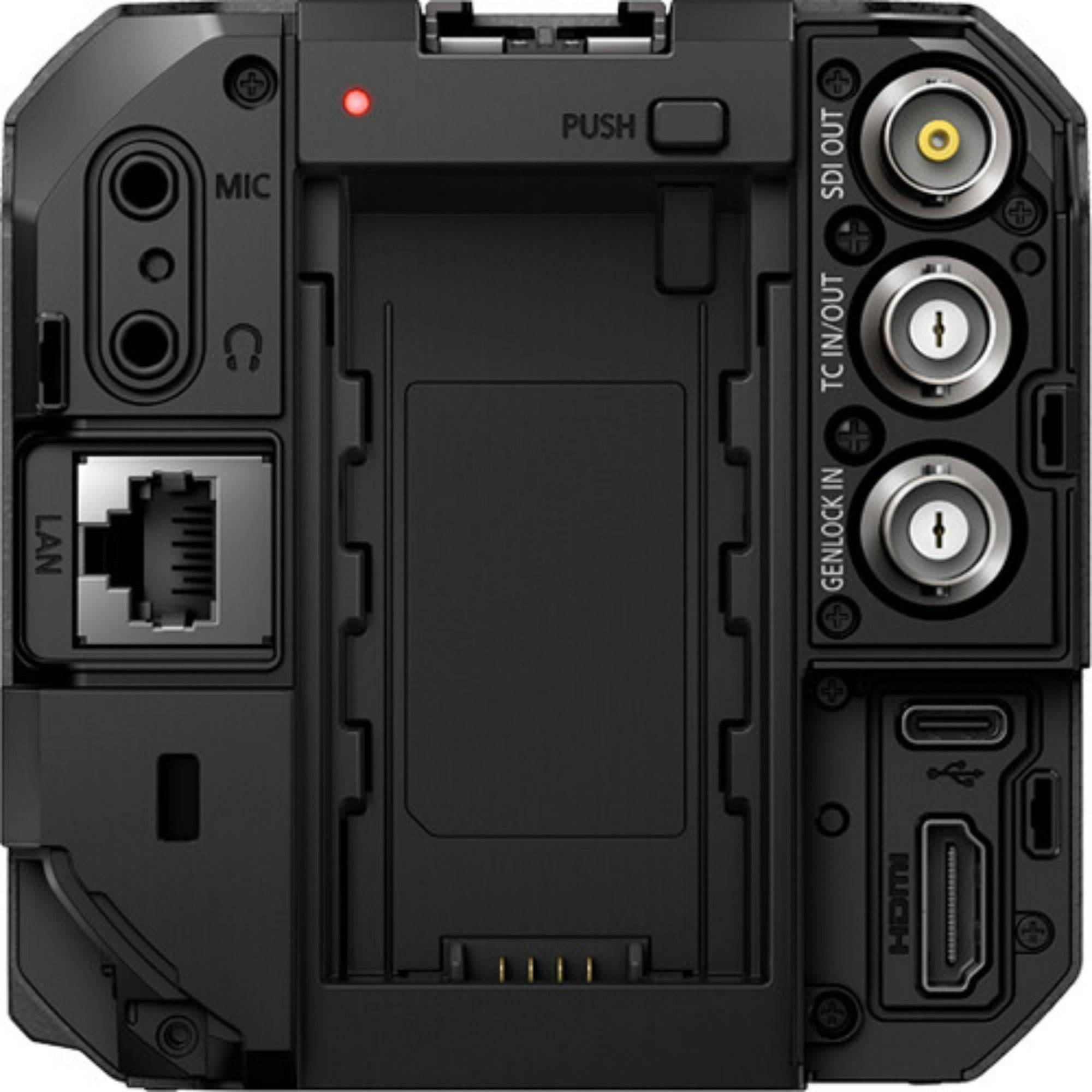

• Outputs: 3G-SDI (BNC x 1), HDMI Type A
• Sync / timing: Genlock In (BNC x 1), TC In/Out (BNC x 1)
• Audio I/O: 2x XLR inputs (LINE/MIC/MIC+48V selectable) plus 3.5 mm external mic input and 3.5 mm headphone out
• Network / control: RJ-45 LAN for remote control and PoE+ power
• USB: USB Type-C (SuperSpeed USB 3.1 Gen1)
• Streaming protocols: RTP / RTSP
• Streaming up to: 4K60 (system frequency dependent) in H.264 or H.265 with multiple bitrate options

Why It Helps

The AW-UB10 is designed to sit comfortably inside broadcast and pro AV systems where signal discipline and sync matter. With 3G-SDI for straightforward routing, plus Genlock and Timecode connectivity for timing alignment, it supports multi-camera environments that need predictable behavior. Add PoE+ as an option, and the camera can be deployed in fixed installs with fewer power-related compromises.

System Characteristics

• Dual Native ISO behavior: Base sensitivity changes by mode (Normal / V-Log / HLG / Cinelike), which helps you tune noise performance without forcing extreme gain
• PoE+ matters in installs: IEEE802.3at support can simplify runs where you want fewer wall adapters and cleaner cable paths.
• Sync-friendly I/O: Genlock and TC I/O are there for environments where timing consistency is non-negotiable
• Flexible audio front end: Dual XLR with MIC+48V selection supports pro mics and line feeds without external adapters
• Streaming options are structured: RTP/RTSP with H.264/H.265 and multiple bitrate steps gives you practical choices for LAN-based distribution

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items and supported accessories.
