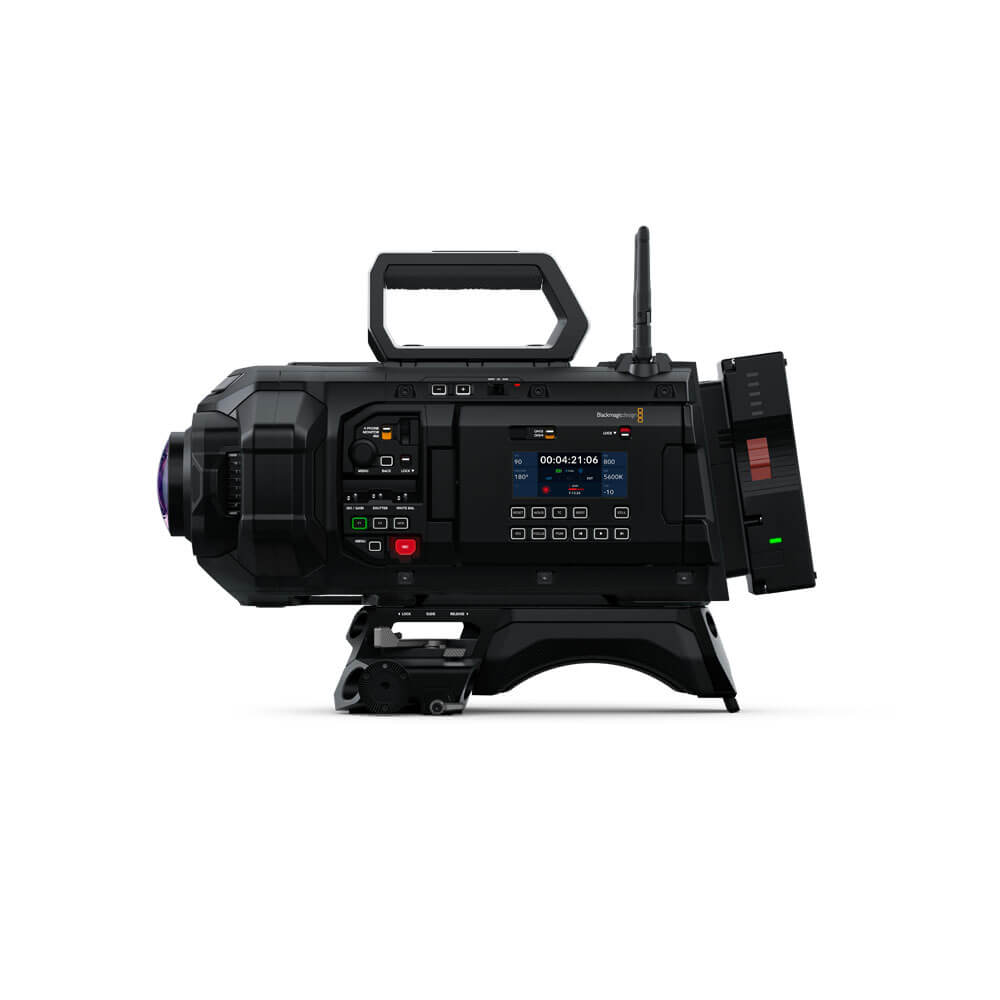

Blackmagic Design URSA Cine Immersive Camera 8K

The Blackmagic Design URSA Cine Immersive Camera is built to deliver the next generation of cinematic VR. Designed specifically for Apple Immersive Video, this advanced camera captures stunning 180° stereoscopic images with unmatched clarity and depth for playback on the Apple Vision Pro.

What is Immersive Video?

Immersive is a three-dimensional spatial video format that combines the best of traditional cinema and interactive 3D technology. Unlike conventional 3D cinema, which restricts perspective to the director’s framing, or spherical 360° video, which demands extremely high resolutions, immersive video focuses on a 180° field of view that matches natural human vision.

Compared with volumetric video, which requires complex camera arrays and virtual environments, immersive video provides a more accessible balance: high-resolution, high-frame-rate stereoscopic imagery that surrounds the audience while maintaining cinematic quality.

Optimized for Apple Immersive Video

The URSA Cine Immersive is designed to meet the unique requirements of Apple Immersive Video, the highest quality immersive format available today. This format, supported exclusively by Apple Vision Pro, features:

• Up to 90 fps playback for smooth, lifelike motion
• 4320 x 4320 resolution per eye for extreme visual fidelity
• Advanced metadata mapping to align images in the 180° environment
• Apple Spatial Audio integration for true 3D soundscapes

When paired with Apple Vision Pro, which includes dual 3660 x 3200 micro-OLED displays, 13 tracking cameras, a LiDAR scanner, and precise eye-tracking sensors, the result is a completely immersive, natural viewing experience.

Dual Sensor and Lens System

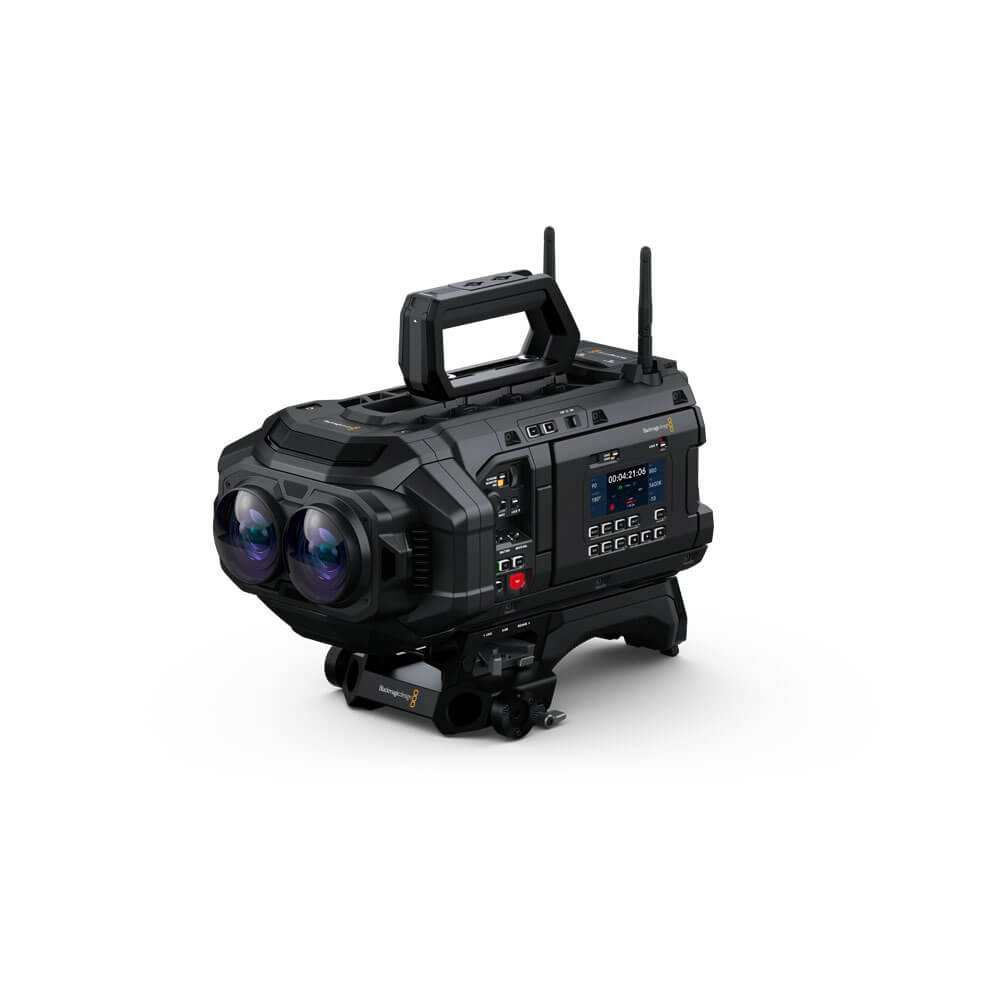

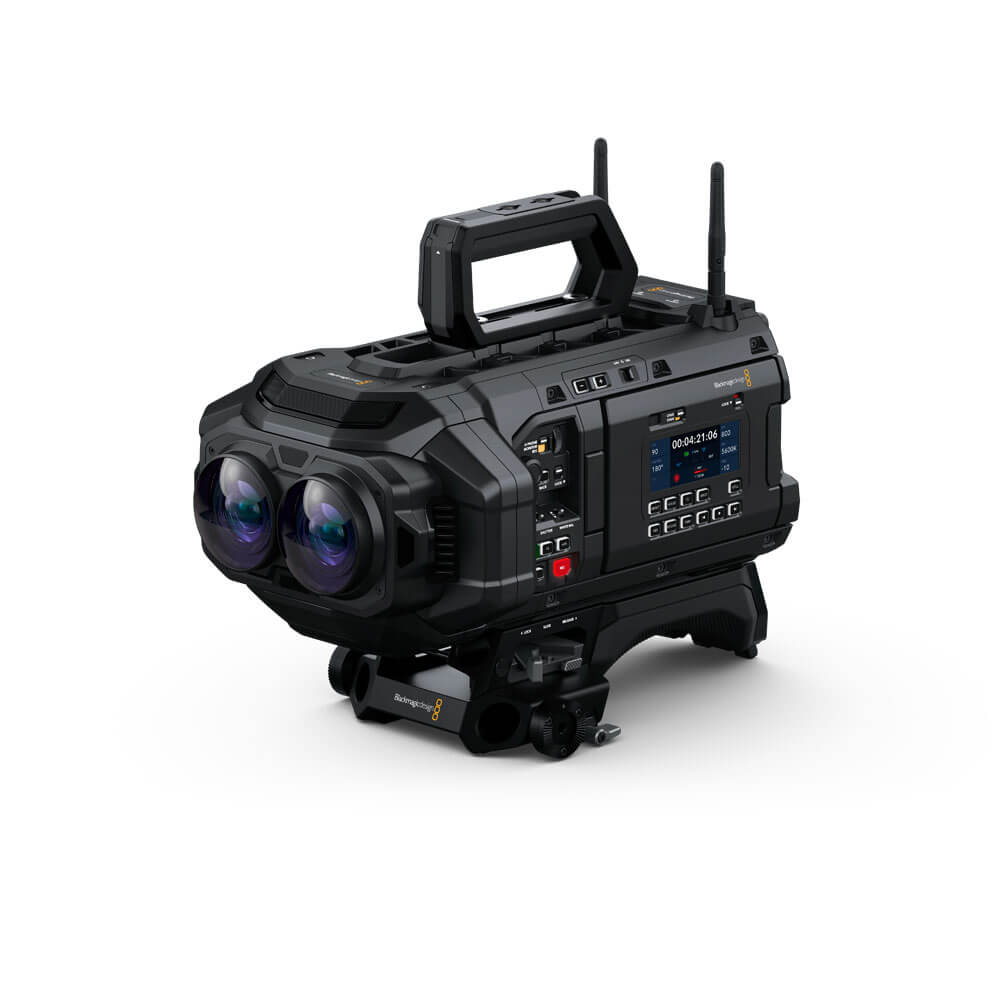

At the core of the URSA Cine Immersive are two matched 58MP RGBW sensors. Each sensor is nearly square to capture the full 180° field of view both horizontally and vertically. The sensors are paired with 210° fisheye lenses spaced 64mm apart, mimicking the human eye’s interaxial distance for natural stereoscopic depth.

Together, the system records two synchronized 8K image streams at 90 fps. This results in much higher data rates than standard 4K recording, ensuring that every frame contains the resolution and detail required for immersive playback.

The lenses feature a fixed aperture of approximately f/4.5, while built-in ND filters provide up to 8 stops of light control, giving filmmakers flexibility in a wide range of environments without needing external accessories.

Professional Build and Workflow

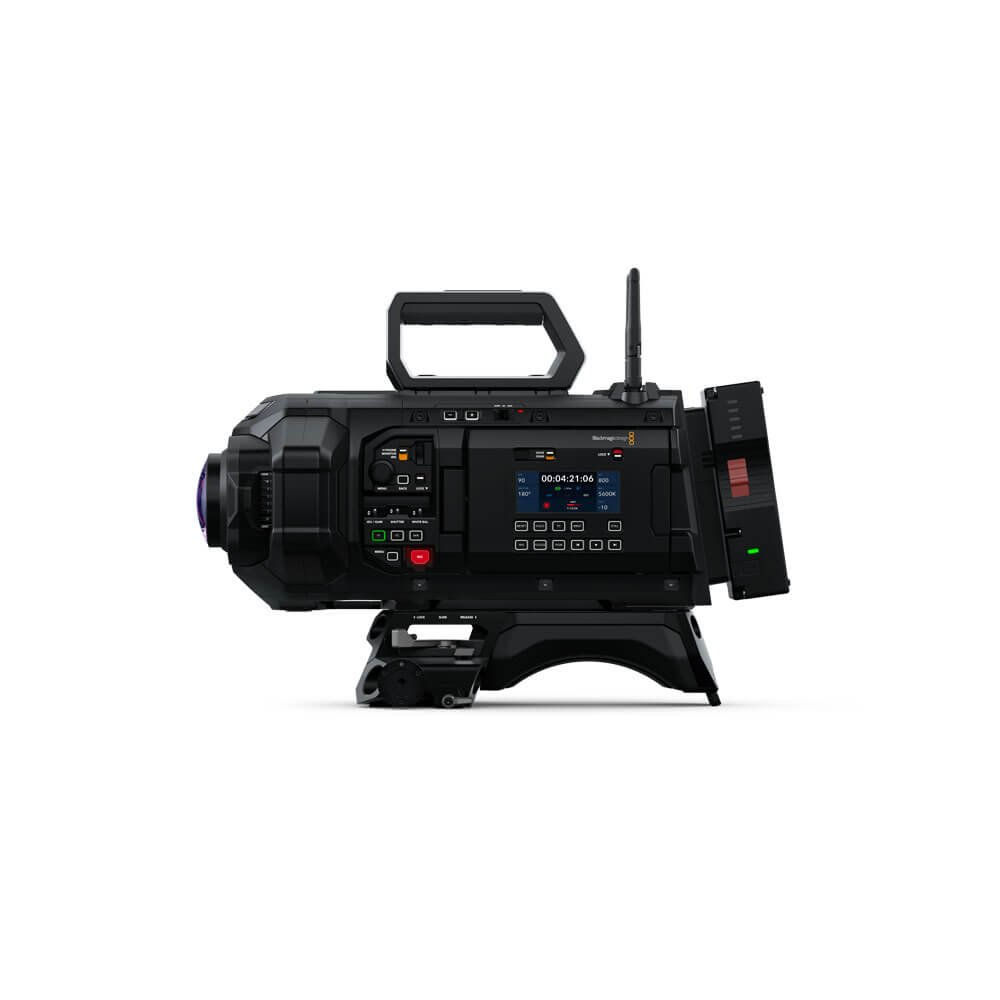

The URSA Cine Immersive is built around a rugged magnesium alloy chassis with a carbon fiber polycarbonate shell for strength and portability. It integrates professional connectivity, including 12G-SDI, 10G Ethernet, USB-C, XLR audio, and high-speed Wi-Fi.

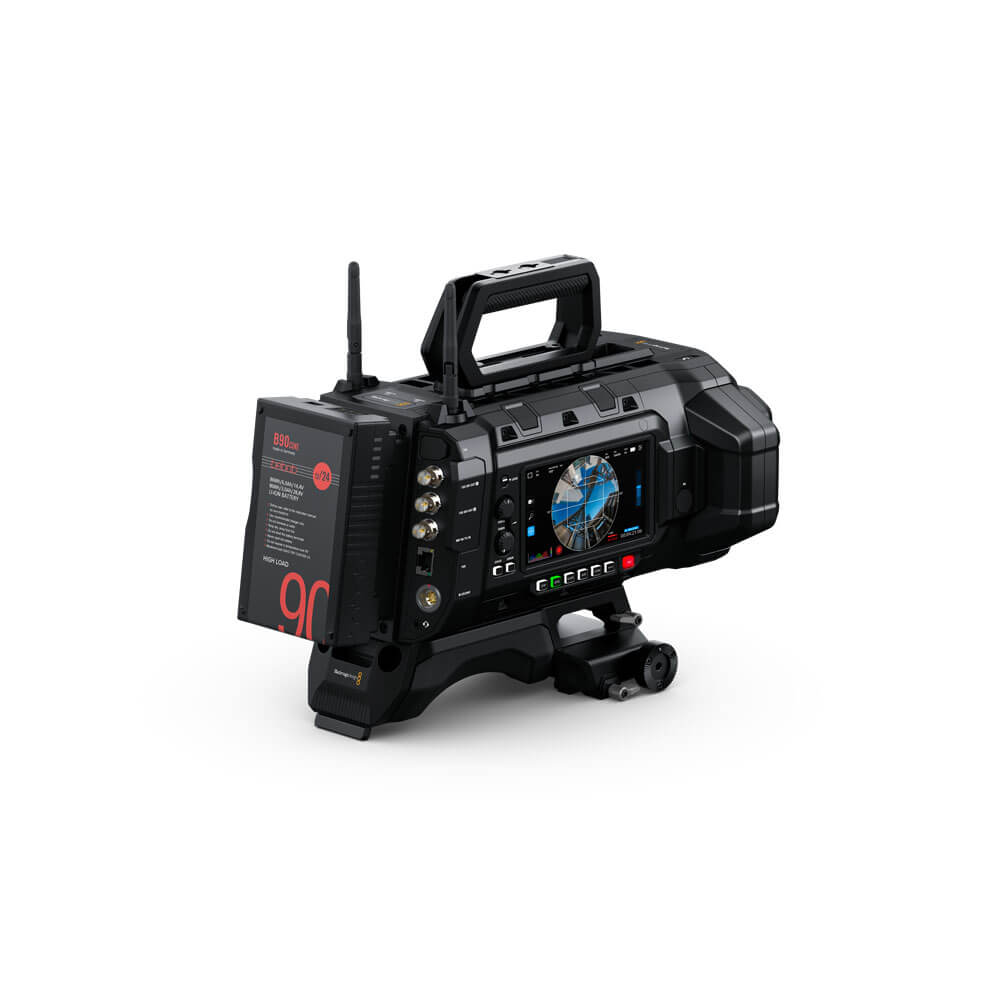

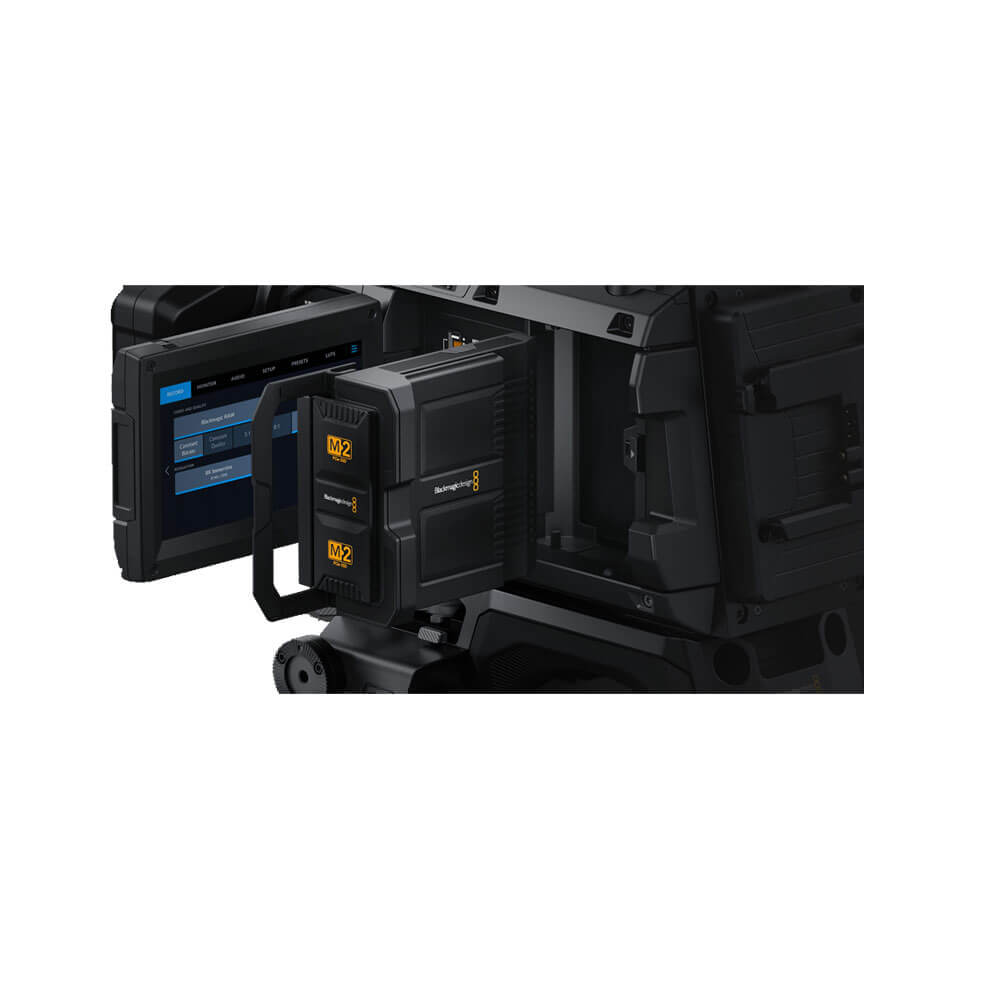

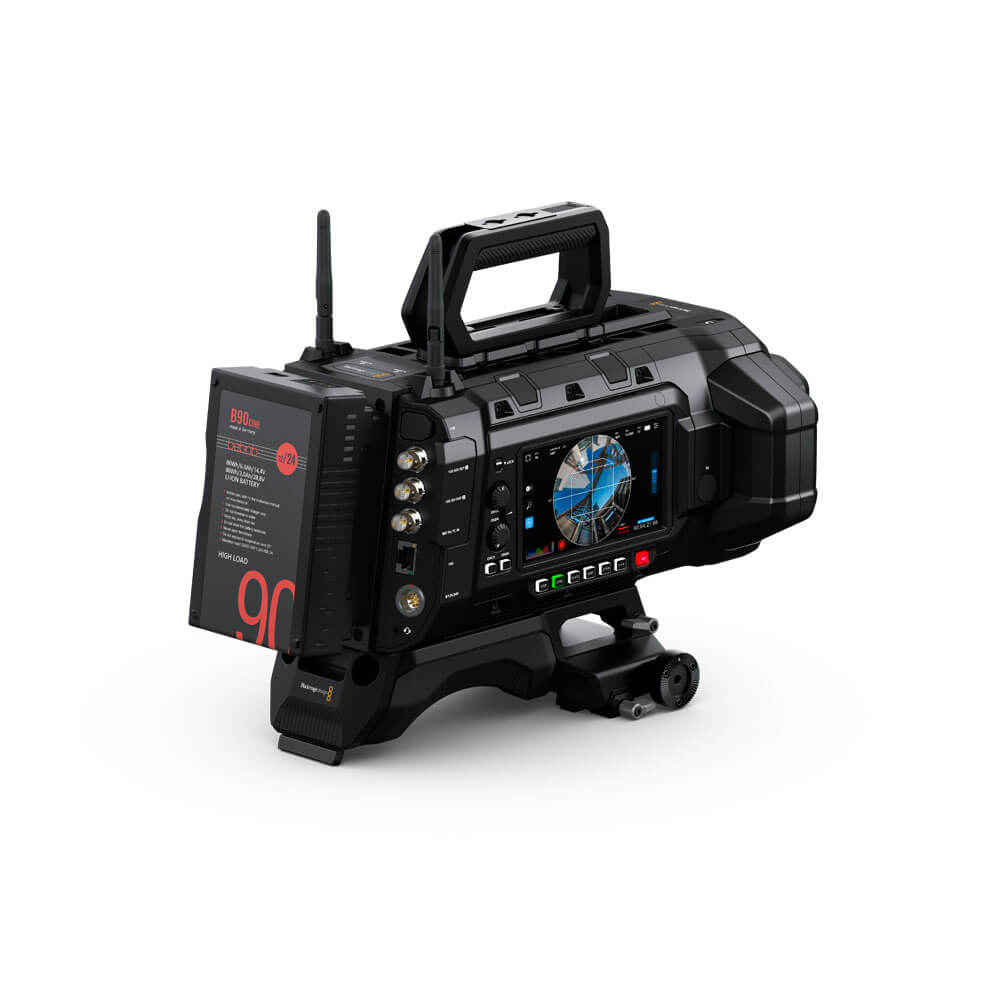

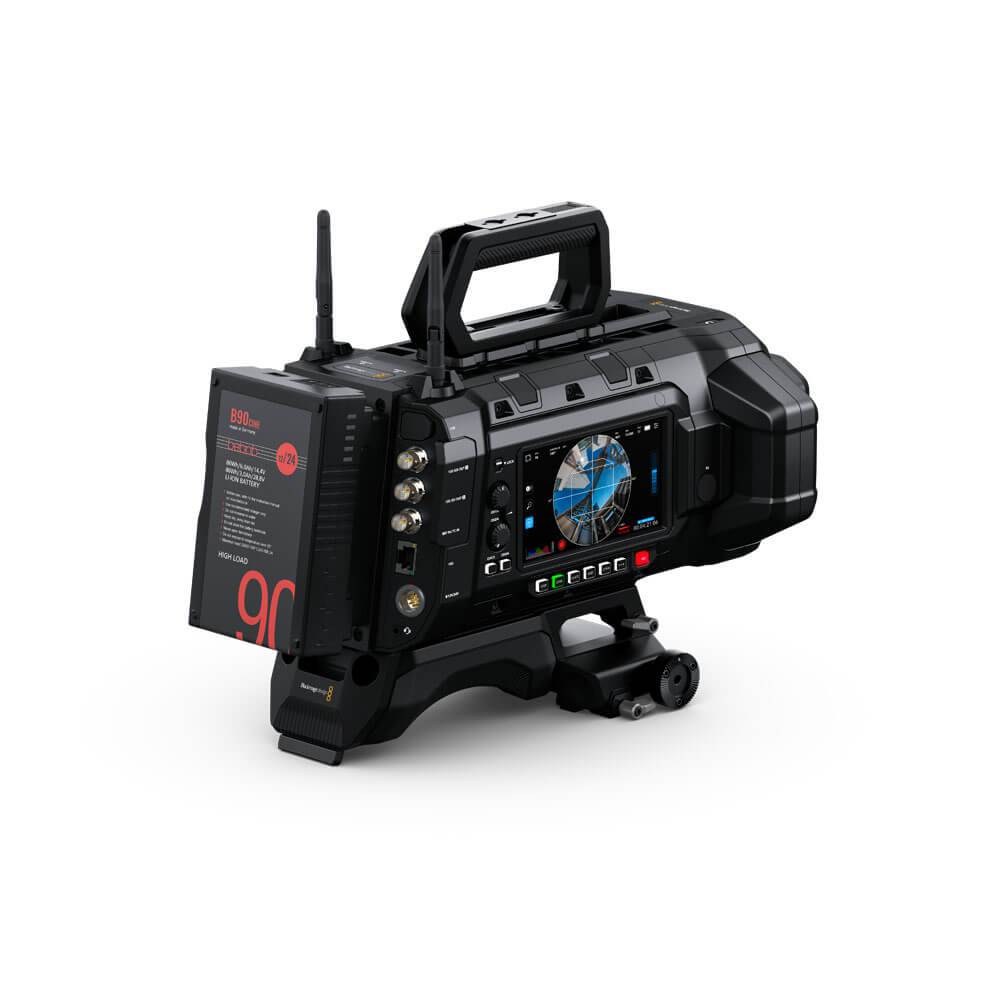

An included 8TB Blackmagic Media Module ensures high-speed recording of immersive footage, while the B-mount battery plate supports high-voltage professional batteries from IDX, Blueshape, Core SWX, BEBOB, and more. Power can also be supplied via an 8-pin LEMO connector with 12V or 24V sources.

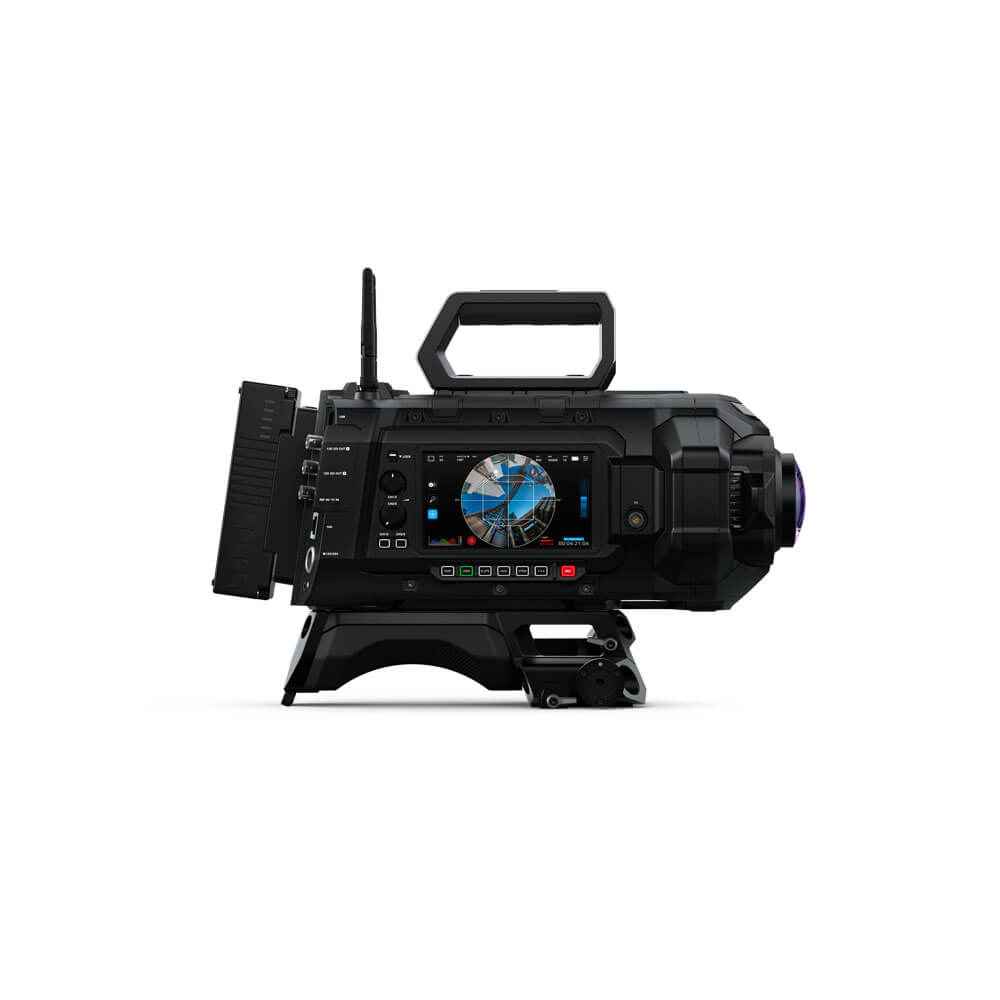

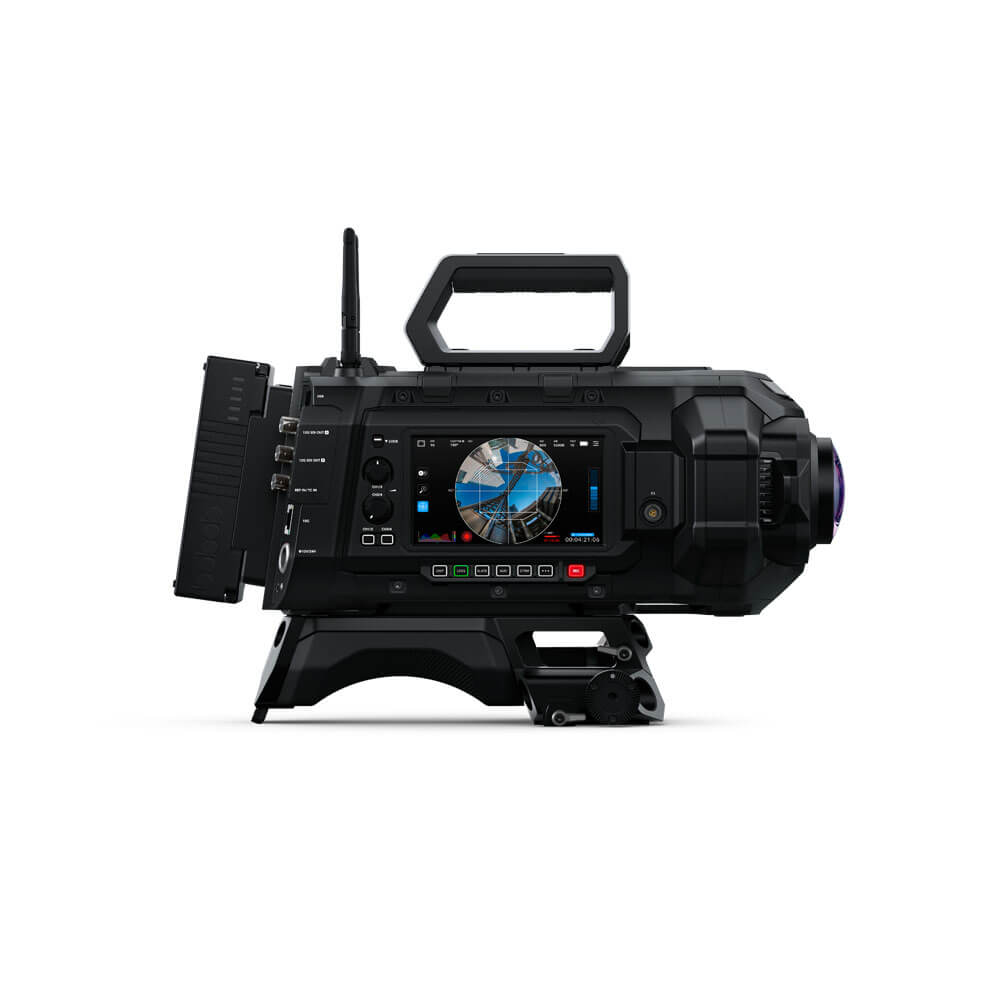

A fold-out 5" HDR touchscreen monitor provides intuitive on-set control, playback, and monitoring, while bundled antennas ensure robust wireless performance.

End-to-End Immersive Post Production

Every URSA Cine Immersive includes a license for DaVinci Resolve Studio, which features an immersive workflow tailored for Apple Vision Pro. Editors can:

• View immersive video directly in Apple Vision Pro from the Resolve timeline
• Pan, tilt, and roll camera perspectives during post-production
• Edit, color, mix audio, and add VFX in a single streamlined pipeline
• Export immersive masters for native playback on Apple Vision Pro

Real-World Applications

The URSA Cine Immersive is perfect for filmmakers, brands, and content creators producing VR experiences, live event coverage, and narrative projects for the Apple Vision Pro ecosystem. With unmatched resolution, color science, and Apple-optimized design, it is the definitive tool for creating cinematic immersive content.
