Netgear AV Line M4250 GSM4248PX 40x1G PoE+ 960W and 8xSFP+ Managed Switch

The Netgear GSM4248PX-100NAS (model M4250-48XP) is a fully managed AV Line switch with 40 PoE+ ports and 8 SFP+ uplinks, purpose-built for professional AV over IP environments. It combines high port density, ultra-low noise, and powerful multicast features—ideal for live events, broadcast setups, and enterprise AV installations.

AV-Centric Design

Part of Netgear’s M4250 AV Line, this switch comes pre-tuned for AV deployments. The AV UI lets integrators select profiles for Dante, NDI®, AES67, SDVoE, and other standards with a few clicks. These profiles automatically apply VLANs, QoS, IGMP snooping, and PTP settings—removing guesswork from AV network setup.

The fan control adapts to thermal load and operates quietly, making it suitable for sound-sensitive environments like studios and conference rooms. The switch also supports reverse-mounting, allowing all ports to face the rear of the rack—ideal for clean installs in AV racks.

Extended AV features:

• Dedicated AV web-based GUI
• Interface for more specific AV installations
• Color-based AV profiles can be applied to the different ports
• Dante, Q-SYS, AES67, and AVB audio profiles
• AVB requires a license (sold separately)
• NVX, SVSI, Q-SYS, NDI, and Dante video profiles
• Audio / video / control mixed profiles
• Automatic switch interconnect with NETGEAR Auto-Trunk, Auto-LAG, and IGMP Plus
• Common Layer 2 and Layer 3 switching engine across all M4250 models
• Built-in IT web GUI, console, telnet, and SSH consistent with other
• NETGEAR M4300 and M4500 series Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

Audio Video Bridging (AVB) services

• AVB is one of the many features designed into the M4250 product line
• AVB is an industry-standard for transporting content over a network
• AVB is used most often when very low latency is required such as in live performances when lip sync is critical
• All of the AV Line M4250 switches can be optionally licensed for AVB support

Other IT use cases

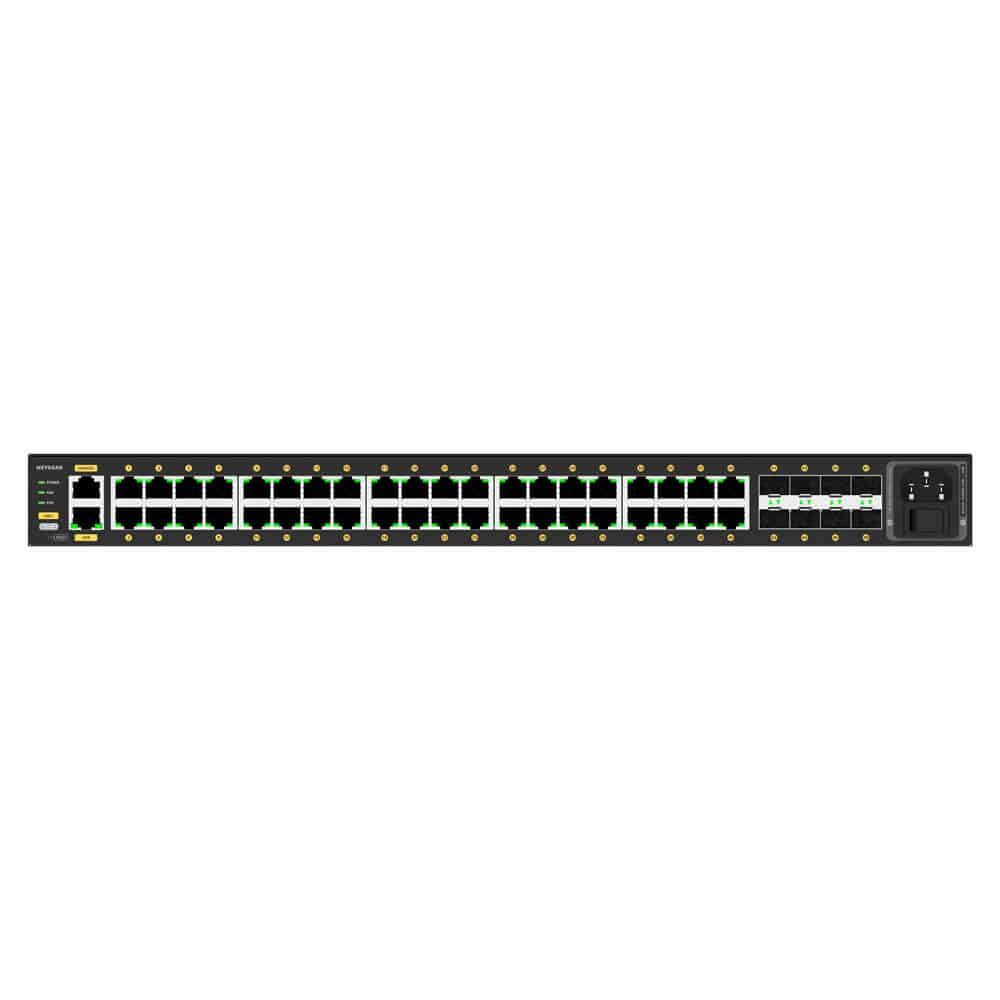

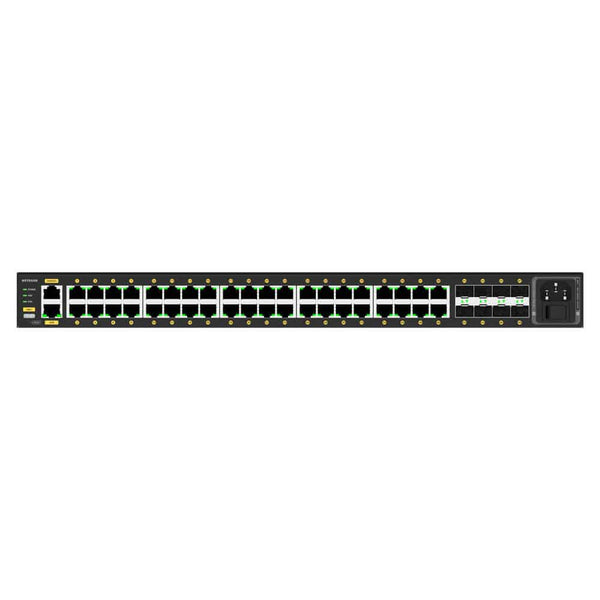

• Standard or recessed mounting with all ports in the back, or all ports in the front
• Fully featured L2/L3/L4 platform for midsize Enterprise campus networks, IoT, and IPTV

Industry-standard management

• Industry-standard command-line interface (CLI), main NETGEAR IT web interface (GUI), SNMP, sFlow and RSPAN
• Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass configuration support

NETGEAR M4250

• 40-port 10/100/1000BASE-T (RJ45) PoE+ with 960W PoE budget
• 8-port 1000/10GBASE-X (SFP+)
• 240 Gbps non-blocking fabric across 48 ports
• Out-of-band 1G Ethernet management port
• USB-C and RJ45 RS232 console ports and USB-A storage port

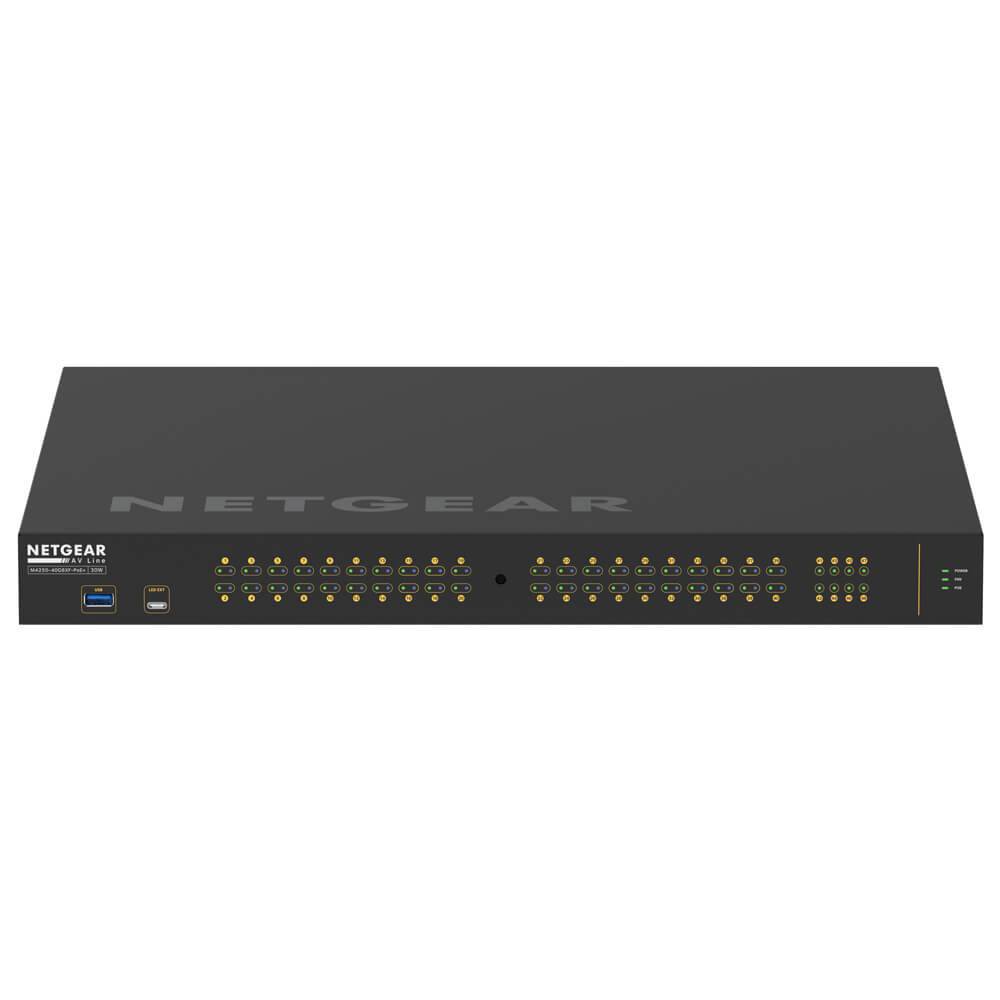

• Front black display panel and all ports in the back
• Possible reversed mounting with ports in the front
• Rack-mounting standard brackets
• Longer brackets for recessed mounting (2 inches / 5 cm)
• Threaded hole in the front (1xM10) for clamps
• Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
• Selectable fan modes for quiet or cool operation
