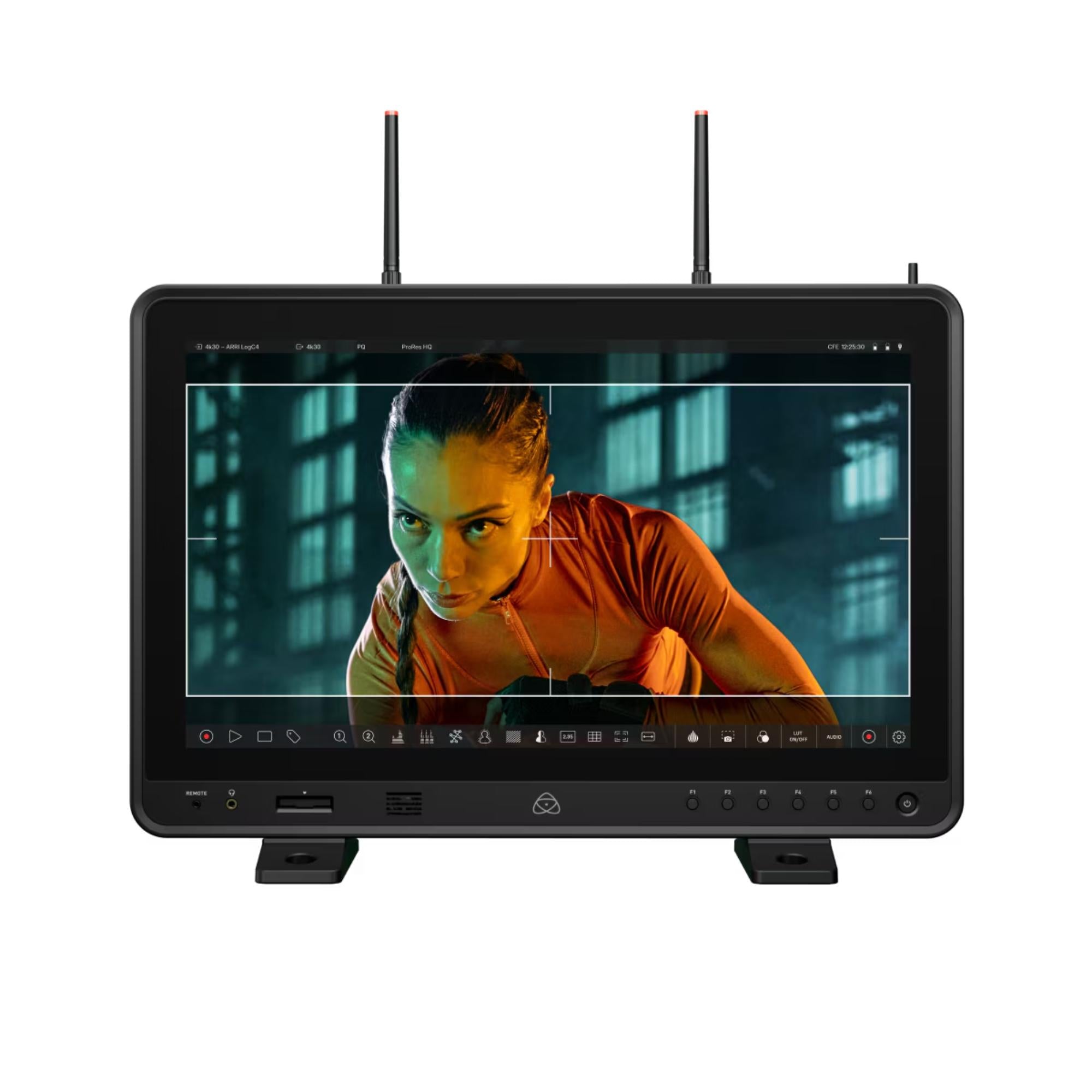

Atomos SUMO PRO-19

Atomos SUMO PRO-19 is a 19" HDR monitor-recorder-switcher built for professional production, post-production, and on-set video village use. The source material lists a 3840 x 2160 IPS-type LCD touchscreen, 1200 cd/m² brightness, HDR support, LUT support, and a wide set of image tools including waveform, vectorscope, zebra, focus peaking, RGB parade, screen markers, false color, image flip, and pixel-to-pixel zoom.

For crews working with multiple sources, the SUMO PRO-19 brings monitoring, recording, switching, audio, and sync into one large production display. It includes 12G-SDI, 3G-SDI, HDMI 2.0, USB-C recording output, XLR audio, LTC, LANC, Gigabit Ethernet, Wi-Fi 6E, Bluetooth, and a CFexpress Type B slot for record, LUT, and firmware use.

Highlights

• 19" 3840 x 2160 HDR touchscreen display
• 1200 cd/m² brightness for bright monitoring environments
• 12G-SDI and HDMI 2.0 input/output for professional signal routing
• Records ProRes, Raw, DNxHR, DNxHD, and H.265 formats
• Wi-Fi 6E, Bluetooth, AirGlu RF, and timecode sync support

Quick Specs & Uses

• Panel type: IPS-Type LCD
• Display size: 19.00" / 48.3 cm
• Native resolution: 3840 x 2160
• Aspect ratio: 16:9
• Touchscreen: Yes
• Maximum brightness: 1200 nits / cd/m²
• Color gamut: 100% Rec. 709, 99% DCI-P3, 99% NTSC, 87% Rec. 2020

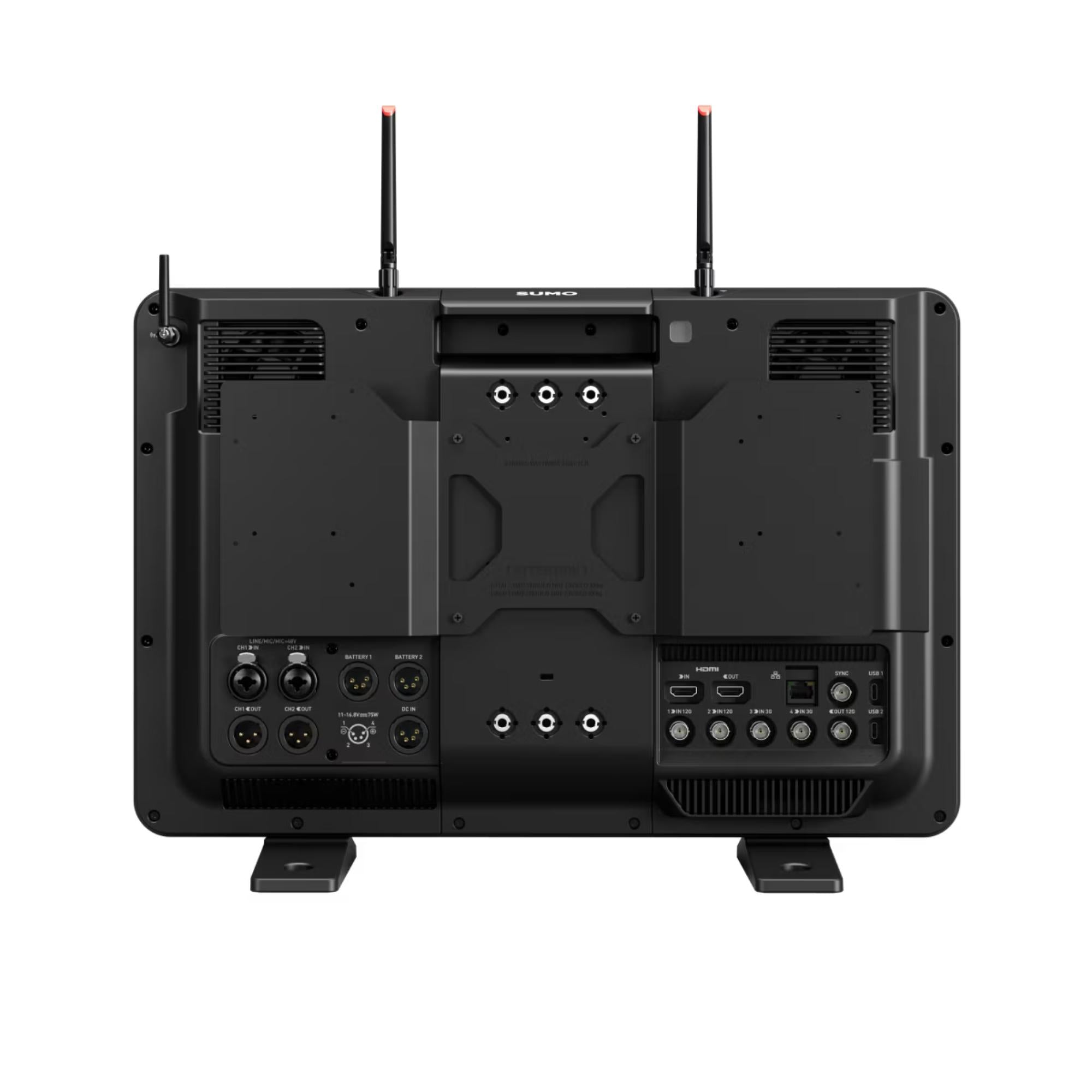

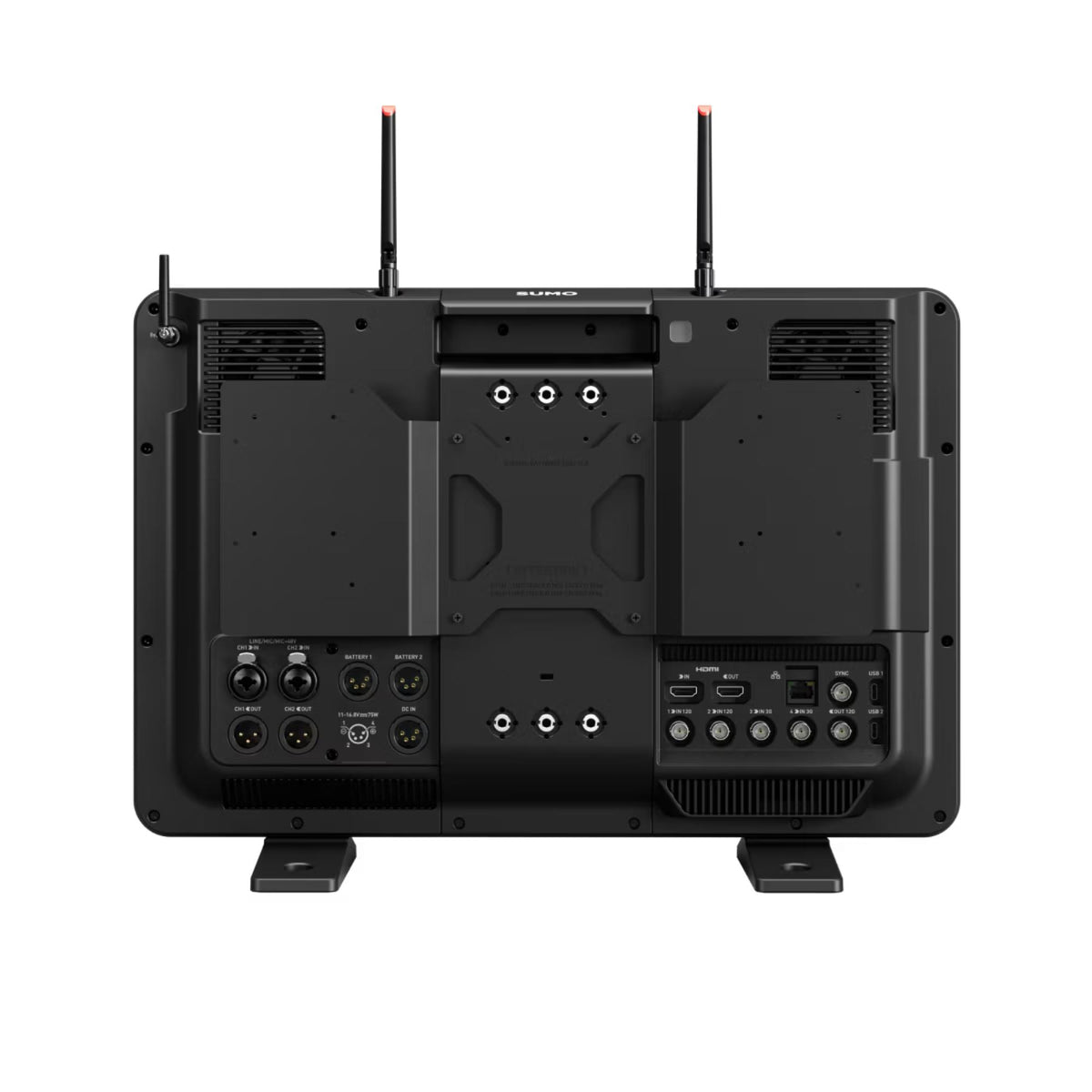

• Video I/O: 2x BNC 12G-SDI input, 2x BNC 3G-SDI input, 1x BNC 12G-SDI output, 1x HDMI 2.0 input, 1x HDMI 2.0 output, 2x USB-C 3.0 / 3.1 / 3.2 Gen 1 output
• Audio I/O: 2x XLR input, 2x XLR output, 1x 1/8" / 3.5 mm headphone output
• Wireless: Wi-Fi 6E, Bluetooth
• Media slot: Single CFexpress Type B slot for record, LUT, and firmware
• Power input: 12 to 16 VDC
• Power consumption: 75 W
• Dimensions: 18.7 x 12.4 x 2.4" / 47.4 x 31.5 x 6.2 cm
• Weight: 15.7 lb / 7.1 kg

Why It Helps

A large on-set monitor becomes more useful when it can do more than just display the image. The SUMO PRO-19 can sit at video village, on a cart, or in a control position and handle monitoring tools, recording, switching between inputs, and audio connections in one place.

The 19" screen size and 1200-nit brightness make it easier for a crew to judge the image together, while the SDI, HDMI, XLR, timecode, Ethernet, and wireless options help it fit into more complete production systems.

System Characteristics

• Monitor-recorder-switcher workflow for on-set and post-production use
• Quad-split or switch between four inputs based on the source material
• Format support: 8K Raw, 6K Raw, 4K Raw, UHD 4K, DCI 4K, 2K Raw, 1080p, 1080i, and 720p
• Recording support: ProRes 422, 422 HQ, LT, Raw, Raw HQ, DNxHD, DNxHR, and H.265 options
• Mounting support: 100 x 100 mm VESA pattern plus multiple 1/4"-20 and 3/8"-16 mounting points

What’s In The Box

• 1 x Sumo PRO-19 monitor-recorder-switcher
• 2 x Wi-Fi antennas
• 5 x antenna tips / caps: black, white, yellow, green, red
• 1 x AirGlu antenna
• 3 x antenna caps
• 1 x Desktop feet & screws
• 1 x Battery plate mount & screws
• 1 x XLR 4 power supply
• 5 x international IEC power cables
• 1 x Screen cloth
• 1 x HEX key
• 1 x Quick Start Guide
