Atomos Shogun Classic 7" HDR Monitor Recorder Switcher

The Atomos Shogun Classic 7" HDR Monitor Recorder Switcher is a true all-in-one powerhouse for professional creators. It combines monitoring, recording, and live switching in a single, portable device that fits right on your camera rig. With its ultra-bright 3000 cd/m² display and full HDMI/SDI connectivity, it’s built for high-end cinema, live events, and broadcast workflows.

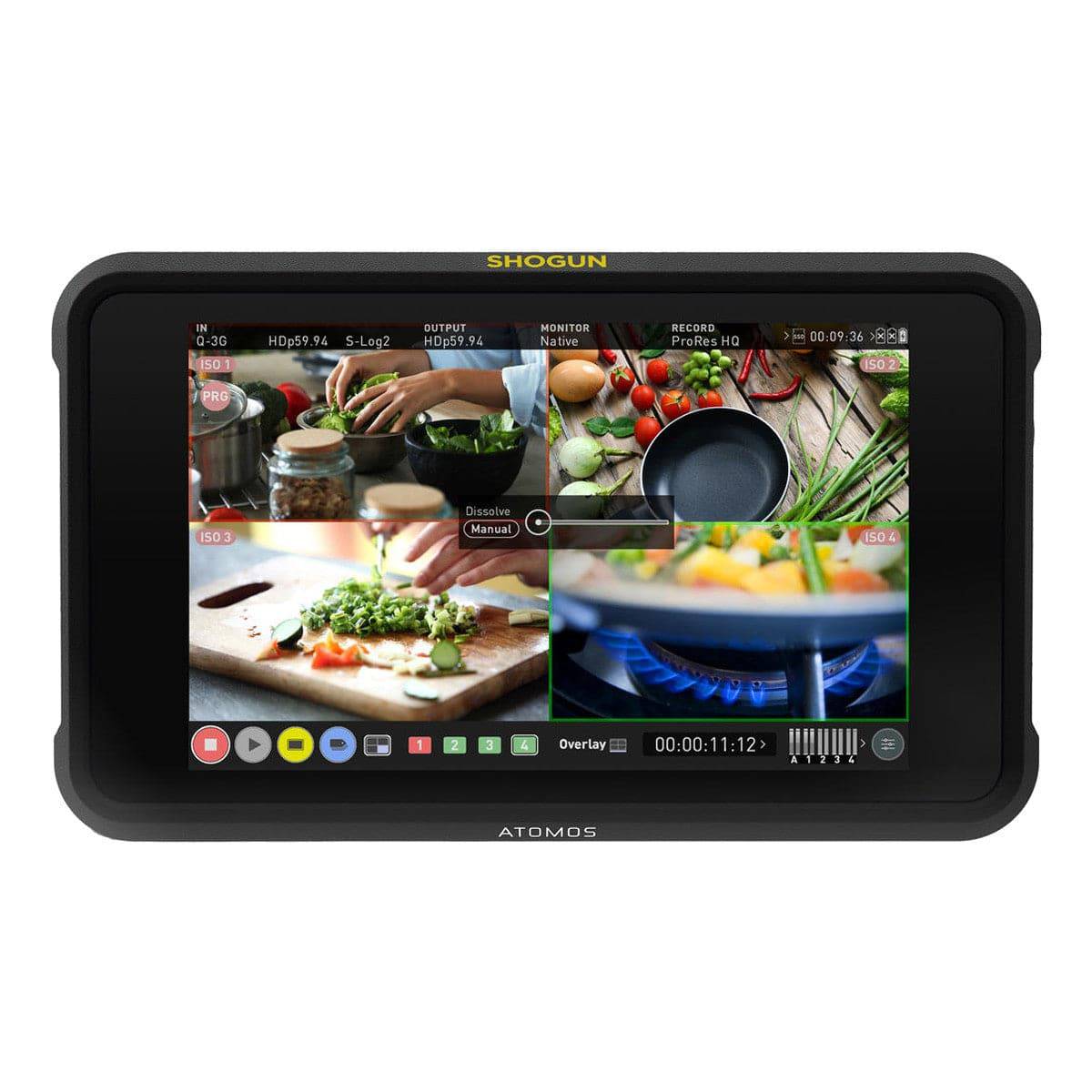

Brilliant 7.2" HDR Display

The large 1920 × 1200 touchscreen delivers crisp detail and accurate color, even in bright sunlight. With a 1,000,000:1 contrast ratio and 3000 cd/m² brightness, every shot stays visible and true. Review your footage instantly on the same stunning display used for capture.

Multicamera Switching Made Easy

Transform your Shogun Classic into a full quad-view live switcher with its four SDI inputs. Record up to four camera feeds plus a fifth program output—all at once. You can send the mixed output through HDMI or SDI for live streaming or instant review. The system’s asynchronous switching removes the need for genlocked sources, letting you mix different cameras without costly sync gear.

Professional HDR I/O and Color Accuracy

Deliver real-time HDR video from your camera to a compatible monitor via HDMI. Whether you're using an ARRI, RED, or Sony VENICE, the Shogun Classic ensures precise HDR color reproduction. Monitor every pixel in 10-bit HDR and keep full control over your image from capture to post.

Flexible Recording Options

Connect a DSLR or mirrorless camera via HDMI and record pristine 4K60 footage in Apple ProRes or Avid DNx formats. Capture up to four 1080p60 ISO streams at once while cueing and switching live—ideal for multicam productions. Each recording is edit-ready and optimized for fast post workflows.

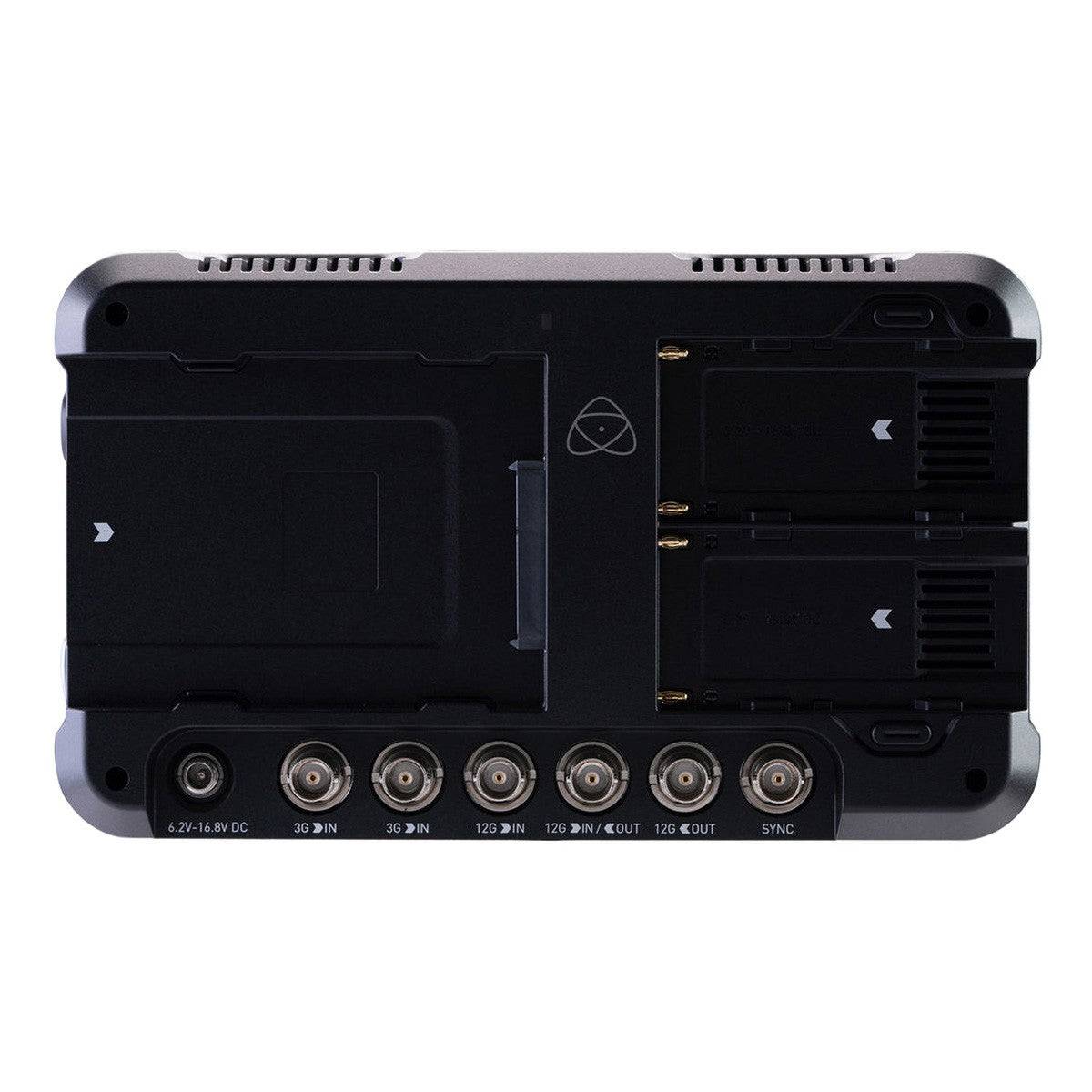

Smart Connectivity and Build

• LTC input via BNC for timecode sync
• 2-pin XLR audio for clean, balanced sound
• Dual L-series battery plates for long shoots
• 1/4"-20 mounting thread for flexible rigging
• Efficient fan and heat-sink cooling
• Remote start/stop trigger via 2.5 mm LANC
• 3.5 mm headphone jack
• Supports Master Caddy II and Atomos SSDmini media

Advanced Monitoring Tools

• Custom 3D LUTs, waveform, and vectorscope
• False color and focus peaking
• HDR exposure and zebra patterns
• Frame guides and safe areas
• Pixel magnification (1:1, 2:1)
• RGB parade and anamorphic de-squeeze
• Downscale or crop to HD
• Interlaced/PSF to progressive conversion
• Atomos Calibrator support with Display Pro HL and Plus HL

The Atomos Shogun Classic is more than a monitor—it’s a professional control hub that streamlines capture, switching, and HDR mastering in one bright, rugged package.
