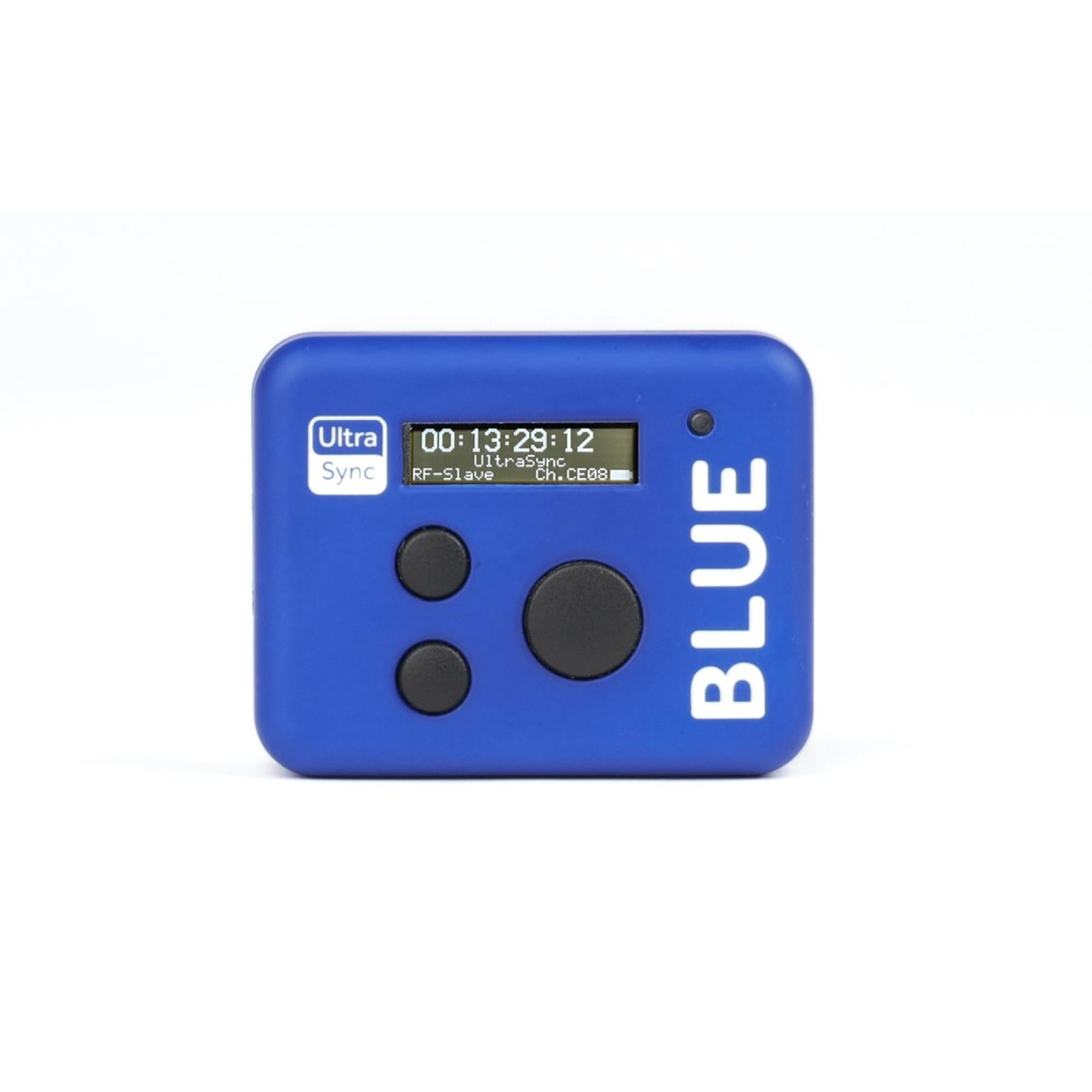

Atomos AtomX Ultrasync Blue

Atomos AtomX UltraSync Blue is a compact Bluetooth timecode unit built for keeping production devices in sync. The source material lists an OLED display with 128 x 32 resolution, Bluetooth wireless operation, and supported frame rates including 23.98, 24, 25, 29.97, 29.97D, 30, and 30D.

Timecode gear usually needs to be small, easy to power, and simple to check during a shoot. This unit weighs 1.26 oz / 36 g, measures 2.2 x 1.7 x 0.7" / 55 x 44 x 17 mm, and uses a built-in lithium-ion polymer battery rated for up to 20 hours of battery life.

Highlights

• Bluetooth wireless timecode unit
• OLED display with 128 x 32 resolution
• Up to 20 hours of battery life
• RF range up to 656' / 200 m
• USB Type-C power connector

Quick Specs & Uses

• Display type: OLED
• Display resolution: 128 x 32
• Wireless type: Bluetooth
• Wireless frequency range: 865.050 to 923.200 MHz
• RF range: Up to 656' / 200 m
• Battery type: Built-in lithium-ion polymer (LiPo)
• Battery capacity: 3.7 V, 800 mAh, 2.96 Wh
• Battery life: 20 hours
• Battery charge time: 3.5 hours
• Input voltage: 5 VDC
• Power connector: 1 x USB Type-C
• Dimensions: 2.2 x 1.7 x 0.7" / 55 x 44 x 17 mm
• Weight: 1.26 oz / 36 g

Why It Helps

Timecode boxes often end up mounted to cameras, recorders, or small production kits, so size and runtime matter. A compact unit with a long battery life is easier to place and less likely to interrupt the day for charging.

The OLED display gives the operator a quick way to check the unit, while the USB Type-C connector keeps charging straightforward with the included compatible cable.

System Characteristics

• Free run timecode: TCXO 0.5 ppm
• Frame drift: Approximately 1 frame drift in 24 hours
• RF locked drift: 0 ppm drift when RF locked to master
• Supported frame rates: 23.98, 24, 25, 30D, 30, 29.97D, 29.97
• Compact sync workflow for small production setups

What’s In The Box

• 1 x UltraSync BLUE
• 1 x USB-C charging cable compatible
