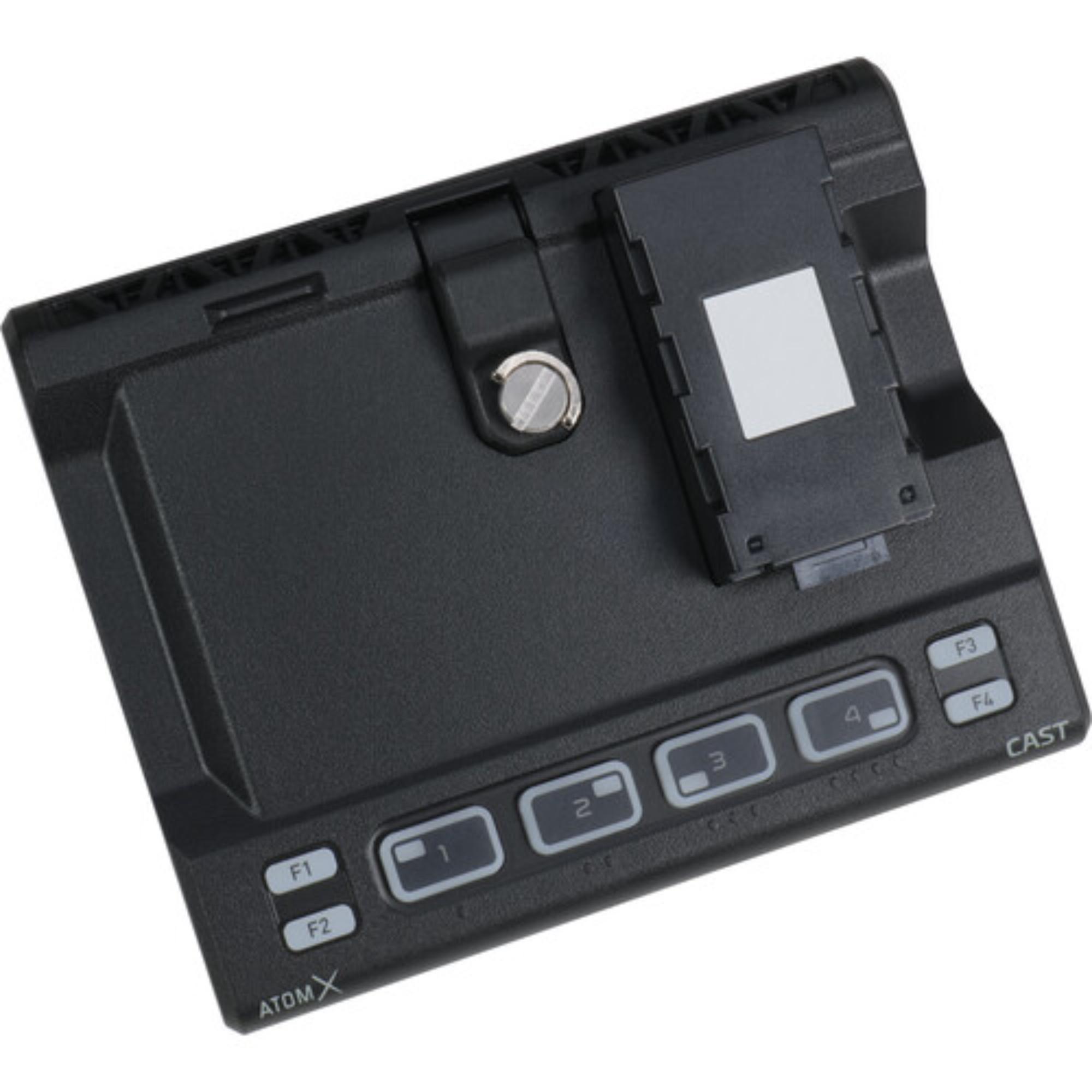

Atomos AtomX CAST 4 x HDMI Switching & Streaming Dock for Ninja

Atomos AtomX CAST 4 x HDMI Switching & Streaming Dock for Ninja is built to turn a compatible Ninja monitor into a compact multicamera switching setup. The source material lists compatibility with Atomos Ninja V, Ninja V+, Ninja, and Ninja Ultra.

For smaller productions, having four HDMI sources in one compact dock can keep the setup cleaner than building around a separate switcher, monitor, and recorder path. AtomX CAST provides 4 x HDMI inputs, 1 x HDMI output, a USB-C female output, source select buttons, programmable function buttons, and touchscreen control through the Ninja V monitor.

Highlights

• Compact quad HDMI docking station
• 4 HDMI inputs with source select buttons

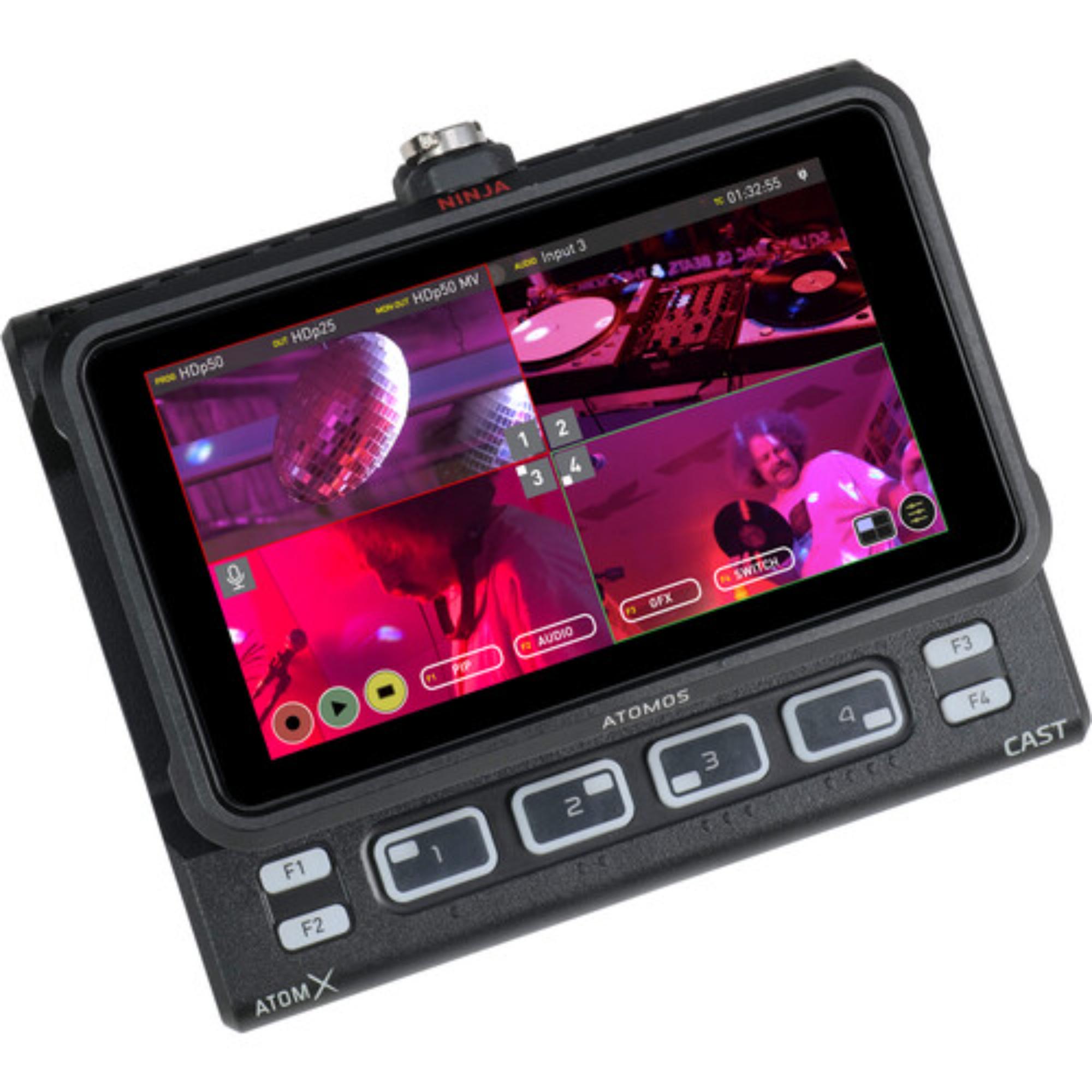

• Converts Ninja monitors into a switch
• Graphic overlays, PiP, and streaming output
• Tally light and embedded timecode support

Quick Specs & Uses

• Compatibility: Atomos Ninja V / Ninja V+ / Ninja / Ninja Ultra
• Video I/O: 4 x HDMI input, 1 x HDMI output
• USB I/O: 1 x USB-C female output
• Control: 4 x source select buttons, 4 x programmable function buttons, Ninja V monitor touchscreen
• Video resolution supported: 1080p 60, 59.94, 50, 30, 29.97, 25, 24, 23.98; 1080i 60, 59.94, 50
• Power source: AC input
• DC input power: 6.2 to 16.8 VDC
• Cooling: Passive
• Mounting interface: Battery mount of Ninja V monitor
• Material of construction: Plastic
• Dimensions: 6.3 x 5.1 x 1.9" / 160 x 129 x 49 mm
• Weight: 1.1 lb / 485 g

Why It Helps

AtomX CAST is useful when a small production needs to switch between several HDMI sources without turning the desk into a full broadcast rack. Four source buttons give the operator a direct way to move between inputs, while the Ninja monitor stays part of the viewing and control workflow.

The HDMI output can feed another destination such as an external monitor, recorder, separate switcher, or live streaming broadcast setup. For compact streaming, conferencing, or small studio work, that keeps the signal path easier to understand.

System Characteristics

• Multicamera HDMI workflow for up to four connected sources
• Ninja monitor integration through the listed battery mount interface
• Streaming and switching support for compact production setups
• Passive cooling for quieter operation
• Bottom mounting points: 1 x 1/4"-20 and 1 x 3/8"-16

What’s In The Box

• 1 x AtomX CAST
• 1 x USB-C Cable
• 1 x SSDmini Handle Adapter
