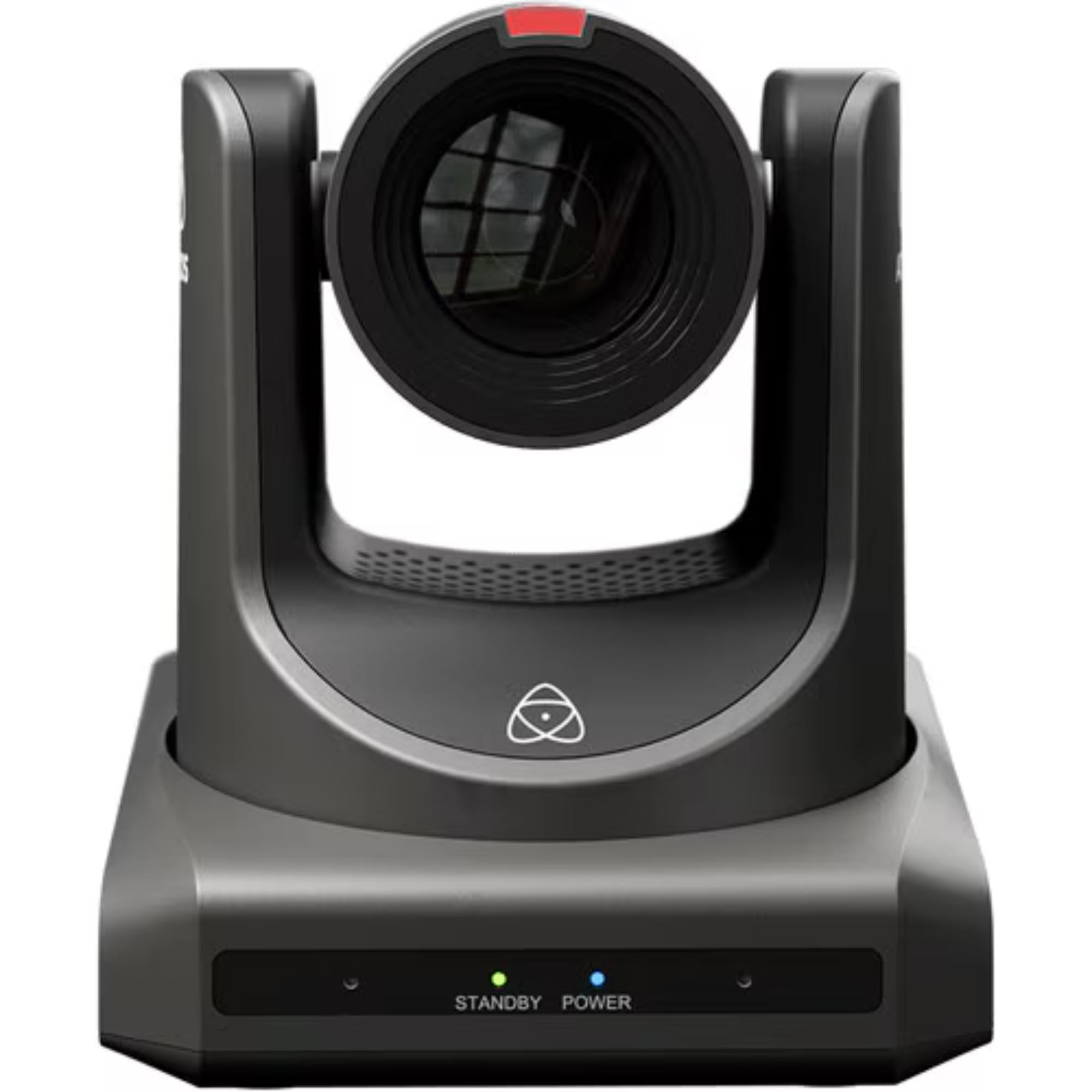

Atomos A-Eye HD-20X PTZ Camera

Atomos A-Eye HD-20X PTZ Camera is an HD PTZ camera built for classrooms, houses of worship, conference rooms, remote meetings, and streaming setups. The source material lists a 1/2.8"-type CMOS sensor, 2.07MP effective resolution, 20x optical zoom, and 16x digital zoom.

For fixed camera positions, the main advantage is remote control. The camera can output up to 2048 x 1080 at 60 fps via HDMI, RJ45, SDI/BNC, or USB, with control support over IP, NDI, H.323, RS-232, RS-485, and VISCA.

Highlights

• Captures up to 2K60 video
• 20x optical zoom and 16x digital zoom
• HDMI, 3G-SDI, USB-A 3.0, and IP outputs
• RS-485, UVC, and IP control support
• PoE+ 802.3at support with tally light

Quick Specs & Uses

• Image sensor: 1/2.8"-type CMOS
• Effective sensor resolution: 2.07 megapixel
• IR cut filter: No
• Focus control: Autofocus, manual focus
• Max optical zoom: 20x
• Max digital zoom: 16x
• Video output: 2048 x 1080 up to 60.00 fps via HDMI / RJ45 / SDI/BNC / USB
• Embedded audio: HDMI/IP/NDI/SDI/USB
• Audio recording: AAC Audio
• Broadcast output: NTSC/PAL

Why It Helps

A PTZ camera is useful when one operator needs to manage multiple camera angles from a desk or control position. With remote pan, tilt, zoom, and focus, the camera can cover speakers, presenters, panels, or stage positions without needing a camera operator beside it.

The 20x optical zoom gives enough reach for tighter framing in medium and larger rooms, while the HDMI, SDI, RJ45/NDI, and USB outputs make it easier to connect into different production or streaming systems.

System Characteristics

• Pan/tilt movement: tilt 120° from -30° to 90° at 1.7 to 100°/s; pan 340° from -170° to 170° at 1.7 to 69.9°/s
• Control protocols: IP, NDI, H.323, RS-232, RS-485, VISCA

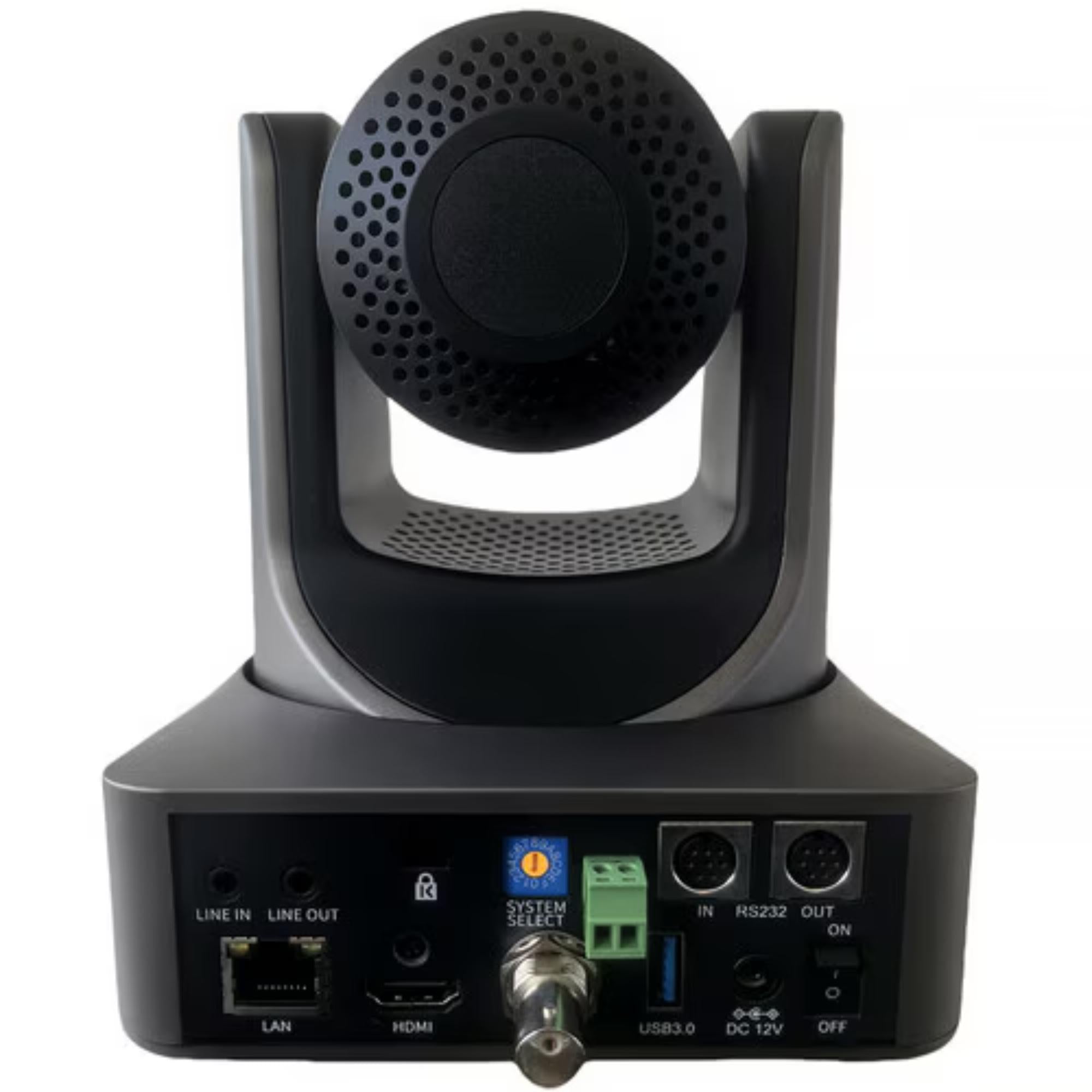

• Interface: HDMI 1.4 output, BNC 3G-SDI output, RJ45 NDI output, USB-A 3.0 output
• Audio I/O: 3.5 mm TRS stereo line input and 3.5 mm TRS stereo line output
• Power: PoE+ 802.3at or 1 x DC 12V input

What’s In The Box

• 1 x A-Eye HD-20X PTZ camera
• 1 x RS-232 serial cable (2m)
• 1 x USB 3.0 A-A cable (1.5m)
• 1 x Lens cover
• 1 x Remote controller
• 1 x Accessory tray
• 1 x Wall mount rack
• 1 x Screw pack
• 1 x Power adapter with 4 plugs
• 1 x Quick Start Guide
