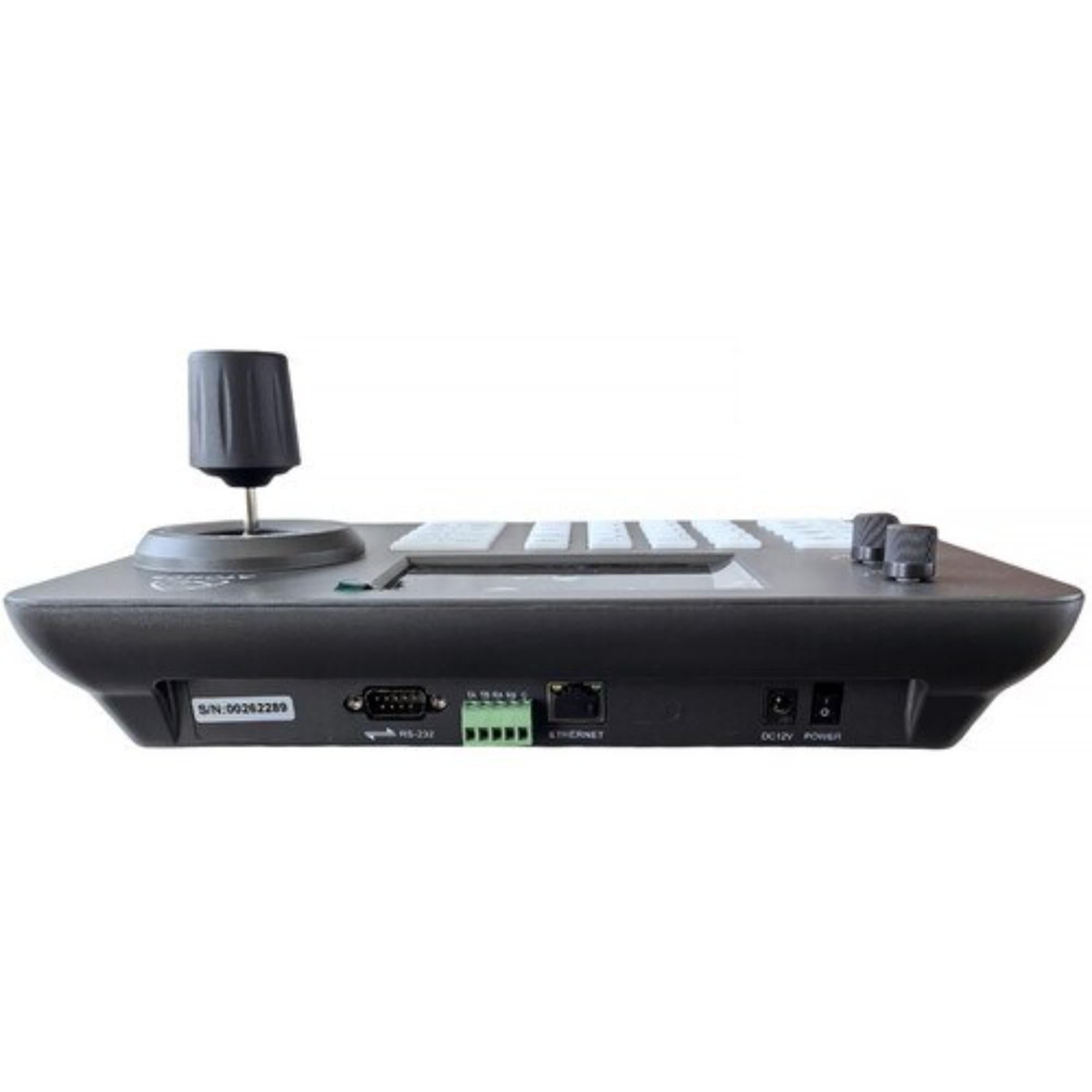

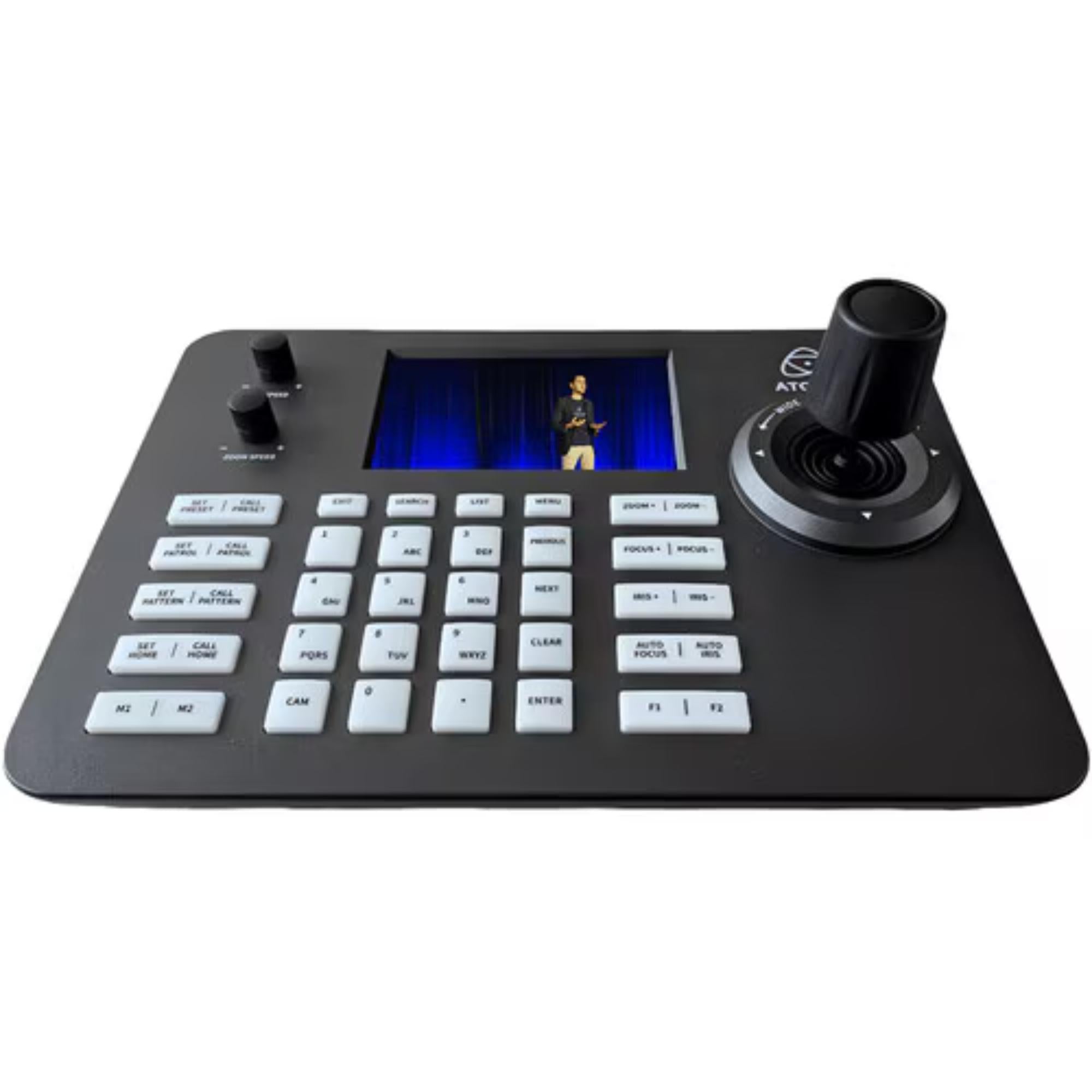

Atomos A-Eye Control PTZ Camera Remote Control

Atomos A-Eye Control PTZ Camera Remote Control is a dedicated controller for managing compatible Atomos A-Eye PTZ cameras. The source material describes it as a compact control surface for pan, tilt, zoom, and image adjustments in studio, auditorium, live production, education, corporate, and house-of-worship setups.

For PTZ operation, having physical controls makes a real difference. The joystick handles pan and tilt, while the dedicated zoom and focus controls help the operator make quick camera adjustments without digging through menus. It also supports preset recall for repeat camera positions.

Highlights

• Compatible with Atomos A-Eye PTZ cameras
• RS-232 and RS-422 serial control
• Joystick control for pan and tilt operation
• Dedicated zoom and focus controls
• Preset storage and recall for camera positions

Quick Specs & Uses

• Product type: PTZ camera remote control
• Control support: Pan, tilt, zoom, focus, exposure, white balance, image settings, presets
• Control protocol: RS-232 and RS-422 serial control
• Input voltage: DC12V-2A
• Operating power: ≤5W
• Body: Polycarbonate ABS
• Operating temperature: -10°C to 55°C
• Dimensions: 340 x 268 x 140 mm
• Weight: 900 g

Why It Helps

When several PTZ cameras are being used live, small delays in control can become obvious. A dedicated controller gives the operator a faster way to move cameras, adjust the image, and recall preset positions from one desk position.

The wired RS-232 and RS-422 connection is useful for installations that need consistent camera control, especially in fixed rooms where reliability matters more than a wireless control shortcut.

System Characteristics

• Centralized PTZ control for compatible A-Eye camera setups
• Manual camera operation through joystick, zoom, and focus controls
• Image adjustment access for exposure, white balance, and camera settings
• Preset recall workflow for repeatable camera positions
• Compact desktop design for control room, studio, and live event use

What’s In The Box

• 1 x A-Eye Control
• 1 x Power adapter with 4 plugs
• 1 x Quick Start Guide
• 1 x RS-232 serial cable
