YoloLiv YoloDeck: Control Panel For YoloBox With 15 Macro Keys

YoloLiv YoloDeck: Control Panel For YoloBox With 15 Macro Keys is a dedicated hardware controller for YoloBox live-production systems. It puts 15 customizable LCD macro keys under the operator’s hand, giving faster access to the commands that normally take several taps on the screen.

The controller works directly with YoloBox Extreme, YoloBox Ultra, and YoloBox Pro through USB-C. Buttons can be assigned to camera switching, graphics, overlays, audio, instant replay, scoreboards, recording, stream control, and other actions, while unlimited control pages let the same panel adapt to different productions.

Highlights

• 15 customizable LCD macro keys – gives operators direct access to frequently used live-production commands
• Unlimited control pages – supports separate shortcut layouts for different shows and workflows
• Direct YoloBox configuration – setup is handled from the YoloBox without a laptop or extra software
• One-touch production control – handles switching, graphics, audio, replay, recording, scoreboards, and streaming actions
• USB-C connection – provides a simple hardware link to compatible YoloBox systems
• LCD key labels – each button displays its assigned function for quick operator reference

Quick Specs & Uses

• Product type: Streaming control panel
• Compatible systems: YoloBox Extreme, YoloBox Ultra, YoloBox Pro
• Hardware keys: 15 customizable LCD macro keys
• Control pages: Unlimited
• Interface: USB-C
• Input voltage: 5 V
• Working power consumption: 3 W
• Standby power consumption: 0.75 W
• Screen luminance: 800
• Screen contrast ratio: 450
• Keyboard icon resolution: 126 × 126
• Startup logo resolution: 800 × 480
• Keyboard bare weight: 188 g
• Dimensions: 132 × 91 × 20 mm (5.20 × 3.58 × 0.79 in)
• Typical uses: Live streaming, sports, worship services, business events, education, podcasts, concerts, and multi-camera productions

Why It Helps

Touchscreen control works, but during a live show it can be quicker to hit a physical key than dig through menus. YoloDeck gives the operator a fixed set of labeled buttons for the actions used most often, which can make switching and cueing feel more immediate.

The unlimited-page setup is useful when the same system handles very different productions. One page can be arranged for a sports show, another for a podcast, and another for a corporate stream, without changing the hardware itself.

Because configuration happens directly from the YoloBox, the control surface stays tied closely to the live-production workflow. There is no separate laptop or controller application to manage, which keeps the setup smaller and easier to deploy.

System Characteristics

• Direct hardware control gives YoloBox operators faster access to frequently used production commands
• Custom LCD keys display assigned functions so controls stay easy to identify during a live show
• Drag-and-drop assignment lets operators organize actions directly from the YoloBox
• Unlimited control pages allow one panel to cover several production styles
• USB-C integration keeps the controller connection simple and direct
• No-computer workflow lets the YoloDeck operate without a separate laptop or extra control software

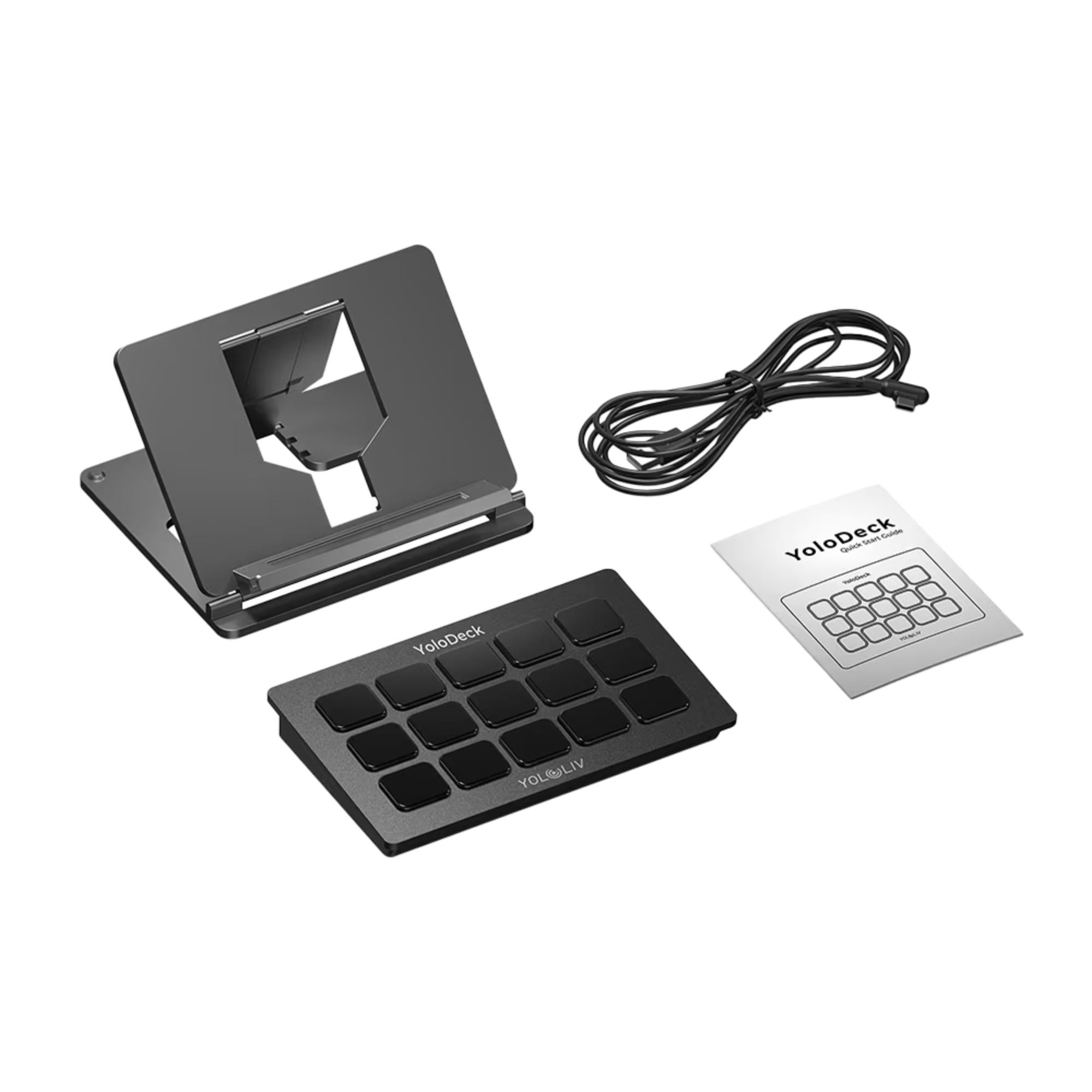

What's In The Box

• 1 x YoloLiv YoloDeck Control Panel
• 1 x USB-C Cable
• 1 x User Manual
• 1 x Adjustable Stand
