YoloLiv YoloBox Ultra Cage

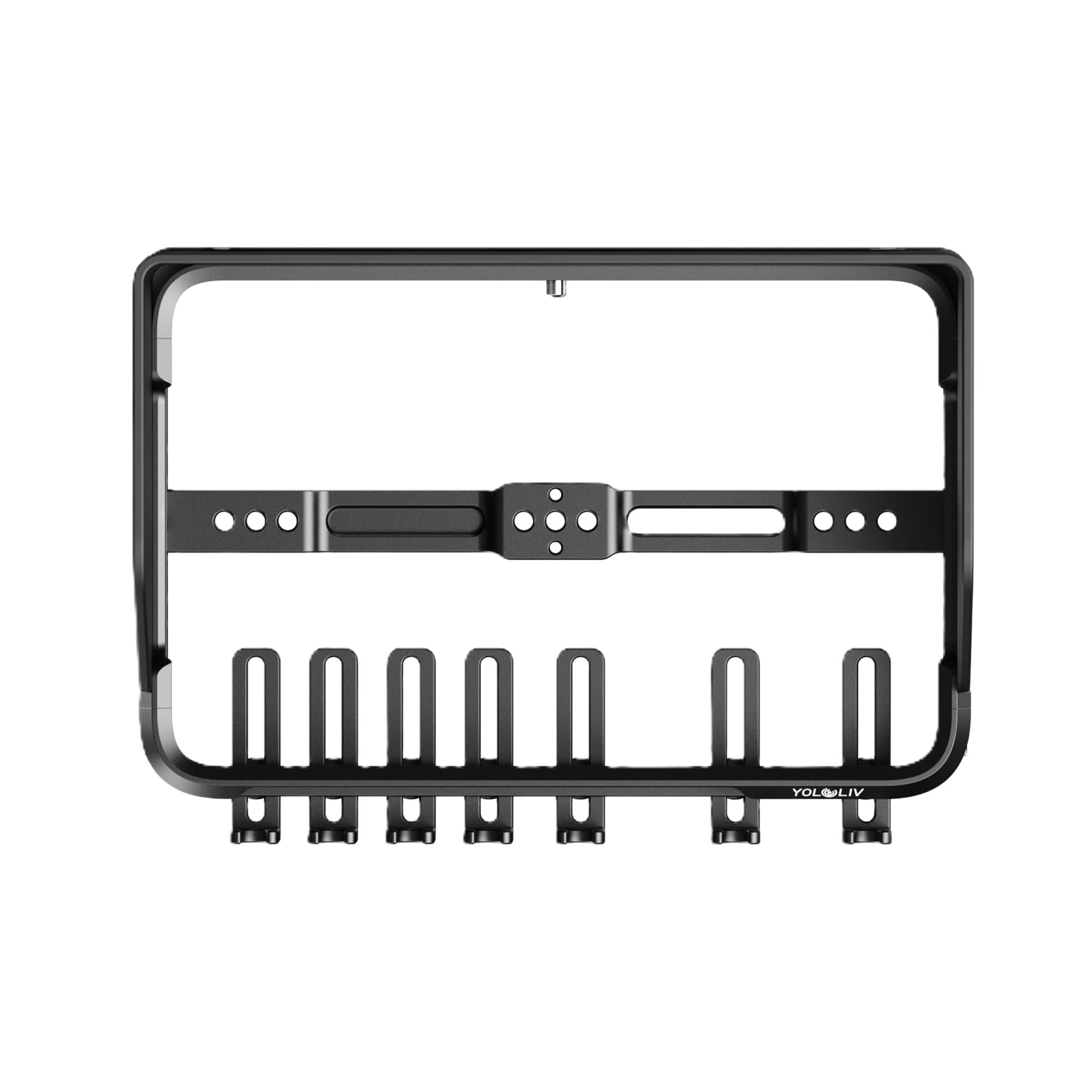

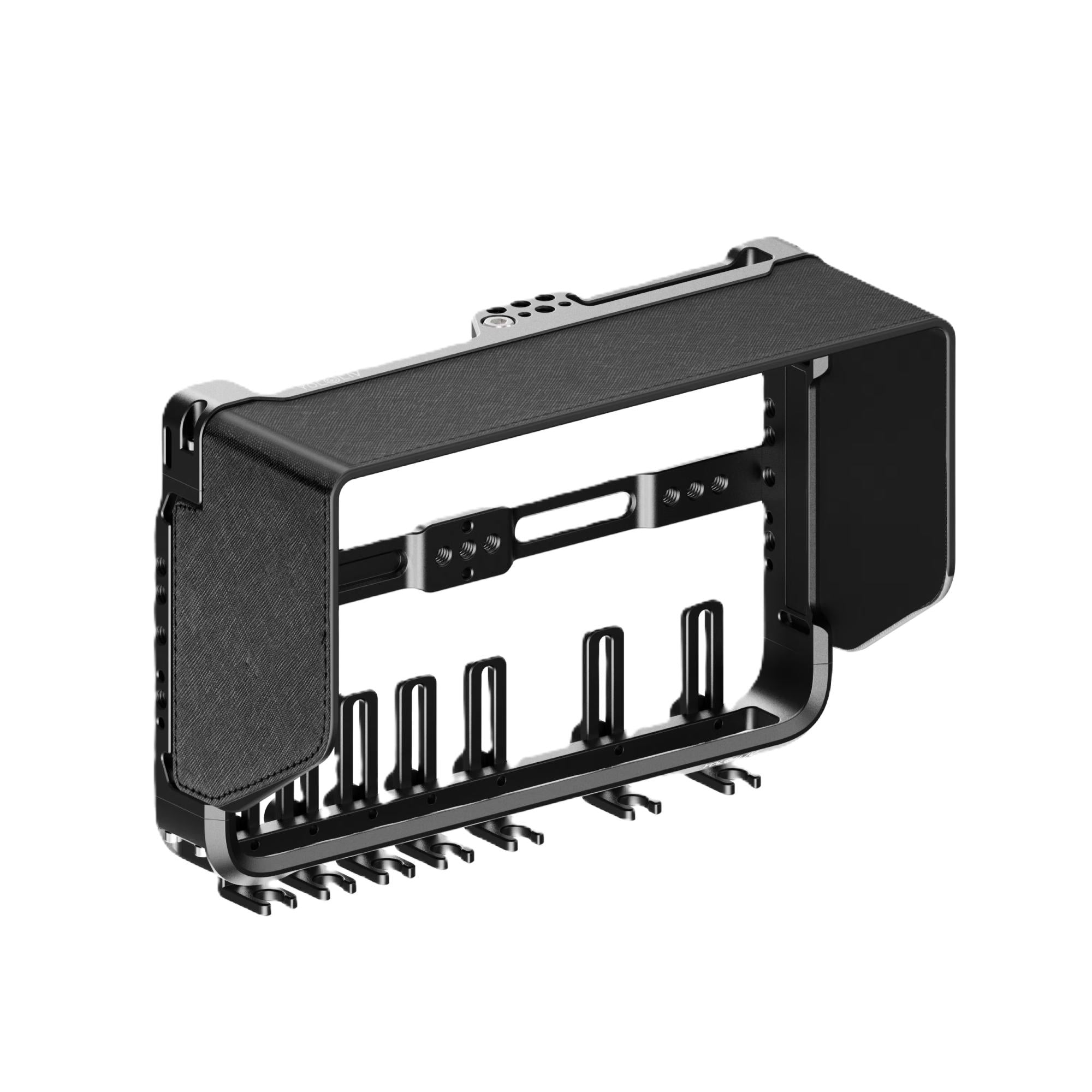

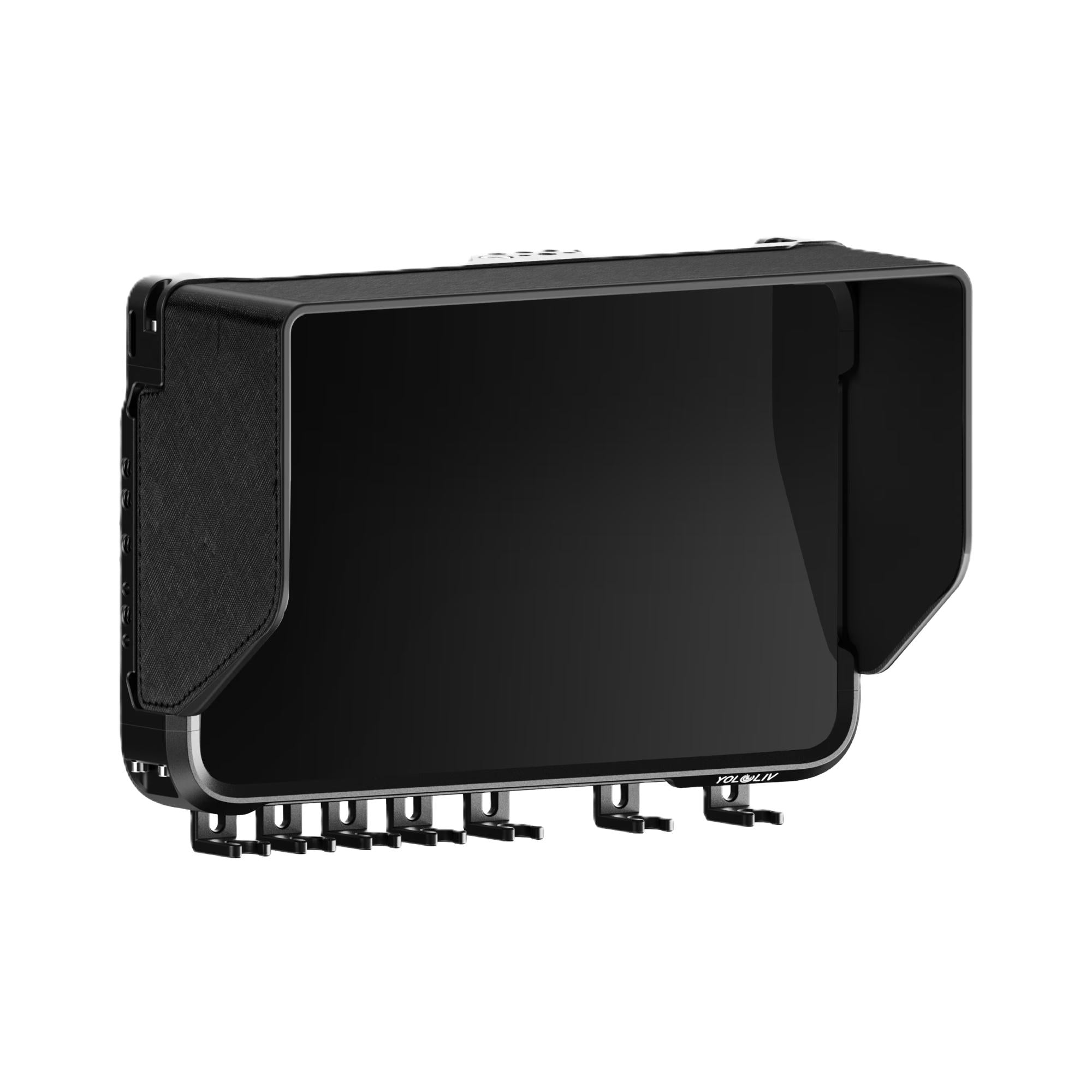

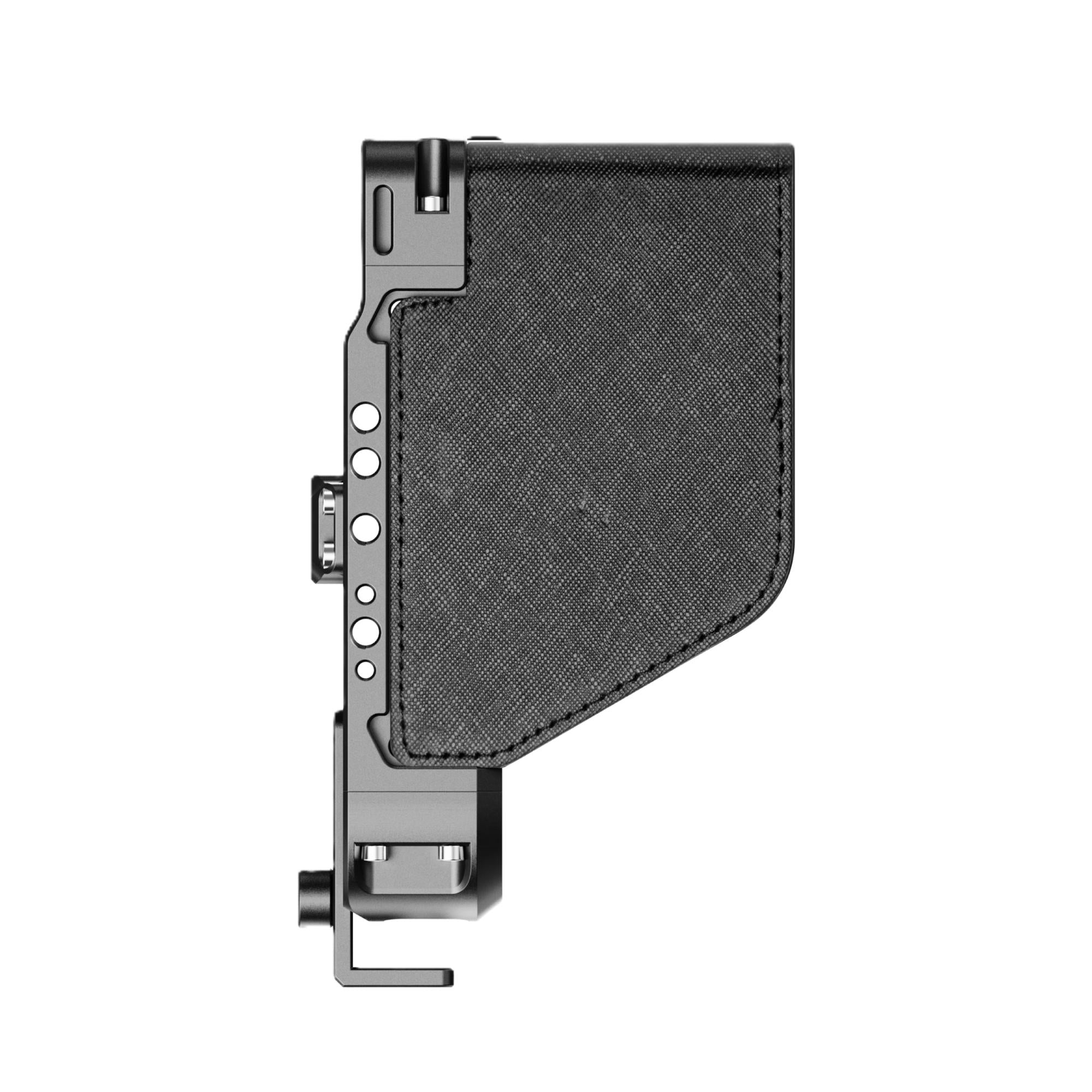

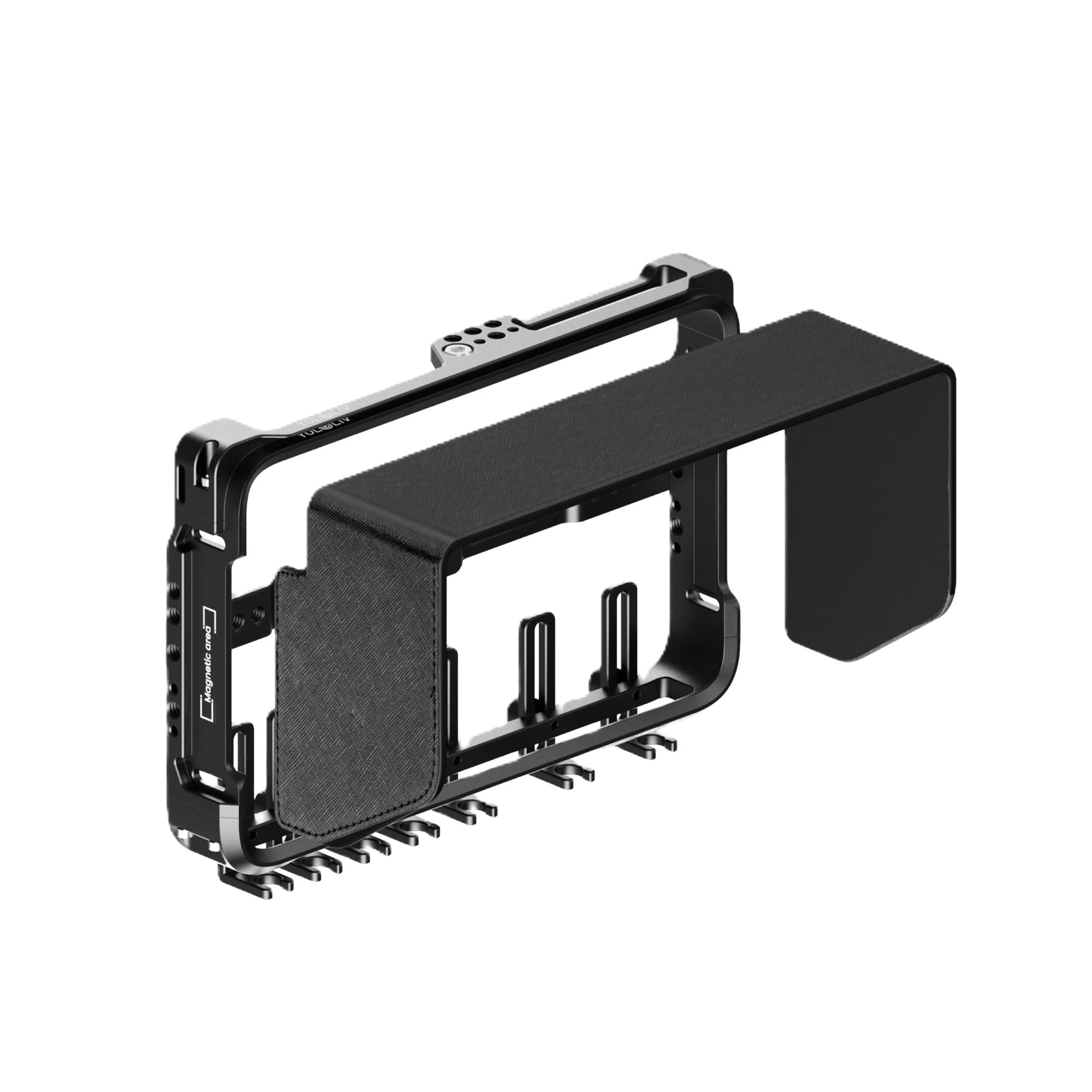

YoloLiv YoloBox Ultra Cage is a protective aluminum cage made specifically for the YoloBox Ultra. It adds a layer of physical protection around the unit while giving crews more places to mount accessories such as monitors, microphones, lights, and wireless transmitters.

The cage uses multiple 1/4"-20 threaded mounting points on the sides and rear, along with four ARRI-style locating holes. Seven adjustable cable clamps help keep connected cables from pulling loose, while the magnetic sunshade improves screen visibility when the YoloBox Ultra is being used outdoors.

Highlights

• Made for the YoloBox Ultra – custom-designed to protect the unit while keeping controls and connections accessible
• CNC-machined aluminum construction – keeps the cage durable without adding unnecessary bulk
• Multiple 1/4"-20 mounting points – provides room for common production accessories
• 4 ARRI-style locating holes – adds secure mounting options for compatible hardware
• 7 adjustable cable clamps – helps reduce strain on connected cables during production
• Magnetic sunshade – improves screen visibility for outdoor streaming and recording

Quick Specs & Uses

• Product type: Protective cage for YoloBox Ultra
• Compatibility: YoloLiv YoloBox Ultra
• Material: Aluminum
• Color: Black
• Mounting: Multiple 1/4"-20 threaded points; 4 x ARRI-style locating holes
• Cage mount hardware: Included 1/4"-20 male screw; included M3 male screw
• Cable management: 7 adjustable cable clamps
• Cable clamp adjustment: Up to 1.57 in
• Sunshade: Magnetic
• Desktop support: Tripod supports horizontal and vertical positioning
• Dimensions: 235 × 155 × 37 mm (9.3 × 6.1 × 1.5 in)
• Weight: 0.348 kg (0.767 lb) cage; 0.067 kg (0.148 lb) sunshade

Why It Helps

A YoloBox Ultra often ends up at the center of a compact live-production rig, which means more accessories and more cables start gathering around it quickly. The cage gives those accessories a proper mounting structure instead of leaving the operator to improvise around the body of the unit.

The cable clamps are especially useful once HDMI, audio, power, or other connections are in place. By giving the cables additional support, the cage helps reduce strain at the connectors and lowers the chance of a cable being pulled loose when the rig is moved or adjusted.

For outdoor work, the magnetic sunshade adds another practical benefit by cutting down screen glare. The included desktop tripod also gives the YoloBox Ultra a stable way to sit in either horizontal or vertical orientation when the setup is being used on a desk, table, or production station.

System Characteristics

• Protective aluminum frame keeps the YoloBox Ultra better covered during transport and production use
• Accessory mounting points provide space for monitors, microphones, lights, and wireless transmitters
• ARRI-style locating holes help keep compatible accessories from twisting after mounting
• Adjustable cable clamps improve cable management and reduce connector strain
• Magnetic sunshade makes the screen easier to view in brighter environments
• Horizontal and vertical desktop positioning gives crews more flexibility when building a compact production station

What's In The Box

• 1 x YoloLiv YoloBox Ultra Cage
• 4 x M3 × 10 Screws
• 4 x M3 × 8 Screws
• 2 x 1/4"-20 Screws
• 1 x 2.5 mm Allen Wrench
• 1 x 4 mm Allen Wrench
