YoloLiv YoloBox Ultra And YoloDeck Bundle

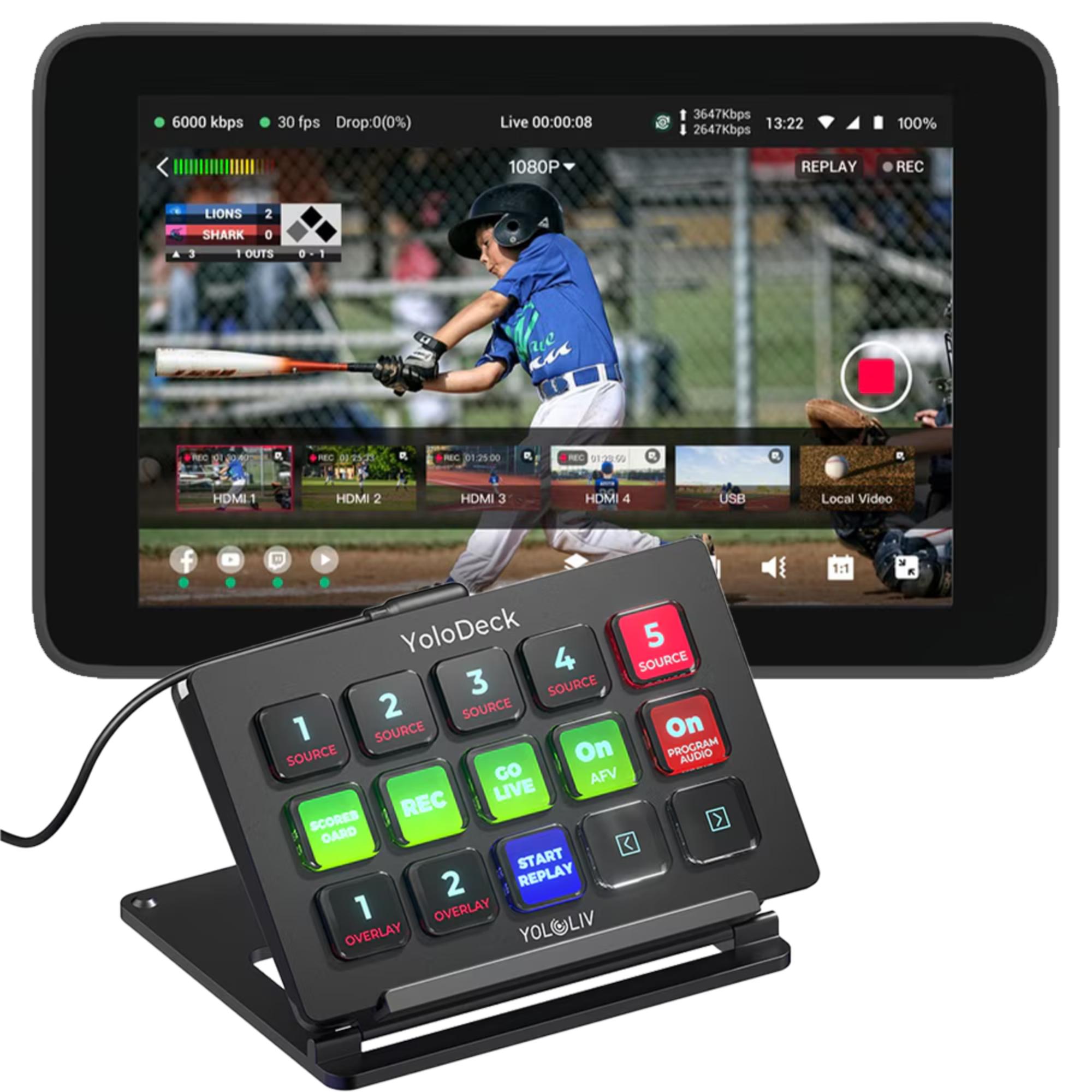

YoloLiv YoloBox Ultra And YoloDeck Bundle combines the YoloBox Ultra live production system with the YoloDeck hardware controller in one portable setup. The YoloBox Ultra handles switching, streaming, recording, monitoring, graphics, and audio, while the YoloDeck puts 15 customizable LCD macro keys beside the operator for faster hands-on control.

The bundle is aimed at productions that want to work without a separate computer. Four HDMI inputs, USB video inputs, Ethernet, Wi-Fi 6, 4G support, 4K streaming, and 4K ISO recording cover the video side, while the YoloDeck can be programmed for switching cameras, triggering graphics, starting replay, adjusting audio, updating scoreboards, recording, or controlling the stream.

Highlights

• YoloBox Ultra and YoloDeck bundle – combines live production hardware with a dedicated 15-key control surface
• 4 HDMI inputs – supports multi-camera production from several local video sources
• 4K live streaming and ISO recording – handles high-resolution delivery and individual input recording
• 15 customizable LCD macro keys – gives the operator direct access to frequently used production commands
• Horizontal and vertical streaming – supports conventional and mobile-first output formats
• No-computer workflow – keeps switching, streaming, recording, and control inside the YoloBox system

Quick Specs & Uses

• Product type: Portable live production and hardware control bundle
• YoloBox Ultra HDMI inputs: 4 x HDMI video inputs
• YoloBox Ultra HDMI output: 1 x HDMI output
• USB video inputs: 2 x USB Type-A 3.0
• USB-C: Charging port and fully functional USB-C input
• Ethernet: 10/100/1000M, half/full duplex with autodetect
• Wi-Fi: 2.4G / 5G, Wi-Fi 6 support
• 4G network: Nano-SIM cellular connectivity
• SD card: Used for recording and loading graphics
• Analog audio inputs: 3.5 mm line input and 3.5 mm microphone input
• Analog audio output: 3.5 mm headphone output
• Digital audio inputs: USB, HDMI, RTMP, local video from SD card
• Digital audio outputs: Embedded HDMI audio and USB audio
• Live broadcast input resolution: 480p / 720p / 1080p up to 60 fps; 4K at 30 fps
• Live broadcast output resolution: 480p / 720p / 1080p up to 60 fps; 4K at 30 fps
• Video encoding: H.264, H.265
• Video bitrate control: CQ, VBR, CBR
• Streaming protocols: RTMP, RTMPS, MJPEG, SRT
• Record format: MP4
• Monitor: 8" LCD, 1200 × 1920, 650 nits, 1500:1 contrast ratio
• Battery capacity: 6800 mAh
• YoloBox Ultra input power: DC 5V / 9V / 12V / 15V
• YoloBox Ultra power consumption: 45 W
• YoloBox Ultra dimensions: 219 × 140 × 27.1 mm (8.62 × 5.51 × 1.07 in)
• YoloBox Ultra weight: 0.981 kg (2.163 lb)
• YoloDeck hardware keys: 15 customizable LCD macro keys
• YoloDeck interface: USB-C
• YoloDeck input voltage: 5 V
• YoloDeck working power consumption: 3 W
• YoloDeck standby power consumption: 0.75 W
• YoloDeck screen luminance: 800
• YoloDeck screen contrast ratio: 450
• YoloDeck key icon resolution: 126 × 126
• YoloDeck dimensions: 132 × 91 × 20 mm (5.20 × 3.58 × 0.79 in)
• YoloDeck weight: 0.188 kg (0.414 lb)

Why It Helps

The YoloBox Ultra already puts switching, monitoring, streaming, recording, graphics, audio mixing, replay, and scoreboard tools into one portable unit. Adding the YoloDeck means the operator does not have to reach for the touchscreen every time a common command needs to fire during a show.

The 15 LCD keys can be arranged around the way the production actually runs. A sports setup can keep replay and scoreboard controls close by, while a podcast or event stream can dedicate keys to camera changes, lower thirds, audio, graphics, and recording.

The bundle also works well when the production needs to stay mobile. With built-in battery power, Ethernet, Wi-Fi, 4G connectivity, and support for both horizontal and vertical streaming, the system can move between studios, event spaces, schools, churches, and field locations without turning into a full computer-based control station.

System Characteristics

• All-in-one live production combines switching, encoding, monitoring, recording, graphics, and audio in the YoloBox Ultra
• Four HDMI inputs give crews room for multi-camera production without a separate switcher
• 4K streaming and ISO recording support higher-resolution delivery and isolated source recording
• Fifteen LCD macro keys give the operator tactile control over commonly used live-production actions
• Multiple network options provide Ethernet, Wi-Fi 6, and 4G connectivity for different production environments
• Computer-free operation keeps the switching and control workflow inside the YoloBox Ultra and YoloDeck combination

What's In The Box

• 1 x YoloBox Ultra
• 2 x USB Charging Cables
• 1 x Hotshoe Mount
• 1 x User Manual for YoloBox Ultra
• 1 x SIM Card Eject Pin
• 1 x YoloDeck
• 1 x USB-C Cable
• 1 x User Manual for YoloDeck
• 1 x Adjustable Stand
