YoloLiv YoloBox Pro And YoloDeck Bundle

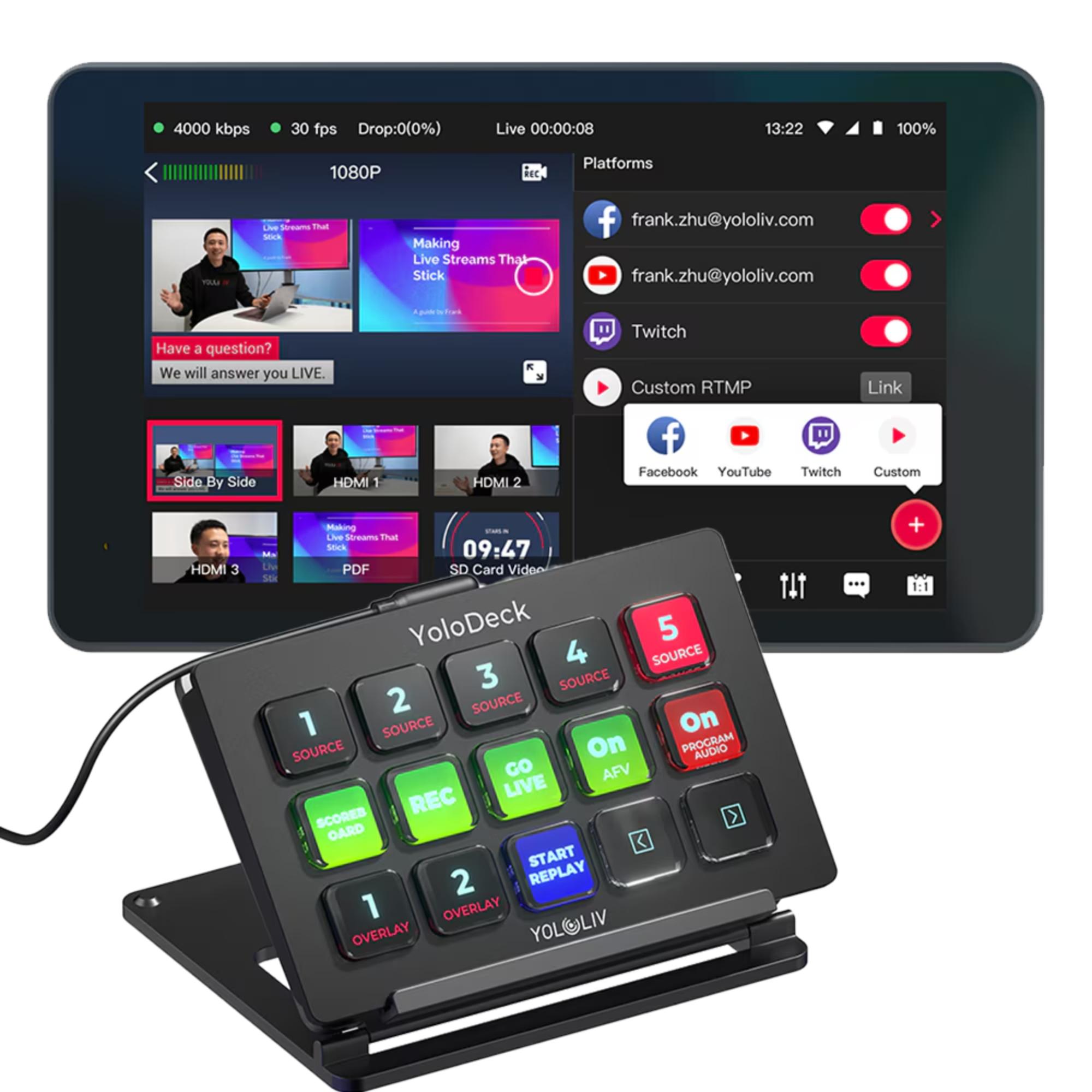

YoloLiv YoloBox Pro And YoloDeck Bundle combines the YoloBox Pro all-in-one live production system with the YoloDeck hardware controller. The YoloBox Pro handles switching, encoding, recording, monitoring, graphics, audio mixing, and streaming, while the YoloDeck puts 15 customizable LCD macro keys beside the operator for quicker control during a live show.

The bundle is built for creators, churches, schools, sports productions, corporate events, and other mobile or remote workflows that want to work without a separate computer. YoloBox Pro supports HDMI and USB video sources, RTMP(S) streaming, Ethernet, Wi-Fi, 4G connectivity, SD card recording, and built-in battery operation, while YoloDeck gives direct access to the production commands used most often.

Highlights

• YoloBox Pro and YoloDeck bundle – combines an all-in-one live production system with a dedicated control surface
• 15 customizable LCD macro keys – gives operators direct access to frequently used production commands
• All-in-one production workflow – handles switching, encoding, recording, monitoring, audio mixing, and streaming
• Graphics and replay control – supports overlays, lower thirds, scoreboards, split layouts, and instant replay
• Portable network options – supports Wi-Fi, Ethernet, and 4G connectivity
• No-computer workflow – keeps production and control inside the YoloBox Pro and YoloDeck system

Quick Specs & Uses

• Product type: Portable live production and hardware control bundle
• HDMI input: 1 x HDMI video input
• USB video input: 1 x USB video input
• HDMI output: 1 x HDMI output
• Ethernet: Wired network connection via Ethernet cable
• Audio input: 3.5 mm audio input for lavalier microphone or mixer
• Line input: 3.5 mm stereo input
• Microphone input: 3.5 mm mono microphone input
• Audio output: 3.5 mm headphone monitoring output
• USB-C 3.0: Fully functional input/output interface
• USB-C power: Dedicated power connector
• SIM card: Nano-SIM slot for mobile network connection
• SD card: Local recording and graphics storage
• Video encoding: H.264
• Audio encoding: AAC, 44.1 kHz
• Recorded format: MP4
• Video input formats: 1080i, 720p, 1080p
• Live broadcast resolution: 540p, 720p, 1080p
• Streaming protocol: RTMP(S)
• Wi-Fi: 2.4G / 5G
• 4G network: Supported through Nano-SIM
• Storage card capacity: Up to 128 GB
• Supported SD formats: FAT32, exFAT, NTFS
• Battery capacity: 10,000 mAh
• Power interface: USB Type-C, Quick Charge 3.0
• Operating temperature: -10 to 40°C
• Storage temperature: 5 to 40°C
• YoloDeck hardware keys: 15 customizable LCD macro keys
• YoloDeck interface: USB-C
• YoloDeck input voltage: 5 V
• YoloDeck working power consumption: 3 W
• YoloDeck standby power consumption: 0.75 W
• YoloDeck screen luminance: 800
• YoloDeck screen contrast ratio: 450
• YoloDeck key icon resolution: 126 × 126
• YoloDeck startup logo resolution: 800 × 480
• YoloDeck dimensions: 132 × 91 × 20 mm (5.20 × 3.58 × 0.79 in)
• YoloDeck weight: 0.188 kg (0.414 lb)

Why It Helps

The YoloBox Pro already brings several production jobs into one portable device, so the operator does not need separate hardware for switching, encoding, monitoring, recording, and streaming. Adding the YoloDeck makes the system quicker to drive because common commands can be placed on dedicated physical keys.

The 15 LCD buttons can be arranged around the way a particular show actually runs. A sports production can dedicate keys to replay and scoreboards, while a church, corporate event, or podcast can keep camera switching, graphics, lower thirds, audio, and recording controls within immediate reach.

The bundle also makes sense for mobile work. With Wi-Fi, Ethernet, 4G support, SD card recording, and built-in battery power on the YoloBox Pro, the system can move between studios, schools, venues, houses of worship, and remote productions without depending on a separate computer control station.

System Characteristics

• All-in-one live production combines switching, encoding, monitoring, recording, audio, graphics, and streaming in one system
• Fifteen LCD macro keys give the operator tactile access to production commands during a live show
• RTMP(S) streaming supports direct delivery to common live platforms and other compatible destinations
• Wi-Fi, Ethernet, and 4G connectivity give crews several ways to get the production online
• SD card recording keeps local recording and stored assets inside the portable production workflow
• Computer-free operation keeps switching and hardware control centered on the YoloBox Pro and YoloDeck combination

What's In The Box

• 1 x YoloBox Pro
• 1 x Screen Protector
• 1 x Quick Start Guide
• 1 x Instruction Booklet
• 1 x Hot Shoe Mount
• 1 x Pocket Wrench
• 1 x SIM Card Ejector
• 1 x USB-C Charging Cable
• 1 x USB-C Cable
• 1 x YoloDeck
• 1 x USB-C Cable for YoloDeck
• 1 x User Manual for YoloDeck
• 1 x Adjustable Stand
