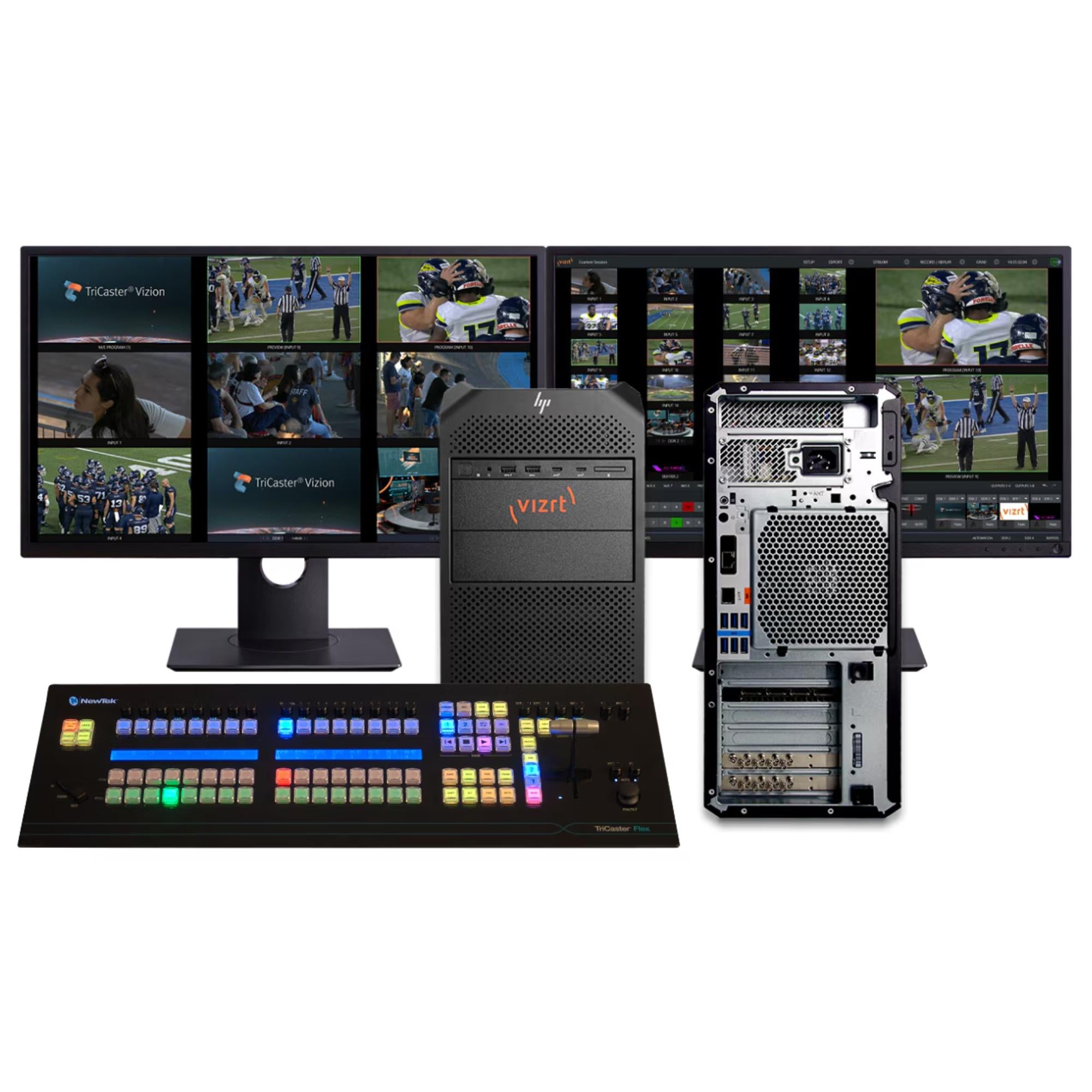

Vizrt Vizion Tower with 16 SDI I/O Flex Bundle

Vizrt Vizion Tower with 16 SDI I/O Flex Bundle is a high-capacity live-production system built for broadcasters, sports networks, media publishers, educational facilities, and live-event teams working across SDI and IP environments. It supports up to 44 simultaneous external video inputs, including resolution-independent NDI sources and configurable 12G-SDI, 3G-SDI, and HD-SDI connections for formats up to UHD 2160p59.94.

The bundle combines the Vizion tower platform with the Flex Control Panel, giving operators direct access to video switching, audio mixing, PTZ control, graphics, playback, audio I/O, and talkback from one surface. The system also integrates M/E processing, keying, virtual sets, recording, streaming, monitoring, macros, and Viz Flowics graphics for demanding multi-camera productions.

Highlights

• 44 simultaneous video inputs support mixed NDI, UHD, HD, and SDI production sources
• 16 configurable SDI I/O ports provide flexible 12G-SDI, 3G-SDI, and HD-SDI signal assignment
• Flex Control Panel integration brings switching, audio, PTZ, graphics, playback, audio I/O, and talkback to one surface
• Eight configurable M/E buses support layered switching, compositing, keying, and production effects
• Integrated production toolset includes recording, streaming, media playback, virtual sets, monitoring, tally, Genlock, GPI, and MIDI

Quick Specs & Uses

• Product type: Tower-format hybrid SDI and IP live-production system with Flex Control Panel
• Primary workflows: Broadcast production, sports, live events, media publishing, education, streaming, recording, graphics, and remote contribution
• External video inputs: Up to 44 simultaneous compatible sources
• Network video inputs: Up to 44 resolution-independent NDI inputs with key-and-fill support
• SDI I/O configuration: Up to 16 configurable 12G-SDI, 3G-SDI, and HD-SDI connections
• 12G-SDI capacity: Up to 8 ports support 12G signals
• Supported SDI input formats: 2160p, 1080p, 1080i, and 720p
• Maximum listed input format: 2160p59.94
• Video mix outputs: Up to 8 independent HD outputs or 2 UHD outputs through IP and SDI
• Network video outputs: Up to 56 NDI outputs during HD sessions
• Configurable NDI mix outputs: Up to 8 outputs at up to 1080p59.94 or 2 UHD outputs at up to 2160p59.94
• Direct SDI-to-NDI outputs: Up to 16 IP source outputs translated from local SDI inputs
• Media-player NDI outputs: 4 with embedded alpha-channel support
• Media-buffer NDI outputs: 15 with embedded alpha-channel support
• Multiview NDI outputs: Up to 3, with 4K support on 2 outputs while the third remains HD
• Selectable IP outputs: 8 through the internal NDI matrix router
• SDI video outputs: Up to 8 independent 12G-SDI, 3G-SDI, or HD-SDI mix outputs
• Audio mixer: 44-channel integrated mixer with DSP and 4 x 8 x 8 routing
• Local audio input: Up to 16 channels of embedded SDI audio
• Local audio output: Up to 8 channels of embedded SDI audio
• Network audio: Native NDI audio input and output with embedded audio on NDI signals
• Dante support: Available through an Audinate Dante Virtual Soundcard license sold separately
• AES67 support: Available through compatible third-party virtual soundcard drivers sold separately
• Media players: 5
• DDRs: 4
• Sound player: 1
• Media buffers: 15
• Animation buffers: 10 with GIF support
• Graphics buffers: 5
• Input keyers: 44
• Media-player keyers: 4
• M/E keyers: 8
• PREVIZ keyer: 1
• Buffer keyers: 15
• COMPs: Integrated compositing with 16 configurable presets per M/E bus
• Virtual sets: More than 30 included LiveSet virtual sets and box effects
• DataLink: Real-time automated data from supported internal and external sources
• Macros: Record, store, edit, and automate commands and operator-defined sequences
• Recording: Up to 8 configurable M/E channels, up to 16 physical SDI inputs, 4 DDRs, and 3 streaming encoders
• Instant replay: Available on each input
• Total configurable inputs: 44
• Internal storage: 4TB SSD
• System drive: 500GB SSD
• External storage support: USB 3.2 Type-A, USB 3.2 Type-C, shared storage, and compatible third-party systems
• PTZ control: Up to 44 simultaneous cameras through RS232, RS422, and IP
• Conference-call integration: Supports compatible Microsoft Skype, Teams, Zoom, Slack, Discord, and Tencent workflows through Live Call Connect
• Still-image capture: Full-resolution deinterlaced grabs from external sources and outputs
• Export destinations: Social media, FTP, local or external volumes, and network servers with optional transcoding
• Supported video media: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
• Supported image media: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
• Supported audio media: AIFF, MP3, WAV, and more
• Multiview monitoring: Up to 4 displays with configurable workspaces and viewports through DisplayPort
• Signal monitoring: Integrated waveform and vectorscope with digital calibration and ITU-R Rec. 709 support
• Video processing: YCbCr plus Alpha using 4:2:2:4
• Audio processing: Floating-point 96kHz
• Processing latency: Approximately 10 to 15 frames
• Practical throughput latency: 4 frames
• SDI standards: SMPTE ST 2082, SMPTE ST 424M Level A, and SMPTE 292M
• Tally: Network tally through NDI and Blackmagic Design SDI tally
• Genlock: SD bi-level or HD tri-level reference through the I/O board
• GPI: JLCooper Electronics eBox interface support
• MIDI: Standard MIDI support for compatible third-party control devices
• Network interfaces: 1 x 10GbE and 1 x 1GbE
• Tower dimensions: 17.5 x 15.2 x 6.65 in / 44.5 x 38.6 x 16.89 cm
• Tower weight: 27.8 lb / 12.6 kg
• Tower power supply: 1125W PSU
• Viz Flowics plan: Basic Plan for 4 users
• Viz Flowics asset storage: 5GB
• Viz Flowics outputs: 1
• Viz Flowics teams: 1
• Viz Flowics creation tools: Graphics Editor, timeline-based animations, text crawler, asset library, custom fonts, and 140 ready-to-use graphics
• Viz Flowics data integrations: Google Sheets, RSS/Atom, JSON REST, JSON WebSocket, and Data Bridge
• Viz Flowics security: Multi-factor authentication
• Viz Flowics control: Control API
• Viz Flowics support: 24/7 live chat and knowledge-base support
• Viewer engagement: X, formerly Twitter, and Instagram search
• Graphics rendering: Viz Flowics runs in the cloud and is rendered locally through TriCaster Live Link

Why It Helps

Vizion Tower combines the main functions of a live control room within one production platform. Switching, audio, graphics, playback, compositing, virtual sets, recording, streaming, monitoring, and PTZ control are handled within the same system, reducing the number of separate devices engineering teams need to deploy and maintain.

The 16 configurable SDI ports provide additional flexibility for productions with a larger baseband footprint. Cameras, feeds, returns, and outputs can be reassigned as requirements change, while NDI extends the available source and destination count across the network. The Flex Control Panel keeps the key operational functions within reach during fast-paced live shows.

System Characteristics

• Hybrid SDI and NDI architecture supports dense baseband connectivity, network sources, media players, graphics, and remote inputs in one workflow
• Integrated Flex control surface provides direct access to switching, audio, PTZ, graphics, playback, audio I/O, and talkback
• Multi-layer production engine combines eight M/E buses, LiveMatte keying, COMPs, virtual sets, media players, and graphics buffers
• Built-in recording and distribution supports ISO recording, streaming encoders, replay, export, and social-media delivery
• Viz Flowics graphics integration adds cloud-based graphics creation, data connectors, animation tools, asset storage, and collaborative access

What’s In The Box

• 1 x Vizrt Vizion Tower with 16 SDI I/O Flex Bundle
