Vizrt Viz Connect Tetra

Vizrt Viz Connect Tetra is an ultra-compact live-production workstation designed for four-channel 4K and HD video connectivity in studios, remote productions, mobile systems, and distributed broadcast environments. It combines 12G-SDI, 3G-SDI, NDI® High Bandwidth, NDI|HX, SRT, RTMP, RTSP, and Viz Flowics HTML5 support within a small desktop chassis.

Each I/O channel can be configured independently, allowing engineers to convert between SDI and NDI, bring HTML5 graphics into IP or baseband workflows, record SDI feeds, and play back supported media. Built-in NDI Bridge integration also extends the system beyond the local network, supporting remote contribution and production over public internet connections without requiring separate bridge hardware.

Highlights

• Four configurable I/O channels support independent 12G-SDI, 3G-SDI, NDI, and graphics workflows
• Integrated Viz Flowics HTML5 support converts browser-based graphics for NDI or SDI output
• Built-in NDI Bridge integration connects remote and cloud-based production locations
• 16 × 16 audio-routing matrix allows channel-level repatching during production
• Compact desktop form factor delivers 4K conversion, recording, playback, and monitoring without a full rack chassis

Quick Specs & Uses

• Product type: Ultra-compact four-channel IP and SDI production workstation
• Primary workflows: SDI-to-NDI conversion, NDI-to-SDI conversion, remote production, HTML5 graphics integration, recording, playback, and signal monitoring
• Video inputs: NDI High Bandwidth, NDI|HX, Viz Flowics HTML5, SRT, SDI, RTMP, and RTSP
• Video outputs: NDI High Bandwidth and SDI
• IP I/O channels: Up to 4 configurable input or output channels
• SDI connectivity: 4 x 3G/12G-SDI HD-BNC connections
• SDI channel modes: Independent I/O or up to 2 key-and-fill pairs
• Viz Flowics sources: Up to 4 HTML5 sources
• Flowics output options: NDI with key and fill, 2 x SDI key-and-fill pairs, or 4 x SDI fill-only outputs
• NDI Bridge: Integrated support for joining NDI Bridge hosts over public internet
• NDI High Bandwidth: Up to 4 channels in 4K UHD or HD
• NDI|HX: Up to 4 HD channels using H.264 or HEVC
• Single-channel NDI|HX: 4K UHD through H.264 or HEVC
• Media playback: Up to 4 channels
• Recording: Up to 4 SDI channels in .mov containers
• Supported resolutions: 2160p, 1080p, 1080PsF, 1080i, 720p, 576i, and 480i
• Maximum listed UHD format: 2160p59.94
• Supported video media: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, M1PEG, MPEG, MP4, WMV, WebM, and more
• Supported image media: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
• Supported audio media: AIFF, MP3, WAV, and more
• Audio I/O: Up to 4 embedded SDI channels, USB audio devices, and embedded IP audio
• Audio routing: Up to 16 audio channels per I/O channel through a 16 × 16 matrix
• Network audio: Native NDI input and output
• Additional audio support: Dante and ASIO through compatible third-party drivers
• Timecode: LTC and VITC
• Signal monitoring: Integrated waveform and vectorscope with digital calibration and ITU-R Rec. 709 support
• SDI standards: SMPTE ST 2082-10, ST 2081-10, ST 425-1, ST 292, and ST 259
• Genlock: SD bi-level, HD tri-level, or supported network NDI reference
• Display connections: 3 x DisplayPort 1.2, with one used for the GUI

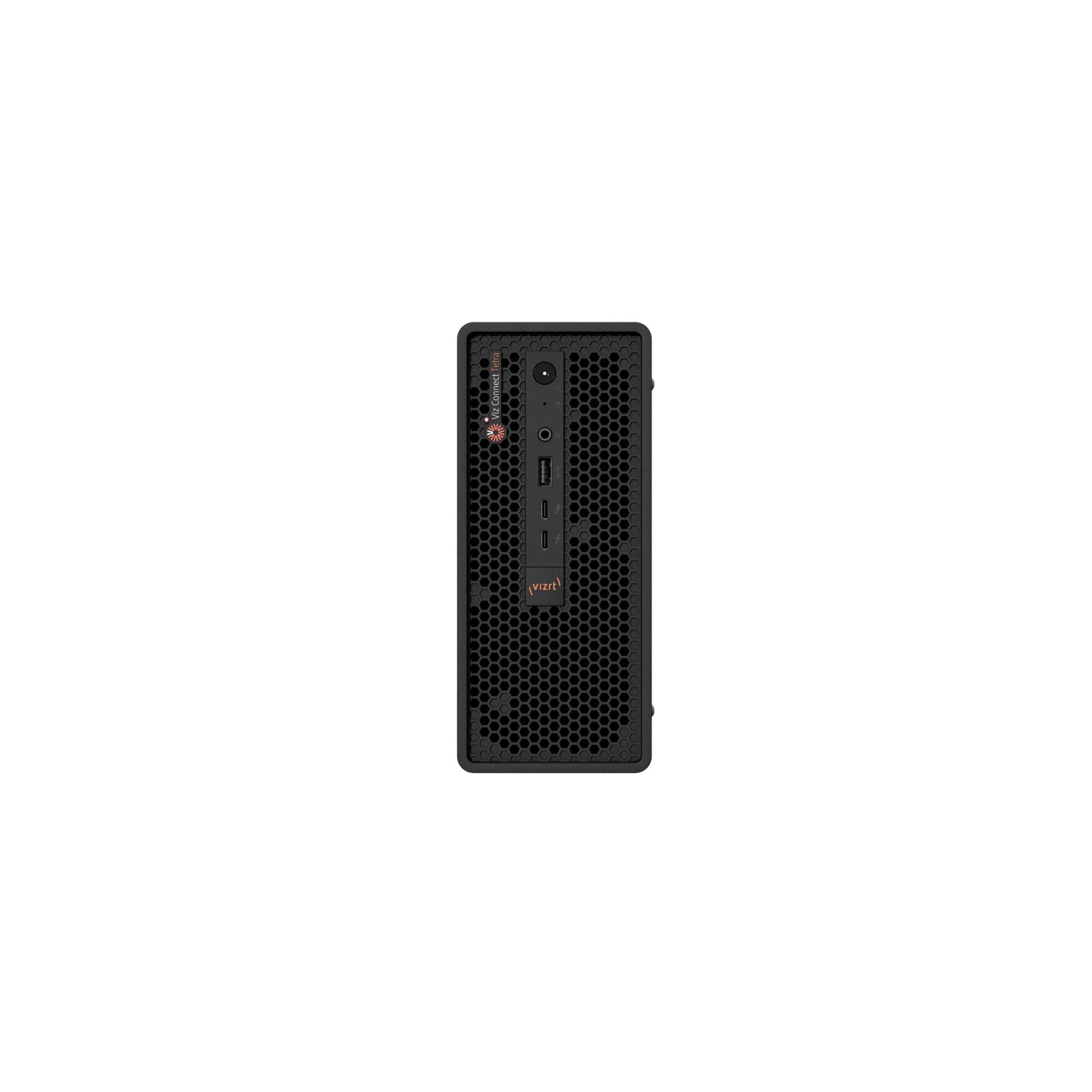

• Front connectivity: 1 x USB-A 3.2 Gen 2 and 2 x Thunderbolt 4 / USB-C

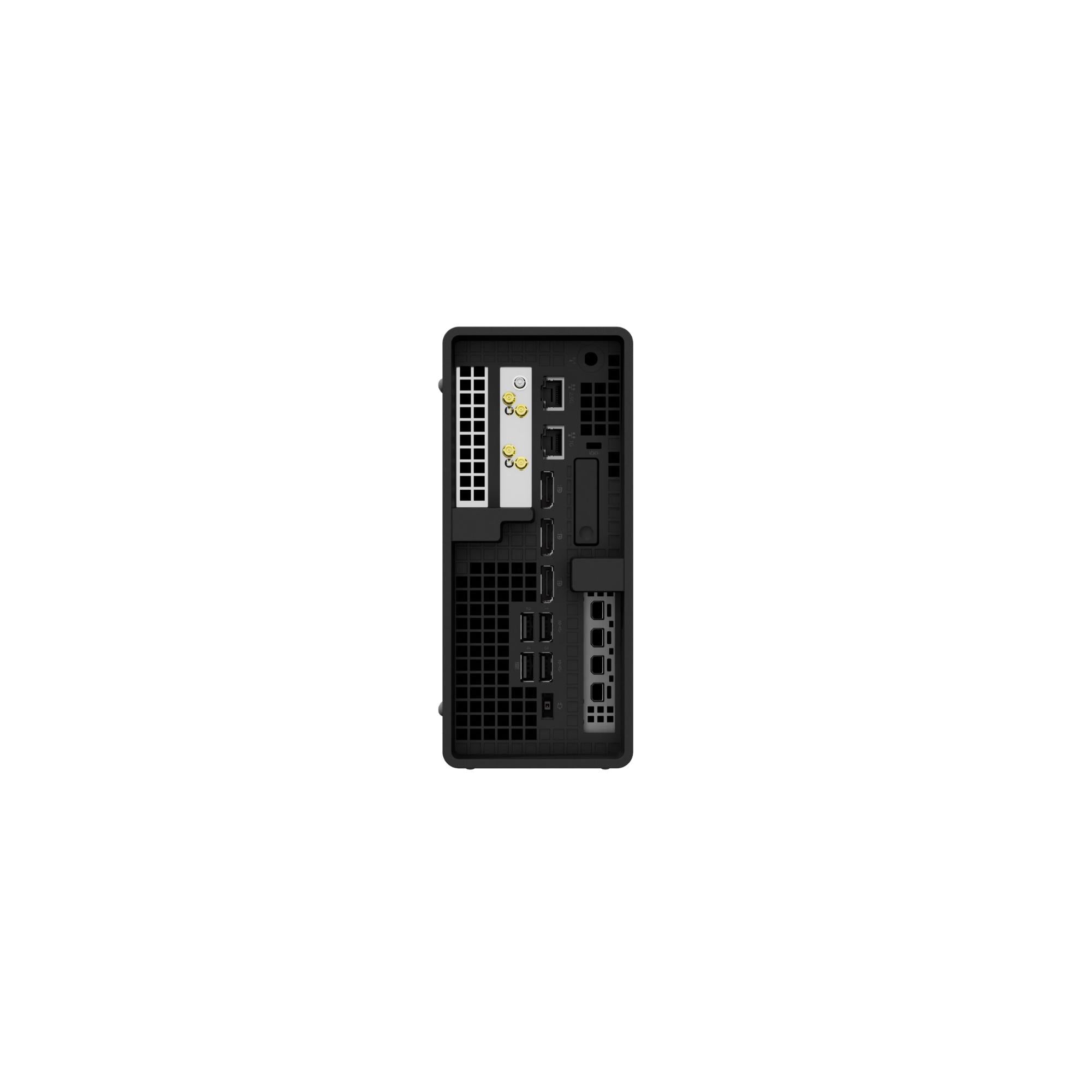

• Rear connectivity: 4 x USB-A 3.2 Gen 2
• Networking: 1 x 2.5GbE RJ45 and 1 x 1GbE RJ45
• Vertical dimensions: 7.9 x 3.4 x 8.7 in / 20.2 x 8.7 x 22.3 cm
• Horizontal dimensions: 3.4 x 7.9 x 8.7 in / 8.7 x 20.2 x 22.3 cm
• Weight: 1.8 kg / 3.96 lb
• Rack installation: Optional rack kit supports up to two units

Why It Helps

Viz Connect Tetra gives broadcast engineers a compact way to connect IP video, SDI equipment, HTML5 graphics, audio, recording, and playback without building a larger rack-based conversion system. Because each channel can be assigned independently, one unit can handle several different signal paths at the same time, including camera feeds, graphics outputs, monitoring returns, and remote-production sources.

The integrated NDI Bridge workflow is particularly useful for productions spread across several locations. Tetra can send or receive NDI over remote networks while still providing local SDI connectivity, allowing existing baseband equipment to remain part of the production chain. Its 16 × 16 audio matrix also gives operators more freedom to repatch embedded audio, commentary, translation, or program feeds without physically changing cabling.

System Characteristics

• Independent four-channel architecture allows each I/O path to use its own source, destination, and conversion workflow
• Hybrid baseband and IP design connects 12G-SDI and 3G-SDI equipment with NDI, NDI|HX, SRT, RTMP, and RTSP sources
• Integrated HTML5 graphics conversion brings Viz Flowics content into NDI or SDI production systems
• Flexible audio infrastructure combines embedded SDI, NDI, USB audio, Dante, ASIO, and 16 × 16 routing
• Desktop and rack-ready deployment supports standalone operation or installation of up to two units with an optional rack kit

What’s In The Box

• 1 x Vizrt Viz Connect Tetra
