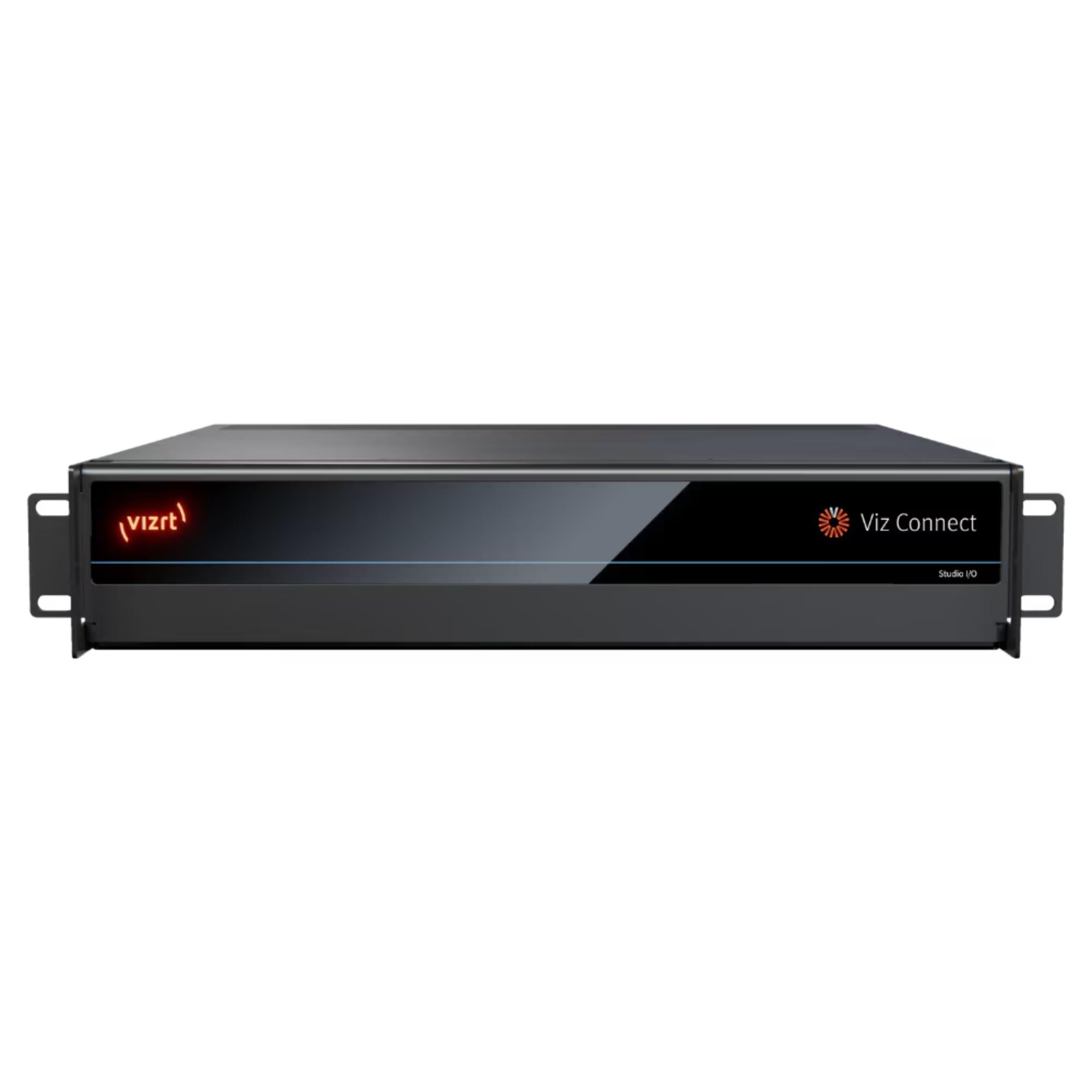

Vizrt Viz Connect Studio I/O

Vizrt Viz Connect Studio I/O is a configurable 2RU broadcast interface designed to connect IP video, SDI infrastructure, audio, recording, playback, and signal monitoring within one system. It accepts NDI, SRT, SDI, RTMP, and RTSP sources, making it practical for facilities that need to move content between baseband and network-based production environments.

The system supports up to eight IP channels and eight SDI I/O channels, including up to two UHD channels through 12G-SDI, 6G-SDI, or quad-link 3G-SDI. Each channel can be configured independently for source, resolution, frame rate, audio, processing, and color, giving broadcast engineers more control when building mixed-format studio workflows.

Highlights

• Up to 8 IP and 8 SDI I/O channels for flexible studio signal management
• UHD 4K SDI support through 12G-SDI, 6G-SDI, or quad-link 3G-SDI
• Independent per-channel configuration for video, audio, format, frame rate, and color
• 10 Gigabit Ethernet connectivity for high-bandwidth NDI and IP production
• Integrated monitoring and remote control with waveform, vectorscope, multiview, NDI KVM, and browser access

Quick Specs & Uses

• Product type: 2RU IP and SDI studio interface
• Primary workflows: Broadcast studios, NDI production, SDI/IP conversion, signal routing, recording, monitoring, and media playback
• Video inputs: NDI, SRT, SDI, RTMP, and RTSP
• Video outputs: NDI and SDI
• IP I/O: Up to 8 channels
• SDI I/O: Up to 8 channels through HD-BNC
• UHD SDI I/O: Up to 2 channels through 12G-SDI, 6G-SDI, or quad-link 3G-SDI
• Media playback: Up to 8 channels
• Recording: Up to 8 SDI input channels
• Supported video formats: 2160p, 1080p, 1080PsF, 1080i, 720p, 576i, and 480i
• Maximum listed UHD frame rate: 2160p59.94
• Supported video media: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
• Supported image media: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
• Supported audio media: AIFF, MP3, WAV, and more
• Audio I/O: Up to 8 channels of embedded SDI audio
• Network audio: Native NDI audio input and output
• Audio protocols: Dante, AES67, and ASIO through compatible drivers
• Timecode: LTC and VITC
• Signal monitoring: Integrated waveform and vectorscope with ITU-R Rec. 709 support
• Video processing: YCbCr plus Alpha using 4:2:2:4
• Audio processing: 96kHz floating point
• Genlock: SD bi-level, HD tri-level, or network NDI reference
• Multiviewer output: HDMI or DisplayPort
• Remote control: NDI KVM and browser-based access
• Mobile access: Browser control from iOS and Android devices

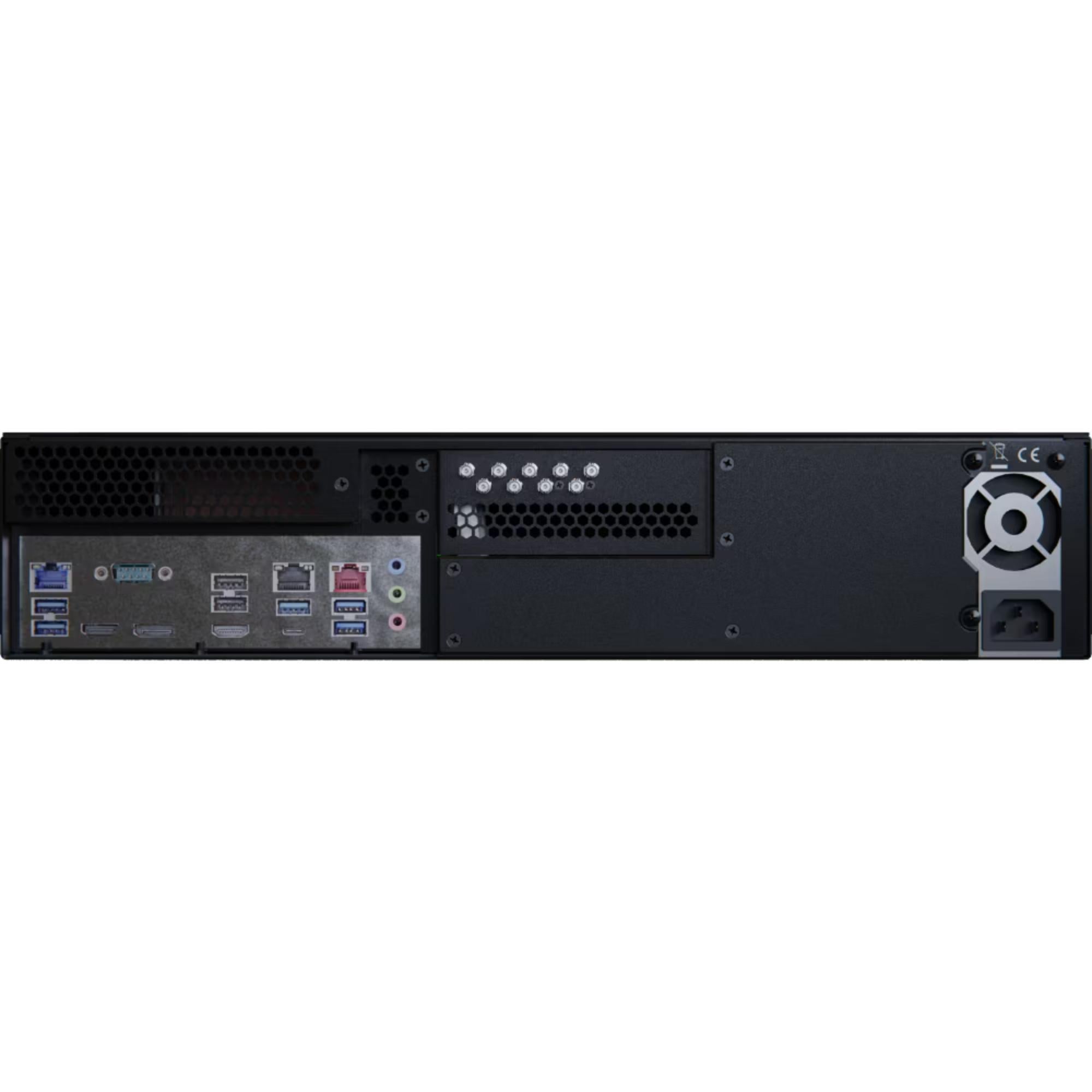

• Network interfaces: 1 x 10GbE, 1 x 2.5GbE, and 1 x 1GbE
• SDI standards: SMPTE ST 2082-10, ST 2081-10, ST 425-1, ST 425-5, ST 292, and ST 259
• Dimensions: 19 x 3.5 x 19.57 in / 48.3 x 8.9 x 49.7 cm with rack ears
• Power supply: 500W PSU
• Rack rails: Sold separately

Why It Helps

Viz Connect Studio I/O gives broadcast engineers a practical bridge between existing SDI systems and modern IP production. A single unit can receive network or baseband sources, process each channel independently, and deliver signals as NDI or SDI without forcing the entire workflow to use one resolution, frame rate, or audio configuration.

Remote access also makes the system easier to manage in machine rooms and distributed facilities. NDI KVM provides direct interface control from a compatible networked device, while the browser-based control page allows operators to monitor signals and adjust the unit from a desktop, touchscreen, iOS device, or Android device.

System Characteristics

• Hybrid IP and SDI architecture supports NDI, SRT, RTMP, RTSP, and professional SDI standards
• Independent channel processing allows separate source, format, frame-rate, audio, and color settings
• Integrated color correction supports brightness, contrast, hue, saturation, white balance, and automatic channel matching
• Professional monitoring and synchronization include waveform, vectorscope, multiview, timecode, and Genlock
• High-speed network design combines 10GbE, 2.5GbE, and 1GbE connections for studio IP workflows

What’s In The Box

• 1 x Vizrt Viz Connect Studio I/O
