Product Highlights
- Professional UHD 4K Video Mixing System
- 44 Simultaneous NDI Video Inputs
- 16 Configurable 12G-SDI I/O Ports
- Up to 56 NDI Outputs for HD Workflows
- Integrated Audio Mixer with Balanced Stereo I/O
- 4TB Internal SSD
){kind=link}

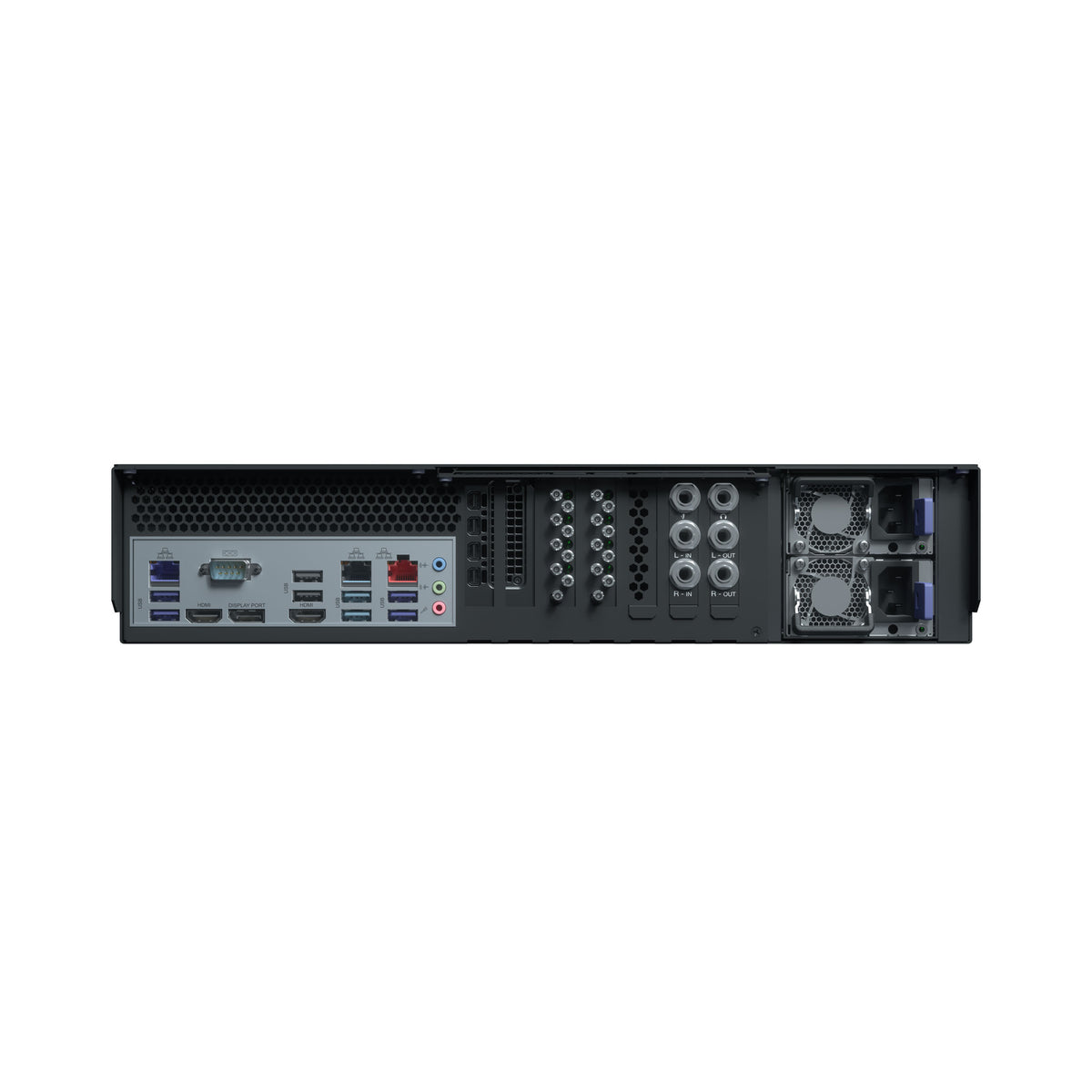

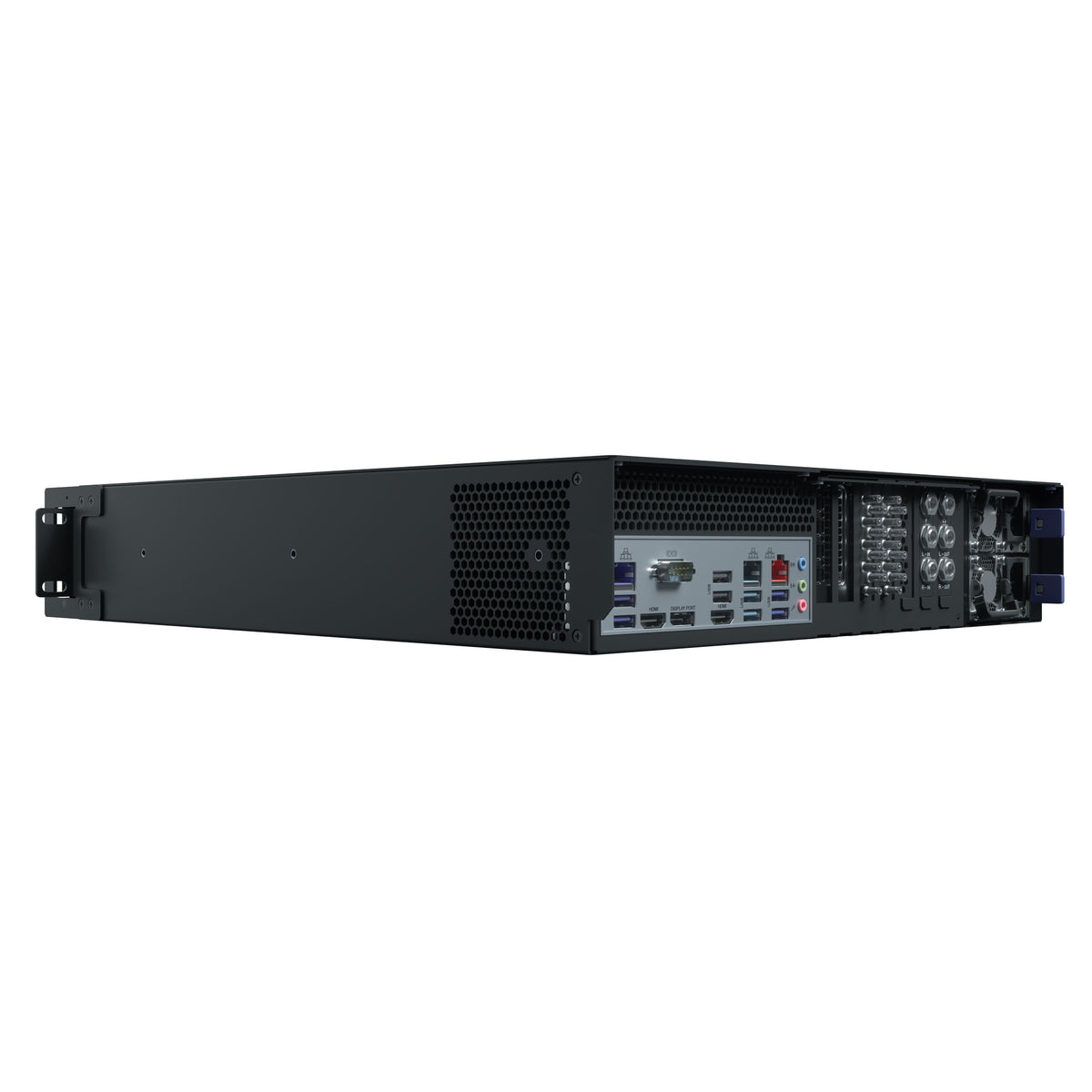

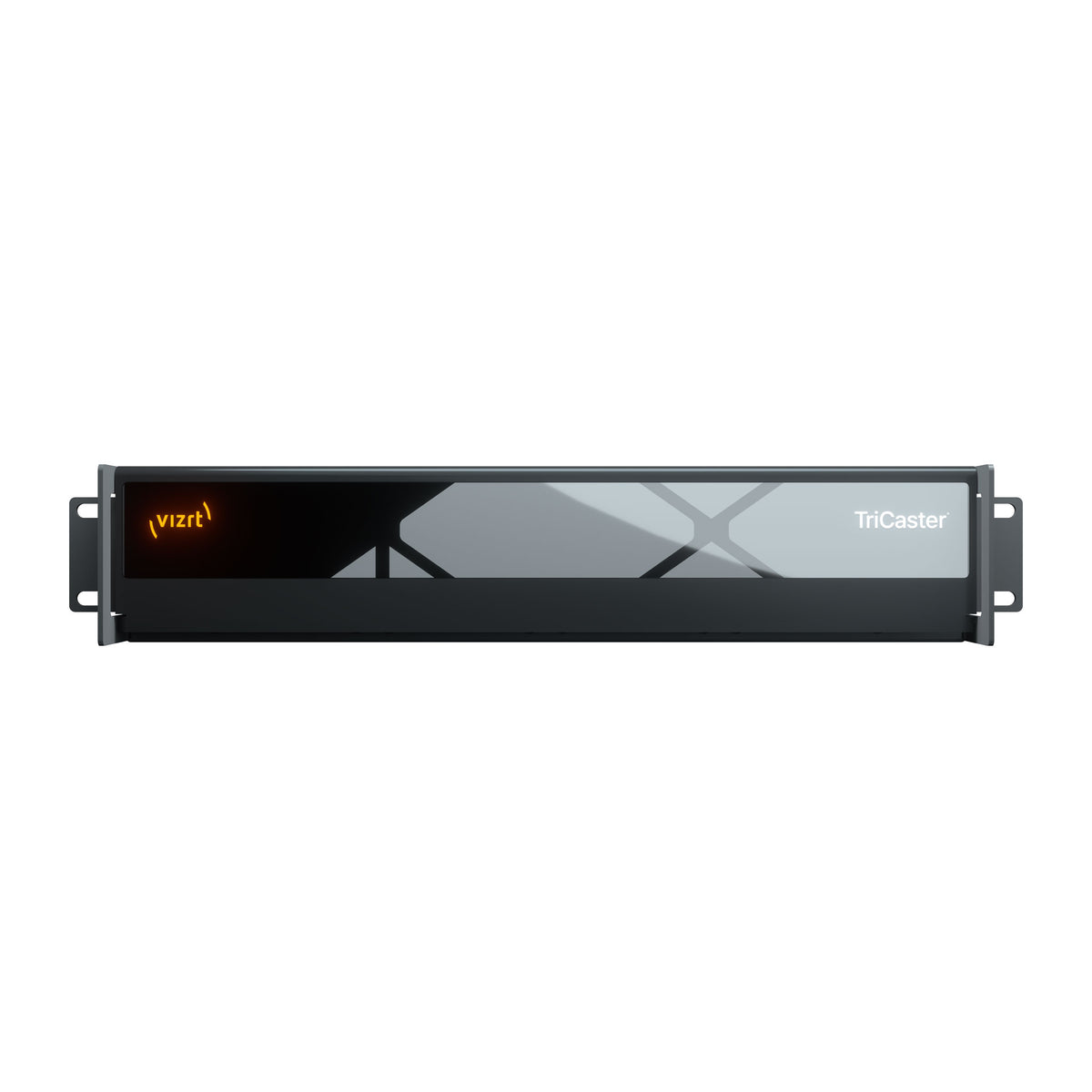

Vizrt TriCaster Vizion with 16 SDI I/O (2 RU)
- SKU:
- TCVIZION2RU16IO
- MPN:
- BDL-000000148
Ships in 3-7 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Vizrt TriCaster Vizion 16 SDI I/O is a 2RU live production switcher built for large NDI and SDI workflows where input count, routing flexibility, and operator access matter. It supports 44 simultaneous external video inputs, UHD sessions up to 2160p59.94, and configurable SDI connectivity for hybrid broadcast production. For sports broadcasting, live events, corporate communications, and remote production, it puts switching, audio, graphics, recording, and contribution tools in one production platform.
LivePanel Pro Browser Control for Remote Production
TriCaster LivePanel Pro control gives operators browser-based access to modern widgets, low-latency video previews, intelligent state awareness, and real-time system feedback. It is exclusive to TriCaster Prizm and Vizion, giving distributed operators visual confirmation without tying every control position to the main system UI.
AI Keying and AR Graphics for Broadcast Storytelling
TriCaster Vizion AI/R adds real-time AI-powered keying and augmented reality graphics through an optional subscription. The workflow is aimed at newsroom, sports, education, corporate broadcast, and virtual studio teams that need immersive graphics without building a separate specialist AR chain.
16 Configurable SDI I/O for Hybrid NDI Production
Configurable SDI I/O lets the 16-port hardware version assign local connections as inputs or outputs around the needs of the show. Vizrt's September 2026 specification states that this 16-I/O system supports six 12G connections, while the remaining configurable ports support the applicable 3G/HD-SDI formats. That flexibility is useful when a control room mixes baseband cameras, NDI sources, multiviews, and program feeds in the same production.
Live Call Connect for Zoom and Microsoft Teams Guests
Live Call Connect remote contribution supports multiple simultaneous video call inputs from Microsoft Teams, Zoom Meetings, and a web browser. Producers can bring remote guests into live broadcast, corporate communications, education AV, and hybrid event workflows without treating conferencing as a separate production island.
Broadcast Control Rooms
High source counts, SDI/NDI routing, genlock, waveform monitoring, and multiple mix outputs support daily broadcast workflows.
Sports Broadcasting
Eight M/Es, keying, graphics, PTZ control, and UHD production support complex venue and studio shows.
Live Events
Configurable outputs and remote guest integration fit award shows, conferences, staged events, and multi-room productions.
Corporate Communications
Live Call Connect, browser control, graphics, recording, and NDI networking support executive broadcasts and hybrid meetings.
Education AV
PTZ integration, remote contribution, automated macros, and reusable graphics support campus media and lecture production.
Virtual Studio Teams
LiveSet, DataLink, Viz Flowics, keying, and optional AI/R tools support data-driven virtual production environments.
Vizrt Standard Support
TriCaster Vizion includes one year of standard support according to Vizrt's September 2026 technical specification. Optional advanced hardware replacement is available, and support can be upgraded.
| Specification | Detail |
|---|---|
| Video Input | 44 simultaneous external video inputs; compatible sources up to UHD at 60 fps class, including 2160p59.94 |
| Network Video Input | 44 IP inputs via NDI with support for key and fill |
| SDI I/O | Up to 16 configurable 12G/3G/HD-SDI ports via HD-BNC; the 16-I/O system supports 6 connections at 12G |
| SDI Video Formats | 2160p59.94/50/29.97/25; 1080p60/59.94/50/30/29.97/25; 1080i59.94/50; 720p59.94/29.97/25 |
| Video Mix Outputs | Up to 8 independent HD or 2 UHD video mix outputs with simultaneous IP and SDI delivery |
| Network Video Output | 56 IP outputs via NDI in HD sessions |
| Audio Mixer | 44-channel integrated audio mixer with 8-channel audio support, DSPs, and 4x8x8 audio input routing |
| Network Audio | NDI audio input/output; Dante and AES67 support require compatible third-party virtual sound card licenses |
| Media | 5 media players: 4 DDR and 1 Sound; 15 media buffers |
| Keying | LiveMatte chroma/luma keying with 44 input keyers, 4 media player keyers, 8 M/E keyers, 1 PREVIZ keyer, and 15 buffer keyers |
| Virtual Sets | LiveSet technology with 30+ live virtual sets and box effects |
| Recording | No software limit stated by Vizrt |
| Internal Storage | 4 TB SSD |
| PTZ Control | Up to 44 simultaneous PTZ cameras via RS232, RS422, and IP |
| Conference Calling | Multiple simultaneous video call inputs via Microsoft Teams, Zoom Meetings, and web browser using Live Call Connect |
| Monitoring | Up to 4 multiviewer displays with configurable workspaces and viewports |
| Signal Monitoring | Integrated waveform and vectorscope with digital calibration, color preview, and ITU-R Rec. 709 support |
| A/V Standards | 12G-SDI: SMPTE ST 2082; 3G-SDI: SMPTE 424M Level A; HD-SDI: SMPTE 292M |
| Networking | 1 x 10 GbE, 1 x 2.5 GbE, 1 x 1 GbE |
| System Physical | 2RU chassis with redundant 550W power supplies; 19.0 x 3.5 x 19.57 in |
| Standard Support | 1 year standard support; upgrade options available |
What Is the TriCaster Vizion Live Production Switcher Used For?
TriCaster Vizion is built for multi-camera live production across broadcast, sports, live events, enterprise media, education, and remote production. It combines IP and SDI video, audio mixing, graphics, recording, monitoring, and production control in one platform.
How Many NDI Inputs Does TriCaster Vizion Support?
TriCaster Vizion supports 44 simultaneous IP video inputs via NDI. The inputs are resolution-independent and support key and fill.
Are All 16 TriCaster Vizion SDI Ports 12G-SDI?
No. The September 2026 Vizrt specification states that the 16-I/O hardware has up to 16 configurable SDI ports, with six connections supporting 12G signals. Ports can be configured for input or output.
Does TriCaster Vizion Support UHD 4K Production?
Yes. Compatible video inputs are supported up to UHD, including 2160p59.94, and the system can provide up to two UHD video mix outputs.
Which Remote Contribution Platforms Work with Live Call Connect?
Vizrt lists Microsoft Teams, Zoom Meetings, and web-browser video calls for Live Call Connect. The system supports multiple simultaneous video call inputs.
Is TriCaster Vizion AI/R Included with the Switcher?
TriCaster Vizion AI/R is an optional subscription. It adds real-time AI-powered keying and augmented reality graphics for immersive production workflows.
What Vizrt Support Comes with TriCaster Vizion?
Vizrt specifies one year of standard support with TriCaster Vizion. Optional advanced hardware replacement is available, and support can be upgraded.
Ready to Put the TriCaster Vizion Live Production Switcher on Air?
Coremicro is an authorized Vizrt dealer for professional live production systems. Contact our team to confirm the Vizrt TriCaster Vizion 16 SDI I/O configuration, signal formats, network design, control workflow, and integration requirements for your facility.
