Vizrt TriCaster Mini 4K video switcher displayed with multiple control panels and input/output connections.

Vizrt TriCaster Mini 4K video switcher with HDMI input and front panel controls, compact professional broadcasting device.

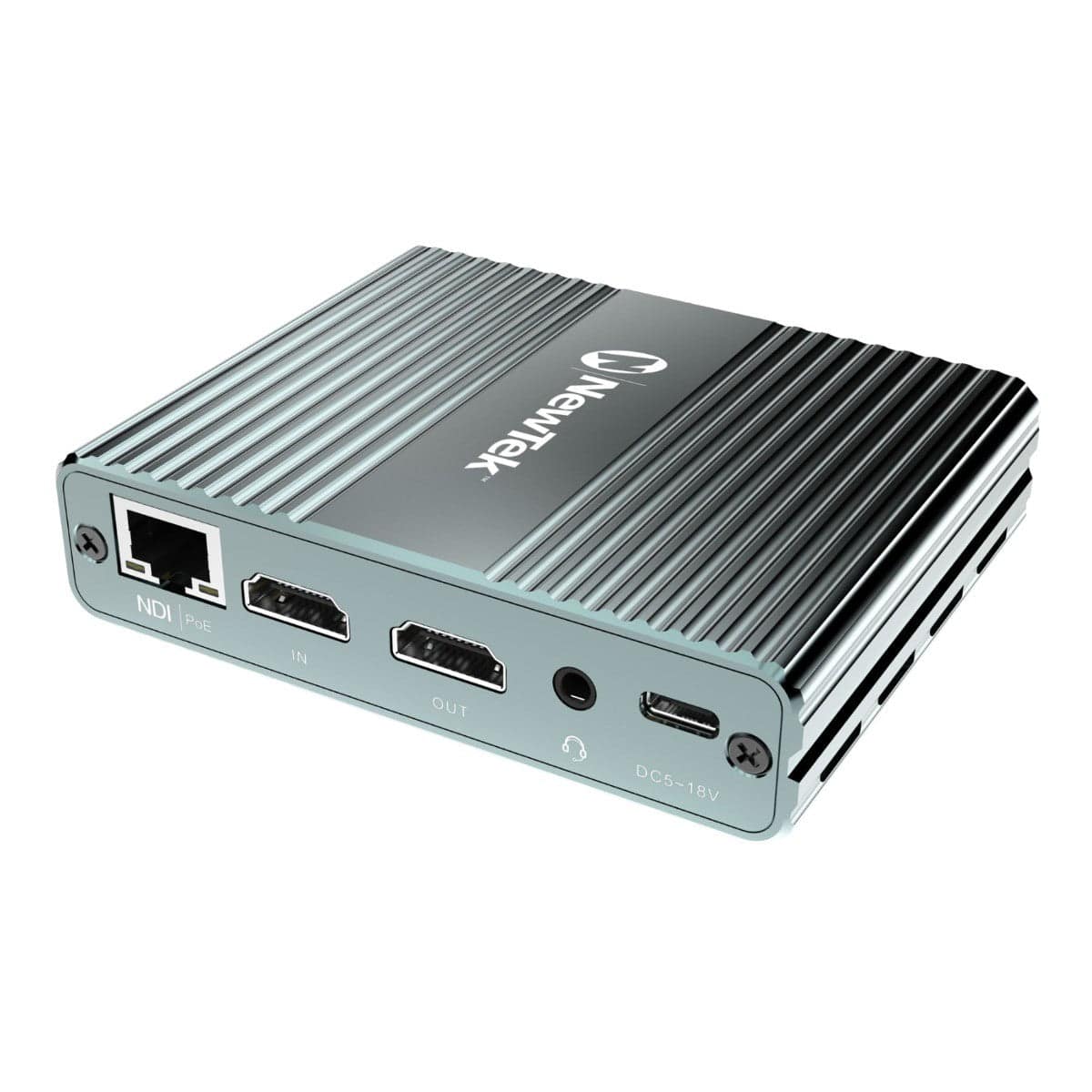

Vizrt TriCaster Mini 4K video switcher with HDMI ports, compact design for professional 4K live video production.

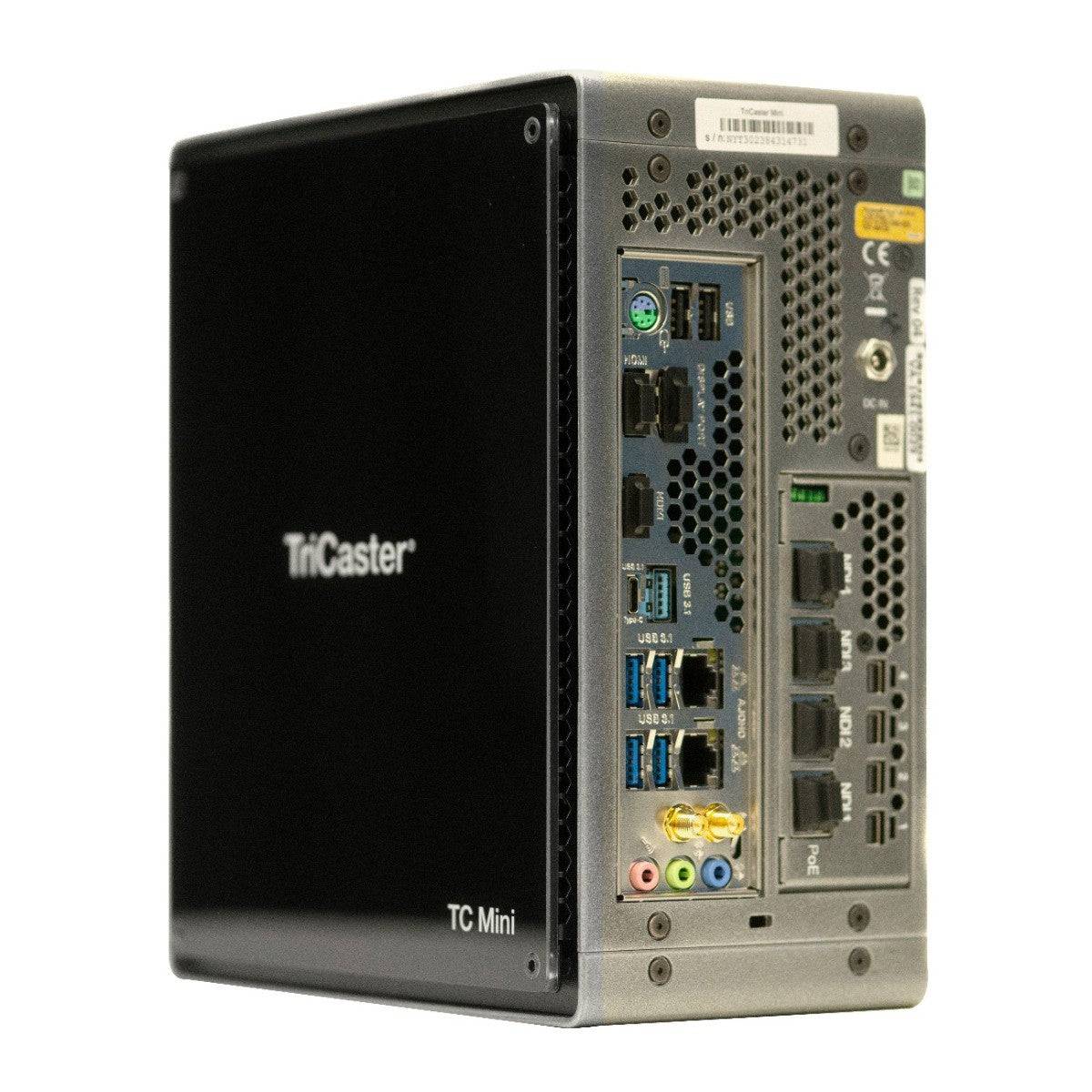

Vizrt TriCaster Mini 4K video switcher with rear panel connections, compact design, and professional broadcasting features.

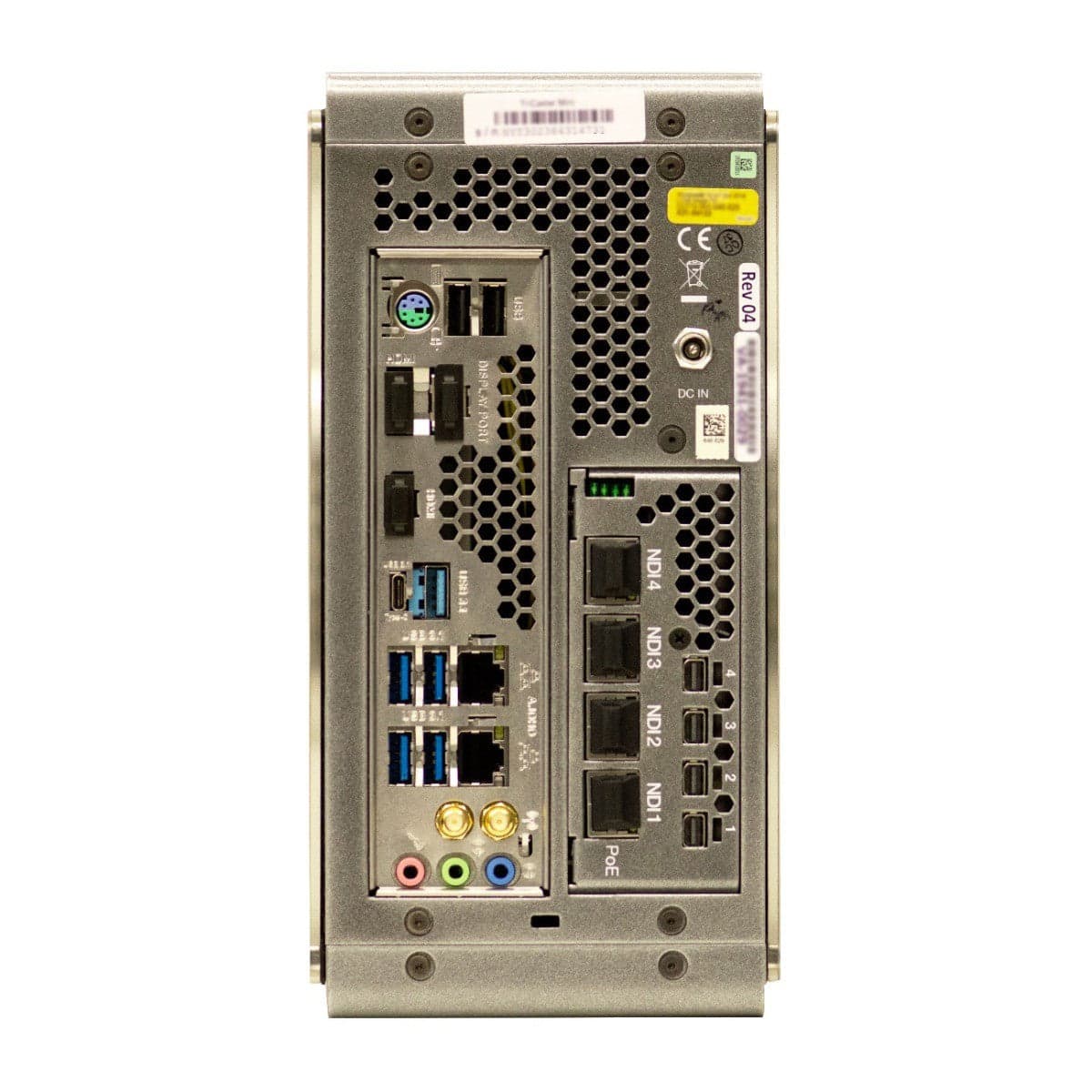

Vizrt TriCaster Mini 4K video switcher back interface showing multiple HDMI and SDI input and output ports.

Product Highlights

4 NDI Direct Input via POE Gigabit Ethernet
4K Ultra HD at 60 fps
Support up to 3 Multiviewer Screens
Skype TX Software Integration
Spectacular Live Chromakeying
30 Live Virtual Sets included

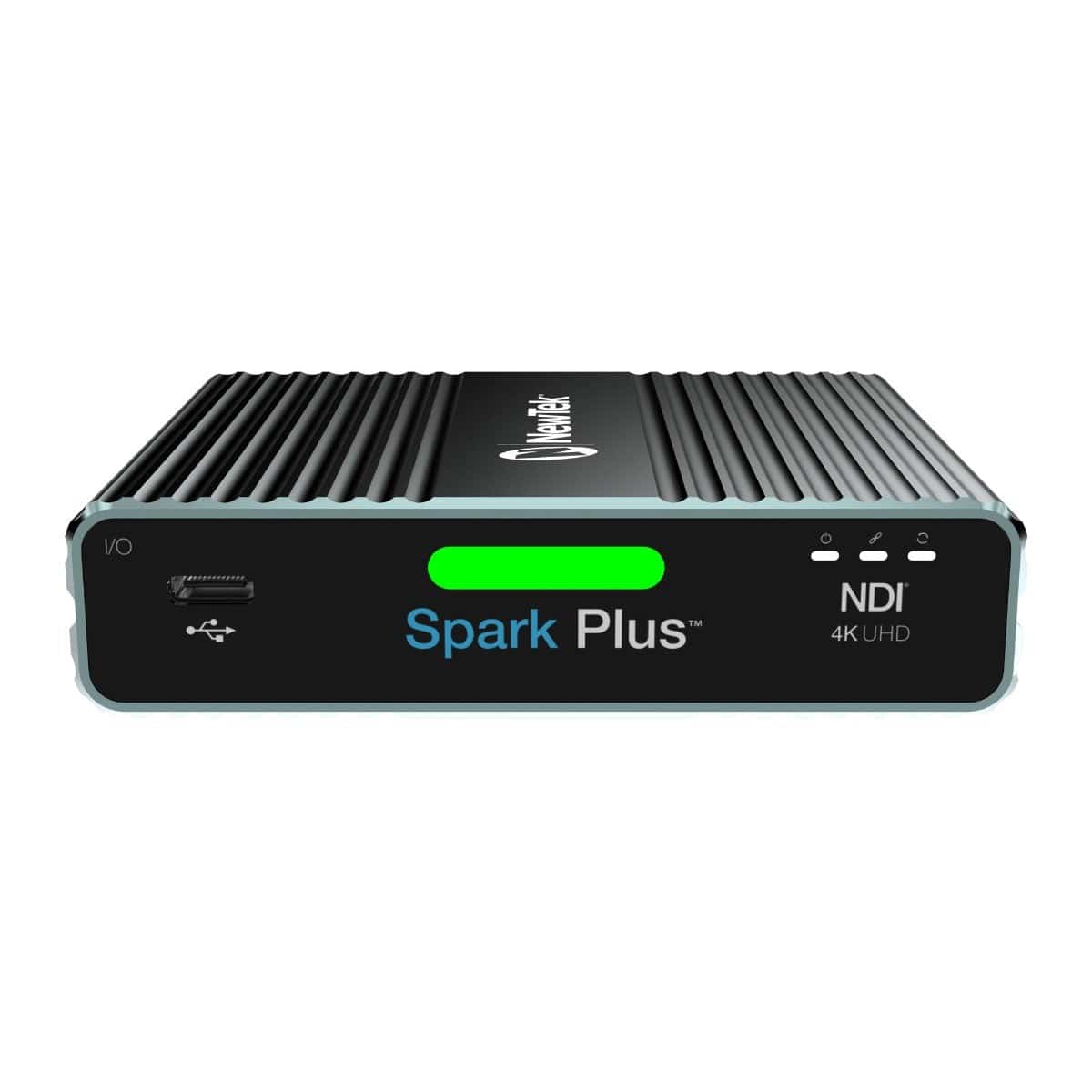

2 x Spark Plus 4K IO Converters

Authorized Vizrt Dealer

Vizrt TriCaster Mini 4K

SKU:: VIZ-TCM4KUHD
MPN:: BDL-000000004

In Stock

Regular price $8,545.50 ~~$9,495.00~~ | Save $949.50 (10% off)

Add to Wishlist Have questions? Contact us

Ships in 3-7 Business Day

Free Expedited Shipping

Secure payment

Manufacturer Warranty

Authorized Dealer

Description

Product Overview

The Vizrt TriCaster Mini 4K is a compact, all-in-one live production system designed for multi-camera switching, streaming, and recording in resolutions up to UHD 4K. Built for churches, schools, corporate studios, and live events, it combines professional production tools in a portable system that's easy to set up and operate.

With NDI connectivity, the TriCaster TC Mini 4K integrates IP-based cameras, converters, and other compatible devices into your production workflow. HDMI camera connectivity provides a straightforward option for conventional video sources, while network-based NDI workflows offer greater flexibility for camera placement and signal routing.

The system includes live video switching, virtual sets, real-time graphics, integrated media playback, multichannel audio mixing, and streaming tools. Macro automation and Live Story Creator help simplify repetitive production tasks and support more consistent show operation.

Whether you're producing a live worship service, school broadcast, corporate presentation, or online event, the Vizrt TriCaster TC Mini 4K gives your team the tools to create polished, professional productions without a traditional broadcast control room.

Highlights

UHD 4K Multi-Camera Live Production
NDI IP Video And HDMI Camera Connectivity
Live Streaming, Recording, And Video Switching
Virtual Sets, Graphics, And Integrated Media Playback
Multichannel Audio Mixing And Production Automation

Quick Specs & Applications

Product Type: All-in-One Live Production System
Maximum Production Resolution: UHD 4K
Video Connectivity: NDI And HDMI Camera Integration
Video Processing: Multi-Camera Live Switching
Graphics: Virtual Sets, Titles, And Overlays
Audio: Multichannel Audio Mixing
Streaming: Integrated Live Streaming
Automation: Macros And Live Story Creator
Applications: Broadcast, Education, House Of Worship, Corporate Video, And Live Events

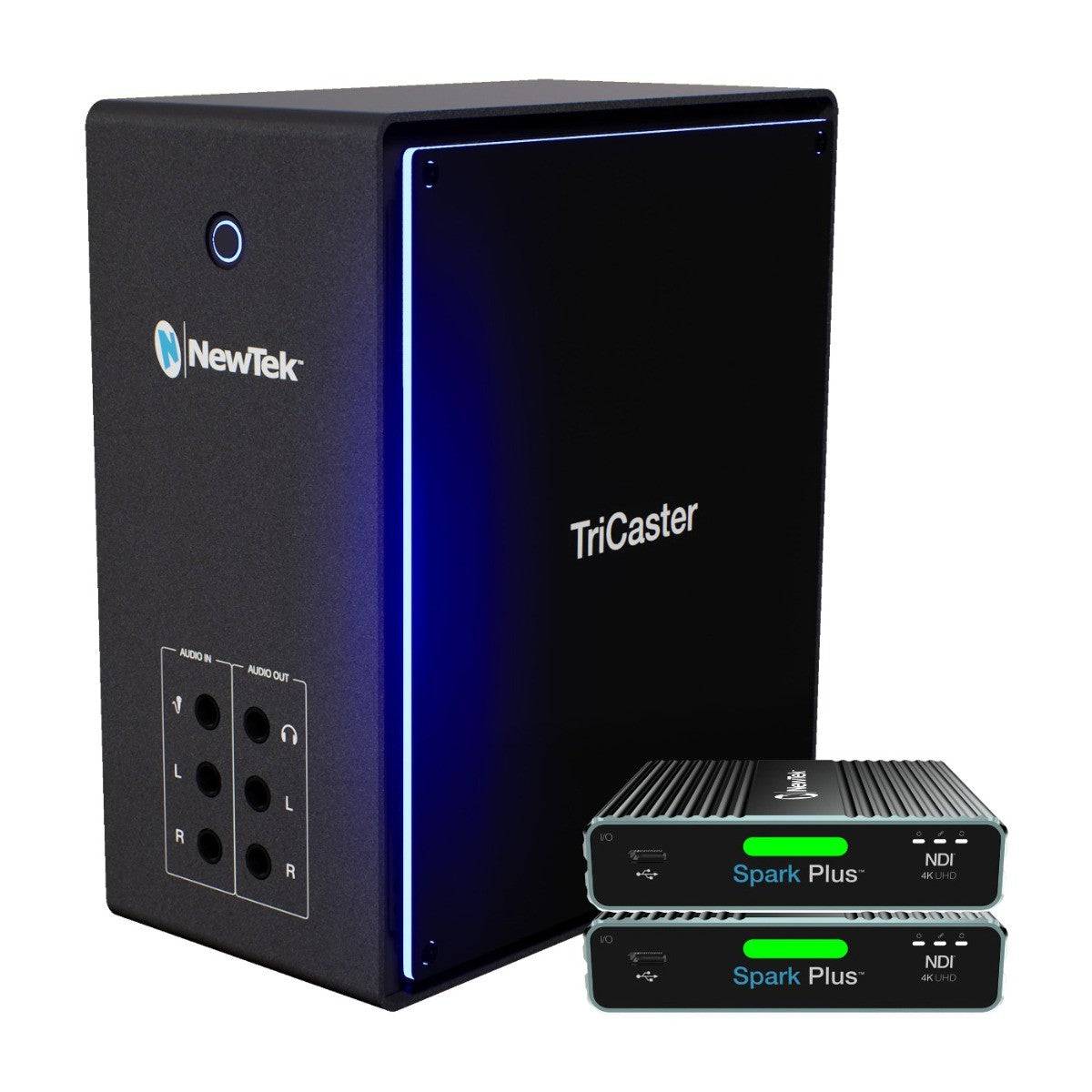

TriCaster Mini 4K
2x Spark Plus 4K IO Converters
Keyboard & Mouse
4 x Mini Displayport to Displayport Adapter

Product Specifications
Video Inputs	8 x IP video inputs via NDI®, resolution-independent, NDI inputs supporting video input in any combination of standard formats, resolutions, and frame rates1
Audio Inputs	NDI Audio 1 x 1/4” (6.35 mm) balanced mic 2 x 1/4” (6.35 mm) balanced line
Video Outputs	4 x independent IP video mix outputs via NDI®
Audio Outputs	NDI Audio 2 x 1/4” (6.35 mm) balanced line 1 x 1/4” (6.35 mm) stereo headphones jack
Video Standards	2160p 59.94, 50, 29.97, 25 1080p: 59.94, 50, 29.97, 24 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25 SD: 59.94, 50, 25 1Available frame rates determined by model and session video standard (NTSC or PAL)
Product Specific	Skype TX Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication PTZ Support for Pan-TiSupport for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset systemlt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system COMP Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences 16 x configurable COMP presets per bus Virtual Sets Integrated LiveSet™ technology with 30+ live virtual sets and box effects included DataLink Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more Macros Record, store, edit and automate commands and user-configured operation sequences • Attach to control panel buttons, keyboard shortcuts, MIDI and X-keys® buttons. • Supports control via web-based interface Signal Monitoring Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Multi View	4 x mini display port with output adapters 3 x of the outputs support multiviewers using standard display resolutions
Recording	4 x recording channels from either NDI® inputs or Mix outputs • Records and retains alpha channel data
Media	System Drive: 250GB SSD Storage: Capacity varies by format, resolution and file specification Supports recording to external storage via USB 3.0 4 x media players 2 x DDR 2 x GFX 1 x Sound 15 x media buffers 5 x animation buffers 10 x graphic buffers
Mix / Effect Buses	4 x M/E buses supporting video re-entry 1 x Mix/Effect channel per bus with support for up to 2 sources 2 x KEY layers per bus
Keyers	Integrated LiveMatte™ chroma keying technology on all source channels and M/E buses 8 x input keyers 2 x media player keyers 4 x M/E keyers 15 x buffer keyers
DSK	2 x DSK channels
Device Control	NDI
Media File Formats	Import, store, and play back multimedia files, with optional transcoding, including: • Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more • Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more • Audio: AIFF, MP3, WAV, and more
Streaming	2 x streaming video output, independently configurable, with simultaneous stream archive
Operating Systems	Windows
Physical / Environmental Specifications
Dimension	System chassis, including adjustable cable retention bracket • 4.6 x 9.2 x 7.9 in (11.7 x 23.4 x 20.1 cm) • 9 lbs (4.1 kg)
Warranty	Limited 90-Day Warranty
