Product Highlights
- 16 NDI Inputs Up To UHD 4K
- Up To 28 HD NDI Outputs
- M/E Switching, Keying, And Graphics
- 16-Channel Audio Mixer And 4TB Storage
- LivePanel Pro With Custom Controls
){kind=link}
Vizrt TriCaster Prizm 2RU (IP I/O Only)
- SKU:
- TCPRIZM0SDI
- MPN:
- FG-003325-R001
Ships in 3-7 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Vizrt TriCaster Prizm 2RU IP Only is a network-based live production switcher built for multi-camera broadcasts without built-in SDI video I/O. Connect up to 16 compatible IP video sources, mix programs up to UHD resolution, and bring remote contributors into a single production. NDI integration, browser-based control and internal media tools make it a practical hub for live events, education and house of worship workflows.
The TriCaster Prizm 0-SDI I/O model is a Vizrt 2RU live production system with 16 simultaneous external video inputs and network support for NDI, SRT, RTMP, RTSP and WebRTC. The system includes 4 TB of internal storage, a 16-channel audio mixer and 10 GbE, 2.5 GbE and 1 GbE network ports. Coremicro offers this configuration as an authorized Vizrt dealer; contact the team to confirm current pricing, warranty and support coverage.
2RU IP-Only Video Switching for Networked Studios

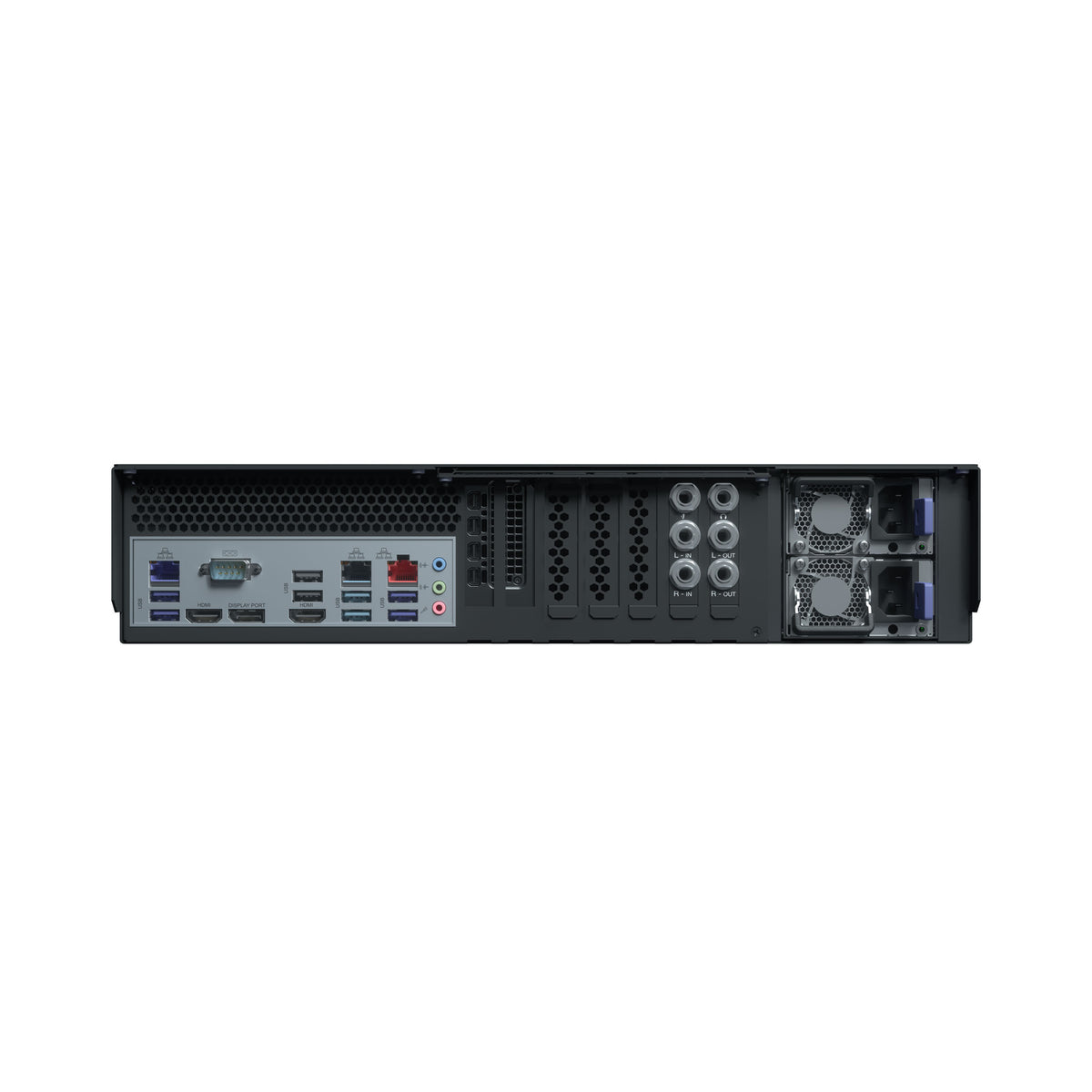

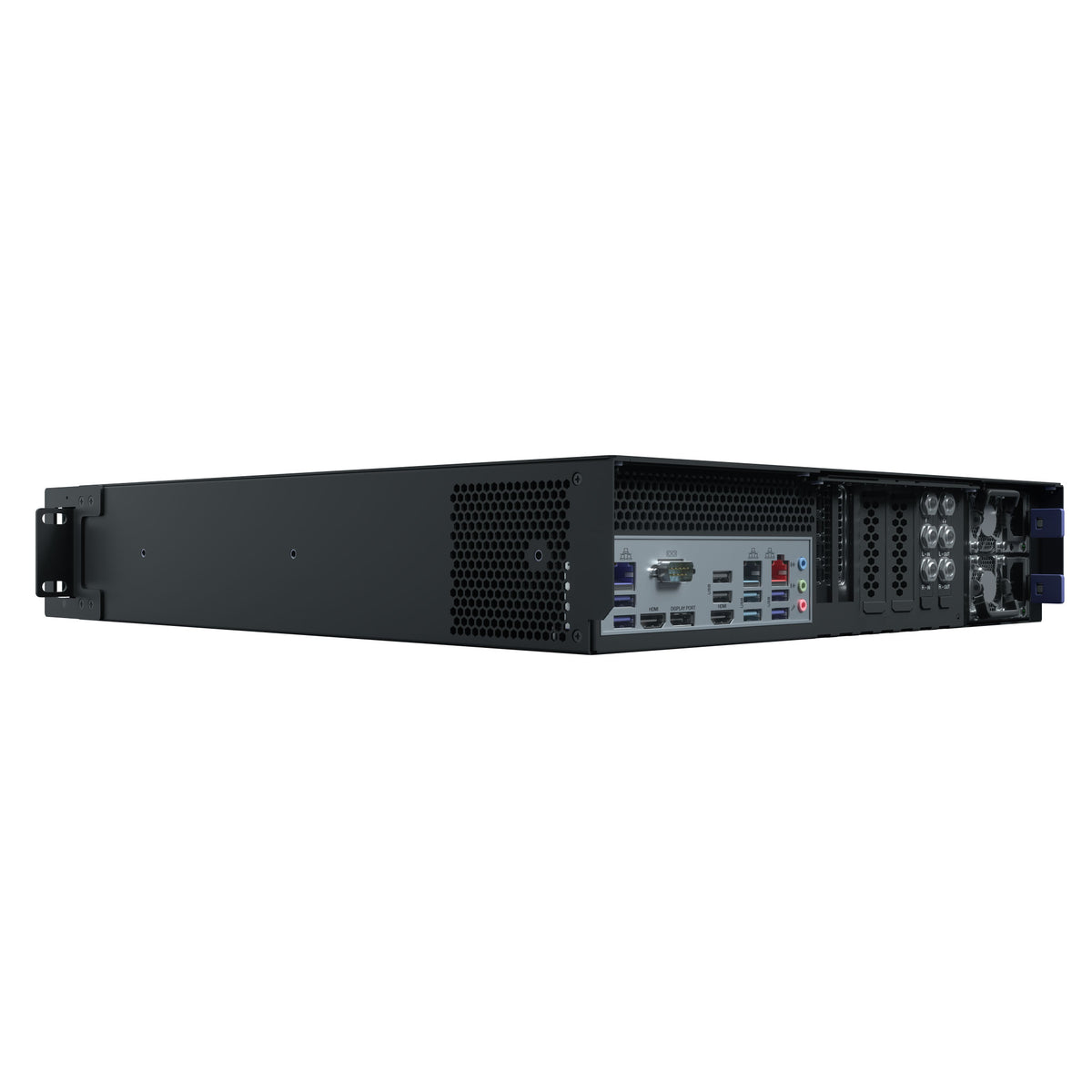

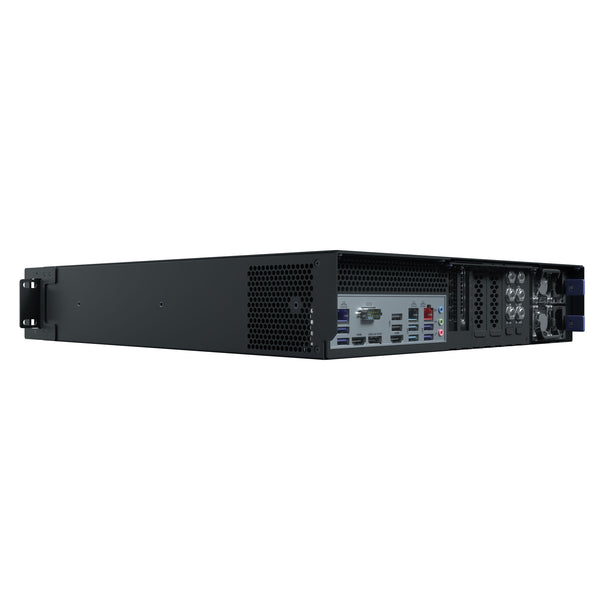

The 0-SDI configuration uses network video rather than integrated SDI video input/output. A 10 GbE interface works alongside dedicated 2.5 GbE and 1 GbE ports, allowing engineers to plan source transport and system connectivity for an NDI-centric signal chain. The rear-panel layout keeps the hardware footprint to two rack units.
Browser-Based LivePanel Pro Production Control
LivePanel Pro provides customizable, browser-based production dashboards with preview, state feedback and role-based access controls. Build interfaces around the operator’s responsibilities, whether that means a technical director driving camera cuts or a producer calling graphics remotely.
Flexible Multi-Camera UHD Production
Up to 16 simultaneous external inputs support compatible video sources at resolutions through 2160p59.94. Integrated LiveMatte keying, virtual sets, media players and composition presets give production teams options for graphics-rich programs without relying on a separate effects engine.
Bring Remote Guests into Hybrid Live Events
Remote contribution support helps connect off-site presenters, cameras and production locations using compatible IP workflows. SRT, RTMP, RTSP and WebRTC support gives engineering teams several transport options; confirm endpoint and network compatibility during system design.
Campus Studio and School Broadcasting
Switch classroom or campus NDI sources, integrate video clips and publish a live program.
Multi-Camera Worship Streaming
Coordinate sanctuary cameras, on-screen lyrics or graphics, and remote guest contributions.
Hybrid Town Halls and Live Events
Mix presenters from several locations alongside media playback and production graphics.
| Specification | Detail |
|---|---|
| Model / configuration | TriCaster Prizm 2RU · 0 SDI I/O (IP Only) |
| MPN | FG-003325-R001 |
| External video inputs | 16 simultaneous compatible sources |
| Maximum source format | Up to 2160p59.94 |
| NDI inputs | Up to 16 IP inputs; key-and-fill supported |
| Additional IP protocols | SRT, RTMP, RTSP, WebRTC |
| Video mix outputs | Up to 4 HD/3G mixes, or 2 UHD plus 2 HD/3G mixes; delivered via IP |
| Audio mixer | 16 integrated audio channels |
| Media | 5 media players; 15 media buffers |
| Video effects | LiveMatte chroma/luma keying; COMPs; 30+ LiveSet virtual sets |
| PTZ control | Up to 16 PTZ cameras via compatible serial/network protocols |
| Storage | 4 TB internal storage; 250 GB system drive |
| Ethernet | 1 × 10 GbE; 1 × 2.5 GbE; 1 × 1 GbE (RJ-45) |
| Physical chassis | 2RU; 19.0 × 3.5 × 19.57 in |
| Local audio connections | 1 × balanced stereo input, 1 × microphone input, 1 × balanced stereo output and 1 × headphone output (1/4-inch) |
| Optional network audio | Dante Virtual Soundcard and compatible AES67 driver support require separate licenses |
| Included items | Keyboard and Mouse 3 x Mini DisplayPort to DisplayPort Adapter 1 x Mini DisplayPort to HDMI Adapter Power Cord Quick Start Guide |
What distinguishes the IP-only TriCaster Prizm model?
The IP-only TriCaster Prizm configuration has no built-in SDI video I/O. It accepts compatible network video sources, making it suited to IP-centered production systems.
How many sources can TriCaster Prizm handle?
TriCaster Prizm supports 16 simultaneous external video inputs. Compatible sources can be used at resolutions up to UHD 2160p59.94.
Does TriCaster Prizm support NDI and SRT?
TriCaster Prizm supports NDI inputs and additional network protocols including SRT, RTMP, RTSP and WebRTC. Specific endpoint interoperability depends on the workflow.
Can TriCaster Prizm control PTZ cameras?
TriCaster Prizm supports control of up to 16 compatible PTZ cameras through serial and network protocols, with integrated presets.
Is Coremicro an authorized Vizrt dealer?
Coremicro is an authorized Vizrt dealer for professional video and broadcast equipment. Contact Coremicro to confirm this model’s current price, warranty and applicable support options.
Build Your Next NDI Live Production System
Coremicro is an authorized Vizrt dealer. Ask our broadcast specialists about the 0-SDI TriCaster configuration, your camera network, remote contributors and the right control setup for your production.
Contact a Coremicro SpecialistSpecifications
Vizrt TriCaster Prizm 2RU (IP I/O Only) Specifications
