Vizrt TriCaster Mini X HDMI Complete Bundle

The Vizrt TriCaster Mini X HDMI Complete Bundle is a comprehensive, portable live production system designed for professional-grade switching, streaming, and recording in 4K. It combines the TriCaster Mini X HDMI/NDI hybrid switcher, Vizrt Control Surface, and essential accessories for a fully integrated, on-the-go production solution.

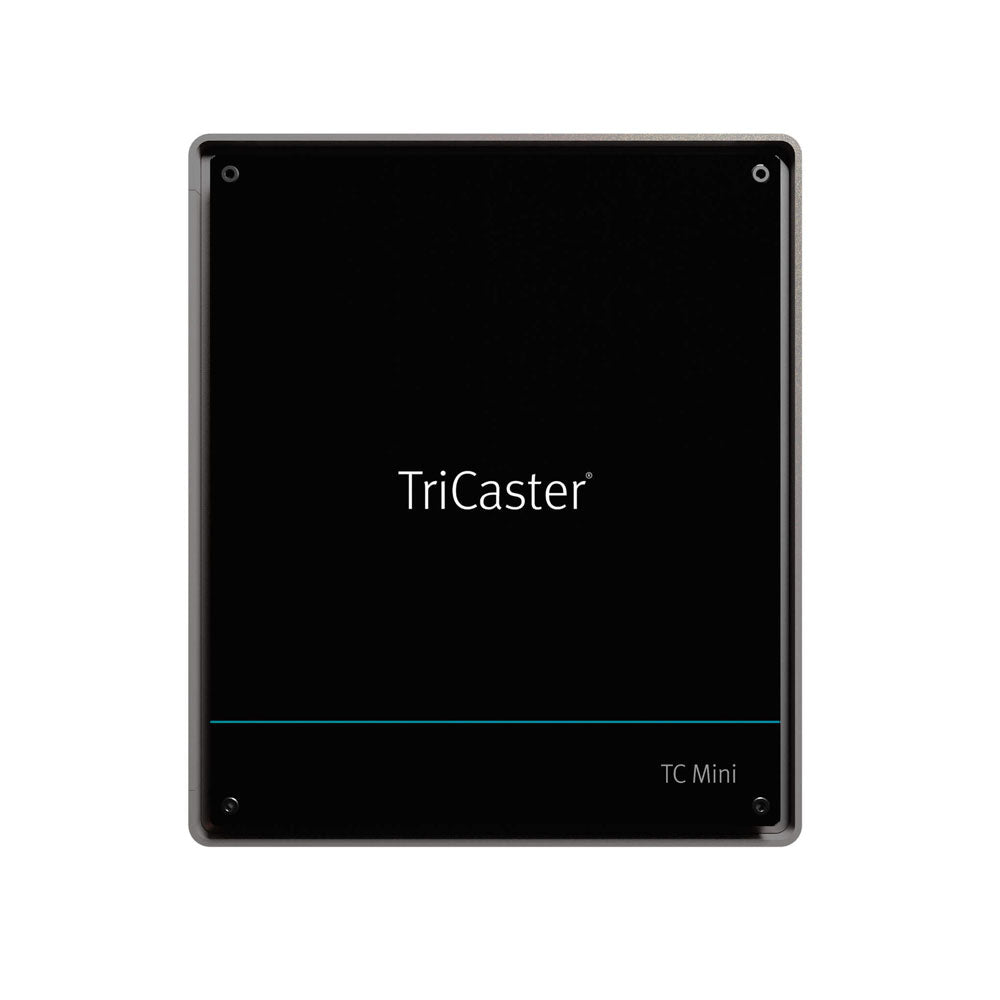

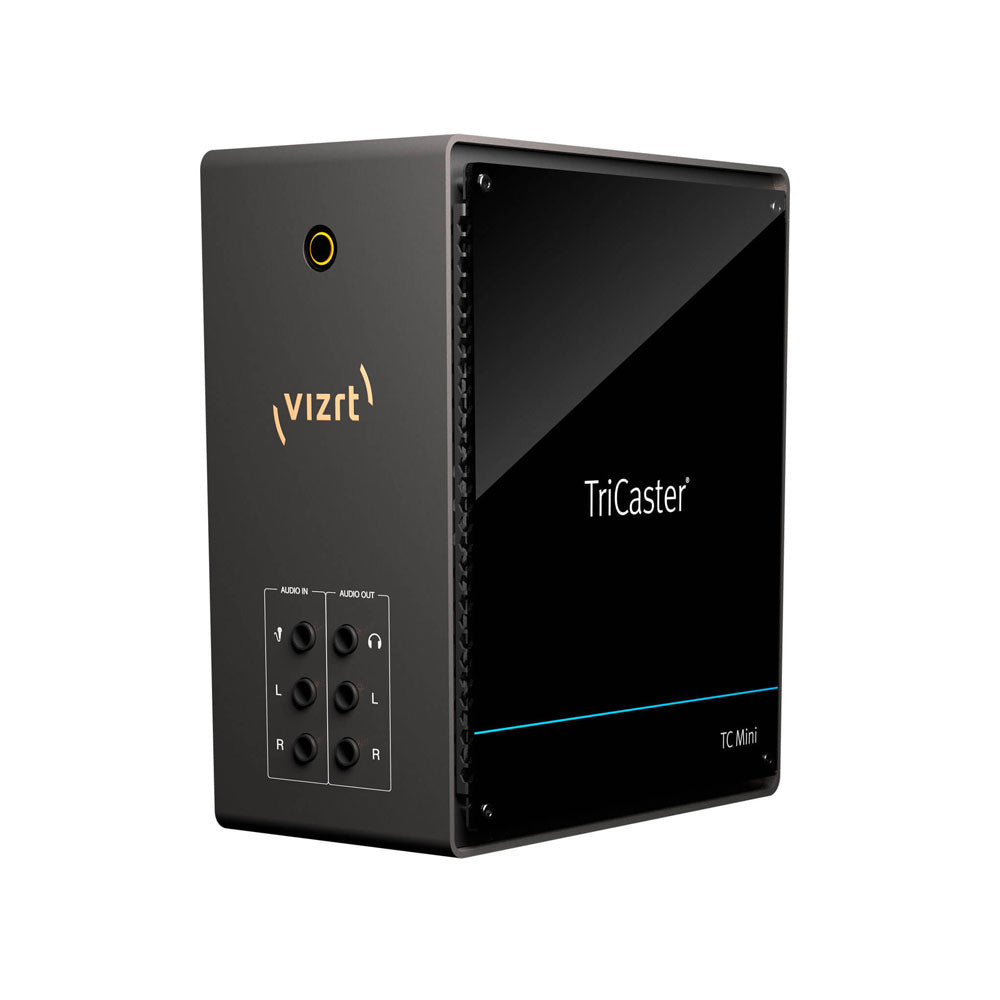

TriCaster Mini X HDMI Overview

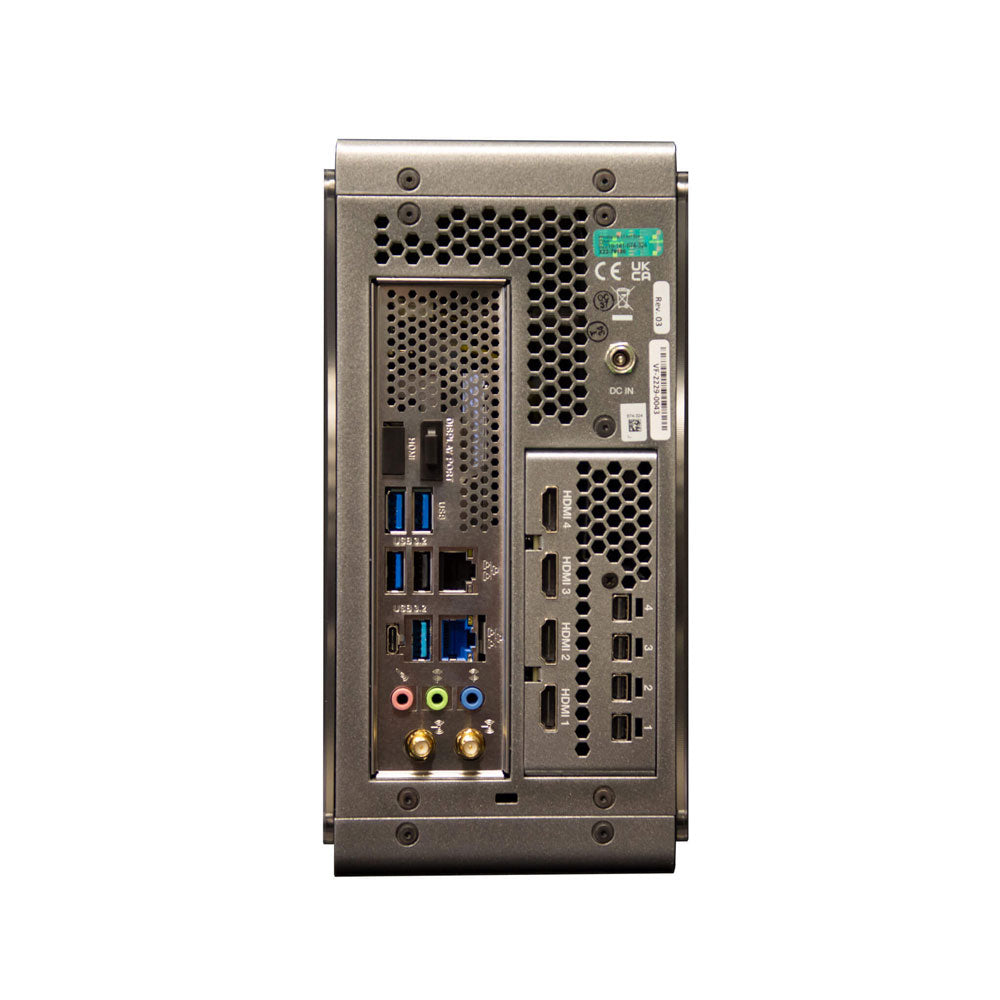

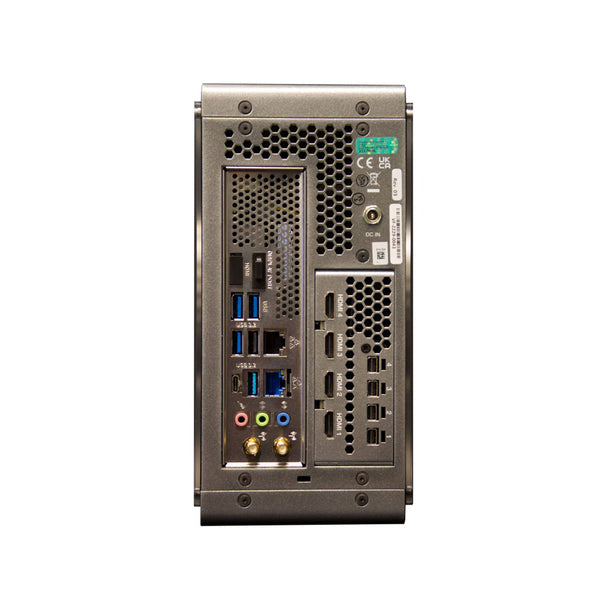

• Inputs: 4 HDMI and 8 NDI inputs for cameras, computers, or network sources.
• Outputs: 4 mini DisplayPort outputs (with included HDMI adapters) for program feeds or multiview monitoring.

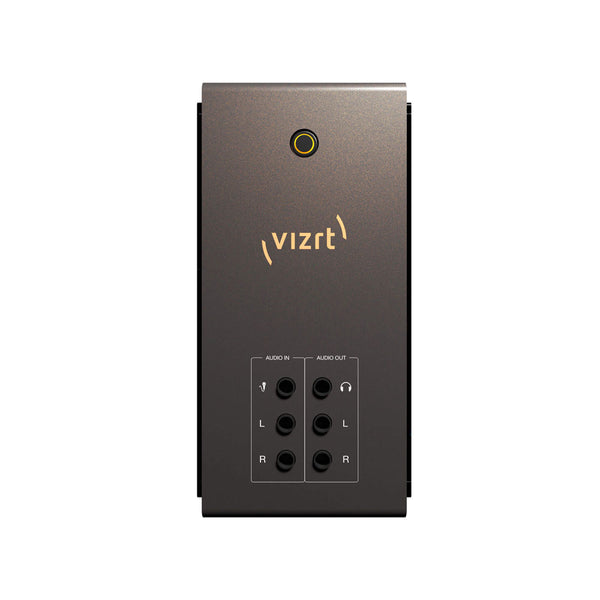

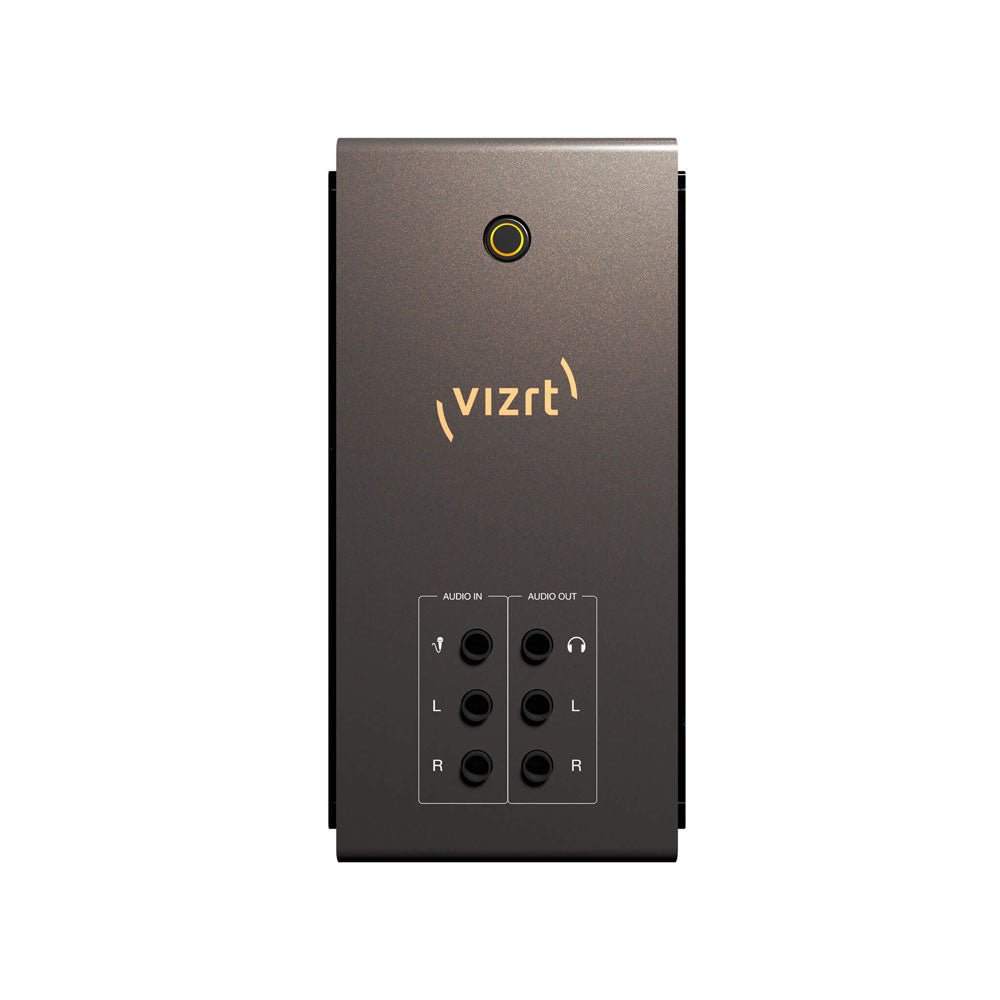

• Connectivity: Five USB 3.2 Type-A ports for keyboards, mice, and other accessories; network ports for NDI and streaming; audio inputs and outputs for line, mic, and headphone connections.
• Latency: Approximately 1.5 frames for near-instant device communication.
• Resolution: Supports up to 4K30 video for UHD production.

Core Capabilities

• All-in-one switching, streaming, and recording with integrated TriCaster software.
• Built-in graphics and titling tools, including LiveMatte chroma/luma keying for virtual backgrounds and visual layering.
• LiveLink for embedding and interacting with real web pages directly within productions—ideal for dynamic graphics, videos, and real-time data presentation.
• Social media publishing to major platforms directly from the production interface.
• Multi-channel recording and professional audio mixing tools.
• LiveSet technology with over 30 virtual sets and built-in box effects for polished visual environments.
• PTZ control for up to 8 network or serial-controlled cameras with presets.
• DataLink support for live updating of on-screen data feeds and graphics.

Supported Integrations

• Streaming compatibility with popular platforms like YouTube, Facebook, LinkedIn Live, and Twitch.
• Media control through 5 media players and 15 media buffers, enabling seamless playback of graphics, clips, and animations.

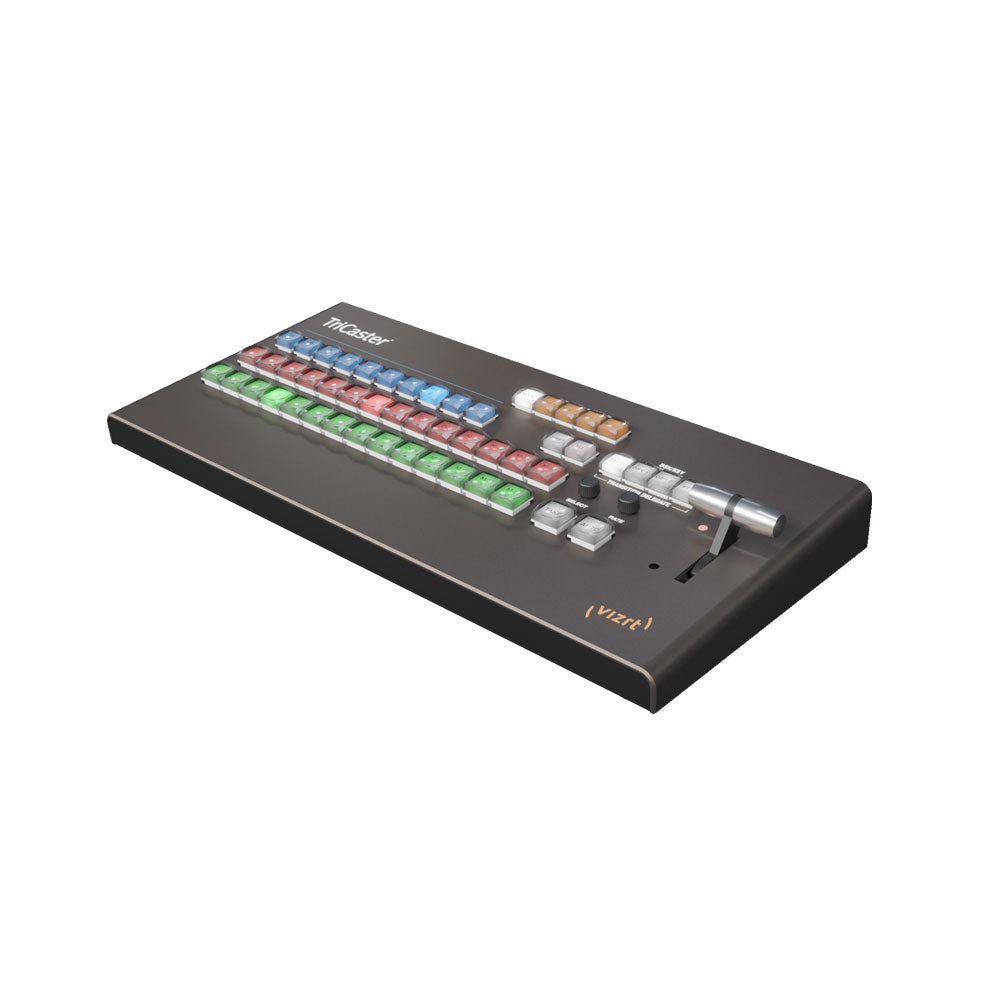

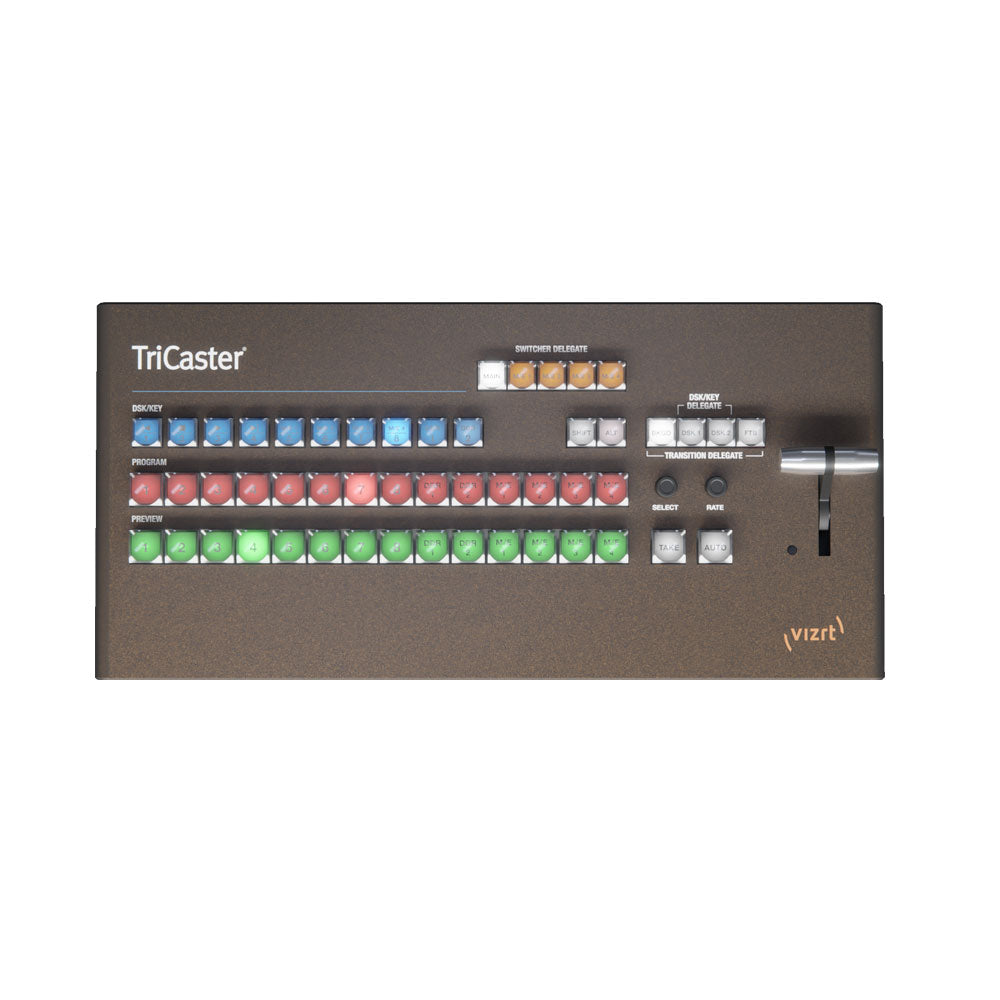

Vizrt Control Surface for TriCaster Mini

• Purpose: Provides hands-on, professional control of live production switching and transitions.
• Design: Compact and lightweight with 14 large backlit buttons, a responsive T-Bar, and an intuitive workflow layout for mobility and ease of use.
• Functions:
  • Precise control of Program/Preview rows.
  • Adjustable transitions with Take and Auto buttons.
  • Layer delegation for Background, DSK 1/2, and Fade to Black.
  • Concentric controls for transition speed and presets.
  • USB plug-and-play connectivity.
• Compatibility: Works with TriCaster Mini (UHD 4K), 8000, 860, 460, and 410 models.

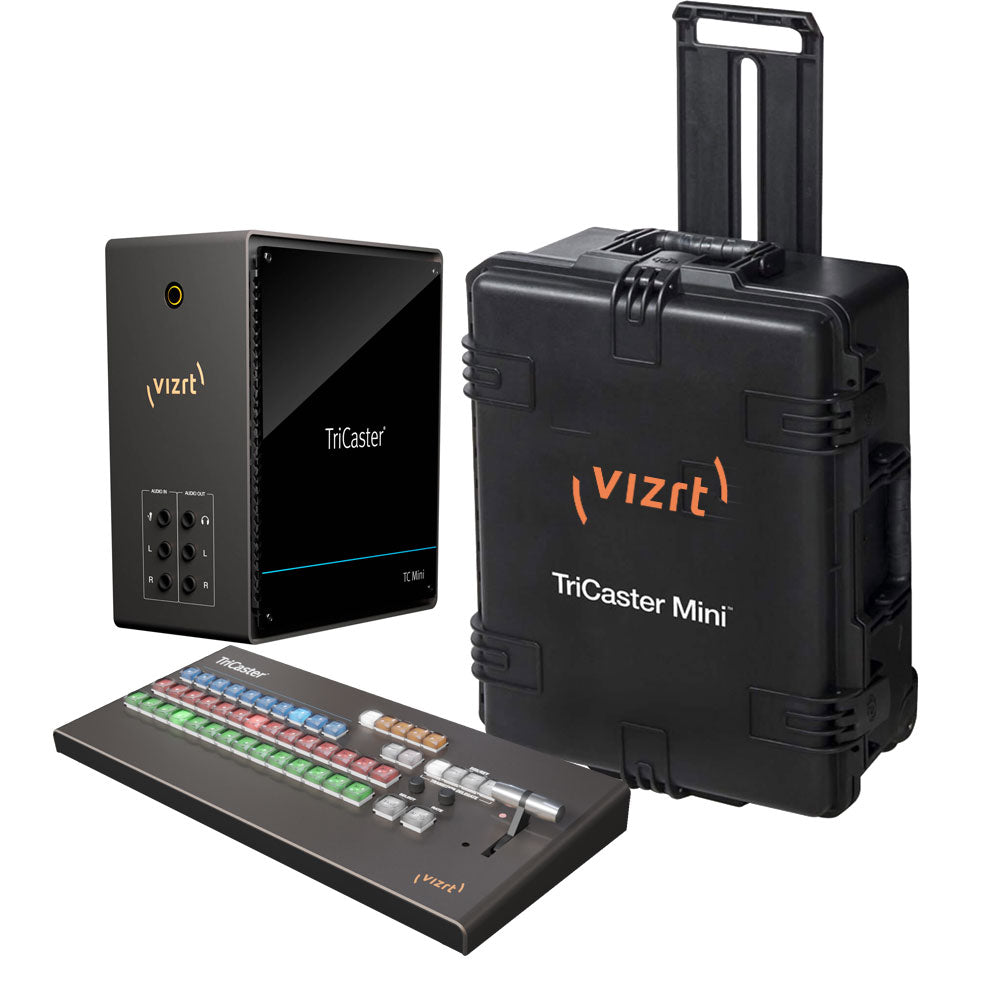

What’s Included in the Bundle

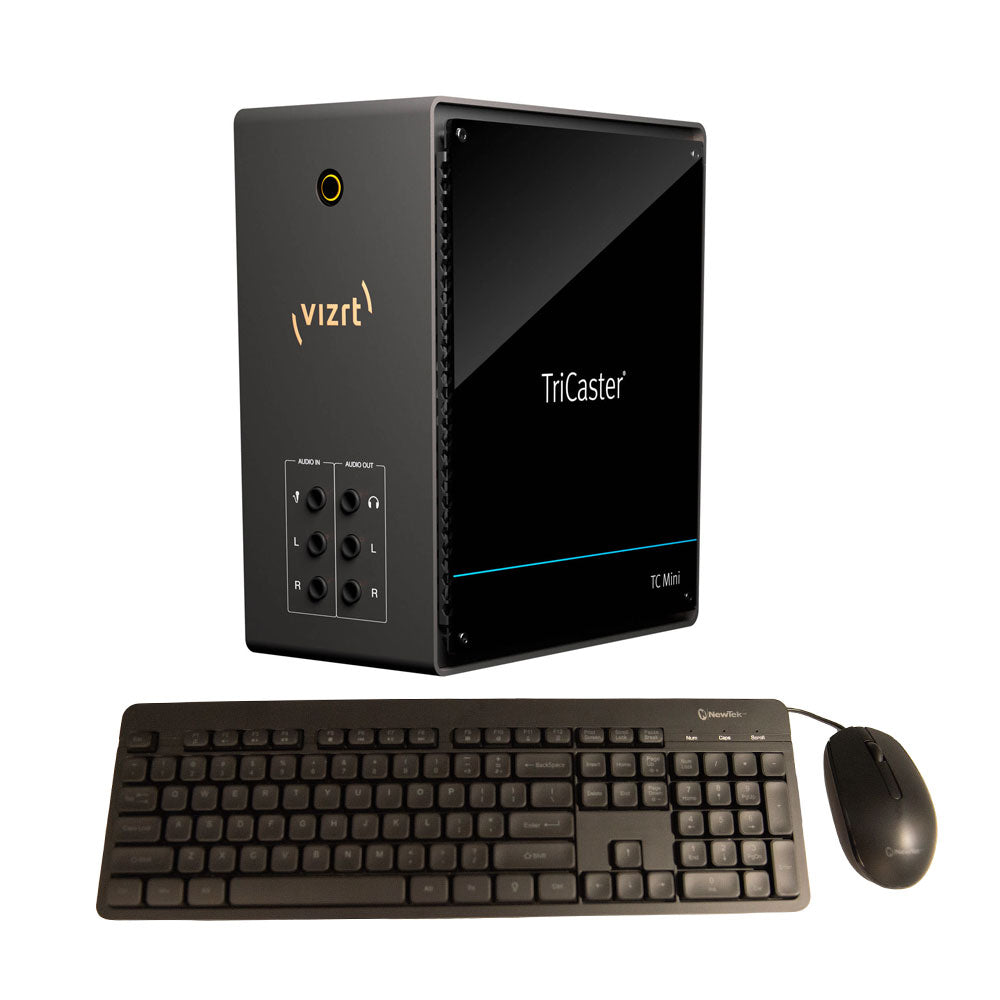

• Vizrt TriCaster Mini X HDMI/NDI Hybrid Switcher
• Vizrt Control Surface

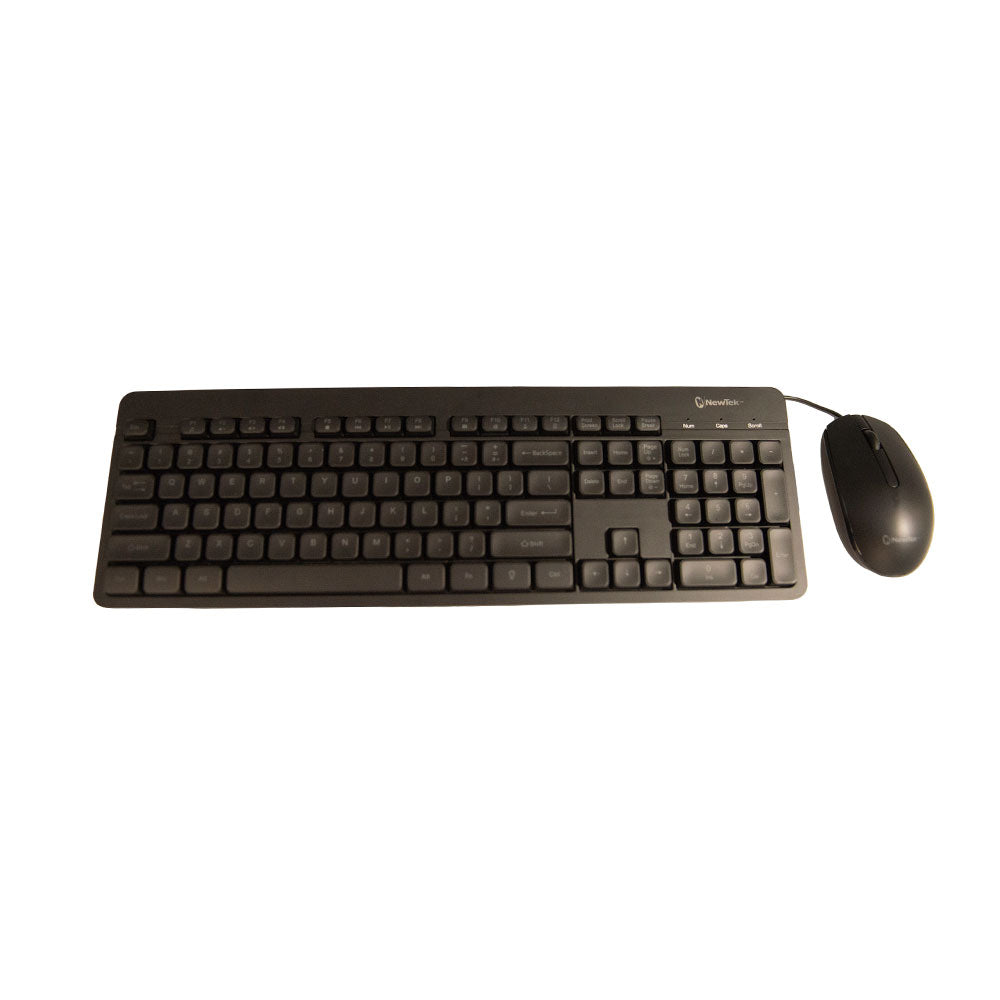

• Keyboard and Mouse
• Four mini DisplayPort-to-HDMI adapters

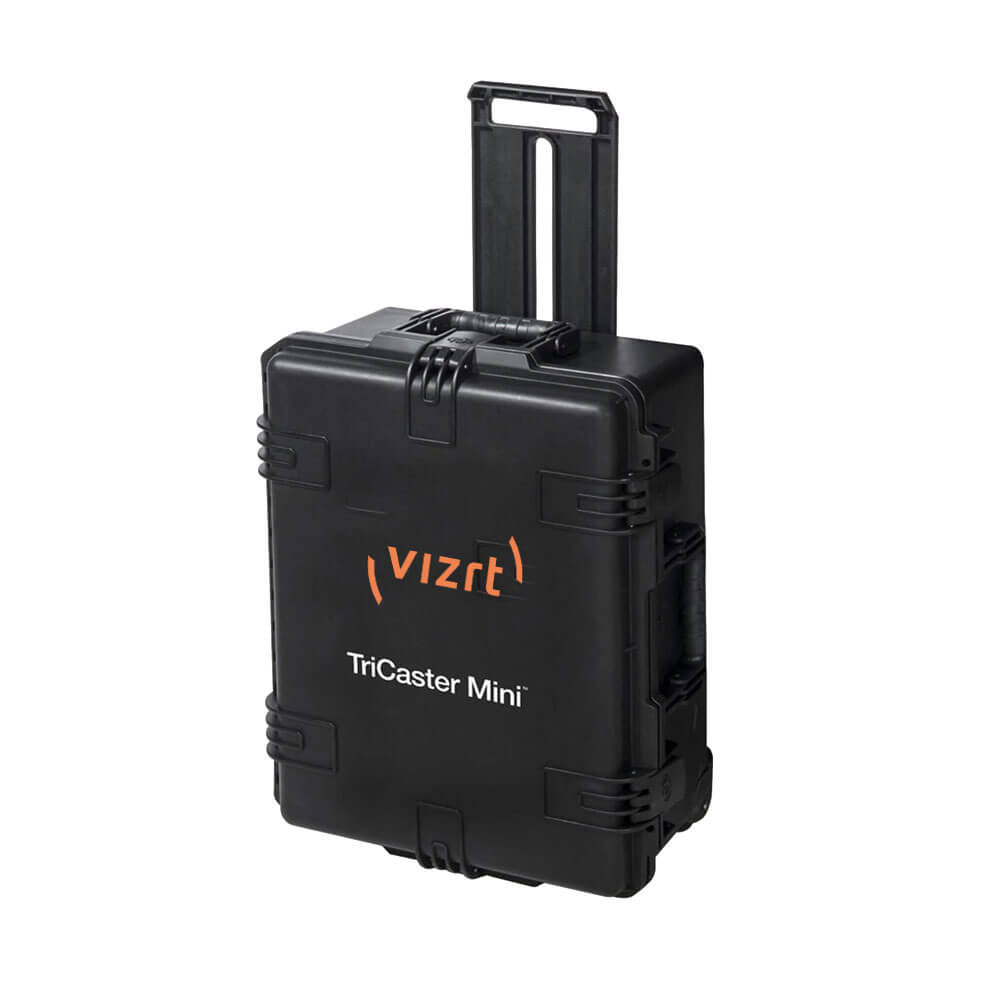

• Custom Hard Carrying Case
• Power supply and cabling

This bundle is designed for mobile broadcasts, corporate live events, streaming productions, training sessions, and hybrid events, offering full-scale production capabilities in a portable, easy-to-deploy system.
