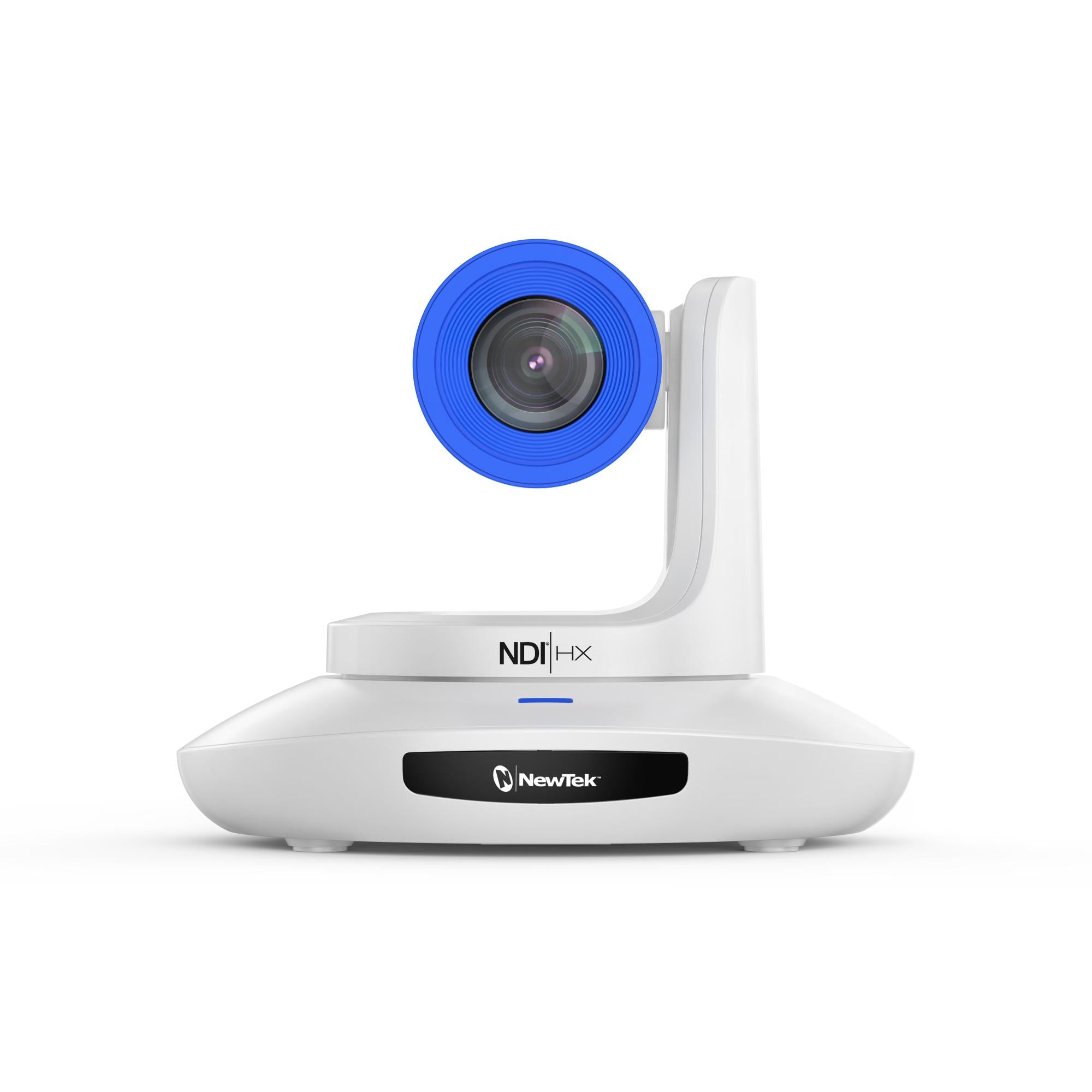

Vizrt NDI®|HX 20x PTZ3 Camera (White)

Vizrt NDI®|HX 20x PTZ3 Camera (White) is a professional Full HD PTZ camera built for broadcast studios, corporate meeting spaces, classrooms, healthcare facilities, houses of worship, and live-event production. Supporting NDI®|HX3 alongside 3G-SDI and HDMI outputs, it integrates easily into both IP-based and traditional SDI workflows while providing flexible connectivity for modern production environments.

Equipped with a 1/2.86-inch CMOS sensor and a 20x optical zoom lens, the camera delivers smooth motor-driven pan and tilt movement for accurate framing across a wide coverage area. PoE+ allows power, video, audio, tally, and PTZ control to travel through a single Ethernet cable, while the professional Mini XLR input supports direct connection to balanced audio sources.

Highlights

• NDI®|HX3, 3G-SDI, and HDMI outputs for flexible IP and SDI production workflows
• 20x optical zoom with 2x digital zoom for detailed image capture across large spaces
• Smooth synchronized PTZ movement for natural transitions between preset positions
• Professional Mini XLR audio input with embedded NDI and HDMI audio support
• Single-cable PoE+ operation carries power, video, audio, control, and tally over Ethernet

Quick Specs & Uses

• Product type: Full HD network PTZ camera
• Primary workflows: Broadcast studios, corporate meetings, classrooms, hospitals, houses of worship, live events, and remote production
• Body color: White

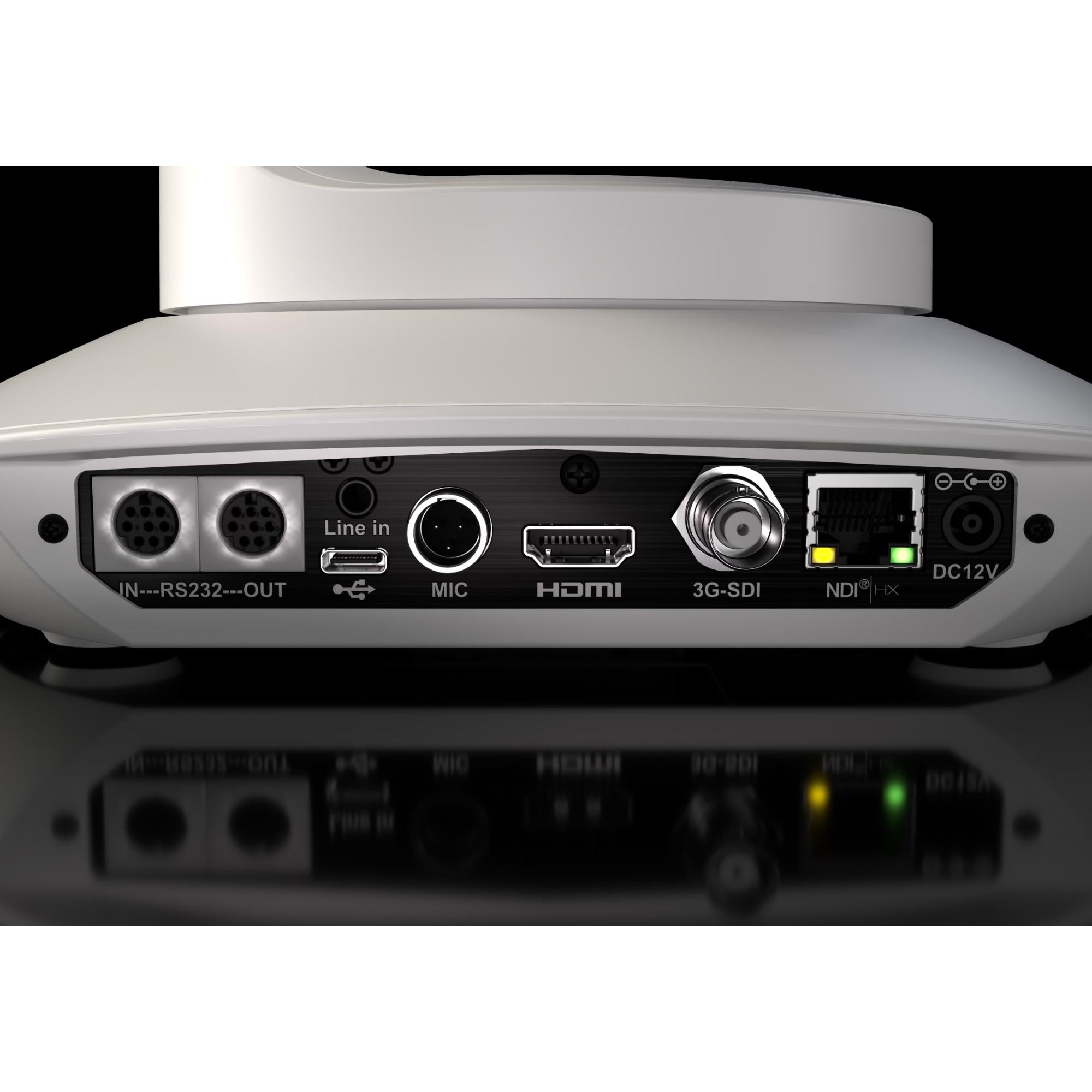

• Video outputs: NDI®|HX, 3G-SDI, and HDMI
• Audio outputs: NDI®|HX and HDMI
• Maximum resolution: 1080p60
• Image sensor: 1/2.86-inch CMOS
• Zoom: 20x optical and 2x digital
• Shutter speed: 1/30 to 1/10,000 second
• Pan range: -170° to +170°
• Pan speed: Up to 120° per second
• Tilt range: -30° to +90°
• Tilt speed: Up to 80° per second
• Aperture: F1.6 to F14
• Focal length: 4.9 to 98 mm
• Horizontal field of view: 60° to 3.2°
• Minimum object distance: 1.5 m
• Minimum illumination: 1.0 lux
• Video encoding: H.264, H.265, and NDI®|HX
• Supported video formats: 1080p, 1080i, and 720p
• Audio input: Mini XLR and 3.5 mm stereo line input
• Embedded audio: NDI and HDMI
• Sample rate: 48 kHz
• Frequency response: 100 Hz to 20 kHz
• Control: Web interface and NewTek NDI Studio Monitor
• Image adjustment: Automatic or manual gain with selectable anti-flicker
• Tally: Supported
• Power: PoE+ or 12V DC
• Power consumption: 8 W
• Dimensions: 8.66 × 7.48 × 6.41 in (220 × 190 × 173 mm)
• Weight: 2.97 lb (1.35 kg)
• Operating temperature: -10°C to 50°C
• Operating humidity: 20% to 80%

Why It Helps

The PTZ3 helps simplify permanent camera installations by reducing cabling and support hardware. Using PoE+, one Ethernet cable can carry power, video, audio, tally, and PTZ control, making installation cleaner while reducing the amount of equipment required at each camera position.

Its synchronized pan, tilt, and preset movement produce smoother transitions between camera positions, making it well suited for productions where camera movement remains visible on air. Combined with hybrid IP and SDI connectivity, it can be integrated into both new and existing production systems with minimal workflow changes.

System Characteristics

• Hybrid IP and SDI connectivity supports NDI®|HX3, 3G-SDI, and HDMI workflows
• 20x optical zoom system provides flexible framing across large production spaces
• Professional audio integration includes Mini XLR and 3.5 mm line-level inputs
• Remote camera management is available through web-based control and NDI Studio Monitor
• Single-cable PoE+ installation simplifies deployment by combining power, video, audio, control, and tally

What’s In The Box

• 1 x NewTek NDI HX3 PTZ3 Camera (White)
• 1 x Ceiling Mount
• 1 x Wall Mount
