Product Highlights
- 10-Channel UHD 4K Instant Replay
- Eight Simultaneous Capture Streams
- SDI And NDI Connectivity
- 8TB Storage And Replay Control Panel
- 10-Bit HDR/SDR, Telestration And Automation
){kind=link}
Vizrt 3Play Vivid 4K Sports Instant Replay System (2 RU)
- SKU:
- 3PVIVIDCP
- MPN:
- BDL-000000149
Product Inquiry Form
Description
Product Overview
The Vizrt 3Play Vivid (2 RU) is a professional 10-channel UHD 4K instant replay system designed for live sports, broadcast, and event production. With eight simultaneous recording channels, flexible SDI and NDI connectivity, and 8TB of internal storage, it gives production teams the tools to capture, review, and play back multiple camera angles in real time. The included control panel provides hands-on replay operation, while integrated clip management, telestration, and automation help streamline live workflows.
Vizrt 3Play Vivid is a 2RU live sports instant replay system offered by Coremicro, an authorized Vizrt dealer in Union City, California. The platform supports eight simultaneous recording channels, eight NDI video inputs up to 4K60p, session-configurable SDI connections, two video outputs, 10-bit SDR/HDR workflows and 8 TB internal storage. The hardware supports the current 3Play control panel; contact Coremicro for bundle price, exact accessories and warranty terms.
Multi-Camera Sports Replay Coverage
Follow the action across camera angles in a live replay environment. Configurable inputs give replay operators a central location to review critical plays, mark moments and assemble an editorial sequence.
LivePanel Replay Workflow Compatibility
Provide compatible production staff with additional ways to interact with the replay workflow. LivePanel is a useful option when control and access need to extend beyond the primary operator position.
Built-In Telestration for Replay Breakdown
Add visual explanations to replays for coaching reviews, broadcast commentary and game analysis. NDI Telestrator Pro supports annotations from compatible networked devices.
Hybrid SDI and NDI Sports Production
Bring existing SDI sources and NDI network signals into a single sports replay workflow. This approach helps mobile crews and facility engineers bridge traditional broadcast infrastructure and IP video production.
Replay Recording and Asset Management
Capture eight recording channels at once, then tag and retrieve clips using metadata. Automatic session clean-up can export marked clips and delete unprotected sessions when configured.

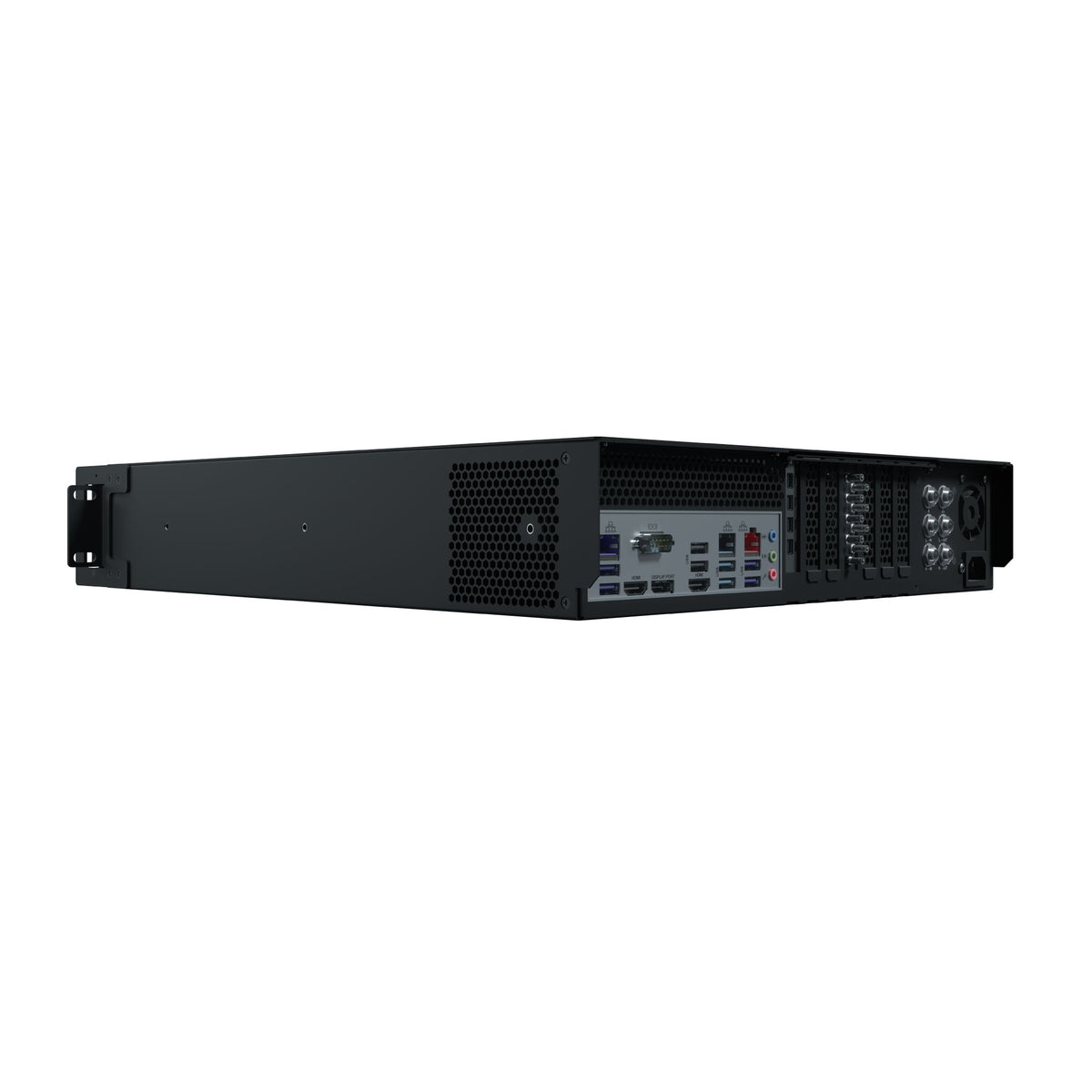

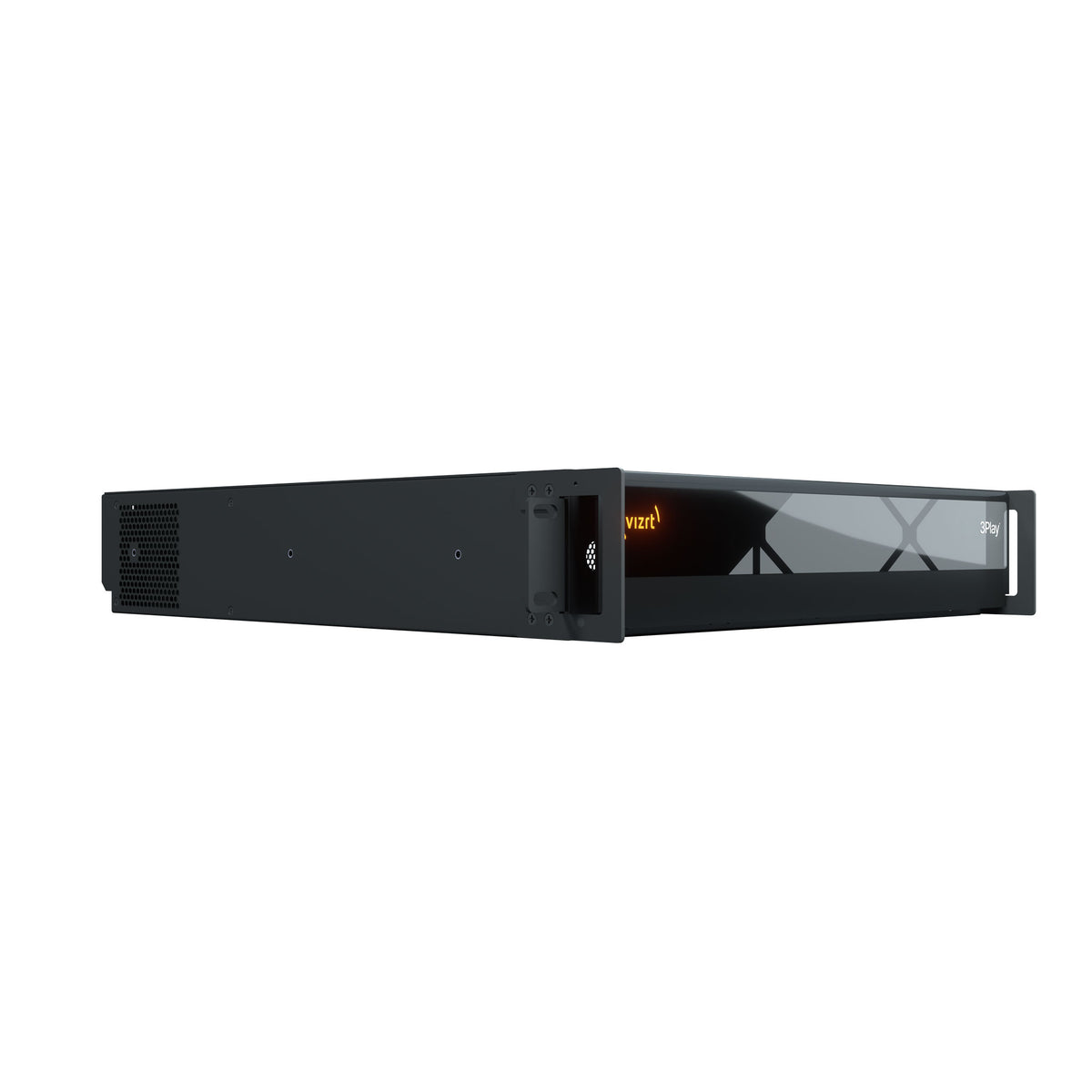

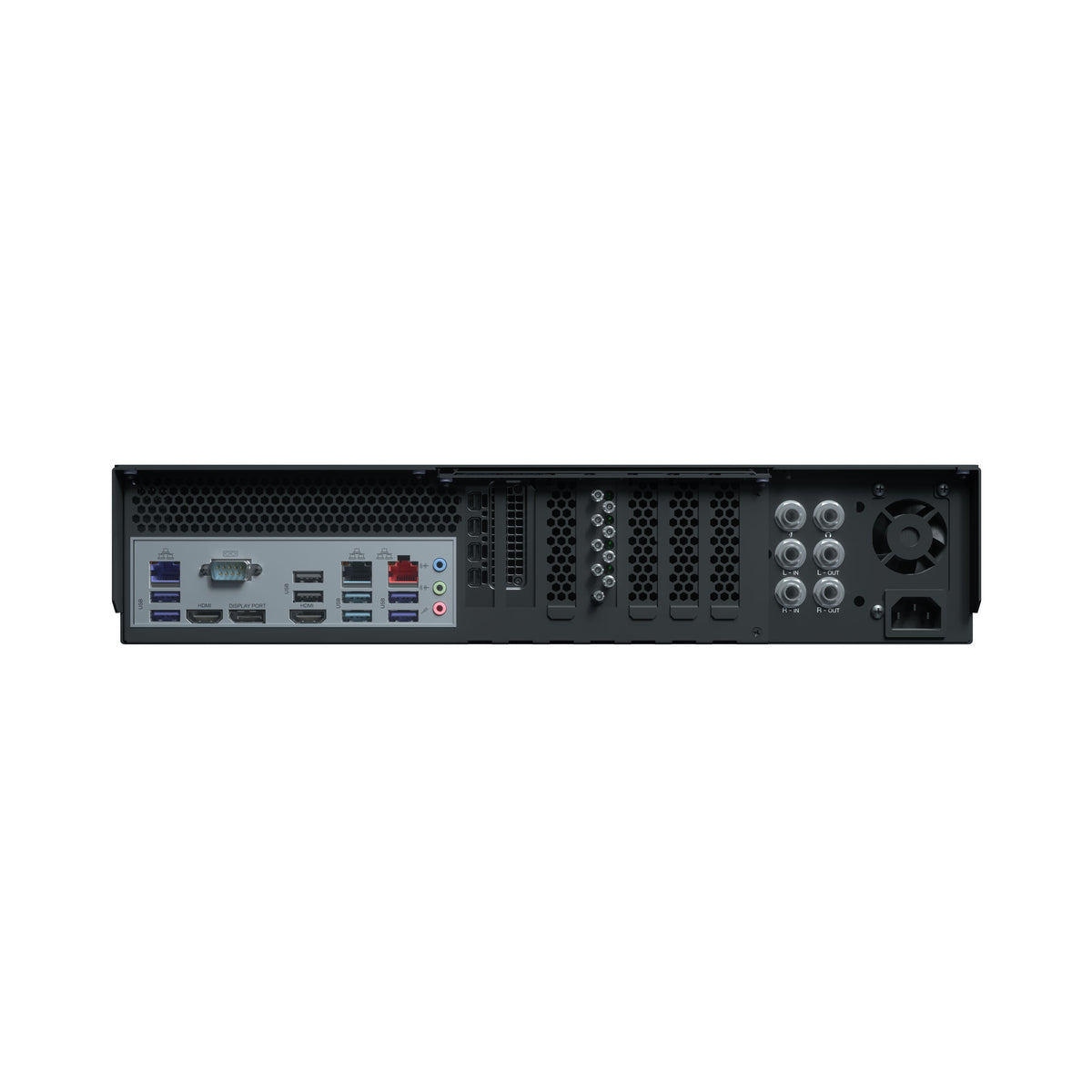

2RU Replay Server and Network Connectivity
The 2RU system provides 10 GbE, 2.5 GbE and 1 GbE RJ-45 networking, plus configurable SDI connections.
Sports Broadcast
Replay packages and commentary analysis
College Athletics
Multi-angle game coverage and highlights
Live Events
In-venue replays and production support
Sports broadcasters
Produce multi-angle replays, slow-motion playback and game highlights.
Stadium and arena teams
Support in-house screen productions and event commentary.
College athletics departments
Capture key plays and build content for athletic broadcasts.
Production truck operators
Integrate replay operation into mobile SDI and IP workflows.
Coaches and analysts
Review and illustrate moments with connected telestration workflows.
| Specification | Detail |
|---|---|
| Model | 3Play Vivid |
| Manufacturer | Vizrt |
| MPN | BDL-000000149 |
| Chassis | 2RU; 19.0 × 3.5 × 19.57 in (48.3 × 8.9 × 49.7 cm); 500W PSU |
| NDI video inputs | 8 resolution-independent IP video inputs, up to 4K60p |
| SDI I/O configuration | 8 SDI connections: 6 input / 2 output or 4 input / 4 output, set by session |
| 12G-SDI allocation | 6-in/2-out: 3 inputs + 1 output in 12G; 4-in/4-out: 2 inputs + 2 outputs in 12G |
| SDI video standards | 2160p 59.94/50/29.97/25; 1080p 59.94/50/29.97/25; 1080i 59.94/50; 720p 59.94/29.97/25 |
| Video outputs | 2 session-format outputs (A and B) with simultaneous IP and SDI delivery |
| NDI video outputs | 2 session-format NDI IP video outputs |
| Multiviewer outputs | 3 DisplayPort multiviewer outputs |
| Recording | 8 simultaneous recording channels; QuickTime SpeedHQ, 4:2:2 video and 32-bit audio |
| Internal storage | 8 TB; expandable with USB and network storage devices |
| Color workflows | 10-bit SDR/HDR; video processing in floating-point YCbCr + Alpha, 4:2:2:4 |
| Telestration | Integrated NDI Telestrator Pro, with supported networked devices |
| Media export | Video and still-image export to social platforms, FTP, local/external volumes and network servers; optional transcoding |
| Audio connectivity | SDI embedded audio, balanced 1/4-inch stereo I/O, 1/4-inch mic input, headphone output, NDI network audio |
| Network interfaces | 1 × 10 GbE RJ-45; 1 × 2.5 GbE RJ-45; 1 × 1 GbE RJ-45 |
| USB | 2 × USB 2.0; 5 × USB 3.2 Gen 2; 1 × USB 3.2 Gen 2×2 Type-C |
| Synchronization | Genlock: SD bi-level or HD tri-level reference |
| Automation and control | Macros, AMP, GPI via compatible JLCooper eBox, and MIDI |
| Warranty | Limited 1-Year Manufacturer Warranty |
What is the Vizrt 3Play sports replay system designed for?
The Vizrt sports replay platform is designed for multi-camera instant replay during live sports and event production.
How does the 4K instant replay system fit into SDI and NDI workflows?
The 4K instant replay system supports configurable SDI sources and NDI-based IP production. Engineers should confirm specific port assignments against the intended installation.
Does the replay server support telestration?
The replay server supports telestration through NDI Telestrator Pro technology using compatible connected devices.
Can multiple replay operators share playlists?
Shareable replay playlists can be accessed by supported 3Play and TriCaster devices across the network.
Which replay control panel is supplied with this bundle?
The 3Play Control-Panel is included.
How does 3Play Vivid compare with 3Play 3P2?
The Vizrt 3Play Vivid upgrades the 3Play 3P2 by doubling its physical SDI capacity to 8 ports with single-cable 12G-SDI 4K support, upgrading color processing from 8-bit SDR to 10-bit HDR, and adding cloud deployment flexibility. It also introduces network-wide real-time playlist synchronization and tagging across multi-operator setups, all while coming in at a lower starting price point ($23,495 vs $25,495).
Is Coremicro an authorized Vizrt dealer?
Coremicro is an authorized Vizrt platinum dealer offering assistance with sports replay system configuration and purchasing.
Plan Your Sports Instant Replay System
Coremicro is an authorized Vizrt dealer. Discuss your workflow requirements and bundle contents, SDI and NDI integration, rack installation and replay operator requirements for broadcast and live sports production.
Talk to a SpecialistSpecifications
