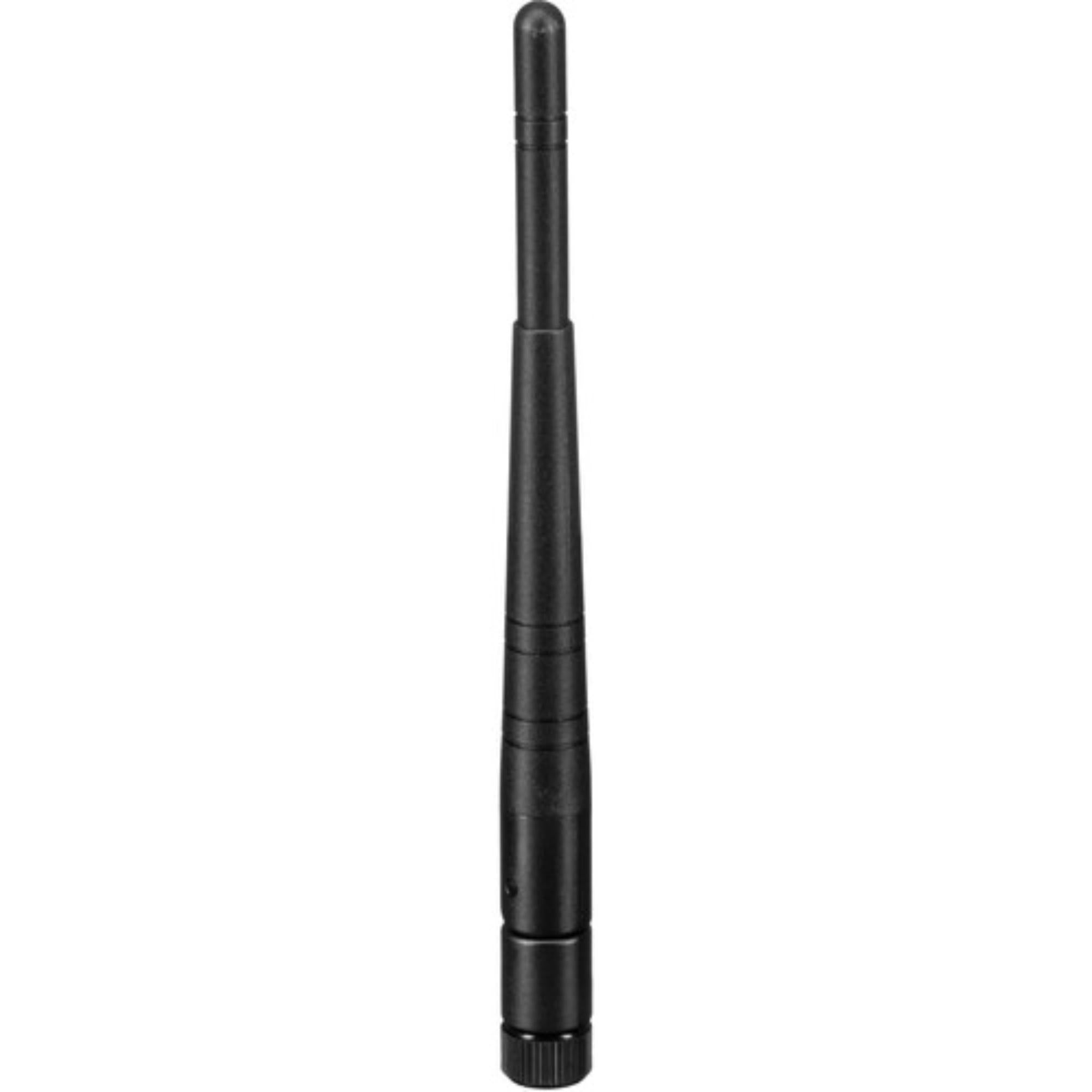

Teradek Wireless Antenna for Bolt 3000 XT Transmitter

Teradek Wireless Antenna for Bolt 3000 XT Transmitter is a standard replacement antenna for the Teradek Bolt 3000 XT wireless video transmitter. From the supplied source, it provides 5 dBi gain and operates across the 5.1 to 5.8 GHz frequency range.

The antenna connects through an RP-SMA female interface and is intended for direct use with the Bolt 3000 XT transmitter. It is a practical spare for replacing a damaged or missing antenna without taking the complete wireless video system out of service.

Highlights

• Replacement wireless antenna for the Teradek Bolt 3000 XT transmitter
• 5 dBi antenna gain
• Operates from 5.1 to 5.8 GHz
• RP-SMA female coaxial connection
• Lightweight 6-inch design for field and production use

Quick Specs & Uses

• Product type: Standard replacement wireless antenna
• Compatible system: Teradek Bolt 3000 XT transmitter
• Antenna type: Standard
• Gain: 5 dBi
• Operating frequency: 5.1 to 5.8 GHz
• Connection: 1 x coaxial RP-SMA female
• Pattern: Not specified by the manufacturer
• Beamwidth: Not specified by the manufacturer
• Polarization: Not specified by the manufacturer
• Third-order intercept point: Not specified by the manufacturer
• Impedance: Not specified by the manufacturer
• Dimensions: 0.5 in diameter x 6 in high / 1.2 x 15 cm
• Weight: 0.6 oz / 17 g
• Primary uses: Replacement, backup, rental inventory, and field servicing for Bolt 3000 XT transmitter systems

Why It Helps

A missing or damaged antenna can stop an otherwise working transmitter from being deployed. Keeping a direct replacement in the wireless video kit gives the camera or video-assist team a quick way to restore the Bolt 3000 XT without replacing the entire transmitter package.

The listed 5 dBi gain and 5.1 to 5.8 GHz operating range match the intended transmitter workflow. That makes the antenna suitable for normal production use as well as maintenance and spare-parts support.

At only 17 g, it adds very little weight to the transmitter. Its six-inch form factor is also easy to store in a wireless video case, rental drawer, or field service kit.

System Characteristics

• Direct Bolt 3000 XT transmitter compatibility
• 5 dBi gain for supported wireless video operation
• 5.1 to 5.8 GHz frequency coverage
• RP-SMA female connection for direct installation
• Lightweight replacement design for field and rental use

What’s In The Box

• 1 x Teradek Wireless Antenna for Bolt 3000 XT Transmitter
