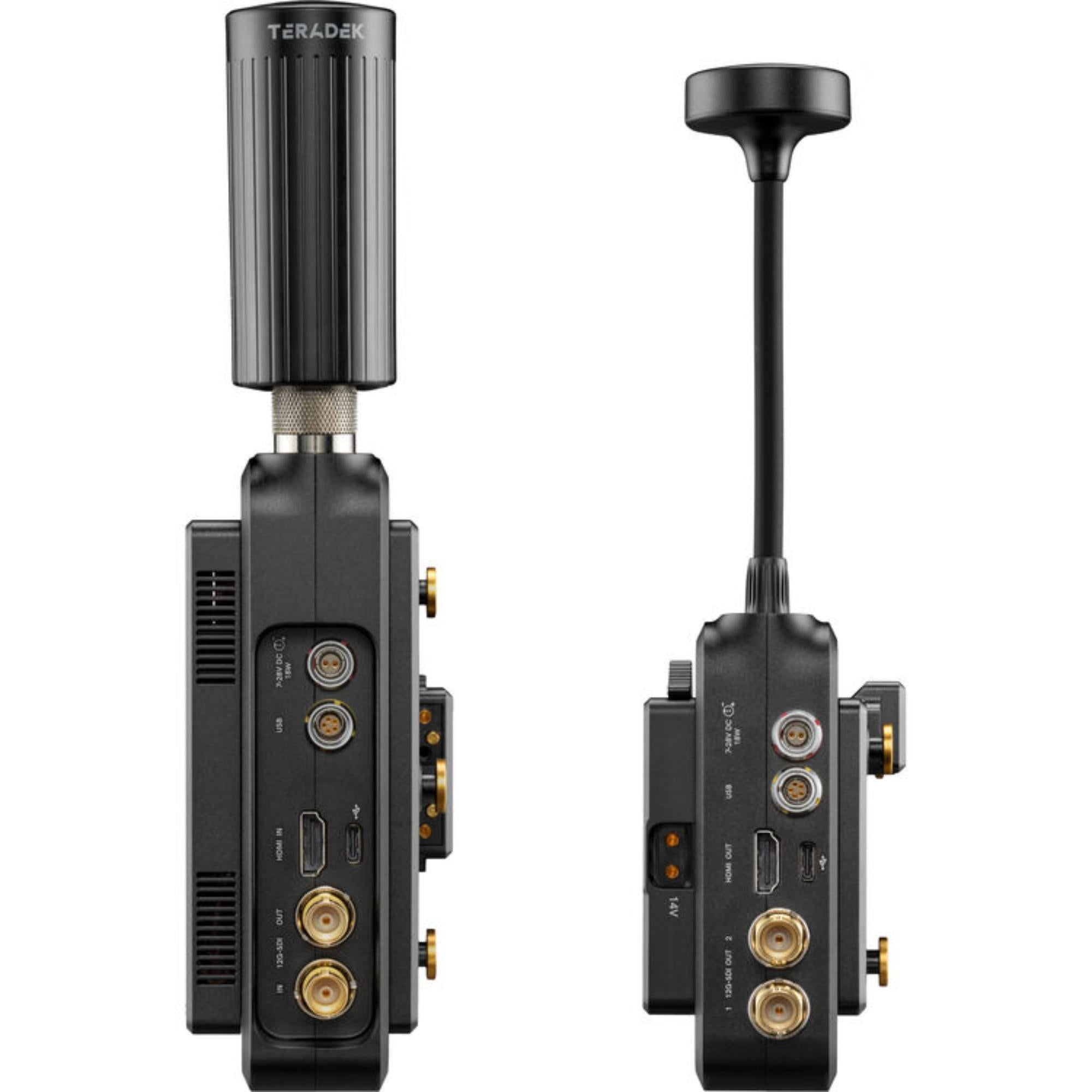

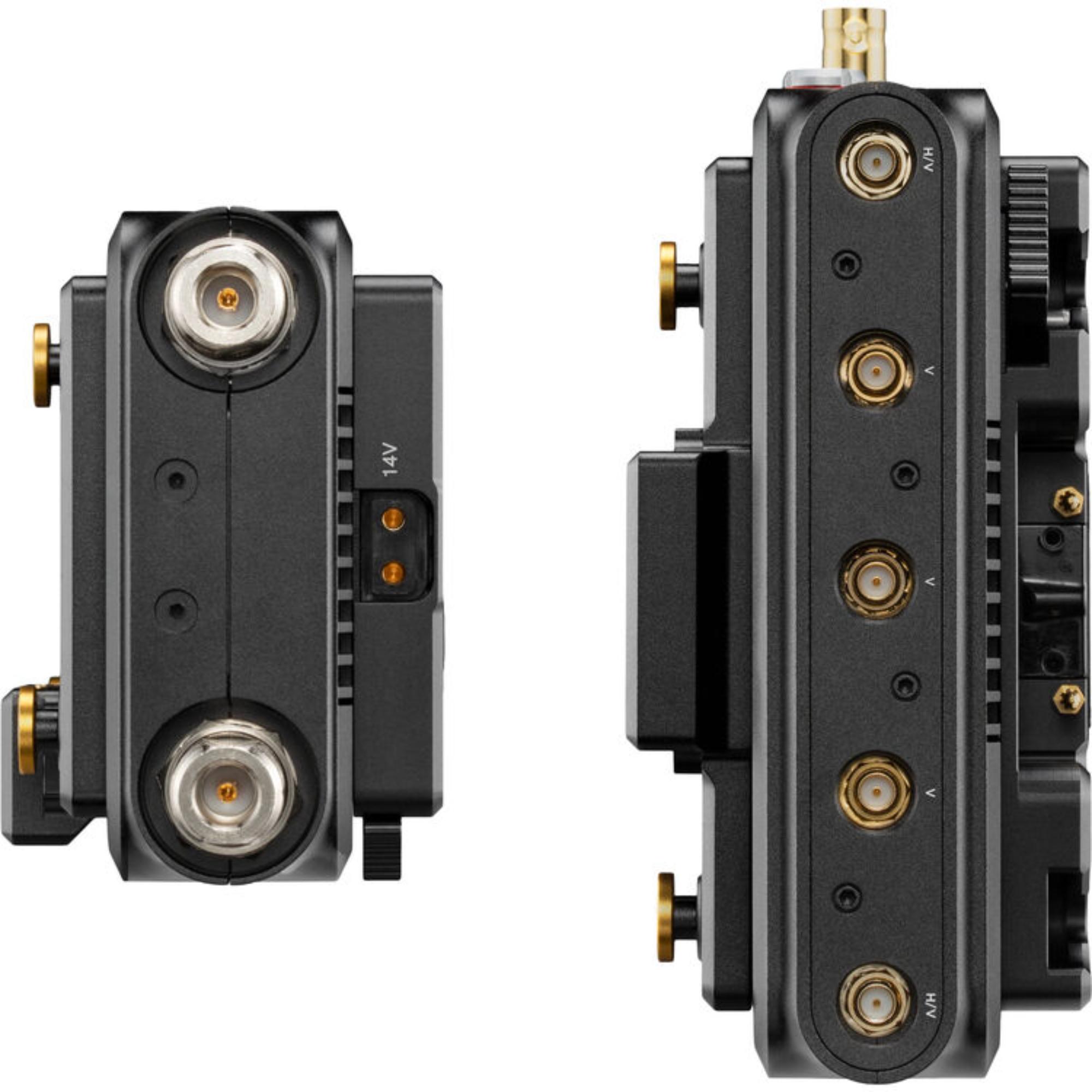

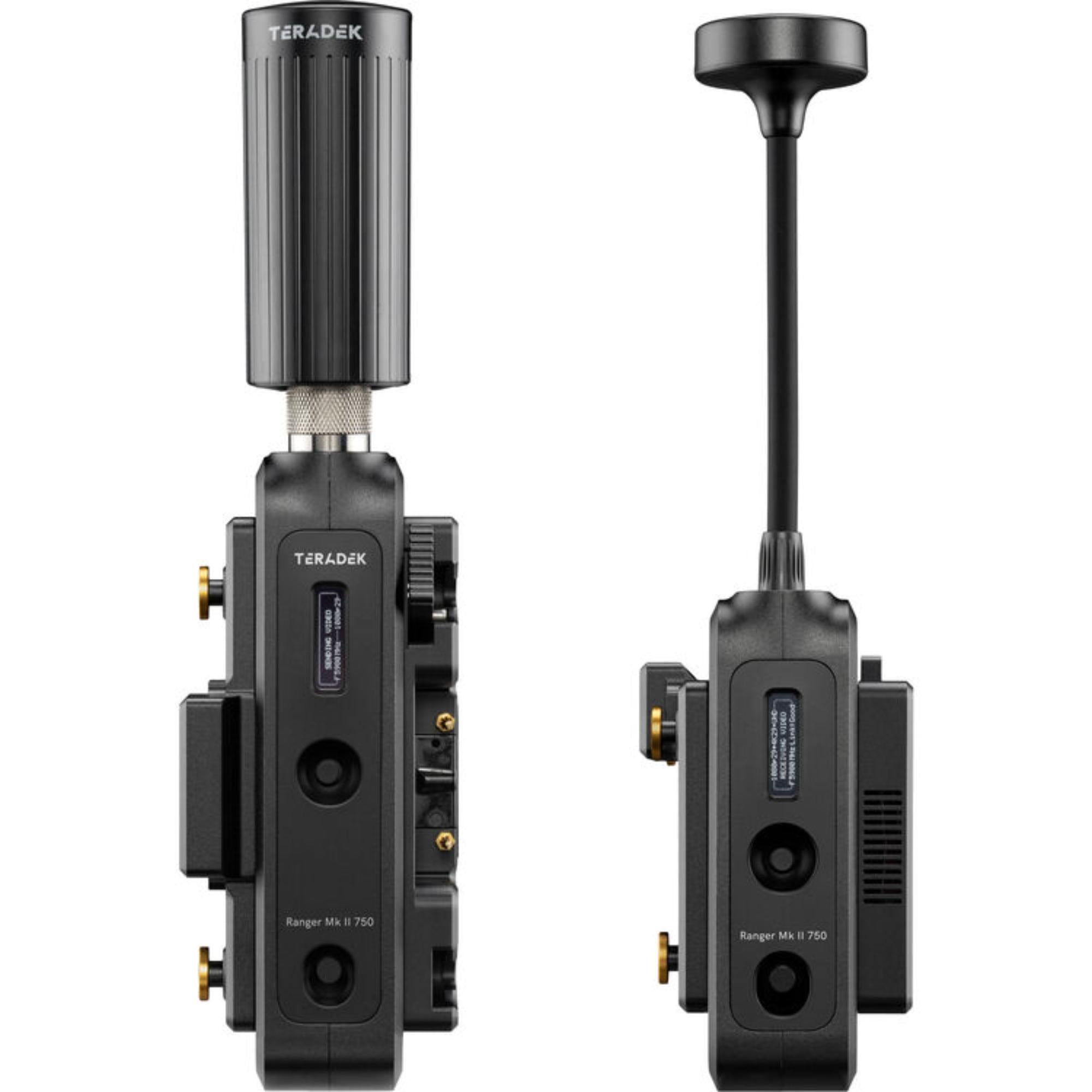

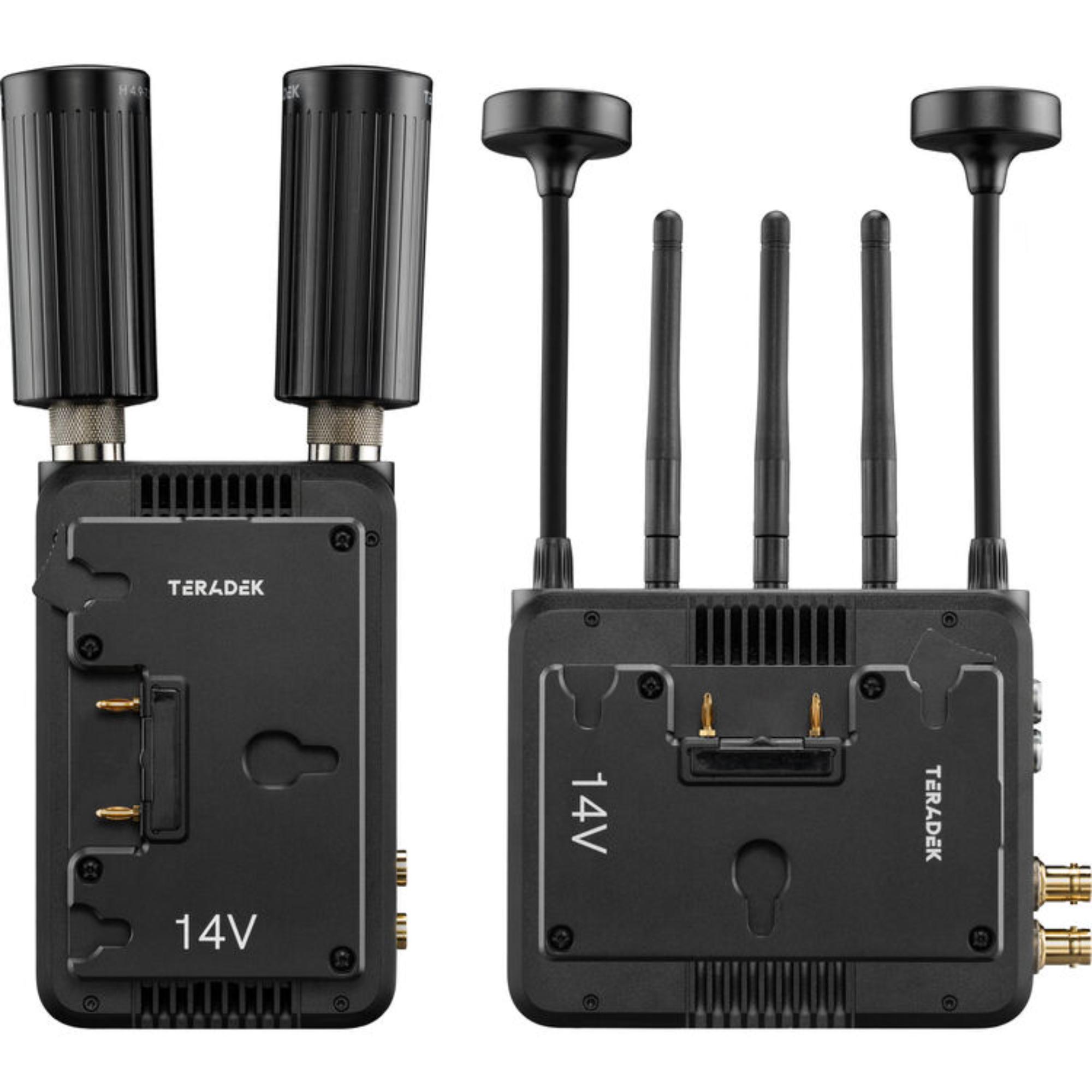

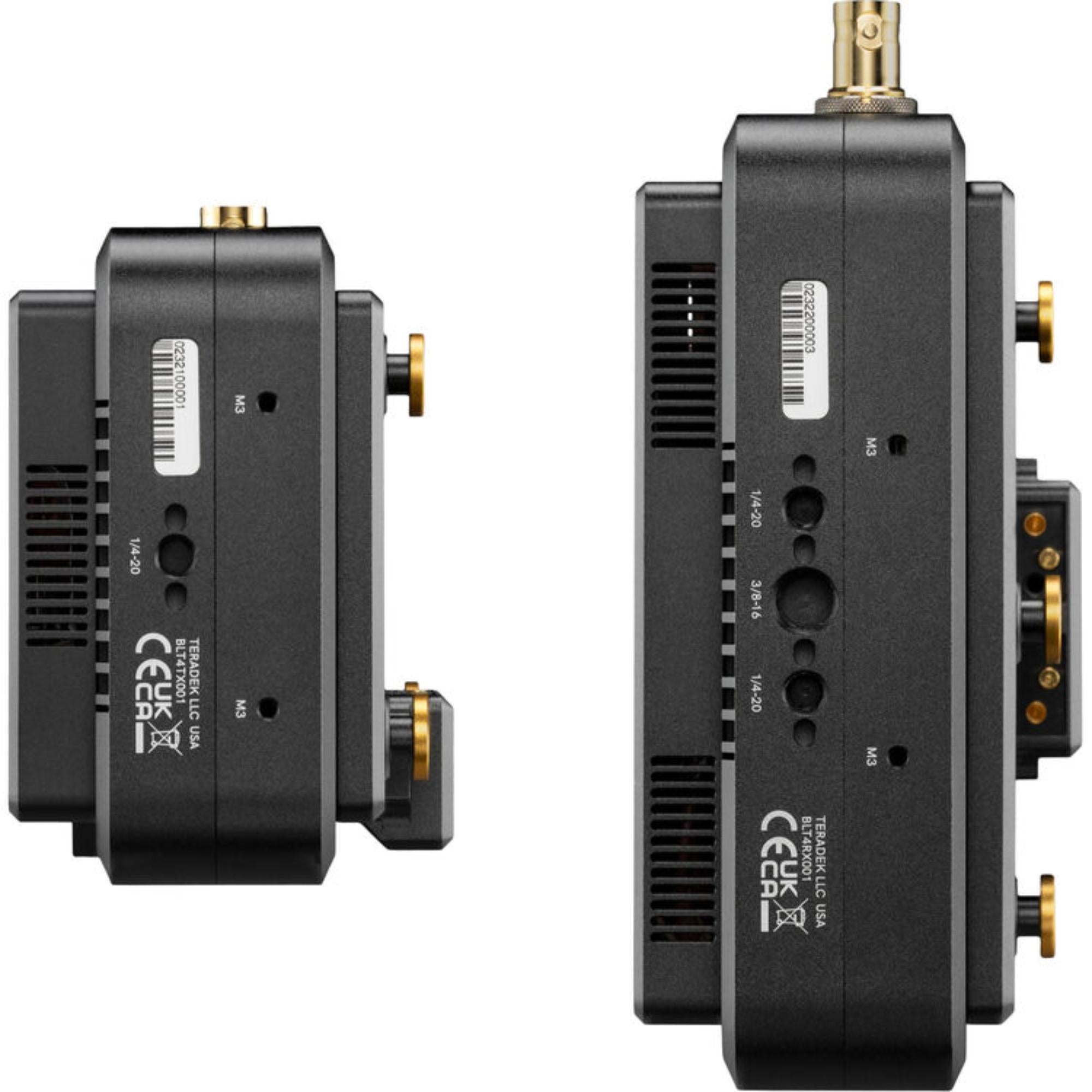

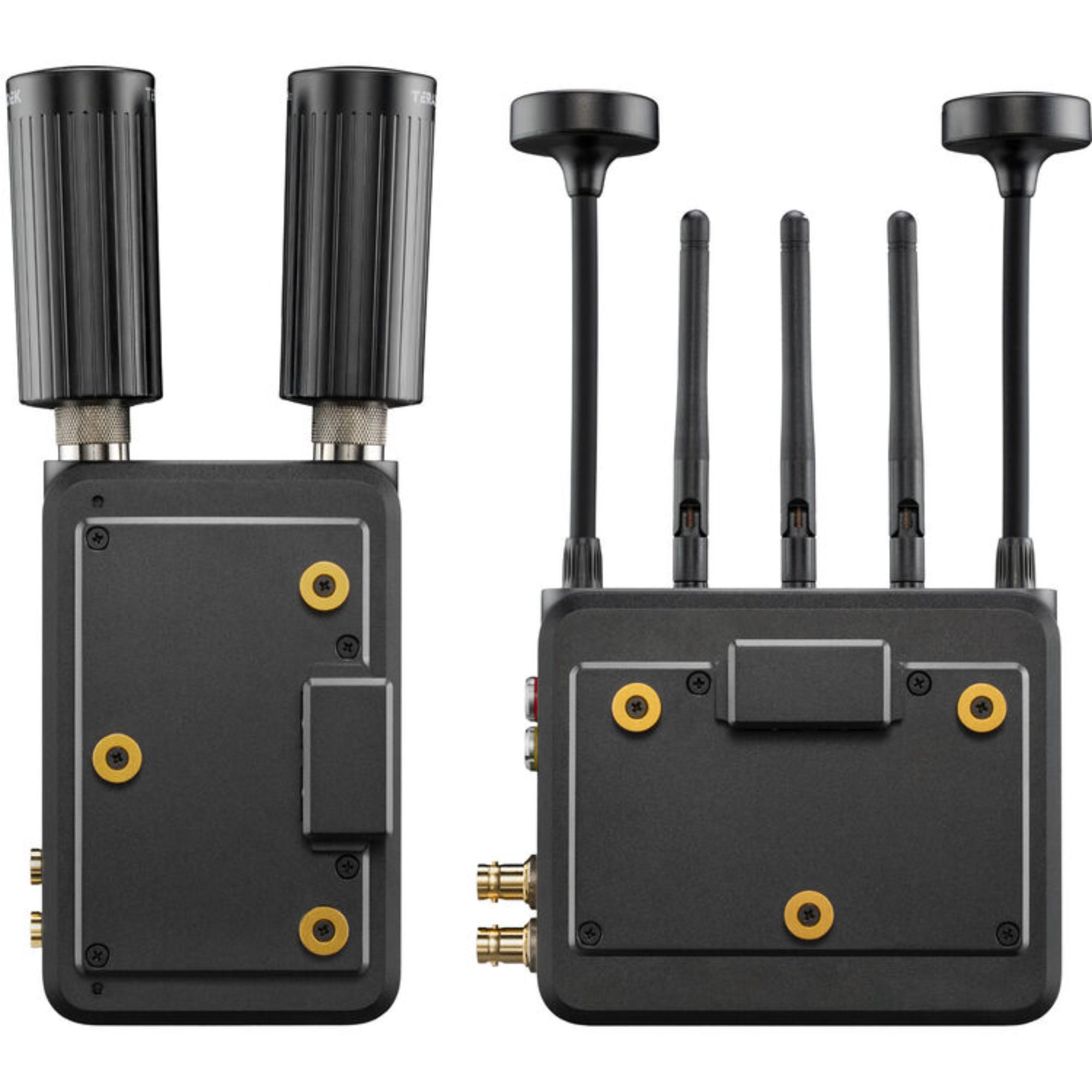

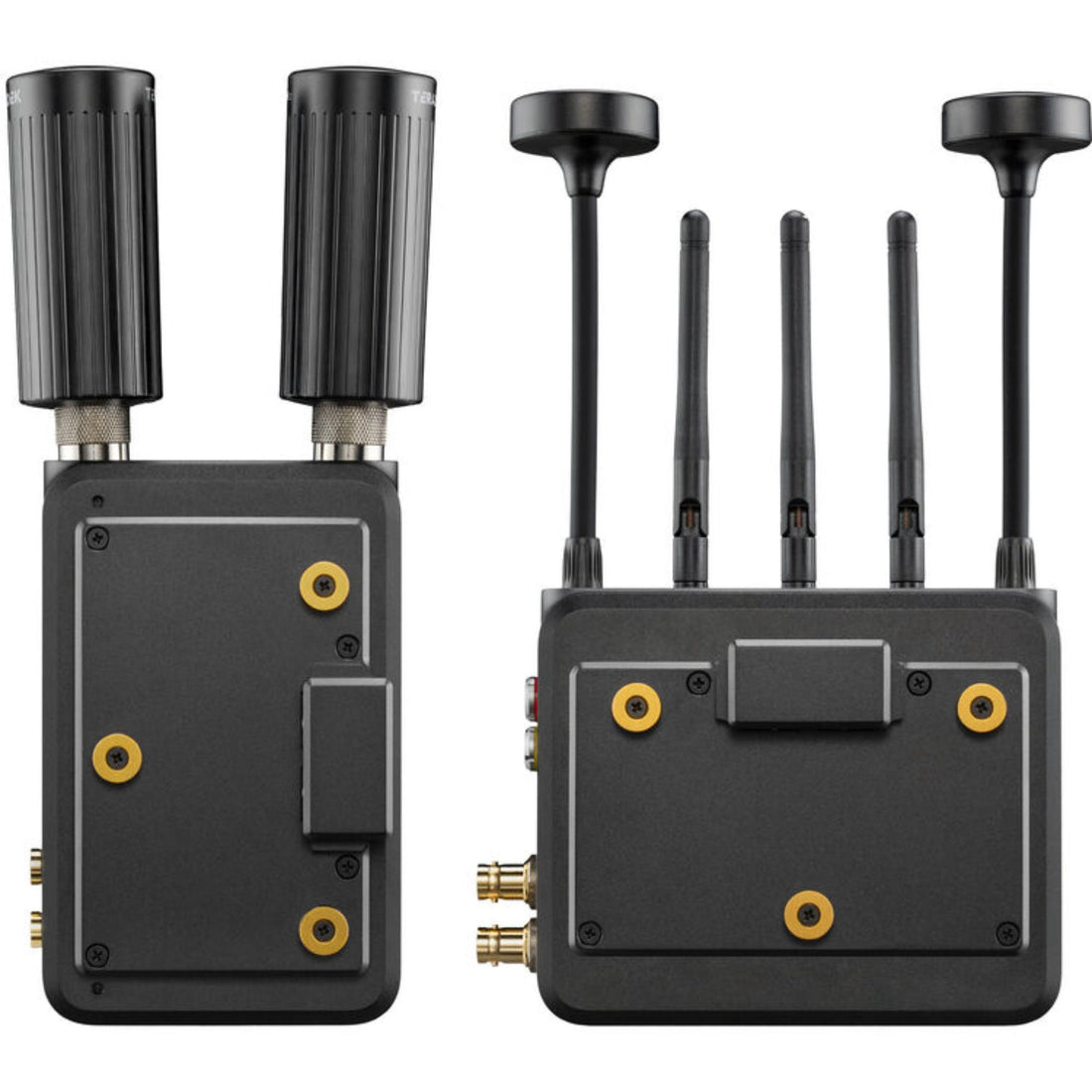

Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter/Receiver Set (Gold Mount)

Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter/Receiver Set (Gold Mount) is a professional wireless video system for broadcast, live events, handheld cameras, drones, and on-set monitoring. From the supplied source, it sends uncompressed video up to 750 ft / 228.6 m under line-of-sight conditions with latency listed at less than 1 ms.

The transmitter accepts HDMI 2.0 or 12G-SDI video and includes a 12G-SDI loop output for a camera-side monitor or recorder. At the receive position, the matching unit provides HDMI 2.0 and 12G-SDI outputs, while fixed Gold Mount plates keep both ends of the link on a familiar broadcast battery system.

Highlights

• 12G-SDI/HDMI wireless transmitter and receiver set for professional 4K monitoring
• Up to 750 ft / 228.6 m line-of-sight range
• Uncompressed video transmission with less than 1 ms latency
• Supports UHD 4K60, 10-bit 4:2:2 HDR, timecode, and embedded audio
• 256-bit AES encryption, Gold Mount battery plates, and support for up to six receivers

Quick Specs & Uses

• Product type: Wireless video transmitter and receiver set
• Primary workflows: Broadcast, live events, handheld production, drone work, video village, focus monitoring, and remote camera feeds
• Maximum wireless range: 750 ft / 228.6 m, line of sight
• Wireless video transmission: Uncompressed
• Latency: Less than 1 ms
• Maximum HDMI format: UHD 4K60
• HDMI color support: 8/10-bit 4:4:4 and 4:2:2 RGB/YCC
• SDI color support: 10-bit 4:2:2 YCC
• HDR support: 4K60 10-bit 4:2:2 HDR
• Timecode support: Yes
• Audio format: 2-channel, 24-bit, 48 kHz
• Embedded HDMI audio: 2-channel
• Embedded SDI audio: 2-channel
• Dedicated analog audio I/O: No
• Encryption: 256-bit AES
• Frequency ranges: 4.9 GHz, 5 GHz, and 6.4 GHz ranges
• Channel bandwidth: 40 MHz and 20 MHz
• Transmitter RF power: 23 dBm
• Receiver RF power: 21 dBm
• Bluetooth: Bluetooth 5.0 LE
• Mobile app compatibility: Android and iOS
• App functions: Adjust settings, remote control, setup, and live-feed viewing
• Wi-Fi: No
• Cellular support: No
• Receiver support: Transmission to up to six receivers
• Battery mounting: Fixed Gold Mount plates

Why It Helps

The Ranger MK II 750 is a practical fit for stages, studios, smaller venues, and field setups where the camera needs to move without dragging a long SDI cable behind it. Its listed 750 ft line-of-sight range gives handheld operators, gimbal crews, drone teams, and mobile camera positions enough room to work while the production side keeps a live picture.

The transmitter supports both HDMI 2.0 and 12G-SDI, so it can sit comfortably in either a cinema or broadcast camera build. The 12G-SDI loop output is useful when the operator still needs a local monitor or recorder at the camera while the same feed is being sent wirelessly.

At the receiver, HDMI 2.0 and 12G-SDI outputs make the signal easy to pass into a director’s monitor, focus station, recorder, router, or switcher. With latency listed below 1 ms, the picture remains responsive enough for focus, framing, and live-production decisions.

One transmitter can feed as many as six receivers, allowing several departments to watch the same camera without adding another transmitter at the source. AES-256 encryption also helps keep the wireless feed protected while it moves across the production environment.

System Characteristics

• 750 ft line-of-sight operation for studios, stages, venues, and mobile camera positions
• Uncompressed wireless transport without an added transmission codec
• Sub-millisecond latency for focus, framing, and live monitoring
• 12G-SDI and HDMI 2.0 connectivity for professional UHD sources
• Support for up to six receivers from one transmitter
• 256-bit AES encryption for protected wireless video transport
• Bluetooth mobile control for setup and remote adjustment
• Fixed Gold Mount plates for established broadcast battery systems
• Aluminum and polycarbonate construction for production use

What’s In The Box

• 1 x Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter (Gold Mount)
• 2 x N-Type Antennas
• 1 x Gold Mount Battery Plate for Transmitter
• 1 x Limited One-Year Manufacturer Warranty
• 1 x Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Receiver (Gold Mount)
• 5 x 2 dBi Antennas
• 1 x Gold Mount Battery Plate for Receiver
