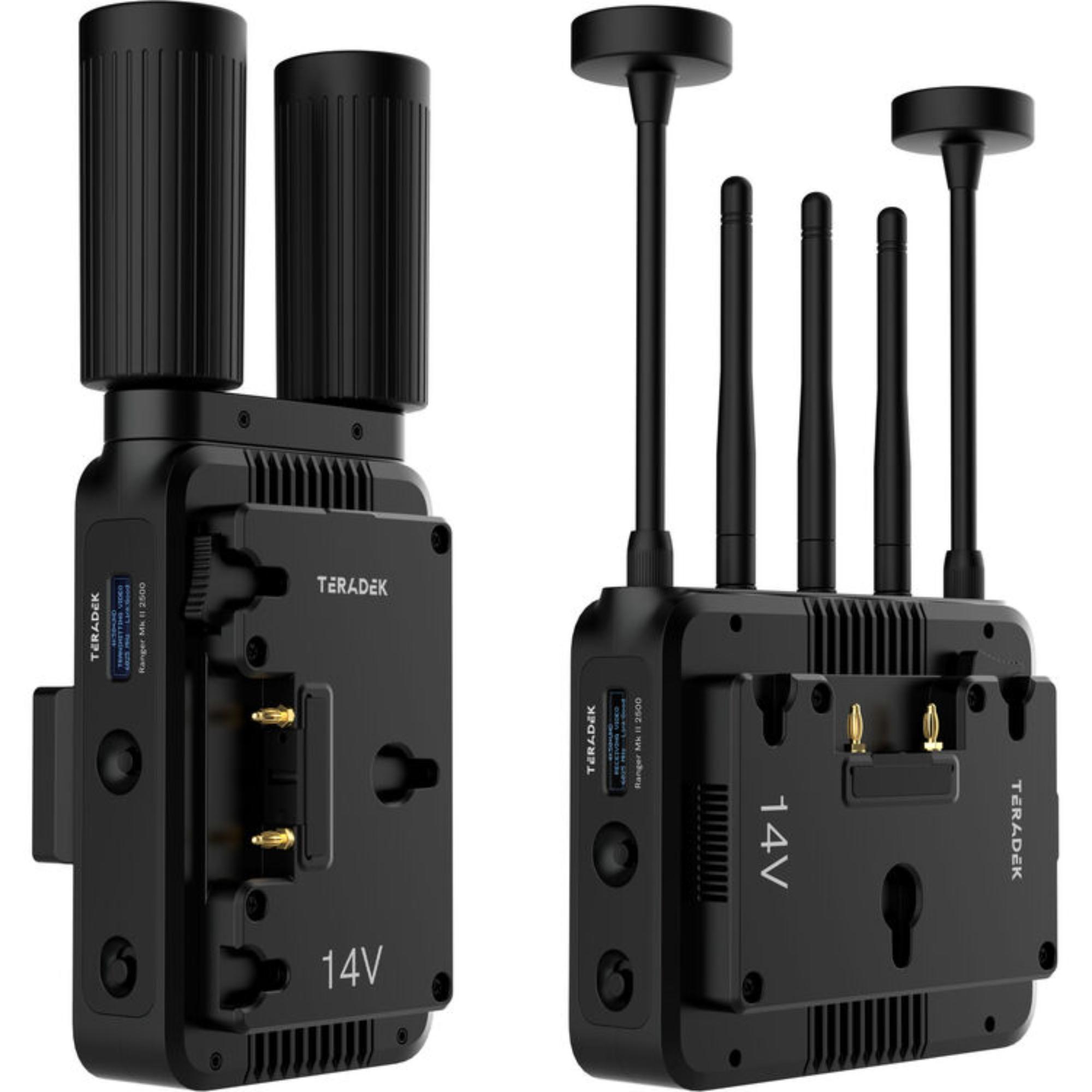

Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter/Receiver Deluxe Kit (Gold Mount)

Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter/Receiver Deluxe Kit (Gold Mount) is a long-range wireless video system for broadcast, live events, drone work, handheld cameras, and other productions where the camera feed needs to travel far beyond a practical cable run. From the supplied source, the system carries uncompressed video up to 5,000 ft / 1,524 m under line-of-sight conditions with latency listed at less than 1 ms.

The transmitter accepts HDMI 2.0 or 12G-SDI video and includes a 12G-SDI loop output for a local monitor or recorder. At the receive position, the matching unit provides HDMI 2.0 and 12G-SDI outputs, while fixed Gold Mount plates keep both ends of the link compatible with a familiar broadcast battery workflow.

Highlights

• 12G-SDI/HDMI wireless transmitter and receiver deluxe kit for professional 4K monitoring
• Up to 5,000 ft / 1,524 m line-of-sight range
• Uncompressed video transmission with less than 1 ms latency
• Supports UHD 4K60, 10-bit 4:2:2 HDR, timecode, and embedded audio
• 256-bit AES encryption, Gold Mount battery plates, and support for up to six receivers

Quick Specs & Uses

• Product type: Long-range wireless video transmitter and receiver kit
• Primary workflows: Broadcast, live events, sports, drone production, vehicle work, handheld cameras, video village, and remote monitoring
• Maximum wireless range: 5,000 ft / 1,524 m, line of sight
• Wireless video transmission: Uncompressed
• Latency: Less than 1 ms
• Maximum HDMI format: UHD 4K60
• HDMI color support: 8/10-bit 4:4:4 and 4:2:2 RGB/YCC
• SDI color support: 10-bit 4:2:2 YCC
• HDR support: 4K60 10-bit 4:2:2 HDR
• Timecode support: Yes
• Audio format: 2-channel, 24-bit, 48 kHz
• Embedded HDMI audio: 2-channel
• Embedded SDI audio: 2-channel
• Dedicated analog audio I/O: No
• Encryption: 256-bit AES
• Frequency ranges: 4.9 GHz, 5 GHz, and 6.4 GHz ranges
• Channel bandwidth: 40 MHz and 20 MHz
• Transmitter RF power: 23 dBm
• Receiver RF power: 21 dBm
• Bluetooth: Bluetooth 5.0 LE
• Mobile app compatibility: Android and iOS
• App functions: Adjust settings, remote control, setup, and live-feed viewing
• Wi-Fi: No
• Cellular support: No
• Receiver support: Transmission to up to six receivers
• Battery mounting: Fixed Gold Mount plates

Why It Helps

A 5,000 ft wireless link gives the camera team room to work across large venues, exterior locations, tracks, stages, and event sites without building the shot around a long SDI cable. That is useful for roaming cameras, drones, vehicle rigs, sports coverage, and remote camera positions that sit well away from the production area.

The transmitter can take either HDMI 2.0 or 12G-SDI, so it fits into both cinema and broadcast camera builds. Its 12G-SDI loop output also leaves a local camera-side monitor or recorder connected while the same source is sent wirelessly.

At the receiver, HDMI 2.0 and 12G-SDI outputs make the feed easy to route into a director's monitor, focus station, recorder, router, or switcher. With less than 1 ms of listed latency, the image remains practical for live work where a delayed picture can make focusing, framing, or switching harder.

The system can transmit to as many as six receivers, allowing one camera feed to reach several monitoring positions without adding a separate transmitter for each destination. The Deluxe Kit also includes the antennas, cables, adapters, mounting hardware, and transport case needed for a more complete field setup.

System Characteristics

• 5,000 ft line-of-sight operation for large venues and remote camera positions
• Uncompressed wireless transport without an added transmission codec
• Sub-millisecond latency for focus, monitoring, and live-production use
• 12G-SDI and HDMI 2.0 connectivity for professional UHD sources
• Support for up to six receivers from one transmitter
• 256-bit AES encryption for protected video transmission
• Bluetooth mobile control for setup and remote adjustment
• Fixed Gold Mount plates for established broadcast battery systems
• Aluminum and polycarbonate construction for production use

What’s In The Box

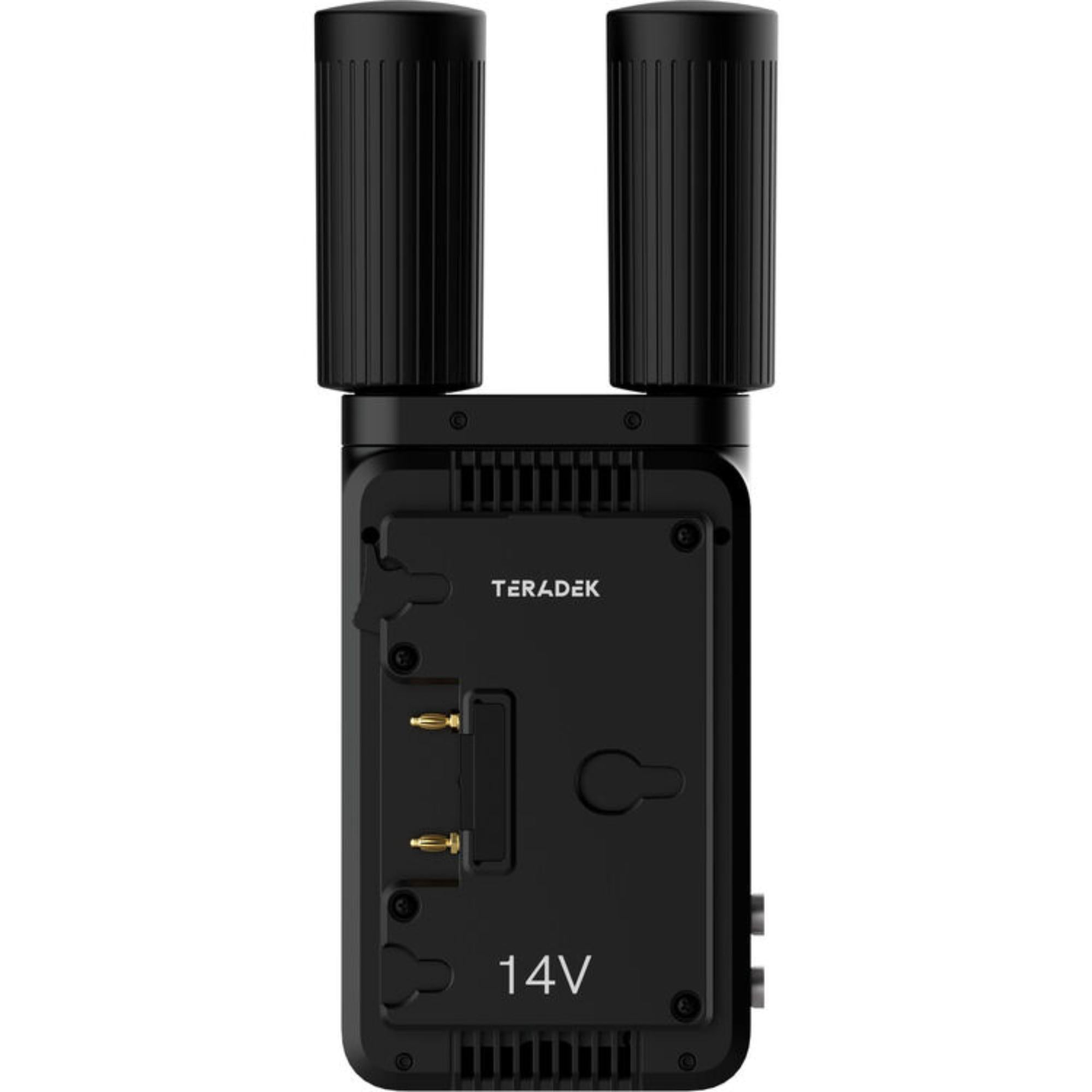

• 1 x Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter (Gold Mount)
• 2 x N-Type Antennas
• 1 x Gold Mount Battery Plate for Transmitter

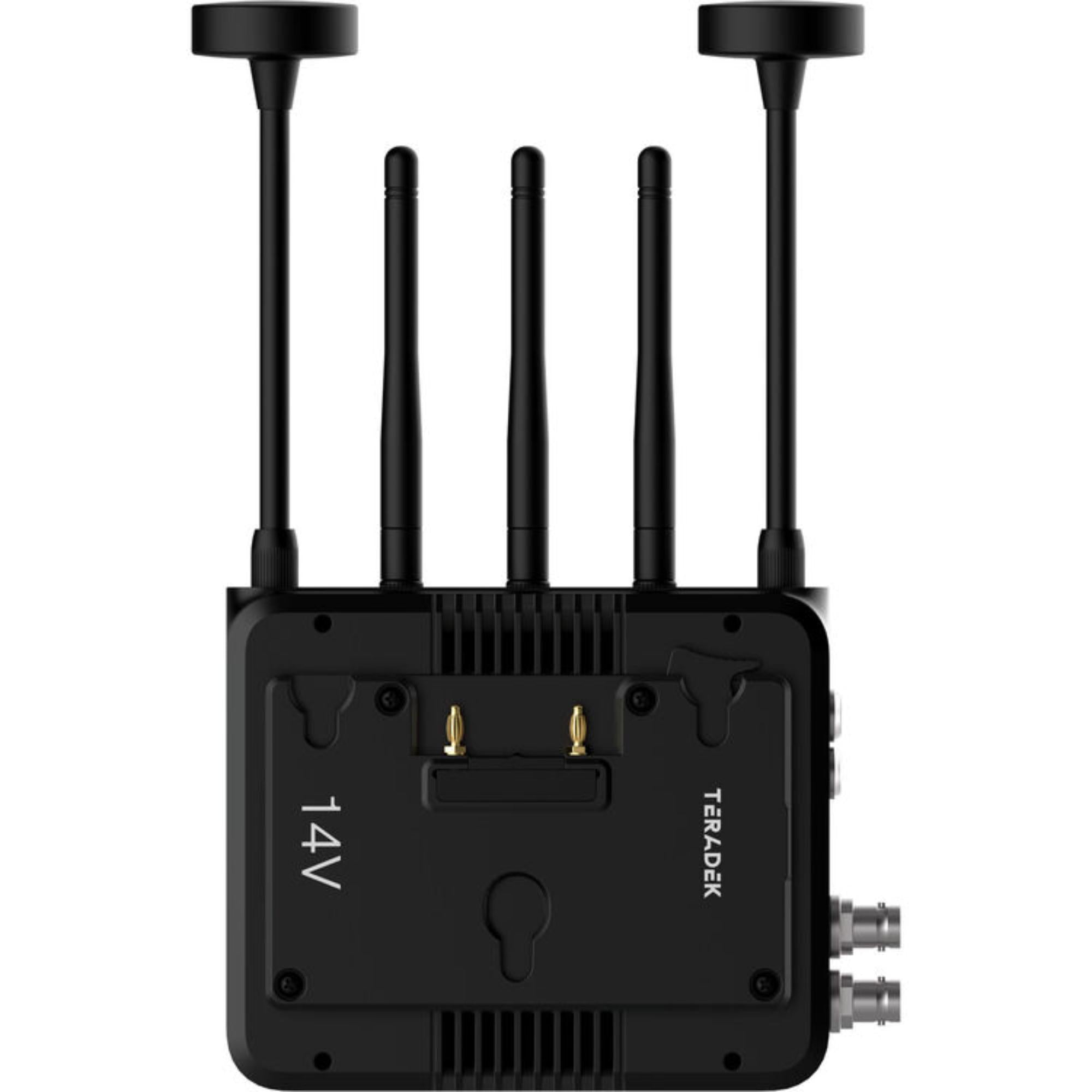

• 1 x Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Receiver (Gold Mount)
• 5 x 2 dBi Antennas
• 1 x Gold Mount Battery Plate for Receiver
• 4 x Ranger 6 Battery Doors
• 1 x 1/4"-20 Light Stand Adapter
• 1 x Shoe Adapter
• 8 x Flat Phillips Head Screws
• 1 x Ultra-Thin HDMI-A Male-to-Male Cable, 18 in
• 1 x 2-Pin to D-Tap Power Cable, 18 in
• 5 x RP-SMA Female-to-Female Cables, 4 in
• 1 x Teradek Case XL
• 2 x 18 W AC Adapters with 2-Pin Connector Cable, 6 ft
• 1 x Wooden Camera Offset Mount for Bolt 4K/6 LT TX
• 1 x White/Clear Self-Seal Bag
• 1 x Universal Hang Tag, Black
• 2 x 12G-SDI BNC-to-BNC Cables, 18 in
• 1 x USB-A 2.0 to USB-C Male Cable, 3.3 ft
