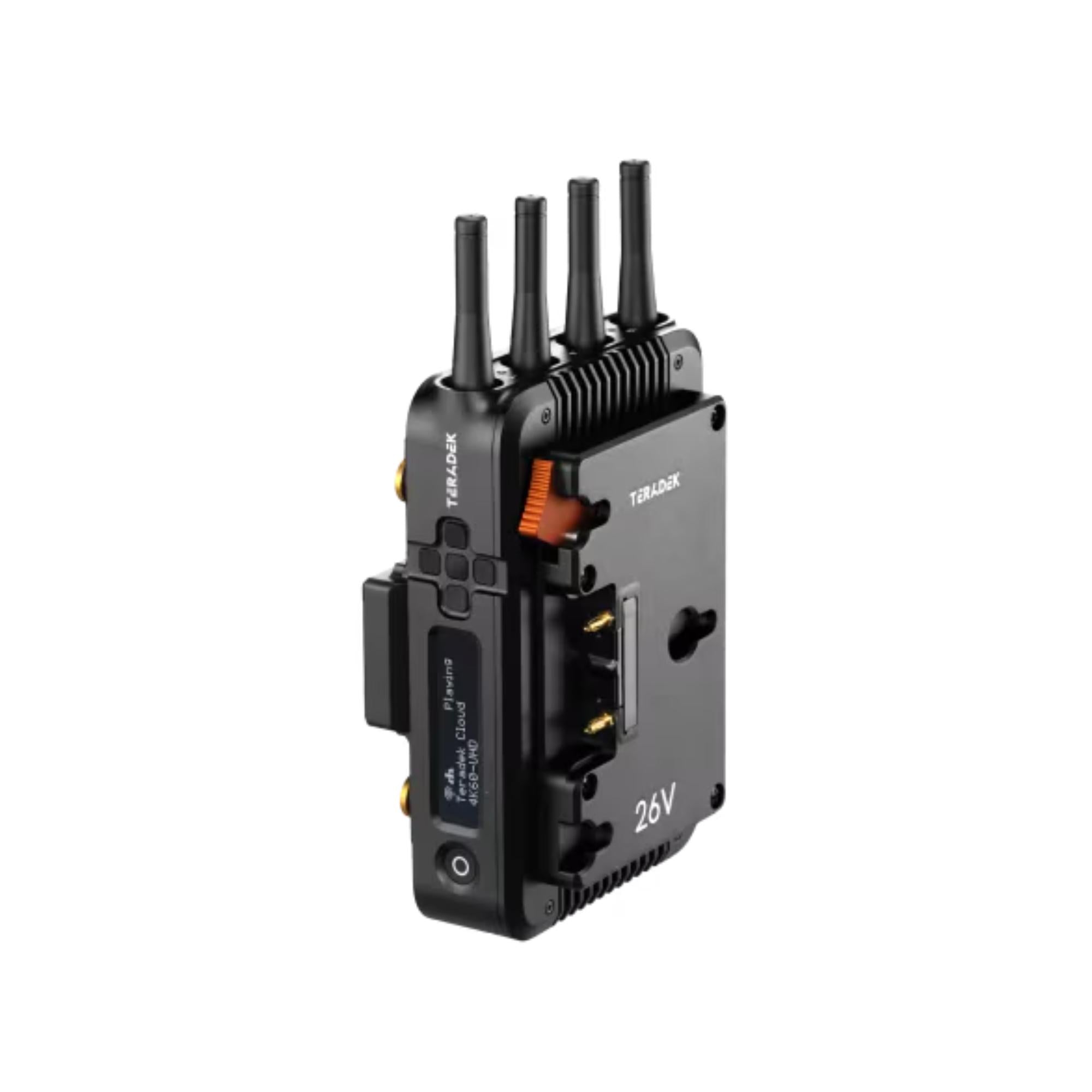

Teradek Prism Mobile Mk II Dual 4G HEVC/AVC Encoder V Mount

Teradek Prism Mobile Mk II Dual 4G HEVC/AVC Encoder V Mount is a portable 4K contribution encoder built for ENG, live broadcast, sports, events, and remote production. From the supplied source, it combines professional 12G-SDI and HDMI 2.0 video interfaces with two internal Node II LTE modems, H.264 / H.265 encoding, local recording, and cloud-based device management.

This is the kind of encoder that makes sense when a field crew needs to send broadcast-quality video without depending entirely on fixed network infrastructure. The internal cellular connections give the unit two mobile network paths, while Gigabit Ethernet, Wi-Fi, and supported transport protocols provide additional options for contribution and streaming.

Highlights

• Portable 4K HEVC / AVC contribution encoder for field production
• Two internal Node II LTE modems with CBRS support
• 12G-SDI and HDMI 2.0 input with HDR compatibility
• Up to one 4K DCI 60p 4:2:2 10-bit encoder stream
• TRT, SRT, RTMP, RIST, MPEG-TS, RTSP, HLS, and WHIP support

Quick Specs & Uses

• Product type: Portable dual-cellular 4K video encoder
• Primary workflows: ENG, live contribution, remote production, sports, events, and streaming
• Battery mount: V-Mount
• Video input: 1 x SD / HD / 3G / 6G / 12G-SDI, 75 Ω BNC
• HDMI input: 1 x HDMI 2.0 Type-A
• Video output: 1 x SD / HD / 3G / 6G / 12G-SDI, 75 Ω BNC
• HDR support: 2020-PQ, 2020-HLG, and P3D65-PQ
• Operating modes: Single encode; bidirectional encode / decode with additional license
• Bonding technology: Teradek Bonding Protocol and Teradek Reliable Transport
• Maximum encoder stream: Up to one 4K DCI 60p, 4:2:2, 10-bit stream
• Supported 4K DCI rates: 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, and 60p
• Supported 4K UHD rates: 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, and 60p
• Supported HD formats: 1080p, 1080i, 1080PsF, 720p, 576i, and 480i
• Video compression: AVC / H.264 Baseline, Main, and High profiles
• HEVC compression: H.265 Main profile
• Video bitrate: 250 kbps to 85 Mbps
• Format conversion: Built-in scaler and deinterlacer
• Color correction: CDL / 1024-point 1D LUT and 33 x 33 x 33 3D LUT with 10-bit support
• Network protocols: TCP/IP, UDP, HTTP, DHCP, NTP, TLS, and IGMP
• Transport protocols: TRT, SRT, RTMP / RTMPS, MPEG-TS, DASH, RTSP / RTP, RIST, HLS Client, and WHIP
• Integrated destinations: YouTube, Facebook, and Vimeo
• Remote management: Teradek Core Cloud and Private SDK
• Audio compression: AAC-LC
• Audio bitrate: 32 kbps to 512 kbps
• Audio input: Embedded SDI audio or 3.5 mm stereo line / microphone input with adjustable gain
• Audio output: 3.5 mm stereo headphone, 3.5 mm analog line level, or USB-A headset / audio interface
• Internal cellular: 2 x Node II LTE modems with CBRS support
• Ethernet: 2 x 10 / 100 / 1000BASE-T Gigabit Ethernet, RJ-45
• Wireless: 2.4 / 5 GHz 802.11 a/b/g/n/ac/ax MIMO Wi-Fi and BLE
• Recording storage: Full-size SD card, USB drive, and NFS
• Cloud integrations: Core Cloud, Frame.io, Sony Ci, Sony C3 Portal, Avid, PIX, and Moxion
• Configuration interfaces: Core Cloud, local web UI, iOS app, and OLED status display
• USB interfaces: 1 x powered LEMO for Node modem support and 1 x powered USB-A for Node modem or external storage
• Construction: Milled aluminum
• Mounting options: Camera-back, Gold Mount, Gold Mount 26V, V-Lock, or 1/4"-20 mounting
• Dimensions: 162 x 92 x 35 mm / 5.9 x 3.9 x 1.3 in
• Weight without plates: 664 g / 23.4 oz
• Weight with plates: 864 g / 30.5 oz
• Power input: 2-pin circular locking connector
• Auxiliary power input: 6 to 28V DC
• Power consumption: 20 W nominal; 36 W maximum

Why It Helps

This encoder is useful when a live contribution feed needs cellular connectivity built directly into the camera-side unit. The two internal LTE modems give the system multiple mobile network paths without requiring an external modem package for basic dual-cellular operation.

The video interface is designed for professional production equipment. A 12G-SDI or HDMI 2.0 source can be encoded in H.264 or H.265, while the SDI output provides a local signal path for monitoring or connection to another device in the camera chain.

The wide protocol support also gives engineers flexibility at the receive side. Teradek TRT and bonding support managed contribution workflows, while SRT, RIST, RTMP, MPEG-TS, RTSP, HLS, and WHIP cover a broader range of control-room, cloud, and streaming destinations.

System Characteristics

• Dual internal cellular connectivity through two Node II LTE modems
• 4K DCI and UHD encoding at frame rates up to 60p
• 10-bit 4:2:2 processing for supported 4K contribution workflows
• Built-in scaling and deinterlacing for field format conversion
• 1D and 3D LUT support for camera and contribution color workflows
• Local and cloud-based management through OLED, web UI, iOS, and Core Cloud
• Local recording support through SD card, USB storage, or NFS
• Bidirectional encode / decode operation with the required additional license

What’s In The Box

• 1 x Teradek Prism Mobile Mk II Dual 4G HEVC / AVC Encoder with V-Mount
