Teradek Prism Mobile Backpack Mk II 4G V Mount 4x 5G

Teradek Prism Mobile Backpack Mk II 4G V Mount 4x 5G is a portable 4K contribution and cellular-bonding package built for live broadcast, ENG, sports, event coverage, and remote production. From the supplied source, the Prism Mobile platform combines two internal Node II LTE modems with a backpack assembly carrying four external Node 5G modems, providing up to six simultaneous cellular connections.

This is the kind of system that makes sense when a crew needs a resilient transmission path away from fixed network infrastructure. The encoder accepts professional SDI or HDMI sources, bonds multiple cellular links through Teradek transport technology, and can send high-resolution video back to the control room while the camera team stays mobile.

Highlights

• Portable 4K cellular-bonded contribution system for field and remote production
• Up to six cellular connections using two internal LTE modems and four external 5G nodes
• 12G-SDI and HDMI 2.0 input with HDR support
• H.264 and H.265 encoding at bitrates from 250 kbps to 85 Mbps
• TRT, SRT, RTMP, RIST, MPEG-TS, RTSP, HLS, and WHIP support

Quick Specs & Uses

• Product type: Portable 4K cellular-bonded encoder and backpack system
• Primary workflows: ENG, live broadcast, sports, events, remote production, and mobile contribution
• Video input: 1 x SD / HD / 3G / 6G / 12G-SDI, 75 Ω BNC
• HDMI input: 1 x HDMI 2.0 Type-A
• Video output: 1 x SD / HD / 3G / 6G / 12G-SDI, 75 Ω BNC
• HDR support: 2020-PQ, 2020-HLG, and P3D65-PQ
• Operating modes: Single encode; bidirectional encode / decode with additional license
• Bonding technology: Teradek Bonding Protocol and Teradek Reliable Transport
• Maximum encoded stream: Up to one 4K DCI 60p, 4:2:2, 10-bit stream
• Supported 4K DCI rates: 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, and 60p
• Supported 4K UHD rates: 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, and 60p
• Supported HD formats: 1080p, 1080i, 1080PsF, 720p, 576i, and 480i
• Video compression: AVC / H.264 Baseline, Main, and High profiles
• HEVC compression: H.265 Main profile
• Video bitrate: 250 kbps to 85 Mbps
• Format conversion: Built-in scaler and deinterlacer
• Color correction: CDL / 1024-point 1D LUT and 33 x 33 x 33 3D LUT with 10-bit color support
• Network protocols: TCP/IP, UDP, HTTP, DHCP, NTP, TLS, and IGMP
• Transport protocols: TRT, SRT, RTMP / RTMPS, MPEG-TS, DASH, RTSP / RTP, RIST, HLS Client, and WHIP
• Integrated destinations: YouTube, Facebook, and Vimeo
• Remote control: Teradek Core Cloud and Private SDK
• Audio compression: AAC-LC
• Audio bitrate: 32 kbps to 512 kbps
• Audio input: Embedded SDI audio or 3.5 mm stereo line / microphone input with adjustable gain
• Audio output: 3.5 mm stereo headphone, 3.5 mm analog line level, or USB-A headset / audio interface
• Internal cellular: 2 x Node II LTE modems with CBRS support
• External cellular expansion: 4 x Node 5G modems through the backpack assembly
• Ethernet: 2 x 10 / 100 / 1000BASE-T Gigabit Ethernet, RJ-45
• Wireless: 2.4 / 5 GHz 802.11 a/b/g/n/ac/ax MIMO Wi-Fi and BLE for network configuration
• Recording storage: Full-size SD card, USB drive, and NFS
• Cloud integrations: Core Cloud, Frame.io, Sony Ci, Sony C3 Portal, Avid, PIX, and Moxion
• Configuration: Core Cloud, local web interface, iOS app, and OLED status display
• USB interfaces: 1 x powered LEMO for Node modem support and 1 x powered USB-A for Node modem or external storage
• Construction: Milled aluminum
• Mounting: Camera-back, Gold, Gold 26V, V-Lock, or 1/4"-20 mounting
• Dimensions: 162 x 92 x 35 mm / 5.9 x 3.9 x 1.3 in
• Weight without plates: 664 g / 23.4 oz
• Weight with plates: 864 g / 30.5 oz
• Power input: 2-pin circular locking connector
• Auxiliary power input: 6 to 28V DC
• Power consumption: 20 W nominal; 36 W maximum

Why It Helps

This package is useful when one cellular connection is not reliable enough for a live contribution feed. Prism Mobile can combine its built-in cellular paths with four additional 5G modems, giving the encoder more network diversity as the crew moves between coverage areas.

The professional video interface keeps the system practical for broadcast cameras and production switchers. A 12G-SDI or HDMI 2.0 source can be encoded as H.264 or H.265, while the SDI output provides a local signal path for monitoring or downstream equipment.

The transport options give engineers room to match the transmission method to the receiving workflow. TRT and Teradek bonding support managed contribution through the Teradek ecosystem, while SRT, RIST, RTMP, MPEG-TS, RTSP, HLS, and WHIP cover a wider range of control-room, cloud, and streaming destinations.

System Characteristics

• Multi-network cellular bonding with up to six active modem connections
• 4K DCI and UHD encoding at frame rates up to 60p
• 10-bit 4:2:2 processing for supported 4K contribution workflows
• Built-in scaling and deinterlacing for format conversion in the field
• 1D and 3D LUT support for camera and contribution color workflows
• Local and cloud-based management through OLED, web UI, iOS, and Core Cloud
• Local recording support through SD card, USB storage, or NFS
• Bidirectional encode / decode capability with the required additional license

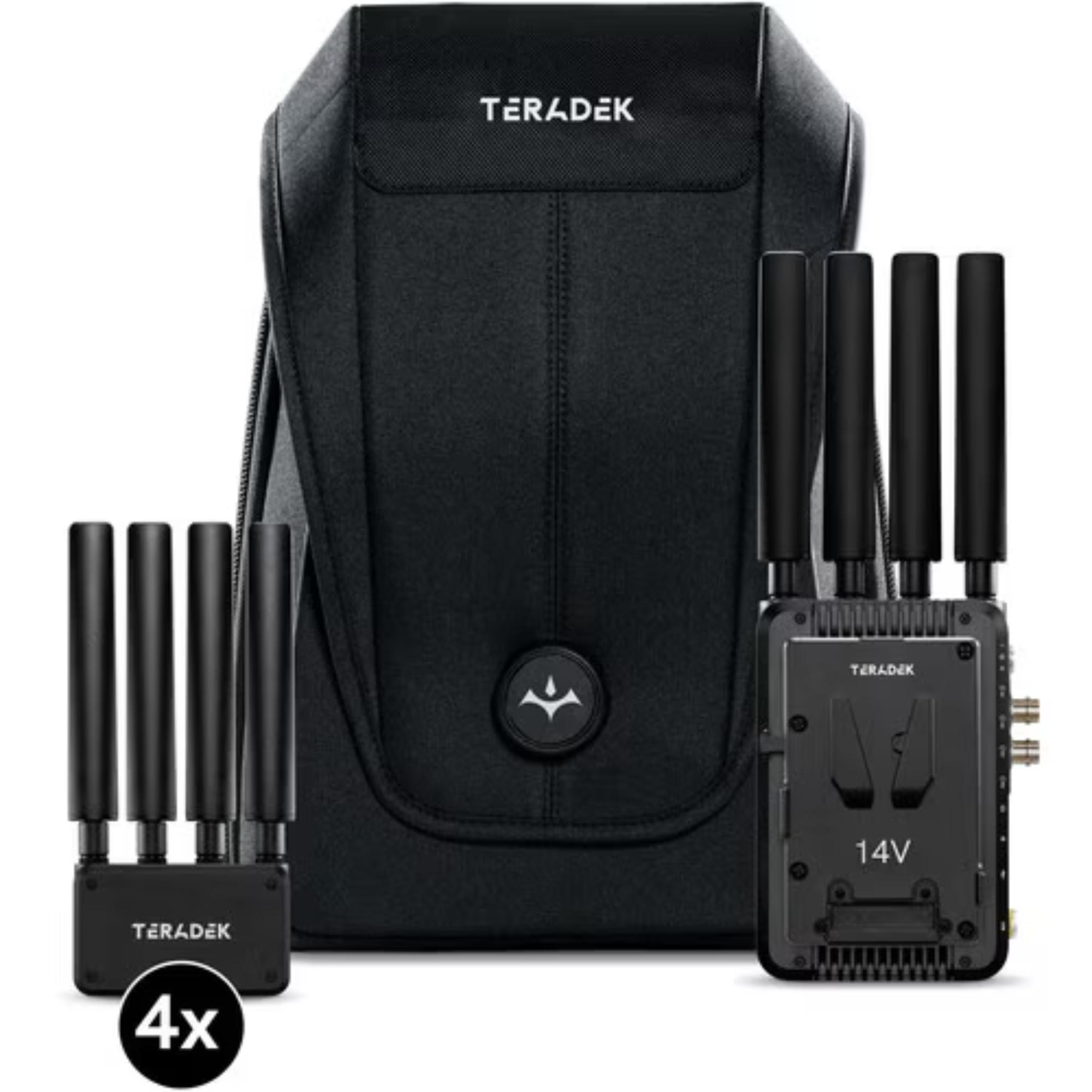

What’s In The Box

• 1 x Prism Mobile Mk II Gold Mount
• 1 x Backpack Bonding Assembly with Cabling
• 4 x Node 5G Modems
• 12 x Long Multi-Band SMA Antennas
• 12 x Short Multi-Band SMA Antennas
• 1 x 3.0A PTAP Power Supply

Configuration Note

The requested product name identifies a V-Mount package, while the supplied package list identifies the included Prism Mobile unit as Gold Mount. Confirm the battery-mount configuration before ordering.
