Teradek Prism Mobile Backpack Mk II 4G V Mount 2x 5G

Teradek Prism Mobile Backpack Mk II 4G V Mount 2x 5G is a portable 4K contribution and cellular-bonding package built for ENG, live broadcast, sports, event coverage, and remote production. From the supplied source, it combines a Prism Mobile Mk II V-Mount encoder, two internal Node II LTE modems, and two external Node 5G modems installed through the backpack bonding assembly.

This is the kind of system that makes sense when a field crew needs more network resilience than a single modem can provide. The encoder accepts professional SDI or HDMI sources, combines available cellular paths through Teradek bonding technology, and sends high-resolution video back to the control room while the camera package remains mobile.

Highlights

• Portable 4K cellular-bonded contribution system for live field production
• Four available cellular paths using two internal LTE modems and two external 5G nodes
• 12G-SDI and HDMI 2.0 input with HDR support
• H.264 and H.265 encoding from 250 kbps to 85 Mbps
• TRT, SRT, RTMP, RIST, MPEG-TS, RTSP, HLS, and WHIP support

Quick Specs & Uses

• Product type: Portable 4K cellular-bonded encoder and backpack system
• Primary workflows: ENG, remote production, sports, events, live broadcast, and mobile contribution
• Battery mount: V-Mount
• Video input: 1 x SD / HD / 3G / 6G / 12G-SDI, 75 Ω BNC
• HDMI input: 1 x HDMI 2.0 Type-A
• Video output: 1 x SD / HD / 3G / 6G / 12G-SDI, 75 Ω BNC
• HDR support: 2020-PQ, 2020-HLG, and P3D65-PQ
• Operating modes: Single encode; bidirectional encode / decode with additional license
• Bonding technology: Teradek Bonding Protocol and Teradek Reliable Transport
• Maximum encoder stream: Up to one 4K DCI 60p, 4:2:2, 10-bit stream
• Supported 4K DCI rates: 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, and 60p
• Supported 4K UHD rates: 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, and 60p
• Supported HD formats: 1080p, 1080i, 1080PsF, 720p, 576i, and 480i
• Video compression: AVC / H.264 Baseline, Main, and High profiles
• HEVC compression: H.265 Main profile
• Video bitrate: 250 kbps to 85 Mbps
• Format conversion: Built-in scaler and deinterlacer
• Color correction: CDL / 1024-point 1D LUT and 33 x 33 x 33 3D LUT with 10-bit support
• Network protocols: TCP/IP, UDP, HTTP, DHCP, NTP, TLS, and IGMP
• Transport protocols: TRT, SRT, RTMP / RTMPS, MPEG-TS, DASH, RTSP / RTP, RIST, HLS Client, and WHIP
• Integrated destinations: YouTube, Facebook, and Vimeo
• Remote management: Teradek Core Cloud and Private SDK
• Audio compression: AAC-LC
• Audio bitrate: 32 kbps to 512 kbps
• Audio input: Embedded SDI audio or 3.5 mm stereo line / microphone input with adjustable gain
• Audio output: 3.5 mm headphone output, 3.5 mm line output, or USB-A headset / audio interface
• Internal cellular: 2 x Node II LTE modems with CBRS support
• External cellular expansion: 2 x Node 5G modems through the backpack assembly
• Total cellular connections in this package: Up to 4 simultaneous connections
• Ethernet: 2 x 10 / 100 / 1000BASE-T Gigabit Ethernet, RJ-45
• Wireless: 2.4 / 5 GHz 802.11 a/b/g/n/ac/ax MIMO Wi-Fi and BLE
• Recording storage: Full-size SD card, USB drive, and NFS
• Cloud integrations: Core Cloud, Frame.io, Sony Ci, Sony C3 Portal, Avid, PIX, and Moxion
• Configuration: Core Cloud, local web interface, iOS app, and OLED status display
• USB interfaces: 1 x powered LEMO for Node modem support and 1 x powered USB-A for Node modem or external storage
• Construction: Milled aluminum
• Mounting: Camera-back, Gold, Gold 26V, V-Lock, or 1/4"-20 mounting
• Dimensions: 162 x 92 x 35 mm / 5.9 x 3.9 x 1.3 in
• Weight without plates: 664 g / 23.4 oz
• Weight with plates: 864 g / 30.5 oz
• Power input: 2-pin circular locking connector
• Auxiliary power input: 6 to 28V DC
• Power consumption: 20 W nominal; 36 W maximum

Why It Helps

This package is useful when a live contribution feed needs more than one available network path. The Prism Mobile can combine its two internal LTE modems with the two supplied 5G nodes, giving the encoder four cellular connections to work with as signal conditions change in the field.

The professional video interface keeps it practical for broadcast cameras and switchers. A 12G-SDI or HDMI 2.0 source can be encoded as H.264 or H.265, while the SDI output provides a local path for monitoring or connection to other production equipment.

The transport options also give engineers flexibility at the receive side. TRT and Teradek bonding support managed Teradek workflows, while SRT, RIST, RTMP, MPEG-TS, RTSP, HLS, and WHIP cover a wider range of control-room, cloud, and streaming destinations.

System Characteristics

• Four-path cellular bonding with two LTE and two 5G modem connections
• 4K DCI and UHD encoding at frame rates up to 60p
• 10-bit 4:2:2 processing for supported 4K contribution workflows
• Built-in scaling and deinterlacing for field format conversion
• 1D and 3D LUT support for camera and contribution color workflows
• Local and cloud-based control through OLED, web UI, iOS, and Core Cloud
• Local recording support through SD card, USB storage, or NFS
• Bidirectional encode / decode operation with the required additional license

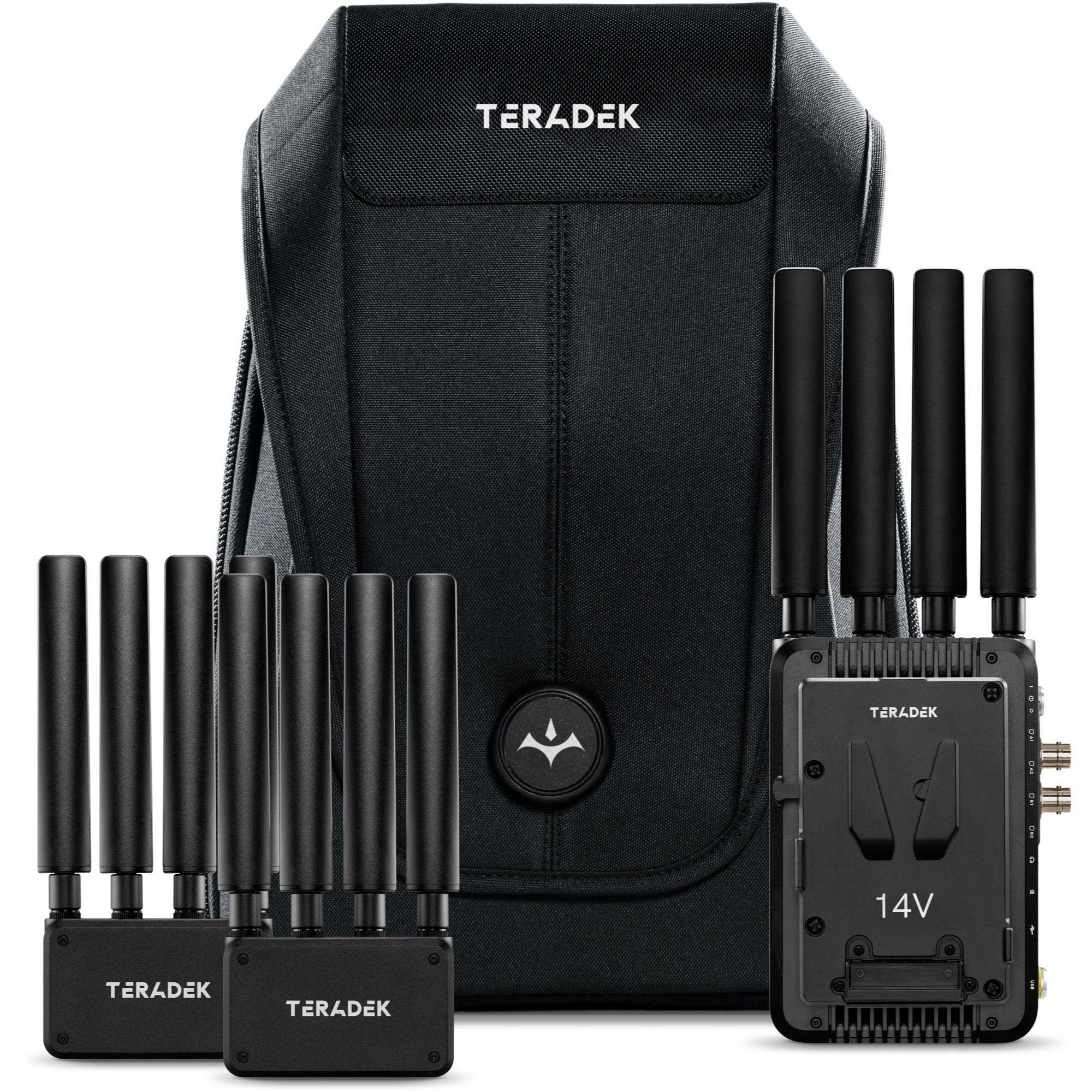

What’s In The Box

• 1 x Prism Mobile Mk II V-Mount
• 1 x Backpack Bonding Assembly with Cabling
• 2 x Node 5G Modems
• 12 x Long Multi-Band SMA Antennas
• 4 x Short Multi-Band SMA Antennas
• 1 x 3.0A PTAP Power Supply
